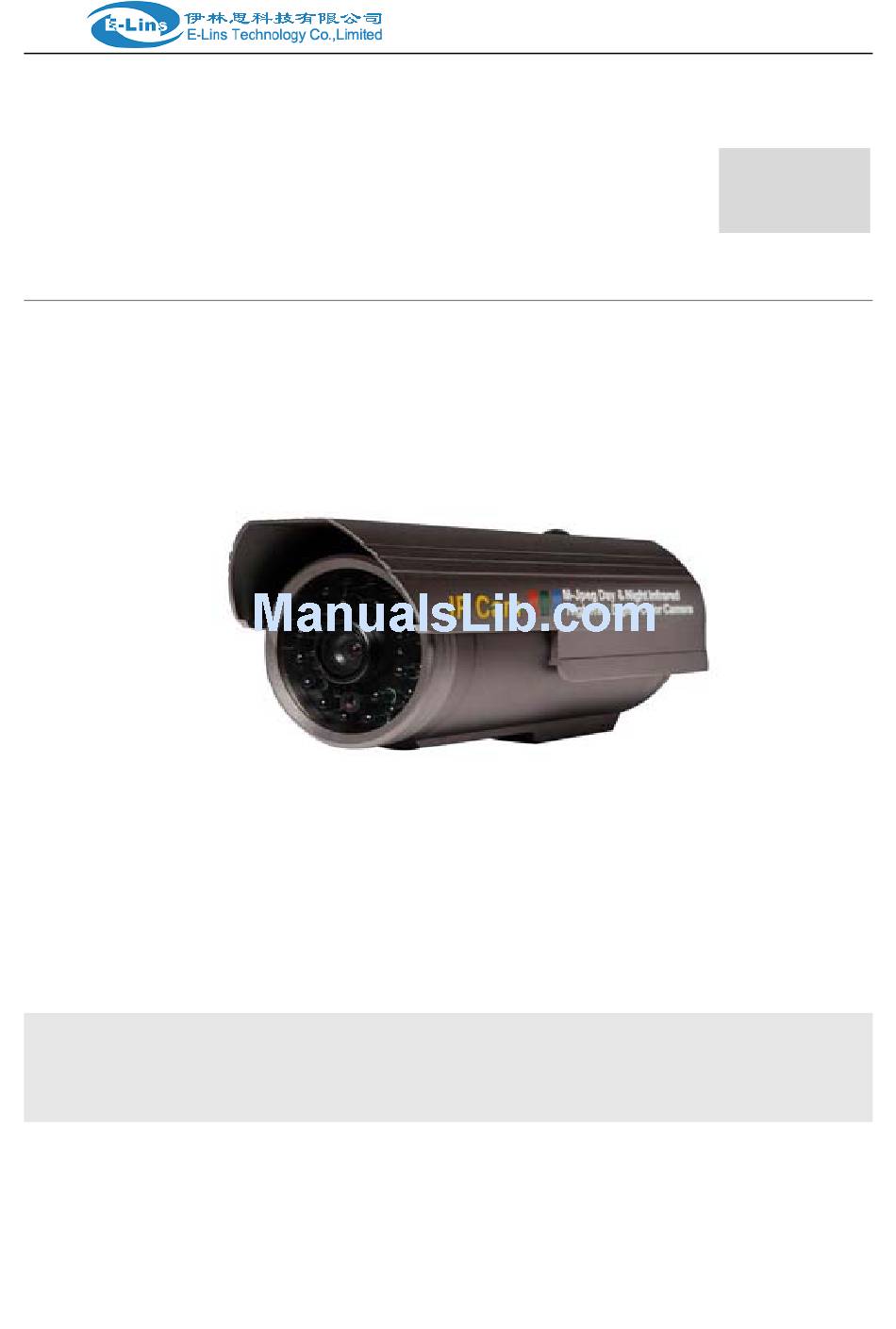

C100 Series IP Camera User Manual V1.2 Wireless IP Camera Capture System C100 Series IP Camera User Manual E-lins Technology Co.,Limited Add: Bld22., Longxi Garden, Nonglin Rd., Futian District, Shenzhen, 518000, China Tel: +86-755-83700465 E-mail: sales@szelins.com www.szelins.com... - Page 2 Standard MJPEG compression format ensures clear and streaming video performance. It enables users to view via IE browser, centre management software client software; C100 series product are applicable for big, medium-sized and small enterprises, chain store, factory, home and all kinds of spots where remote network video transmission and control supposed to be installed, They are easy to install and operate.
-
Page 3: Table Of Contents
C100 Series IP Camera User Manual 1.1 Applications..................5 1.2. Product Specifications..............6 1.3 Parameters Form................6 1.4 System Requirements ..............7 2. Interface & Installation ..............8 2.1. Interface..................8 2.2. Installation ..................9 2.2.1. Installation in LAN....................10 2.2.2. - Page 4 C100 Series IP Camera User Manual 5.2.2. Device Parameters ....................30 5.2.3. Alarm ........................31 5.2.4. Recording ........................32 5.2.5. Plan Action ......................34 5.2.6. Others ........................34 6. Platform Introduction..............35 7. Mobile View .................. 36 7.1. Download Program on Mobile............ 36 7.2. Download Program on Computer ..........36 8.
-
Page 5: General Introduction
C100 Series IP Camera User Manual Chapter 1 1 General Introduction IP Camera is a new generation product with the combination of analog camera & IP video technology. Despite all functions which analog cameras have, IP camera can compress and encrypt video and audio signal then send it to remote terminals through internet with its built-in processor and web server. -
Page 6: Product Specifications
C100 Series IP Camera User Manual 1.2. Product Specifications *- Adopt high Performance, strong function media processor 32Bit RSIC *- High sensor CMOS *-Adopt optimized MJPEG video compression algorithm, realize high-definition images transmission in narrow bandwidth; *-Maximum support 15 users viewing at the same time, no limit for users if using Forwarder Server function;... -
Page 7: System Requirements
C100 Series IP Camera User Manual IE browse or special program Monitor Mode Microsoft Media Player Playback Mode 3rd ranks password authority setting Security Minimum illumination 2.0Lux@550nm Support Auto White Balance -10C°– 50C°, 20% - 80%PH Working environment 1.4 System Requirements Minimum Hardware Configuration CPU: Pentium 1.6 GHz... -
Page 8: Interface & Installation
C100 Series IP Camera User Manual Chapter 2 2. Interface & Installation There are two kinds of F series IP camera interfaces: one is body guard interface, the other is the extend line interface, set two representative products as examples, to give explanation:... -
Page 9: Installation
C100 Series IP Camera User Manual Power Supply Light: constant on after power up Network light: constant sparkle after power up data transmission. Ethernet interface: RJ-45 interface. I/O interface: 1 router alarm input, accept 3, 4 two terminals (input terminal grounding, low level effective trigger);... -
Page 10: Installation In Lan
C100 Series IP Camera User Manual 2.2.1. Installation in LAN. This is the most popular network access way, as long as there is a router, internet cable connect router directly to IP Camera, IP Camera can connect to Internet as normal PC, as shows: 2.2.2. -
Page 11: Ip Camera & Pc Connection
C100 Series IP Camera User Manual 2.2.3. IP Camera & PC connection This method is not used too often, when you process machine write parameter or program shift, we recommend you adopt the first connect network way, to process the modification of machine parameter. -
Page 12: Configure Method
C100 Series IP Camera User Manual Chapter 3 3 Configure method If you need to access external networks through a router to connect to the Internet, network cameras, to be carried out within the router network settings, so that it can be a normal dial-up Internet access. Here we G285 router, for example, to WEB interface settings. -
Page 13: Application
C100 Series IP Camera User Manual WEB page, including status display, link configuration, wireless configuration, system configuration, application configuration, Router switches, upgrade restart, parameter save. 3.2. Application In this page, we can make sure the Mode type, Virtual service and so on. - Page 14 C100 Series IP Camera User Manual Parameters for China Mobile, GPRS, and APN is “CMNET” Parameters for China Unicom, CDMA, and the APN fill “AT\&D2” A sample for APN network A sample for VPDN network E-Lins Technology Co.,Limited Tel: +86-755-83700465 E-mail: sales@szelins.com www.szelins.com...
-
Page 15: Ie Browse To Ip Camera
C100 Series IP Camera User Manual Chapter 4 4. IE Browse to IP Camera After IP camera connects to PC LAN through router, you can operate on IP camera via PC, first please run the relative software in the CD kit 4.1. - Page 16 C100 Series IP Camera User Manual If the internet cable power connect is correct, it appears device styles, name, and IP address in the device list, (if it doesn’t appear, please confirm power & internet cable work normally). As the interface, left side is the current computer configuration information;...
-
Page 17: Logging And Active X Installation
C100 Series IP Camera User Manual forwarding set. 4.2. Logging and Active X Installation Before IE monitoring through web, it is necessary to install video plug-in, there are 2 kinds of installation mode as below: 1. Open disk, open , open... - Page 18 C100 Series IP Camera User Manual 2. Open web page, you can click open button behind inner visit address or outer visit address in the search bar directly, also directly input relatively inner and outer visit address in web page address bar, like the above photo address http://192.168.1.126(LAN), http://aodn.ipcam.hk(WAN).
-
Page 19: Operation Button
C100 Series IP Camera User Manual block Note: 1. Default device account is admin, no password. 2. M series IP camera doesn’t support Firefox browser, but F series support. 4.3. Operation Button Enter device, on left side displays monitor image, right side is control used for operations: 4.3.1. -
Page 20: Operation
C100 Series IP Camera User Manual 4.3.3. Operation 1. Image mirror indicates a reverse image. 2. Resolution, mode, brightness, contrast default setting are:320*240,50HZ,6,4, mode is mainly for the adjustment of Light strength, please adjust to 60HZ when light is poor or in dark. - Page 21 C100 Series IP Camera User Manual Note: in basic setting, when you make a modification, please click setting. A hint interface will pop up 1)the right interface will indicate the parameter setting operation is successful, please click OK then refresh.
- Page 22 C100 Series IP Camera User Manual 4.4.1. Device Information The device information includes the above interfaces, device serial number (MAC) device system firmware version, device application firmware version. 4.4.2. Device Name Settings Here it displays camera name, : search displayed name on search bar, e.g.
- Page 23 C100 Series IP Camera User Manual 4.4.4. Device User Settings User can proceed with setting according to the interface below. The system is available for administrator, operator, visitor, and the authority will in turn. Note: At least one administrator is needed for the device;...
- Page 24 C100 Series IP Camera User Manual wireless networking setting, there security modes: None,WEP,WPA Personal(TKIP),WPA Personal(AES),WPA2 Personal(AES),WAP2 (TKIP+AES). Note: 1. T o connect internet through wireless network, the camera SSID must be the same with the wireless router and other AP device SSID number, 2.
- Page 25 C100 Series IP Camera User Manual The above setting is a preparation for the alarm function, the sender should be entered the sender’s email address, recipient 1,2,3,4 is filled with recipient E-mail address；SMTP server should be filled with the sender email SMTP server, e.g.
- Page 26 C100 Series IP Camera User Manual image interval(second). 4.4.10. Alarm Service Settings As shown below, there are two modes of alarm trigger, first one is motion detection, pleas refer to below interface, the sensitivity of motion detection can be adjusted according to the users′ requirement, the higher the number is, the lower sensitivity is;...
-
Page 27: Restore Factory Settings
C100 Series IP Camera User Manual 4.4.12 Restore factory Settings When users forget password, we can restore ex-factory settings, when click, a picture will pop up, Click ok, and wait for 1 minute and you can use it normally. User setting feature restores 4.4.13 Reboot Equipment... -
Page 28: Brief Introduction To Cms (Centre Management Software)
C100 Series IP Camera User Manual Chapter 5 5. Brief Introduction to CMS (centre management software) An Integrated system refers to a platform which set a centralized management of IP Camera, powerful, extendable, supportive to all product series of our... -
Page 29: Basic Information
C100 Series IP Camera User Manual When finishing adding camera, once needs to do other settings, please select the camera, and right click to choose equipment setting and then set the following parameters, also when click one monitor screen, click... -
Page 30: Device Parameters
C100 Series IP Camera User Manual 5.2.2. Device Parameters This page contains the audio information of the device, the current page information refers to the integrated factory defaults, click for information, and obtain the current information, when modify it. Click application and save. -
Page 31: Alarm
C100 Series IP Camera User Manual 5.2.3. Alarm When needs alarm function, select start alarm, clicks add button like the above photo. Here you can select alarm week, time, alarm duration time, trigger term and trigger action. The trigger action supports audio, video, alarm, people flow statistics, e-mail, equipment terminal siren etc. -
Page 32: Recording
C100 Series IP Camera User Manual 5.2.4. Recording Recording is the basic performance of IP CMS software. There are 3 full –time recording, planned recording and record when recording modes: alarming. Planned recording can assign the week and time interval of recording. - Page 33 C100 Series IP Camera User Manual Recording file can be saved on appointed multiple zones, can set recording covering time, when disk is full, it will overwrite the information automatically. For IP Camera with MJPEG compression format, data can be compressed into MPEG4 format to save, it will reduce disk space.
-
Page 34: Plan Action
C100 Series IP Camera User Manual Record when alarming, set when alarming. Start alarm and use the alarm action to record. 5.2.5. Plan Action Here it is used for setting watch mode at some time, 50Hz, 60Hz, outdoor use is available, and in order to meet different light conditions to watch. -
Page 35: Platform Introduction
C100 Series IP Camera User Manual Chapter 6 6. Platform Introduction Platform address: http://szelins.3322.org/ From the comparison aspect of website browse and center management terminal monitor, terrace is as the integration of all advantages, it not only realize website browse & multiple images management, but also add many feature functions: Use network browser to visit, no need install client software. -
Page 36: Mobile View
C100 Series IP Camera User Manual Chapter 7 7. Mobile View First, cell phone must open WAP function, and then install cell phone software; there are two installation ways as follow: 7.1. Download Program on Mobile Http://szelins.3322.org After visit, it appears the following interface. - Page 37 C100 Series IP Camera User Manual Following is the use instruction Operate program Mobile View on cell phone. Interface appears as follows: (different cell phones may exist differences in interfaces) Select “add”, add visited equipment, interface appears as follows: Input visit address/ item mode: input equipment item code or visit address.
- Page 38 C100 Series IP Camera User Manual Click “ open”, “ ok”, and waiting, display following interface, you can see the live image: During the watch process, press cell phone keyboard 2can control P/T upward, 8 controls downward, 4 & 6 leftward & rightward. Or use direct button to control.
-
Page 39: Others
C100 Series IP Camera User Manual Chapter 8 8. Others 8.1. Linkage Alarm Host Linkage alarm host is a configured product combined to IP camera perfectly, wireless alarm detection equipment send off wireless alarm signal, e.g., wireless door sensor, wireless IR detector, etc. Event triggers alarm, alarm host starts to alarm, at the same time, camera starts to record image etc. -
Page 40: C Series Production Specification (Part)
C100 Series IP Camera User Manual Supply Power DC +12V/0.3A LED display Code display Matching alarm device: Wireless Magnetic Door Infrared Arm and withdraw garrison remote controller detector Concrete settings please refer to linkage alarm host help instruction. 8.2. C series Production Specification (Part) The series own variety of different configured production specification, users can select to use as required. - Page 41 C100 Series IP Camera User Manual E-Lins Technology Co.,Limited Tel: +86-755-83700465 E-mail: sales@szelins.com www.szelins.com...
