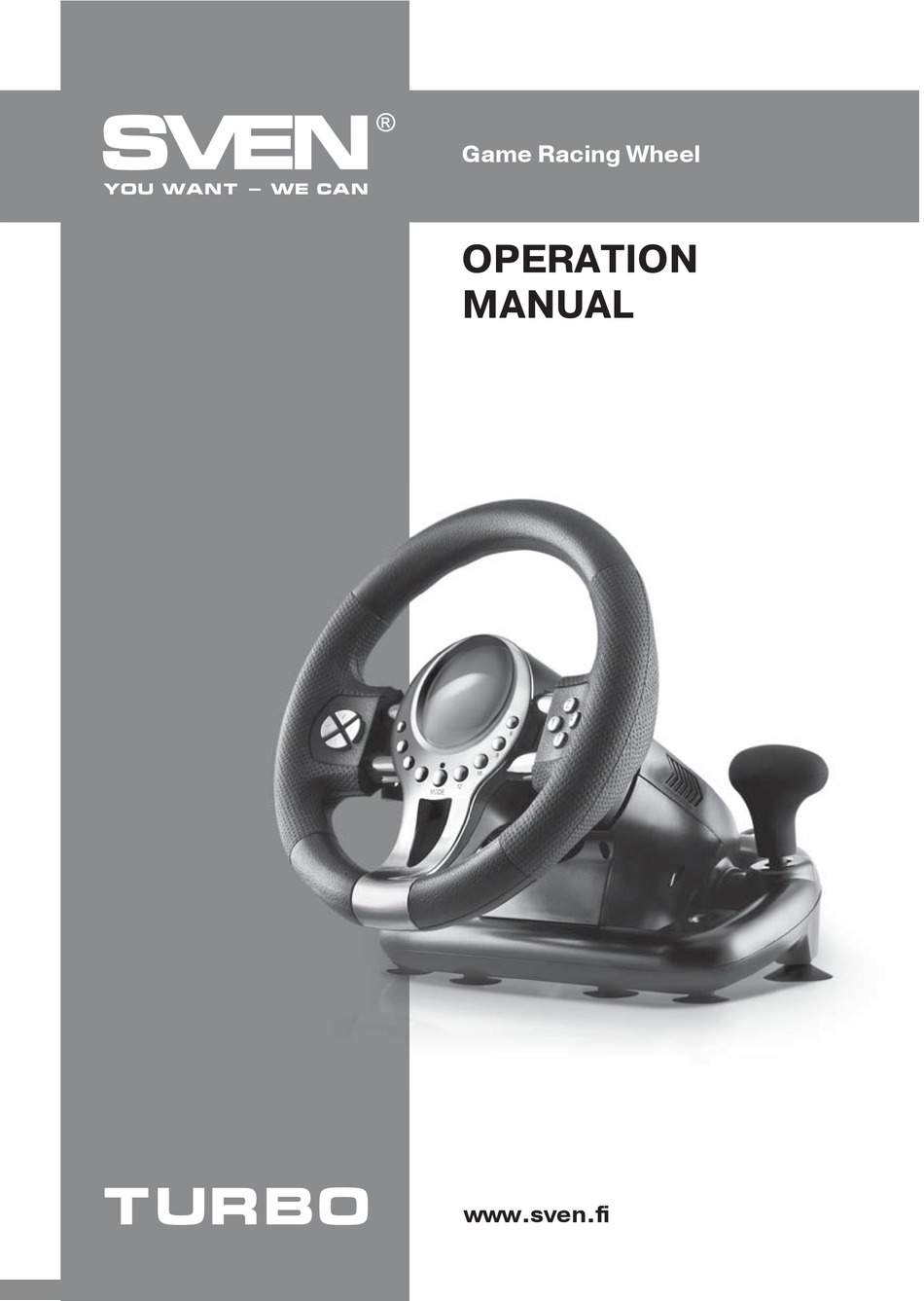

- Page 1 Game Racing Wheel OPERATION MANUAL turbO www.sven.fi...
-
Page 2: Troubleshooting
Please read this Operation Manual before using the unit and retain this Operation Manual in safe place for future reference. COPYRIGHT © 2014. SVEN PTE. LTD. Version 1.0 (V 1.0). This manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders. - Page 3 Panel with brake and acceleration pedals makes it possible to gain speed or brake in a flash. Rubber suction caps and/or fixation stand provide secure fixation of TURBO to the table ensuring steadiness during games. 2. SAFETY PRECAUTIONS •...
-
Page 4: Description Of The Construction
Operation Manual 6. DESCRIPTION OF THE CONSTRUCTION a Racing wheel b Rubber coating c D-Pad d Buttons 5, 7, 9, 11 e Paddle shifters f MODE button g Buttons 1–4 h Buttons 6, 8, 10, 12 i Lever for changing gears... -
Page 5: Connection And Installation
Game Racing Wheel 7. CONNECTION AND INSTALLATION • Install the device on even surface (for example, on a table) on its 5 suction caps. If necessary fasten it with the fixation stand (see Fig. 2). • Connect pedal unit to the device (Fig. 3) via cable of the pedal unit to RJ-11 jack n, then connect USB cable o of the device to the USB port of the computer. - Page 6 Operation Manual to pressing of pedals and turns of the wheel will be, therefore necessary adjustments within Lower to Higher range should be made by cursors (Fig. 8); • KeyMap Setup reprograms functional keys: there should be chosen new necessary assignment against the key designation (Fig.
- Page 7 Game Racing Wheel • Operation without pedal unit. Game racing wheel is equipped with paddle shifters e that substitute acceleration and brake pedals: the left paddle shifter functions as a brake pedal, while the right paddle shifter functions as an acceleration pedal. 8.
- Page 8 Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
