Summary of Contents for Lightning Audio LA-1000

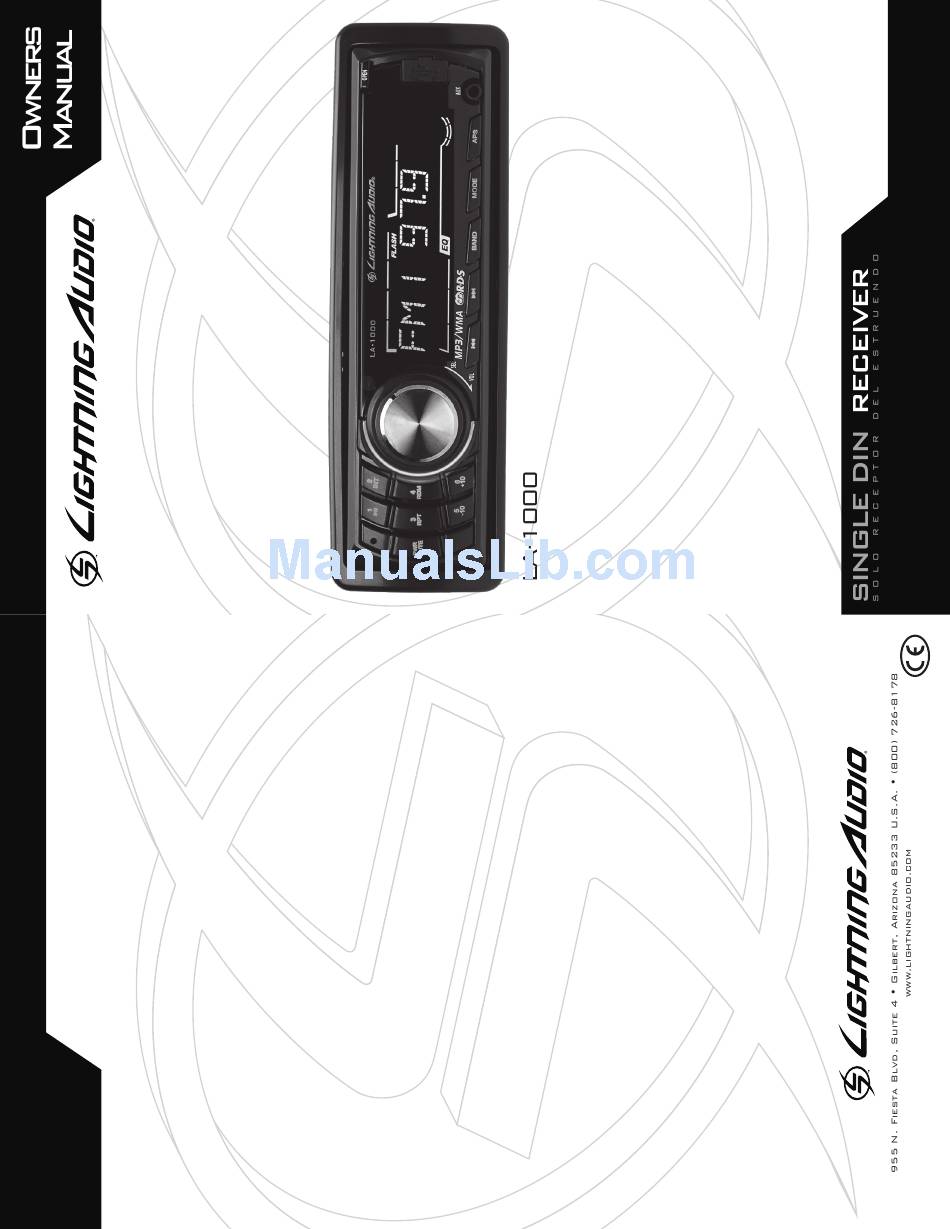

- Page 1 China Printed 1230-58188-01 020613...
-
Page 2: Table Of Contents
Dear Customer, If, after reading your manual, you still have questions regarding this product, we recommend that you see your Lightning Audio dealer. If you Congratulations on your purchase. At Lightning Audio we are need further assistance, you can call us direct at 1-800-669-9899. Be sure pleased that you chose our product. -
Page 3: Specifications
Compatibility ©2013 Rockford Corporation. All Rights Reserved. LIGHTNING AUDIO and associated logos where applicable, are registered trademarks of Rockford Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications subject to change without notice. -
Page 4: Design Features

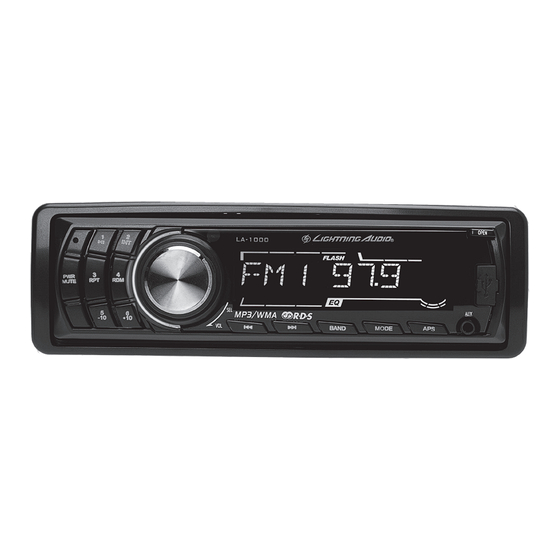

OPEN POWER/MUTE button USB input MUTE 3/REPEAT button SE L AUX input BAND MODE 4/RANDOM button APS button 5/-10 button REV button MODE button 6/+10 button FWD button BAND button LA-1000 LED indicator RESET SD Card slot RESET button illus.-1.1... - Page 5 Design Features - Back LA-1000 RCA out SOCKET A SOCKET B ANTENNA input SUBWOOFER line out Wiring harnesses included illus.-1.2...
-
Page 6: Installation
If you feel unsure about installing this system yourself, have it installed by Under Dash a qualified Lightning Audio technician. Mounting the source unit under the dash is adequate, but does not provide Before installation, disconnect the battery negative (-) terminal to prevent easy access. - Page 7 Installation Metal Support Strap Metal Mounting Sleeve Bend tabs against dashboard with a screwdriver. Unit Chassis Fixed Faceplate Front Panel Plastic Trim Ring To remove the unit from the metal mounting sleeve, insert the two keys supplied into the left and right side slots of the chassis at the same time. Then pull the chassis out of the metal mounting sleeve as shown.
-
Page 8: Operation
Operation Basic Operation: EQ mode The unit has predefined EQ settings to adjust your levels to compliment the music To turn the unit on/off being played. When the unit power is Off, it may be switched On by pressing any button except USERSET/FLAT/CLASSIC/ROCK/POP the OPEN button. - Page 9 Operation To search for a radio station manually or automatically TA [TRAFFIC ANNOUNCEMENT] mode Press and hold the >>| button to activate MANUAL searching mode. When TA mode is on (TA is displayed on LCD), it will begin to seek TA station and TA SEEK will be displayed on LCD.
- Page 10 Operation 9. To quickly select a track to play Remote Control Press APS or A.P button repeatedly to select TRACK SEARCH, FIRST CHARACTER POWER button button SEARCH or DIRECTORY SEARCH mode. POWER MUTE button SEL (Select) button 1) In TRACK SEARCH mode , the LCD will display TRK 000 and flash the biggest MUTE digit 0 that the USB stick or SD card contains.
-
Page 11: Troubleshooting
Troubleshooting Symptom Diagnosis Remedy Basic Blown fuse Check fuse of the unit, replace with correct rating. If connected following the instructions, the unit will not Vehicle’s ignition is off operate with ignition off. Check battery connection and fuses and repair or Source unit does not turn on. - Page 12 This warranty covers only the original purchaser of Lightning Audio product purchased from an authorized Lightning Audio Dealer in the United States. In order to receive service, the purchaser must provide Lightning Audio with a dated copy of the sales receipt stating the customer name, dealer name and product(s) purchased.
