Summary of Contents for Permobil Corpus/X850

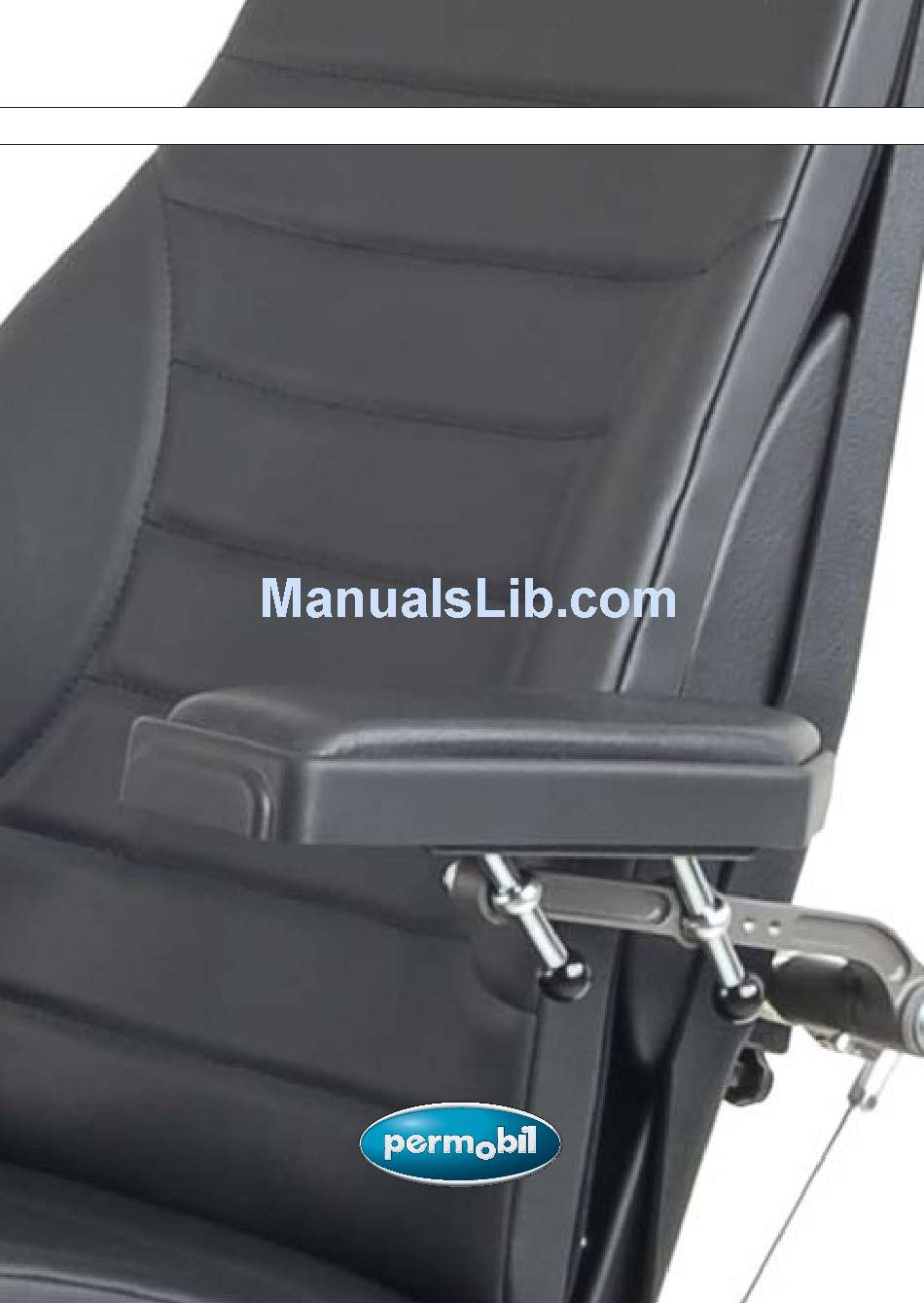

- Page 1 USER MANUAL Corpus/ X850 Seat system for electric wheelchair...
- Page 3 6961 Eastgate Blvd. Lebanon, TN 37090 Phone: 800-736-0925 Fax: 800-231-3256 Email: info@permobilusa.com Head Office of the Permobil group Permobil AB Box 120 861 23 Timrå Sweden Tel: +46 60 59 59 00 Fax: +46 60 57 52 50 E-mail: info@permobil.se...
- Page 4 Corpus/ X850 Seat system for electric wheelchair Produced and published by Permobil AB, Sweden Version no.: 1 - 2009-06 Product code: 205244-US-0...
-
Page 5: Table Of Contents
User Manual Corpus Contents Important information about this user manual ..........6 Technical support ....................7 Accessories and spare parts................7 Disposal of seat ....................7 Warranty ......................7 Safety instructions..................8-15 Design and function ..................16 General ......................16 Seat Elevator ....................18 Seat angle ....................18 Electric backrest....................19 Electric legrest ....................19 Seat Control Switchbox ................20 Manual seat functions - Backrest angle............22... -
Page 6: Important Information About This User Manual
Important information about the user manual Important Information about this Owner’s Manual We congratulate you on your choice of a product from Permobil. Our goal is for you to continue to feel satisfied with your choice of both vendor and product. -
Page 7: Technical Support
Contact Permobil Inc. for information about scrapping agreements. WARRANTY A warranty registration card is attached to each new wheelchair. The Permobil Inc. Product Warranty Information sets forth the conditions of the warranty. Contact your dealer or Permobil Inc USA for information about the warranty... -
Page 8: Safety Instructions
Risk of personal injury or damage to the wheelchair and its surroundings. CAUTION Permobil accepts no liability for personal injury or damage to property which may arise from the failure of the user or other persons to follow the recommendations, warnings and instructions given in this user manual. - Page 9 • Check that no transport damage or other damage has occurred to the seat and its accessories. If you discover any damage or see any other problem, contact your mobility aids center or Permobil as soon as possible for further information before you continue the check.
-
Page 10: Safety Instructions
User Manual Corpus Safety instructions Safety instructions WARNING Risk of pinching Please note that the seat is heavy and contains many moving parts, which means there will always be some risk of pinching. Use the seat’s electric seat functions with the greatest care. Above all: when you have moved up to or under a table or other fixed or moveable objects, always make sure there are no items in the immediate vicinity which could interfere with the seat’s moving parts. - Page 11 WARNING Positioning Belt Permobil’s positioning belt is only designed to aid in the positioning of the user in the seating system and not as protection in the event of a collision/accident. Check the condition of the belts regularly in case any damage or worn areas have developed.
- Page 12 Ignoring this could impair the wheelchair’s maneuverability and stability. Use in different climates Permobil’s seats are designed to tolerate most weather conditions, but you should avoid exposing the seat to severe cold, persistent dampness, heavy rain/snowfall and similar situations. If the seat is exposed to any of these, do not use it again until it has completely dried out.
- Page 13 Permobil recommends that users NOT be transported in any kind of vehicle while in their wheelchair, unless the user is in an approved Permobil wheelchair configuration, has secured the wheelchair using a Permolock, and is using a seatbelt attached to the vehicle. The only other safe alternative is that users be transferred into factory vehicle seating for transportation and use safety restraints made available by the auto industry.
- Page 14 Failure to do so can lead to personal injury. Do not use parts or accessories not authorized by Permobil. Use of unap- proved ”aftermarket” accessories and parts may cause changes in the wheel- chair, which may make the wheelchair unstable or uncontrollable.
- Page 15 Permobil for more information. It’s also of greatest importance that Permobil be informed if the wheelchair and its accessories have been subjected to transport damages, damages during driving or damages due to another cause as soon as possible after the event.
-
Page 16: Design And Function
User Manual Corpus Design and function Design and function General Corpus is an ergonomically shaped seat that can be easily adjusted according to the user’s needs. The seat is built up of modules, with the seat frame consti- tuting the core element, which can then be supplemented with a selection of seats, backrests, armrests and accessories such as a thigh rest, lateral support, chest rest, headrest, etc. - Page 17 User Manual Corpus Design and function Design and function Electrical seat functions (may vary depending on the equipment fitted on your wheelchair) The electrical seat functions are driven by an electric actuator which is steplessly controlled from the wheelchair control panel or a seat control switchbox, nor- mally located next to the control panel.
-
Page 18: Seat Elevator
User Manual Corpus Design and function Design and function Electric Seat Elevator An electrically controlled seat eleva- tor permits steplessly variable raising or lowering of the seat in order to adjust the height to tables, benches etc. Whenever the seat elevator is raised from its lowest position, the maxi- mum speed of the wheelchair will be reduced. -
Page 19: Electric Backrest
User Manual Corpus Design and function Design and function Electric Backrest Recline The electrically controlled backrest permits steplessly variable adjust- ment of the backrest angle. Electric backrest WARNING There will always be a pinching risk when the electrical functions are in action. -
Page 20: Seat Control Switchbox
User Manual Corpus Design and function Design and function The electrical functions of the seat can be controlled from the seat’s seat control switchbox or via the wheelchair’s joystick. For more details, see the chassis user manual. Seat Control Switchbox The wheelchair’s seat control switchbox is fixed to the right or left armrest behind the control... - Page 21 User Manual Corpus Design and function Design and function Seat Elevator The seat can be raised by pressing the top half of the button and lowered by pressing the bottom half. Backrest Recline Angle The backrest can be moved backwards by pressing the lower part of the button and brought back by pressing the upper part.
-
Page 22: Manual Seat Functions - Backrest Angle
User Manual Corpus Design and function Design and function Manual seat functions - Backrest angle The angle of the backrest is adjusted via an adjustable locking tube with a quick- acting lock in a number of fixed positions. From an upright position, the backrest can be inclined max. -
Page 23: Settings
User Manual Corpus Settings Settings Armrest The height and angle of both armrests can be adjusted for optimum comfort. 1. Undo the two lock nuts on the inside of the armrest bracket. 2. Adjust to the required height/angle and tighten the nuts. 3. -
Page 24: Lumbar Support
User Manual Corpus Settings Settings Lumbar Support The lumbar support consists of three back cushions with Velcro fastening which can be separated, depending on how much back support is required. 1. Remove the backrest cushion. 2. Adjust the back curve support as required. 3. -
Page 25: Lateral Support
User Manual Corpus Settings Settings Lateral Support Adjustment of height 1. Remove the backrest cushion. 2. Undo the knobs holding the lateral support to the rear of the backrest. 3. Adjust the height of the lateral support to the required position. 4. -
Page 26: Headrest
User Manual Corpus Settings Settings Headrest (accessory) Adjustment of height 1. Undo the knob (1) on the rear of the backrest, see illustration. 2. Adjust the height of the headrest as required. 3. Tighten the knob (1). Headrest adjustment. Adjustment forwards/backwards 1. - Page 27 User Manual Corpus Settings Settings Headrest (accessory) This headrest has expanded adjustment options to give the user the best comfort. The headrest can also be removed/ remounted while preserving the same setting. Removal 1. Undo the knob (3) on the rear of the backrest, see illustration.
-
Page 28: Control Panel
User Manual Corpus Settings Settings Control panel - rotating panel holder The location of the control panel can be adjusted lengthwise to find the optimum driving position. It is also possible to adjust the angle of the panel sideways, which facilitates getting in and out. Length adjustment 1. -
Page 29: Positioning Belt
2. After fitting, check that the belt buckle locks properly in the snap lock. WARNING Permobil positioning belts are designed to position the user only and will not protect you in an acci- dent. You may even receive further injury from the belts. Also check regularly that the belt is in good condition, and that it is not worn or damaged. -
Page 30: Transport
User Manual Corpus Transport Transport To make transportation of the wheelchair/seat easier, the backrest can be removed in a few simple moves. Corpus seat, standard 1. Remove the backrest cushion. 2. Undo the locking pin and locking knobs on the rear of the backrest. 3. - Page 31 User Manual Corpus Transport Transport Corpus seat with sliding backrest 1. Remove the backrest cushion. 2. Undo the upper locking pin and locking knobs on the rear of the backrest. 3. Push the upper part of the backrest slightly forward so that it disengages from the upper locking pin.
-
Page 32: Care And Maintenance
Care and maintenance Regular care and maintenance will prevent unnecessary wear and damage to your seat. The following is general advice recommended by Permobil. For severe soiling of the upholstery or damage to the surface finish, contact Permobil for information. -
Page 33: Accessories
User Manual Corpus Accessories Accessories Accessories for Permobil seats are being continuously developed. Contact your nearest Permobil sales person for more information on what accessories are available for your seat. -
Page 34: Technical Specifications
User Manual Corpus Technical specifications Technical specifications The following dimension and weight information relates to a Corpus seat of standard design fitted on a Permobil X850. General Name ........Corpus X850 Dimension and weight information Length........50" - 57” Width ........28"... -
Page 36: Product Code: 205244-Us
Corpus: Product code: 205244-US-0...
