Infinity INFMR-180 Operation Manual

Hide thumbs Also See for INFMR-180:
Table of Contents

Advertisement

Quick Links

Download this manual

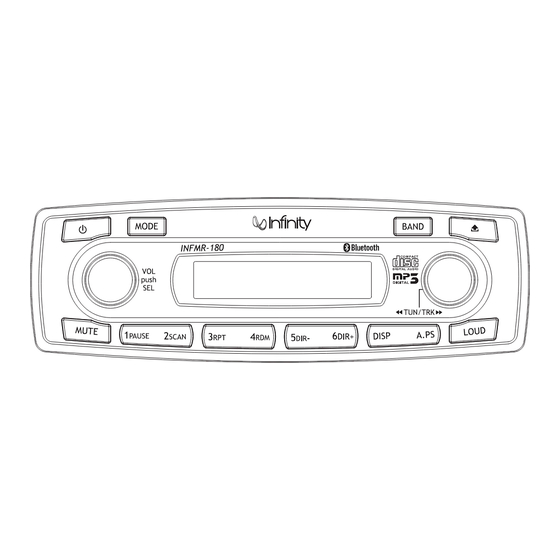

Infinit-Y.
bvHARMAN
Operation Manual
Model No.: INFMR-180
~
II
MoDE
II
(\:)Infinity
11
BAND
11
c::!J
o~t (N~~'----MR-180 --0Biui)~o
+~TUN/TRK~
~ ~PAUSE
2SCAN)
~
3RPT
The Bluetooth logo is owned by the Bluetooth SIG and licensed to Prospec.
This product is designed and manufactured by Prospec Electronics. Please
contact us for any additional questions.

Advertisement

Table of Contents
loading

Related Manuals for Infinity INFMR-180

Summary of Contents for Infinity INFMR-180

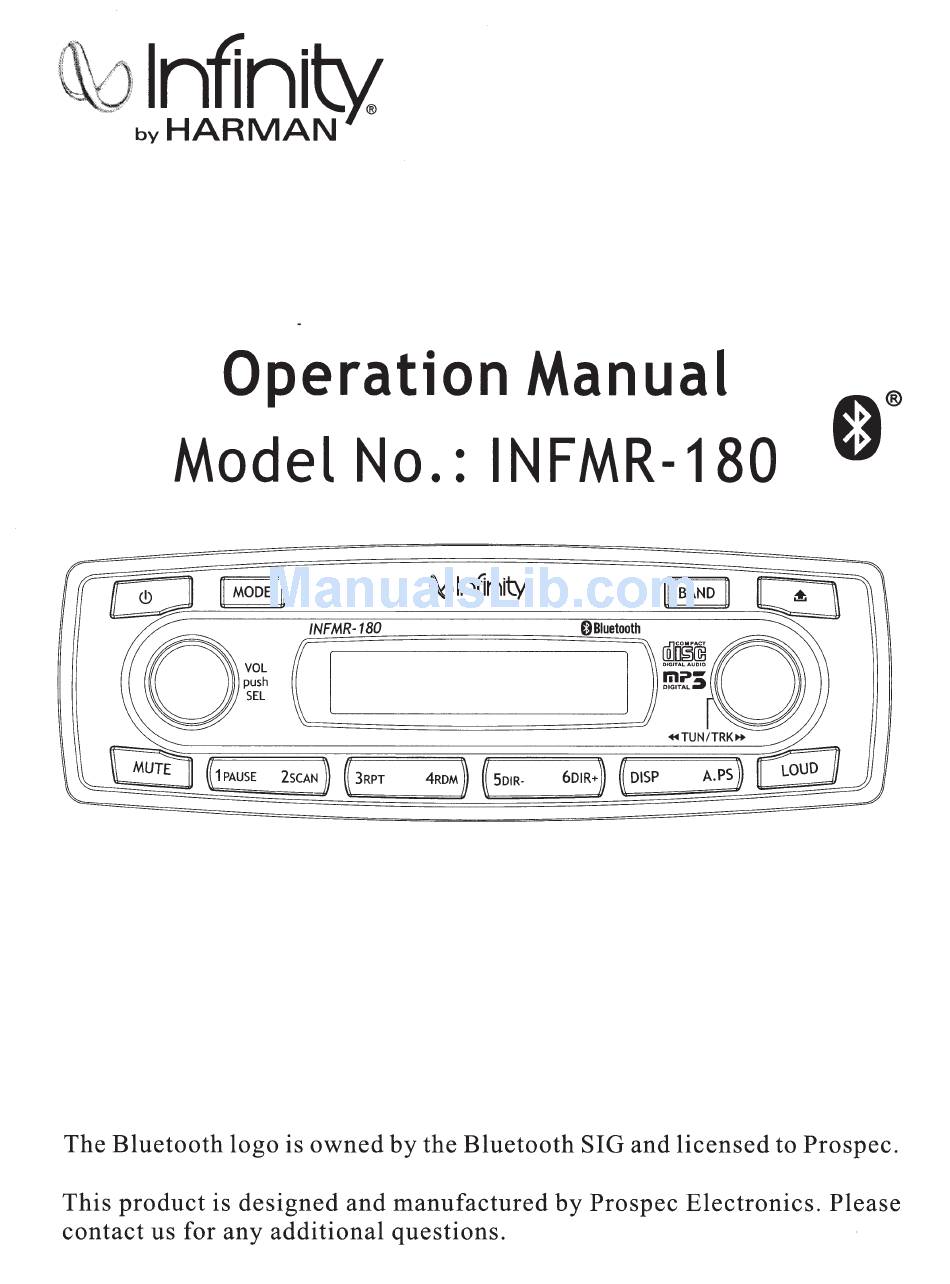

  • Page 1 Infinit-Y. bvHARMAN Operation Manual Model No.: INFMR-180 c::!J (\:)Infinity MoDE BAND o~t (N~~'----MR-180 --0Biui)~o +~TUN/TRK~ ~ ~PAUSE 2SCAN) 3RPT The Bluetooth logo is owned by the Bluetooth SIG and licensed to Prospec. This product is designed and manufactured by Prospec Electronics. Please...

  • Page 5: Wiring Identification

    Wiring Identification 6P REMOTE BLACK CONTROL (USB) (AUX) GRAY BLACK (REAR (FRONT 12PCONNECTO~ LINE OUT) LINE OUT) (AUTOANT) _ _ _ _ _ BL_U_E -----1 ( BACK-UP B+) --diE]~..JY:§EL:J:!LO~WLJ (GROUND) ------=B=LA=C.:..::...K _____,~ .;..:::RE=- -----~ (IGNITION B+) _ _ _ _ _ WHITE GRAY ( FRONT LEFT )

  • Page 6: Important Notes

    Important notes Prior to the final installation, perform a sound check. If high distortion or intermittent sound is experienced, it is possible that the wiring from the receiver to the boat's electrical system is poor or that the battery needs recharging. If the battery and its charging circuit are OK, then rewire the yellow fused wire of the player directly to the positive terminal ( +) of the boat battery.

  • Page 7: Identification Of Controls And Functions

    Identification of controls and functions CD 0 CD 1. POWER ON I OFF button 2. Tum VOL knob, Push SEL button 3. MODE button (RADIO--> CD--> USB--> AUX --> BT MUSIC) 4. BAND button (FMl --> FM2 --> FM3 -->AMI--> AM2) 5.
  • Page 9 General Controls (In Detail) Continued d. FADER Control To adjust the front-rear speaker balance, first select the fader mode by pressing button (2) until FADER appears on the display panel. Turn VOL knob (2) within 5 seconds to adjust the front-rear speaker level as desired. The fader position will be shown by the bars on the display panel from FADER FlO (full front) to FADER RIO (full rear).
  • Page 10 Controls (In Detail) Continued 3. VOLUME Control (2) Simply tum the spindle knob (2) to increase or decrease volume. Current volume setting is briefly indicated on the display panel form 00 to 45. 4. MODE Selection (3) Press MODE button (3) to cycle through available program sources as follows: RADIO -->...
  • Page 11 _,., Radio Operation 'I' 1. Radio Operation Press MODE button (3) to select Radio mode. Station frequency is indicated on display. 2. To Select Band Press BAND button (4) to toggle through radio modes as follows: FMI --> FM2 --> FM3 -->AMI--> AM2 --> FMI. 3.

  • Page 12: Disc Operation

    ~Q~~ Disc Operation 1. Loading a CD Open the door by pushing the Faceplate Release button (6). Insert a CD label side up into the slot opening, push the front panel backward to the front plate. A noticeable "click" sound will be heard, resulting in a properly closed unit. The CD will begin playing automatically after it is loaded.
  • Page 13 @.g~~ Disc Operation 4. Repeat play button (1 0) Short push RPT button to play the current track repeatedly. Press and hold RPT for 2 seconds to play all the tracks in current directory repeatedly. Simply push RPT button again to return to normal play mode. Note: The press and hold function is only available for MP3/WMA playing mode.

  • Page 17: Specifications

    Specifications Operation Voltage ------------------------------ 12 volts DC, Negative Ground Output Power ----------------------------------- 180 watts maximum ( 45 watts x 4 channels) Output Impedance ------------------------------ compatible with 4 ---8 ohm speakers Tuning Range USA AREA----------------------------------- FM: 8 7. 5 --- 107. 9MHz. (200KHz step) AM: 530---1710 KHz.
  • Page 19 PROSPEC/JBL GARANTIA LIMITADA 1 ANO PARTES Y LABOR Prospec (Ia Compaiifa) garantiza al comprador original del este producto de Prospec/JBL o cualquier pieza componente defectuosa dentro de 1 aiio de Ia fecha de compra, el producto reparara o reemplazara (a Ia discrecion de Ia compaiiia) sin cargo al comprador. Para obtener servicio en virtud de esta garantfa limitada, el comprador debe enviar el producto a Ia compaiiia, embarque pagado por adelan tado, a Ia direccion abajo.
