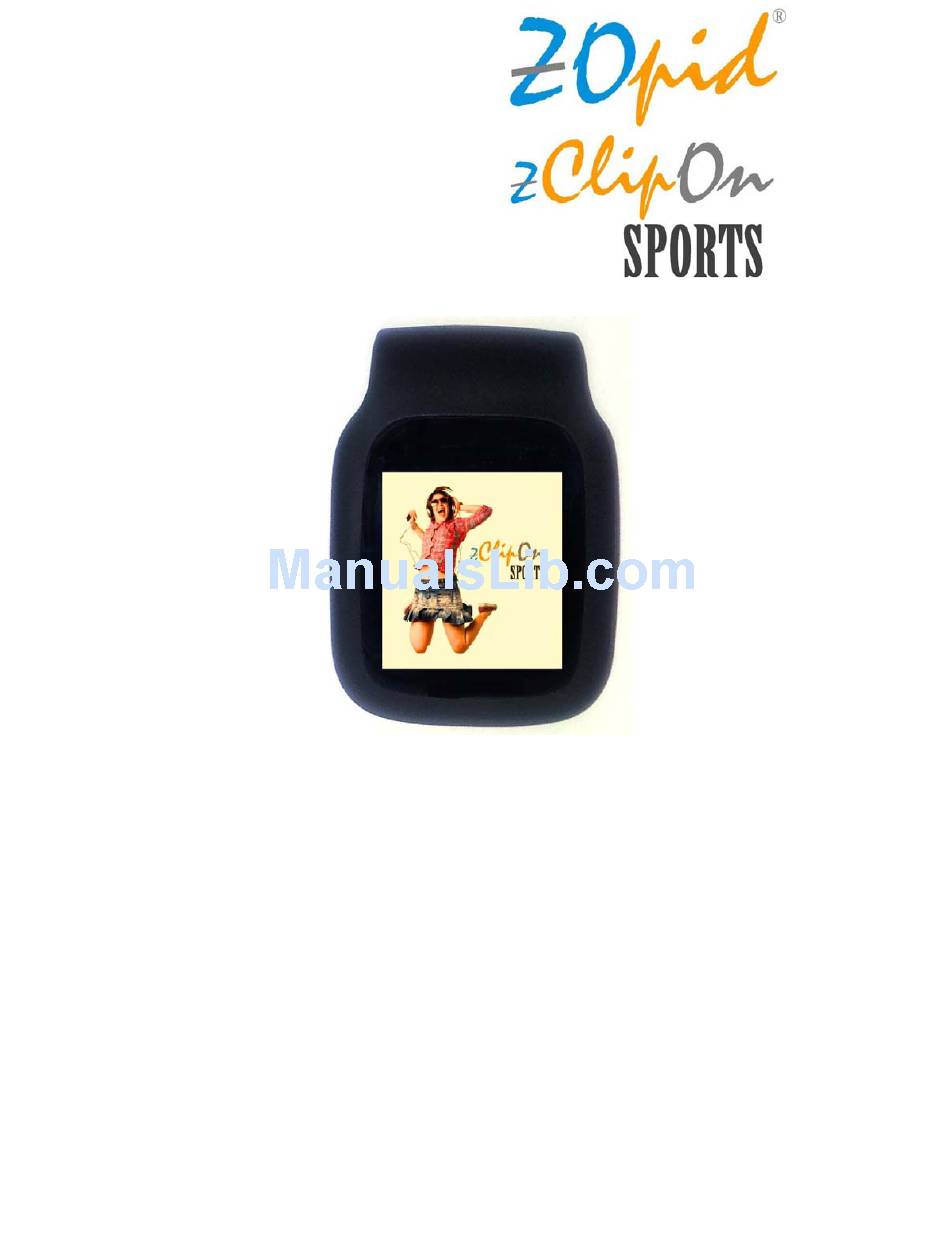

- Page 1 USER MANUAL The pictures, diagrams, and certain functions described in this manual may differ from the actual product due to different models Visit www.hittusa.com for a revised user manual or troubleshooting tips...
- Page 2 PREFACE We express our sincere thanks for purchasing our MP3 Player! Before operating this MP3 Player, be sure to read this user manual carefully. After reading it, please keep it in a safe place for future reference. We reserve the right to make changes to this MP3 Player and/or this user manual without notice.
- Page 3 SAFETY AND GENERAL INFORMATION READ THIS INFORMATION BEFORE USING THIS MP3 PLAYER Loud music may harm your hearing if you listen to it for a long time. New battery can reach its best performance after it has completely charged and discharged for two or three times.
- Page 4 after it is turned on. Avoid operating this MP3 Player under very dry environment to prevent damage from static-shock. Do not disconnect the USB cable while formatting, uploading or downloading files; disconnecting USB cable will result in file corruption and may require reformatting –...
- Page 5 NOTES REGARDING FCC COMPLIANCE Users are not permitted to make changes or modify the device in any way. Changes or modifications that are not authorized by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules.
-
Page 6: Table Of Contents
TABLE OF CONTENT PRODUCT FEATURES ......7 KNOW THE PLAYER ......9 MAIN MENU………………..………….. 13 MUSIC ........... 13 AMV (Video) .......... 17 RECORD (Voice Recording) ....21 VOICE (Listen to Voice Recording) ..22 FM RADIO………………………………... 25 PHOTO ..........27 SETUP……….…………………………….29 E-BOOK….……………….……………….31 USB DISK .......... -
Page 7: Product Features
PRODUCT FEATURES ● Clip-on design with 1.5 inch TFT full color display with G-Sensor for automatic display orientation ● Multi file format support - supports MP3, WMA (non-DRM) & WAV audio files - AVI & AMV (128x128 resolution only) video files – BMP, JPG &... - Page 8 One, Folder, Repeat Folder, Repeat All, Random and Intro ● Power Save Mode - User selectable sleep (power save) and shut down timings ● Graphic User Interface - Menu with icons for a user-friendly interface ● G-Sensor – Player automatically changes display orientation when the player is rotated ●...
-
Page 9: Know The Player
KNOW THE PLAYER Appearance and Buttons 1. USB/Charging port 2. Built-in microphone : Play/ pause & Confirm selection and Fast Exit from sub-menus 4. M: Menu button & Confirm Selection : Previous song or Menu selection, Volume - 6. V: Switch to volume adjustment mode : Next song or Menu selection, Volume+ 8. - Page 10 Definition of buttons operations: Button operations include, Short Press, Long Press, and Press & Hold. 1. Short-press: Result is achieved as soon as the button is pressed 2. Long-press: Press the button for more than a couple of seconds to achieve desired result 3.
- Page 11 charge the battery. IMPORTANT: When the player is plugged in to charge, make sure that the ON/OFF switch is in ON position IMPORTANT: When the player is not going to be used for an extended period of time, please turn power switch to OFF position – Please note that turning switch to off position will reset the player and the clock.
- Page 12 Various Functions (Modes) Select different functions through the Main Menu. Press & release “M” button to open Main Menu and then use Navigation keys to select the different functions; short press “M” button to confirm the selection Connecting player to a computer and copying files Insert smaller end of the USB cable in the USB port on the player and the bigger end...
-
Page 13: Main Menu
manager application from the computer Volume adjustment Press “V” button to enter volume adjustment mode and then short press to decrease or increase the volume. Turn Player ON or OFF: Long press to turn player ON (ON/OFF switch must be in ON position) Long press : to turn player OFF MAIN MENU... - Page 14 MUSIC Select Music from the Main Menu using button and Press “M” button to enter Music Play Mode Press button to Play Music file Press “V” button to switch to Volume Adjust mode while playing a music file - Use button to decrease or increase the volume.
- Page 15 button to display File Management sub-menu button to highlight an option and then Press “M” button to confirm selection and “M” buttons for navigation and selection ● Local folder (use this option to select different file or folder from player’s memory) ●...
- Page 16 navigation and selection ● Repeat [Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro] ● Equalizer [Natural, Rock, Pop, Classic, Soft, Jazz, DBB] ● SRS WOW [SRS WOW, User Setting (SRS 3D, TRUBASS, FOCUS, Exit), Disable SRS WOW] ● Replay Mode (A-B Repeat) ●...
-
Page 17: Amv (Video)
● Replay Gap(1-10 – number of seconds gap between each replay of A-B segment selected) ● Exit Lyrics synchronization The player supports *.lrc lyric files to display synchronized lyrics. If lyric file is found, the small red circle in the lower left corner will be replaced with a small green circle NOTE: Long Press “M”... - Page 18 mode while playing a music file - Use button to decrease or increase the volume. Press and quickly release button to skip to previous or next song respectively Press and Hold button to fast rewind or fast forward the song Press button again to Pause Press and Hold “M”...
- Page 19 ● Local folder (use this option to select different file or folder from player’s memory) ● Delete file ● Delete folder ● Repeat [Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro] ● Exit Convert AVI files to AMV format files This player can only play video files in AMV format with 128 x 128 resolution.
- Page 20 on your PC – Click on Help link to see online user manual to use the utility. 2. Choose a video file to convert to .AMV format (make sure the file resolution is set to 128x128) 3. Click “Convert” button, the conversion starts 4.
-
Page 21: Record (Voice Recording)
RECORD (Voice Recording) Select Record from the Main Menu using button and Press “M” button to enter Voice Recording Mode Press button to Start recording Press button again to Pause recording Press and Hold “M” button for a couple of seconds to Stop/Save Recording and Exit to the Main Menu When Player is in Pause State - Press “M”... -
Page 22: Voice (Listen To Voice Recording)
● Local Folder (use this option to select different file or folder from player’s memory to save voice recordings) ● Rec. Type ● Long Rec (approximately 60 hours of recording per GB of memory) ● Fine Rec (approximately 15 hours of recording per GB of memory) ●... - Page 23 button to decrease or increase the volume. Press and quickly release button to skip to previous or next song respectively Press and Hold button to fast rewind or fast forward the song Press button again to Pause Press and Hold “M” button for a couple of seconds to exit Play Mode and go back to the Main Menu When Player is in Pause State - Press “M”...
- Page 24 ● Local folder (use this option to select different file or folder from player’s memory) ● Delete file ● Delete folder ● Exit When Player is in “Play” State - Press “M” button to Enter Voice Settings sub-menu button to highlight an option and then Press “M”...
-
Page 25: Fm Radio
● Replay (Select Replay then press to mark Starting Point A and then press again to mark Ending point B) ● Replay Times (1-10 number of times to repeat A-B segment selected) ● Replay Gap(1-10 – number of seconds gap between each replay of A-B segment selected) ●... - Page 26 of seconds to auto scan for radio channels – Press and release button to stop auto scan Press button to go to (next) Saved Preset Radio Channel Press and Hold “M” button for a couple of seconds to exit FM radio Mode and go back to the Main Menu When Radio mode is ON - Press “M”...
-
Page 27: Photo
● Delete All (Delete all Preset channels) ● Auto Search (Start channel Auto Search – same as pressing and holding button for a couple of seconds to auto scan for radio channels – Press and release button to stop auto scan ●... - Page 28 Photo View Mode button to select a picture file from the list and then Press button to view the picture Press button again to go back to the file list Press and Hold “M” button for a couple of seconds to exit FM radio Mode and go back to the Main Menu When file list is displayed Press “M”...
-
Page 29: Setup
● Manual Play ● Auto Play (Slide show mode - Set each picture display time from 1 to 10 seconds) ● Delete File ● Delete All ● Exit SETUP Select Setup from the Main Menu using button and Press “M” button to enter Player Setup Mode button to highlight a setup option and then Press... - Page 30 Player Setup Sub-Menu and “M” buttons for navigation and selection ● System Time (Use “V” button to switch between fields - using button to change field values) ● Power save (Display black screen to extend battery usage - Use button to adjust time between 0 to 50 seconds –to disable this feature change setting to 0) ●...
-
Page 31: E-Book
● Format Device – Warning: using this option will delete all the data on the player’s memory ● Firmware Version ● Firmware Upgrade ● Keys Sound Level (Adjust volume level for sound generated when player buttons are pressed - Use button to adjust time between 0 to 40 –to disable this feature change setting to 0) ●... - Page 32 Press button to view text (.TXT) file Press and quickly release button to skip to previous or next page respectively Press and Hold button to fast rewind or fast forward the pages Press and Hold “M” button for a couple of seconds to exit E-book Mode and go back to the Main Menu When Player is in Pause State - Press “M”...
- Page 33 ● Playback Set ● Manual Play ● Auto Play (Automatically go to next page - Set each page display time from 1 to 10 seconds) ● Delete File ● Delete All ● Exit When Player is in text file view mode - Press “M”...
-
Page 34: Usb Disk
● Bookmark Select (View list of saved bookmarks) ● Bookmark Delete (Delete saved bookmarks) ● Bookmark Add (Save a new bookmark) ● Exit USB Disk The player can be used as a standard USB disk, supports the following operating systems: Windows 2000/ME, XP, Vista, 7 &... -
Page 35: Troubleshooting
files from your computer’s hard drive to removable disk. Upgrade Player’s Firmware Please check our support website www.hitusa.com or email help@hittusa.com to check if a new firmware is available for this player. If a new firmware is available it will be emailed to you with instructions to upgrade the firmware. - Page 36 sure there is free space on the player’s memory to store new files Some or all of the Make sure the songs songs I downloaded files are in one f the cannot be seen on supported music file the player when formats.
-
Page 37: Technical Specifications
TECHNICAL SPECIFICATIONS Screen 1.5” color CSTN display (128x128) 65K PC connection USB2.0 (HIGH SPEED) 2GB - 8GB Memory Lithium battery Power Sampling 8KHz rate Recorded WAV(32Kbps) file format ACT(8Kbps) Recording 15 hours - 60 time hours per GB Earphone (L)5mW+ (R) MP3, WMA output (32ohms) - Page 38 Romanian, Turkish, Slovenian, Hungarian, Romanian, Turkish, Slovenian & Hebrew Operation Windows98/SE/ME/2K/XP/7/8, system MacOS X or higher, Linux 2.4.2 or higher Operation -5°C to 40°C degree temperature Dimensions 58.5*41*15mm NOTE: Product design and specifications may change without prior notice...
-
Page 39: Warranty Information
LIMITED 90-DAY WARRANTY Coverage: Hi-Tech Trading (USA), Inc. (“HiTT”) warrants this product (“product”) against defects in materials and workmanship under normal consumer use for 90 days from the date of purchase. HiTT, at its option, will at no charge repair, replace or refund the purchase price of this product should it not conform to this warranty. - Page 40 to the surface of the Product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Product for commercial purposes or subjecting the Product to abnormal usage or conditions;...
- Page 41 P.O. Box 179 Woodbury, NY 11797 U.S.A. Web: www.hittusa.com Email: help@hittusa.com ZOpid and the Stylized Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © 2012 Hi-Tech Trading USA Inc...
