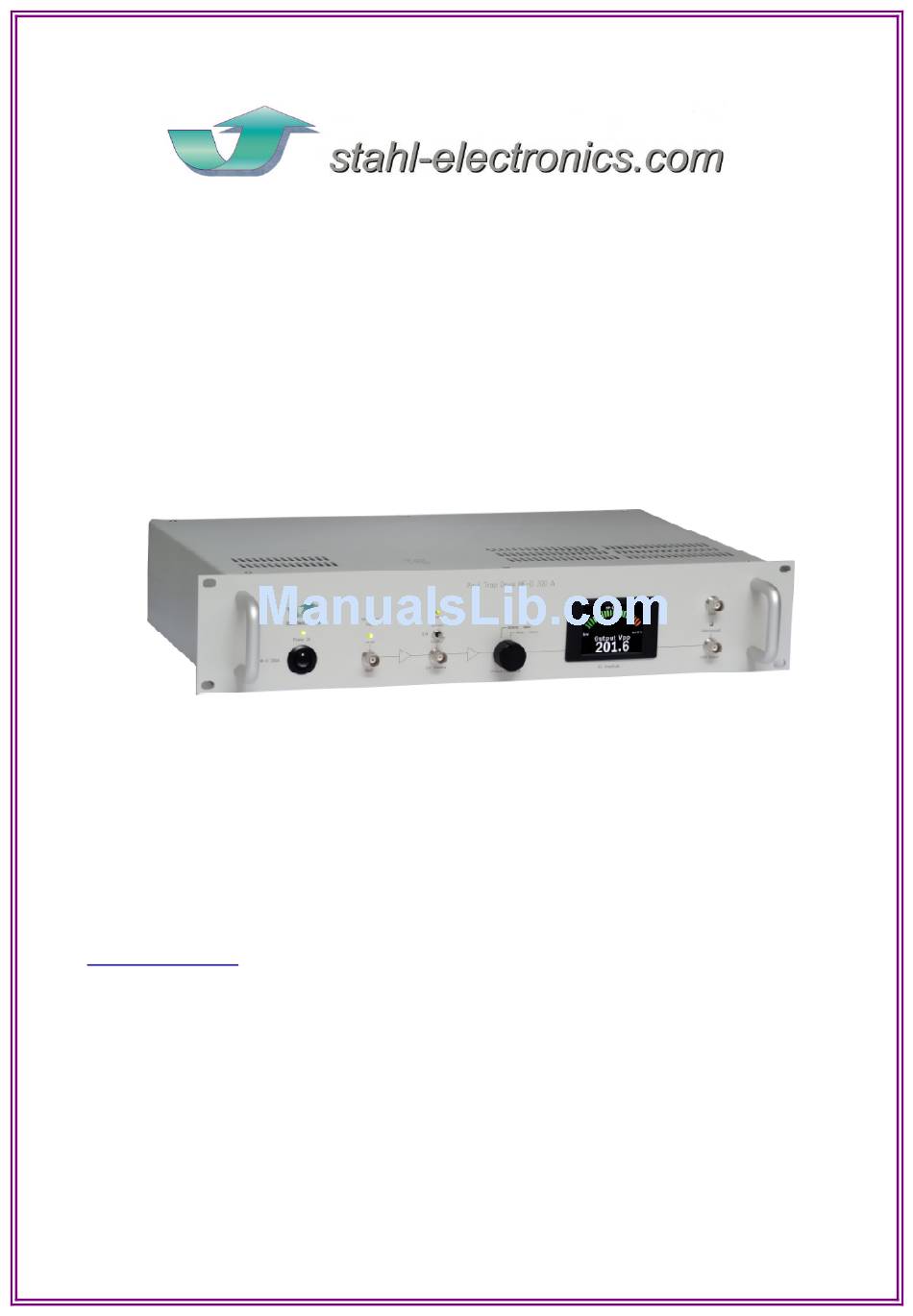

HF-D series
RF drive amplifiers for Ion Traps
HFD_Drives_Manual_2_1.doc
28 - April - 2013
User Manual
Rev. 2.1
Models HF-D 200, HF-D 425, HF-D 600
Main Features:
● RF drive amplifier for ion traps
● up to 600V
into 100pF load
pp
● f = 360kHz to 1.5MHz, model dependent
● non resonant broadband design
● precision voltage stabilisation (device option)
www.stahl-electronics.com
Advertisement
Table of Contents
Summary of Contents for Stahl-electronics HF-D 200
-
Page 1: User Manual
RF drive amplifiers for Ion Traps HFD_Drives_Manual_2_1.doc 28 - April - 2013 User Manual Rev. 2.1 Models HF-D 200, HF-D 425, HF-D 600 Main Features: ● RF drive amplifier for ion traps ● up to 600V into 100pF load ● f = 360kHz to 1.5MHz, model dependent ●... -
Page 2: Table Of Contents
Elements on the Front Plate………………………………………… Elements on Rear Side……………………………………………… Output Characteristics……………………………………………… 4.3.1 Fast Turn-On/Off Feature……………… Stability and 4.3.2 Output Harmonics…………………………………… 4.3.3 Dipole Excitation…………………………………….. Precision Output Amplitude Regulation …………………………… 5. Maintenance………………………………………….…………………………. 6. Specifications……………………………………………………………………. Declaration of Conformity ………………………………………………………… www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884... -
Page 3: Safety Hints
No outdoor operation Outdoor operation of the device is not admissible. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884... -
Page 4: General Information And Overview
Purpose and Description of the Device Purpose of the RF drives HF-D 200, HF-D 425 and HF-D 600 is the supply of AC voltages to Paul Ion Traps and other Quadrupole-type electrode setups for ion storage and manipulation. Unlike standard RF (radio- frequency) power amplifiers, the device is capable to handle capacitive loads, which are related to vacuum setups for ion trapping and storage. -
Page 5: Installation
48pF/m, half the value of standard RG58 BNC cable. The smaller parasitic capacitance allows a higher degree of freedom since cable capacitance significantly contributes to the overall (terminal) capacitance, which must not exceed 100pF (each output) to meet the device specifications. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884... -
Page 6: Operation And Control Elements
When the manual switch lever is centered, a logic “LOW” level (0 Volts) disables, a logic level “HIGH” (+5 Volts) enables the RF outputs. The reaction time upon a change of this level is about 1 to 2 signal periods (see also section 4.3.1) www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884... - Page 7 A or B. This indicator may serve as coarse, but nevertheless important, check for correctly attached cables and circuitry on the outputs. However, a thorough cabling check is recommended before applying any signals to the outputs (see below, section 4.2). www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
-
Page 8: Elements On Rear Side
The Offset Input allows for adding an additional (externally provided) offset to both output lines. This offset is linearly added (superposed) and may reside in the range between -300V and +300V. Note, that www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884... -
Page 9: Output Characteristics
Note that instability of the externally supplied DC high voltage will add fluctuations to this intrinsic amplitude instability. Figure 4.3 Theoretical waveform: the non-resonant design allows for immediate response (turn-on / turn-off) of the high frequency output www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884... -
Page 10: Output Harmonics
Figure 4.5 Strength of residual signal harmonics in dB with respect to fundamental frequency, HF-D 200A device. Figure 4.6 Strength of residual signal harmonics in dB with respect to fundamental frequency, HF-D 600 device. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884... -
Page 11: Dipole Excitation
AC amplitudes. Typically a stability on a 0.25%-level is reached that way. E .g. dedicated stahl-electronics HVD-series supplies support this functionality. Please refer to their data sheets or manuals for more details. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884... -
Page 12: Maintenance
2-year intervals, by an accordingly qualified electronics workshop. Decommissioning Decommissioning of the device is recommended after 130’000 hours of operation. Please contact manufacturer for appropriate waste disposal and observe applicable legal regulations. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884... -
Page 13: Specifications
50Hz or 60Hz. AC Supply Rating The power entry module is EMI/RFI-filtered. Fuse: medium fast blow 2x 0.8A typ. 12W consumption External DC Supply typ. 200V to 600V DC, see figure 6.1, 6.2, 6.3 www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884... - Page 14 Figure 6.3 a and b: required externally supplied DC voltage and current consumption to obtain 425Vpp output amplitude with 70pF load capacitance each output, device HF-D 425. Both graphs are split in a lower and upper frequency band, according to the position of the range selector knob. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
-
Page 15: Declaration Of Conformity
The product herewith complies with the requirements of the: 1. Low Voltage Directive 73/73EEC; 2. EMC Directive 89/336/EEC (including 93/68/EEC) and carries the CE Marking accordingly Date Of Issue __________________ 5. January 2013 General Director www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
