Dustbane Gladiator 464 Operation Manual

Gladiator series
Hide thumbs Also See for Gladiator 464:
Table of Contents

Advertisement

Quick Links

Download this manual

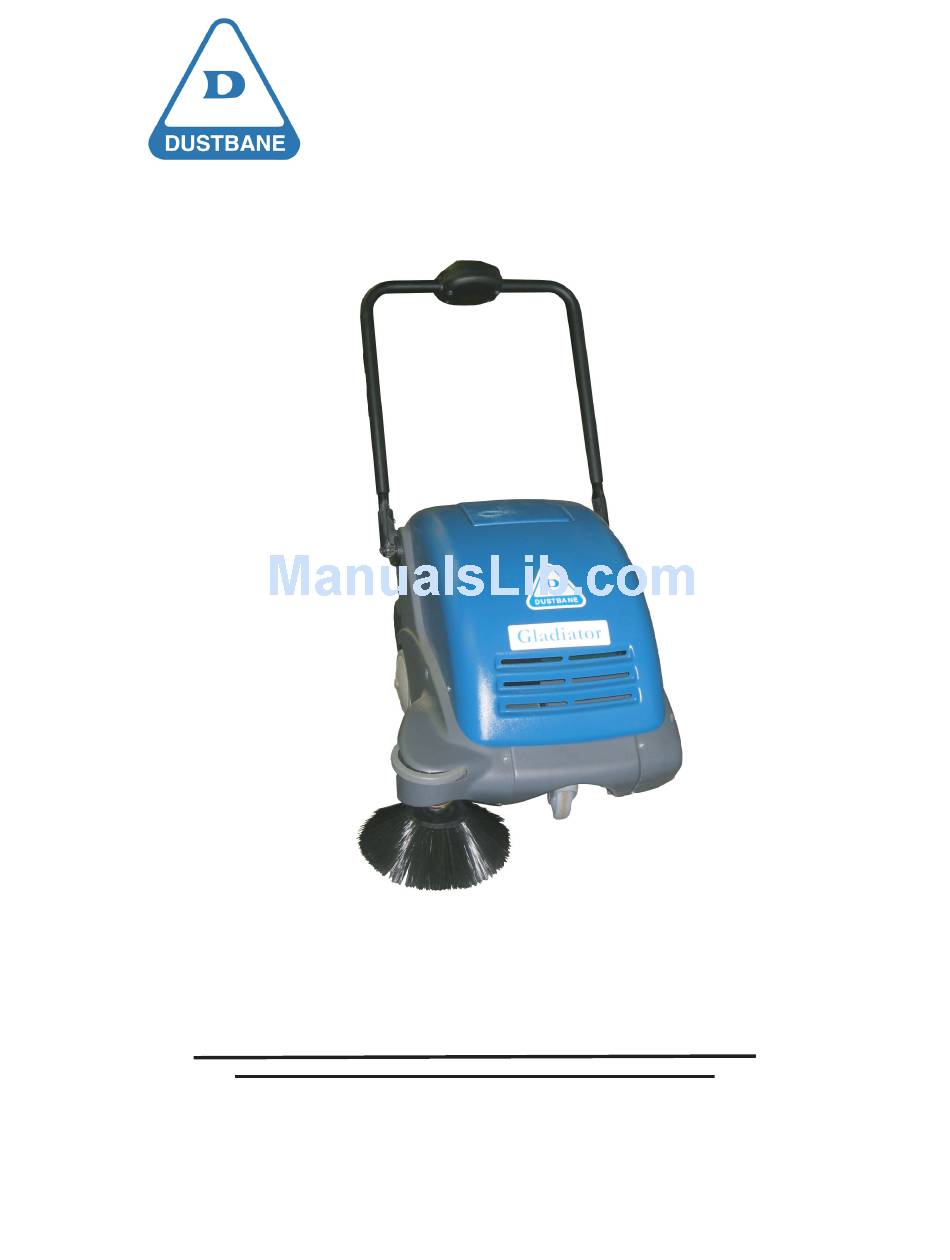

Operations Manual
Gladiator 464
Gladiator Series
Code: 19677-C-AGM
Serial #:_________________________
Date of Purchase:_________________________
More info : www.dustbane.ca
08-2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gladiator 464 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dustbane Gladiator 464

Summary of Contents for Dustbane Gladiator 464

  • Page 1 Operations Manual Gladiator 464 Gladiator Series Code: 19677-C-AGM Serial #:_________________________ Date of Purchase:_________________________ More info : www.dustbane.ca 08-2011...

  • Page 3: Table Of Contents

    1. Index 1. Index 2. Introduction/ General Warnings 3. Safety Precautions 4. Technical Characteristics 5. Unpacking 6. Machine Preparation 7. Machine And Control Panel Components 8. Use Of The On-Board Battery Charger 9. Starting Of The Machine 10. Operations To Make For Correct Use 11.

  • Page 4: Introduction/ General Warnings

    2. Introduction / General Warnings Welcome on board! We thank you for choosing Dustbane and congratulate you for purchasing the 1050 A sweeper especially designed to guarantee safety and concern for the environment. The innovative design, the robust and trustworthy structure and the recyclable components make a 1050 sweeper. A truly unique machine. Before using your machine, we advise you to carefully read this handbook.
  • Page 5 FOR SAFETY: 1. Do not operate machine: • In flammable or explosive areas • Unless trained and authorized.. • Unless operation manual is read and understood. • .If not in proper operating condition • Without hopper and/or filters in place 2.

  • Page 6: Technical Characteristics

    4. Technical Characteristics Description Width-including side brush 600mm 23,75” Length-including side brush 730mm 28,75” Height-including handle 950mm 37,5” Machine height W/Handle folded 559mm 22” Maximum sweeping width 650mm 25” Weight 53Kg 115lbs Hopper capacity (real) 9,3 Lt 1,25 Cu.ft Run time Filtering surface 0,95mq 10 sq.ft...

  • Page 7: Machine Preparation

    6. Machine Preparation Side brush assembly: • Raise the front part of the machine, slide the brush on to the shaft until it locks into place Handle assembly: • Release the handle locks as shown • Rotate handle into working height position • Return handle lock to the locking position Unlock Handle lock...

  • Page 8: Machine And Control Panel Components

    Connecting the Battery: • Remove the top cover to gain access to the battery using the 4 mm hex wrench provided. • Locate the two Red/Black connectors. • Align the colors of the connectors. • Plug the two connector together. 7.
  • Page 9 The functions located on the control panel can be explained as follows: A) Main switch to turn on and off the machine. B) Led indicator for battery charge. Green for when the machine is charged, red for when the machine is discharged and yellow for when the machine charge is in reserve or when the machine is being charged.

  • Page 10: Use Of The On-Board Battery Charger

    8. Use of the On-Board Battery Charger When the battery on the machine is discharged, the red led on the control panel illuminates and all functions of the machine will automatically stop: the operator must then turn off the machine and start the charging procedure by connecting the machine battery charger plug into an AC electrical outlet.

  • Page 11: Waste Hopper Emptying And Cleaning

    11. Waste Hopper Emptying and Cleaning Before proceeding in removing the hopper assure that the machine is turned off. ATTENTION: WASTE DISPOSAL MUST BE DONE BY FOLLOWING THE LAWS IN FORCE. To clean the waste hopper proceed as follows: • Release the hopper clamp by lifting and then pushing on the back of the clamp. • Pull out the hopper by its handle • Empty the hopper To put back the hopper proceed as follows:...

  • Page 12: Side Brush Replacement

    13. Side Brush Replacement Raise the front part of the machine. Press in the 2 tabs (indicated by the arrows) and pull off the brushes. Slide the new brush until it locks into place. 14. Main Brush Replacement • Tilt the machine backwards until the handle is touching the ground and the main brush is easily reached.

  • Page 13: Cleaning And Servicing The Filter

    15. Cleaning and Servicing the Filters The filters are very important components of the machine and essential for correct operation. Proper filter maintenance will allow you to obtain the best performance from your machine. Pre-Filter Clean Daily 1. Remove the debris hopper to access the pre-filter 2.

  • Page 14: Actuator Function

    16. Actuator Function The system allows the brush to immediately and constantly follow all types of surfaces, self adjust to surfaces and self adjust for main/side brush wear through out the life of the brushes. 17. Adjusting the Side Brush To adjust the side brush, remove the top cover, and turn adjusting handle in the direction required.

  • Page 15: Control Panel Display Codes

    19. Control Panel Display codes Safety code Cause Actions to take Short circuit brush protection: Reset by turning OFF the machine and stops all functions starting again Dissipater at high temperature. Activates if The machine resets when temperature lowers temperature is over 194° F under 176°...
