Summary of Contents for MARcus NGC 2400

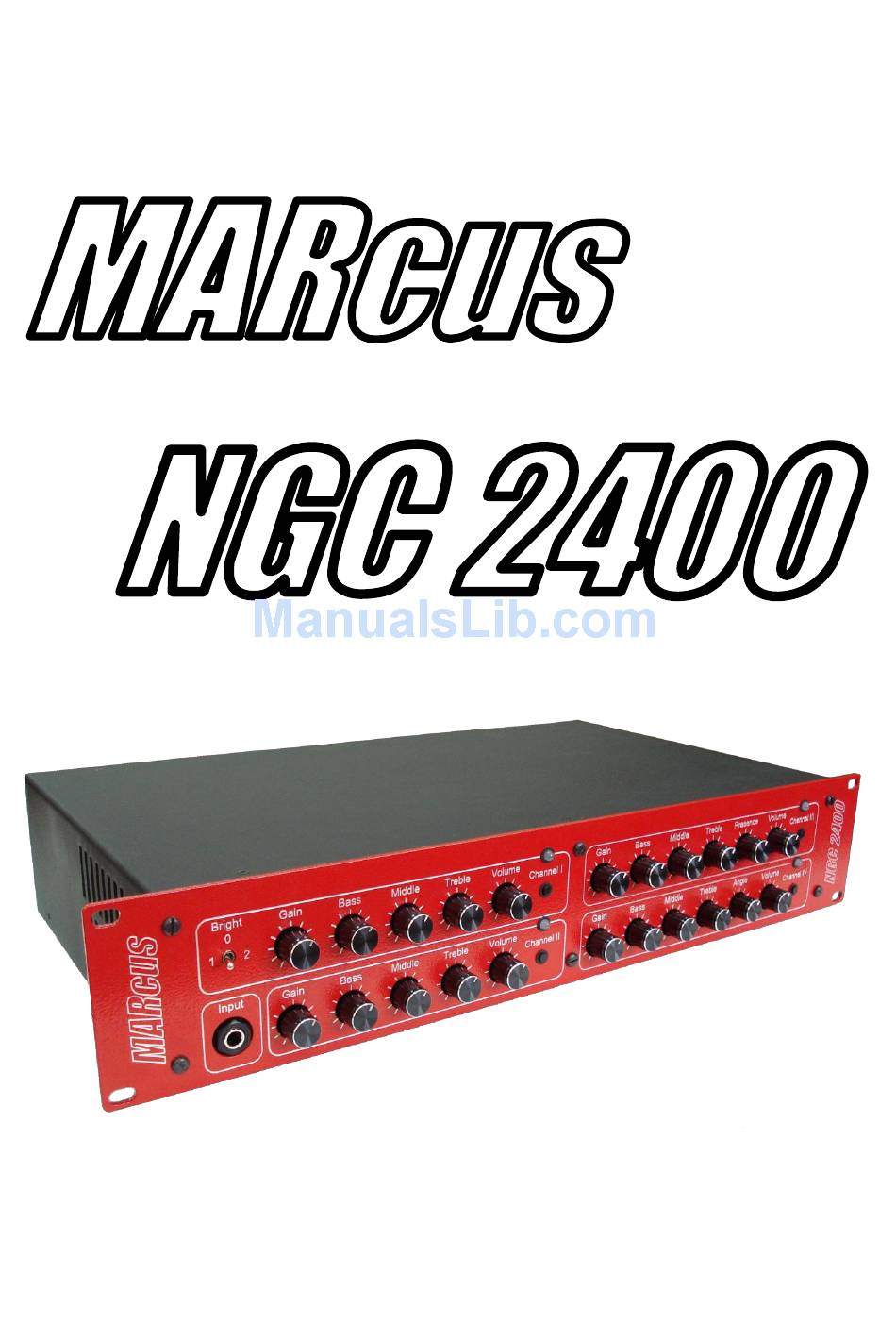

- Page 1 Guitar tube preamplifier User’s Guide...
-
Page 2: Table Of Contents
MARcus NGC 2400 User’s Guide CONTENTS Forward………………………………………………….……...2 Technical specifications……………………………………..3 Front panel……………………………………………………..4 Rear panel………………………………………………………5 Warnings………………………………………………………..6... -
Page 3: Forward
MARcus NGC 2400 User’s Guide FORWARD MARcus NGC 2400 is custom built all-tube guitar preamplifier which has totally separated four channels with unique sounding, seven tubes 12AX7, two outputs – “Direct” and “Record”, speaker-simulator 4x12 and Master Volume. Harmonically reach and widely applied sound is a gre at advantage of this preamp. -
Page 4: Technical Specifications
MARcus NGC 2400 User’s Guide TECHNICAL SPECIFICATION Channels: 4 ® Channel I (Green) – Clean (Fender Twin) ® Channel II (Blue) – Crunch (Marshall JCM800) ® Channel III (Yellow) – High gain 1 (Bogner Ecstasy) ® Channel IV (Red) – High gain 2 (Mesa/Boogie... -
Page 5: Front Panel
MARcus NGC 2400 User’s Guide FRONT PANEL Gain Bass Middle Treble Volume Gain Bass Middle Treble Presence Volume Channel I Channel III Bright Input Gain Bass Middle Treble Volume Gain Bass Middle Treble Angle Volume Channel II Channel IV 1. Input Jack. This ¼'' jack accepts the output from the guitar. -
Page 6: Rear Panel
MARcus 4-channel footswitch. 4. COOLER 5. RECORD OUTPUT. MARcus NGC 2400 has exclusive speaker-simulator to provide sounding of 4x12 guitar cabinet. This output (stereo ¼'' jack) is dedicated to give a signal to a line inputs of mixer consoles or to a line input of computer sound card. -
Page 7: Warnings
MARcus NGC 2400 User’s Guide WARNINGS - Do not block any ventilation openings on the sides or rear of the preamp. Always give four inches of proper ventilation to the rear of the preamp. - Do not expose the amplifier to rain, moisture, dripping or splashing water.
