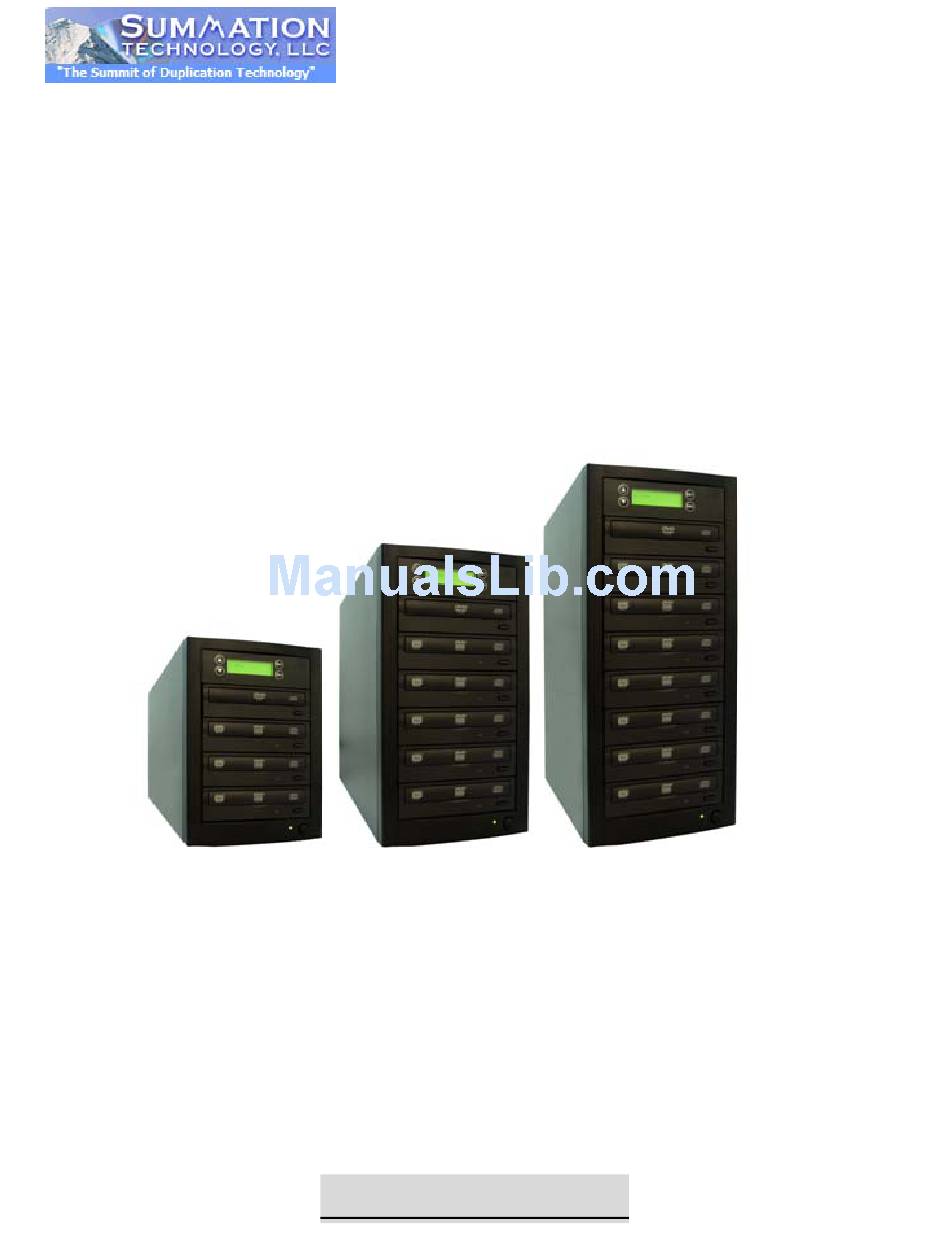

  • Page 1 SummitPro DVD/CD Disc Duplicator 250GB Hard Drive USERS MANUAL...

  • Page 2: Table Of Contents

    CONTENT Introduction Control Panel Menu Overview Operation Guide 1. Copy 2. Test 3. Copy & Verify 4. Copy & Compare 5. Verify 6. Compare Disc 7. Set Burn Speed 8. Select Source 9. Audio Track Edit 10. Utility 10.1 Pre-scan 10.2 Quick Erase 10.3 Full Erase 10.4 Eject All Disc...

  • Page 3: Introduction

    INTRODUCTION The SummitPro stand-alone DVD/CD Disc Duplicator, featuring 24X DVD SATA drives. The system will copy 1 through11 (depending on the number of targets on your duplicator) discs at a time at maximum speeds of 48x on CD’s and 24x on DVD’s.
  • Page 4 Important Safety instructions Please be aware of the following installation and operation precautions. Read these instructions - All the safety and Do not defeat the safety purpose of the grounding- operating instructions should be read before use of type plug. A grounding type plug has two blades and a third this system.
  • Page 5 Copyright and Trademark Statement The information contained in this work is the exclusive property of Summation Technology, LLC, and any respective copyright owners. This work is protected under United States copyright law and other international copyright treaties and conventions. No part of this work may be reproduced or transmitted for commercial purposes, in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or retrieval system, except as expressly permitted in writing.
  • Page 6 LCD FRONT PANEL LCD Front Panel 1. Control Buttons There are 4 control buttons: , ENT, UP; Backward; Use this button to navigate backward in the menu. Down; Forward; Use this button to navigate forward in the menu. : Enter, Execute the function : Escape, Go back to previous function 2.

  • Page 7: Menu Overview

    Menu Overview Below is a quick reference chart of the functions available on the SummitPro DVD Duplicators. Copies the master CD/DVD. All contents of the master disc will be duplicated on COPY to all target disc(s) simultaneously. Simulates the copy process, but no data is recorded onto the blank disc(s).
  • Page 8 SETUP Allows the duplicator to automatically start one of six following functions once the master disc and desired number of target disc(s) are inserted and the drive trays 11.1 AUTO START TIME are closed: Copy, Test, Copy & Verify, Copy & Compare, Verify and Compare. Sets the amount of information displayed on the LCD during the performance of 11.2 DISPLAY METHOD various functions.

  • Page 9: Quick Start Guide

    QUICK START GUIDE Step 1: Plug in power cord to back of the unit. Step 2: Turn on power button and wait for LCD to read “Copy”. Step 3: Eject reader tray (top drive) and insert source disc. Close reader tray. Step 4: Eject writer trays and insert the blank discs.

  • Page 10: Operation Guide

    OPERATING GUIDE Operation Guide 1. COPY This operation will guide you to copy your Master Disc to a Blank CD/DVD disc. ①. Turn on the duplicator. ②. Eject Drive tray of the Top Drive and place the Master disc in the tray and Close the drive tray. ③.

  • Page 11: Test

    2. TEST ①. This function simulates the copying process. The process is the same as COPY but it won’t write anything on the recordable discs. ②. ， Press to navigate the function menu to 2. TEST and press to execute it. 2.

  • Page 12: Copy & Verify

    3. COPY & VERIFY This option will make a copy first and then verify copied discs immediately for ensuring disc readability. ①. Before starting this process, please make sure that the Master Disc and blank disc are placed in ， the correct drives.

  • Page 13: Copy & Compare

    4. COPY & COMPARE This function will perform the copy process, and immediately follows with a comparison between the master disc and the copied disc(s) to ensure the copies are exact duplicates of the master disc. This command is especially useful for DVDs, data CDs and video CDs. ①.

  • Page 14: Verify

    5. VERIFY This function will perform the copy process, and immediately follow with the verification process on all target discs. This command is especially useful for audio CD duplication. Note: The verification process uses a Disc Readability Check to individually check the presence of data on each copy.

  • Page 15: Compare Disc

    6. COMPARE This command compares copied disc(s) to the Master disc and ensures that the copies are exact duplicates of the master disc. This command is especially useful for DVDs, data CDs and video CDs. Note: The Compare process is a bit-by-bit comparison between the master disc and the copied discs. This operation ensures that all of the copies are completely identical to the Master disc.

  • Page 16: Set Burn Speed

    7. SELECT SPEED This operation will allows you to adjust and select duplication speed on three different disc types of CD, Audio CD, and DVD. ①. ， Press to navigate to function 7. Select Speed, and press ENT. 7. Set Burn Speed ②.

  • Page 17: Select Source

    8. SELECT SOURCE This option allows you to set master reading source from any Optical Drive. In this unit it will always be the top drive. ①. ， Press to navigate to function 8. Select Source and press ENT. 8. Select Source ②.
  • Page 18 9. TRACK EDIT This process will guide you to select and combine audio tracks from various CDs onto a single customized audio CD. 9.1 Copy Track: ①. ， Press to navigate to function 9. Track Edit and press ENT. You will see the sub-catalog of 1.
  • Page 19 9.2 Close Disc This process is the last procedure to ensure CD-R/CD-RW disc of copied tracks is a playable Audio CD. ①. ， Press to navigate to function 9. Track Edit and press ENT. 9. Track Edit ②. ， Press to select 2.

  • Page 20: Utility

    10. UTILITY ， This function group includes several Disc related functions. You can press and move select function you want. 10.1 Pre-scan This feature Pre-scans the Master disc to make sure it can be duplicated correctly before you try to go through the copy process.

  • Page 21: Full Erase

    10.3 Full Erase This operation will completely erase all data of re-writable discs in the Writer Trays. It takes longer time than Quick Erase. When finished, the writer drives will eject the drive tray automatically. Place re-writable discs you would like to erase in any tray of writer drives. Under 10. Utility sub-catalog, ，...

  • Page 22: System Info

    10.7 System Info. This feature can provide information on the system, including controller model number, RAM capacity, and firmware version. ， Under 10. Utility sub-catalog, press to select 7. System Info., and press for execution. [Utility] 7. System Info. U468 32MB Ver:1.64 10.8 Update BIOS...

  • Page 23: Copy Counter

    10.9 Copy Counter This operation will record duplication results, duplicated quantity, and total amount of successful and unsuccessful CD/DVD duplicated. 10.9.1 Show Count ， Under 10.9 Copy Counter sub-catalog, press to select 1. Show Count, and press ENT. The LCD will show the number of duplicated discs that pass (P) and fail (F). 10.9.2 Enable Counter ，...

  • Page 24: Setup

    11. SETUP This function group provides features which allow changing of manufacturer’s default settings. 11.1 Auto Start Time When the duplicator detects that master and blank discs are inserted at the same time, the system will execute the copy process automatically. The system default of auto-copy is 5 seconds after detected master and blank discs.

  • Page 25: Button Beep

    11.3 Button Beep You can choose whether you want to hear a beep when you press a button or not. ①. ， Under 11. Setup sub-catalog, press to select 3. Button Beep, and press for entry. [Setup] 3. Button Beep ②.

  • Page 26: Language

    11.6 Language Set system language interface, options are: English, Japanese, Spanish and Portuguese. ①. ， Under 11. Setup sub-catalog, press to select 6. Language, and press for entry. [Setup] 6. Language ②. ， to select the language you want and press for confirmation.

  • Page 27: Startup Menu

    11.8.2 Startup Menu This function sets the command to be displayed first when the machine is powered up and initialized. All primary commands are available to be set for Start-up: Copy, Test, Copy & Verify, Copy & Compare, etc. The default start-up menu is COPY. ①.

  • Page 28: Cd Overburn

    11.8.5 CD Over Burn This function allows the copying of CDs that have been burned over their maximum capacity. NOTE: The target disc(s) must be the same capacity as the Master disc. ①. ， Under 11.8 Advanced Setup sub-catalog, press to select 5.

  • Page 29: Show Hdd Image Name

    11.8.8 Show HDD Image Name (Only for units with Hard Drive Installed) ①. ， Under 11.8. Advanced Setup sub-catalog, press to select 8. Show HDD Image Name, and press for entry. [Advanced Setup] 8. Show HDD Image ②. ， to select display of the image name or capacity and press for confirmation.

  • Page 30: Copy Special Format Disc

    ③. After selecting Enable, you will see the password setting frame. There are 6 numbers for your ， setting. Please use to set letters and press for completion. 11.8.11 Copy Special Format Disc ①. ， Under 11.8 Advanced Setup sub-catalog, press to select 11.

  • Page 31: Disc To Image

    ★☆Note: Once you have select HDD Image, the Reading Source will be automatically set in HDD. If you would like to make Disc –to- Disc Copies, then you have to go back to 8.Select Source and select DVD-ROM as your Reading Source. 12.2 Disc =>...

  • Page 32: Rename Image

    12.5 Rename Image This function allows you to rename your image file in 8 characters. ①. Press to 12. HDD Manager and press ENT. And select 5. Rename Image. [Image Manager] 5. Rename Image Press [A001] 4469MB ②. Press to choice the image file you want to rename and press ENT. [Edit Image Name] [A001______] ③.

  • Page 33: Format Hdd

    12.7 HDD Info. This function allows you to check the information of HDD, such as how many discs are stored and the rest space available in HDD. [Image Manager] 7. HDD Info. Press Used: 7DVD Free: 41CD 8DVD 12.8 Format HDD This feature will allow you to format the HDD.
  • Page 34 12.8 ABOUT HDD MANAGER Our duplicator has a highly intelligent and dynamic HDD management technology. Traditional methods of formatting a HDD, in which the number of partitions is determined by dividing your Hard Drive‘s total capacity by 5GB for DVD or 1GB for CD. In this way, you have to decide how many partitions for DVD or CD before you start format your Hard Drive.
  • Page 35 13. Troubleshooting Guide There are no end-user serviceable components that can be replaced in the CD/DVD Duplicator. Please contact Summation Technology for warranty repairs and service. No LCD display. Please check if the power cord is connected properly and the utility power is supplied.
  • Page 36 Need Technical Support? Technical support is part of every solution we sell at Summation Technology. Should you need assistance in operation of any equipment or system you have purchased from Summation Technology, please contact us by phone, or send us an e-mail.
