Summary of Contents for Skymax SX 771 ST COMBO
-

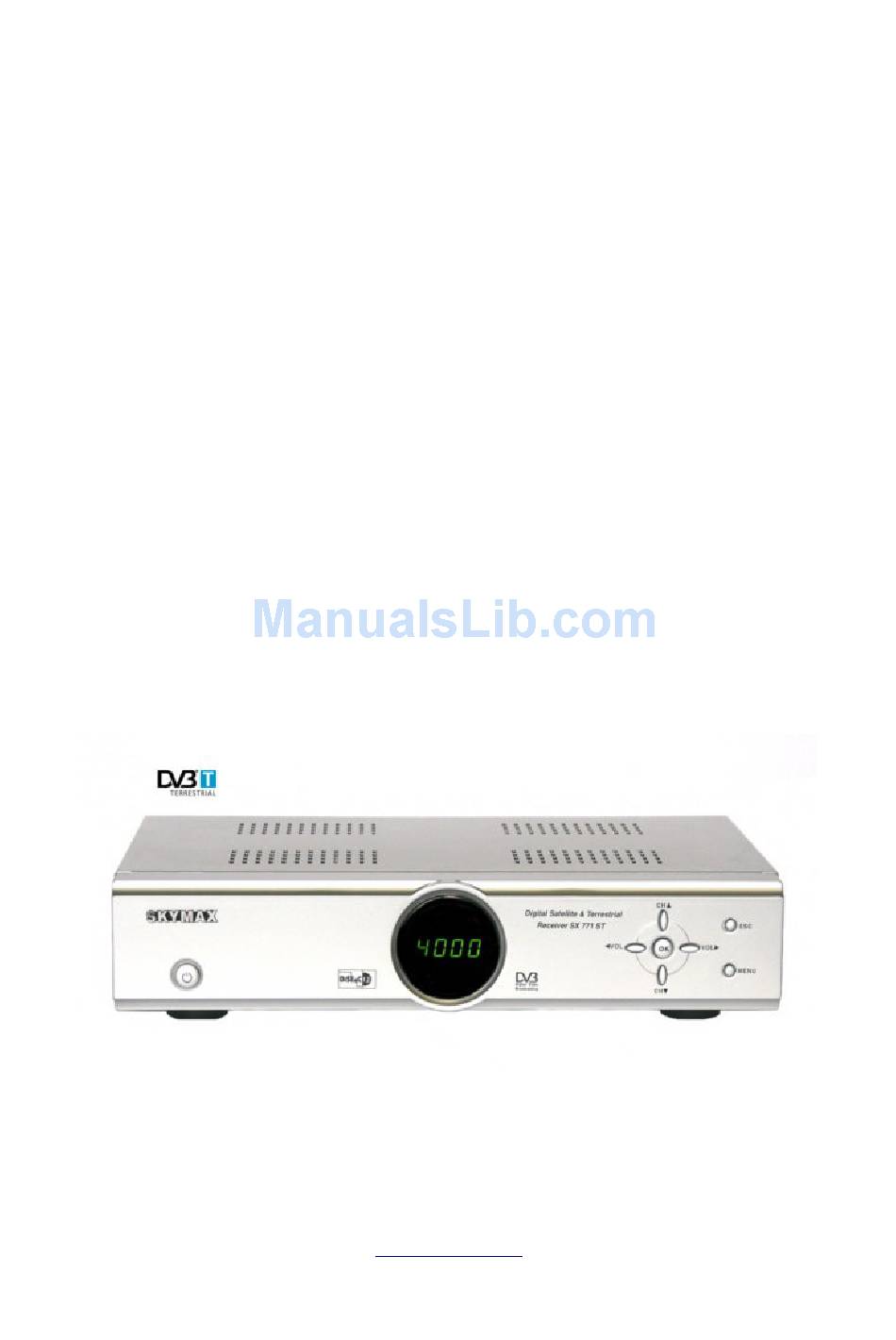

Page 1: User Manual

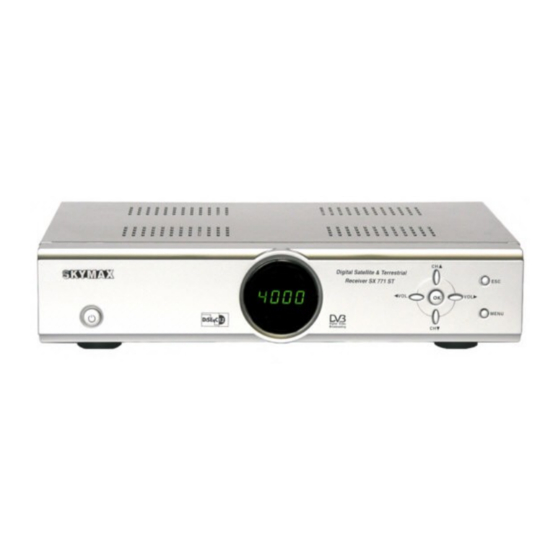

SKYMAX USER MANUAL DIGITAL SATELLITE & TERRESTRIAL RECEIVER SKYMAX SX 771 ST COMBO SKYMAX - POLAND Ltd. - 2004 www.skymax.pl... -
Page 2: Main Features
Safety: 1.Allow clear space around the DSR for sufficient ventilation. 2.Do not cover the DSR or place it on a unit that emits heat. 3.Use a soft cloth and mild solution of washing liquid to clean the casing. 4.Do not connect or connect or modify cables when the DSR is plugged in. 5.Do not remove the cover. -
Page 4: Front Panel
1. Front Panel 1. MENU: Shows the main menu and command box on the screen. 2. POWER: Turns on and off the power of the receiver. 3. CH: When watching, changing to the previous and next channel, or moves to the next higher or lower item in the menu. -
Page 5: User Installation
main menu to sub menu and move from left side to right side or vice versa. To escape the menu system at anytime, press EXIT key on the remote control unit. 4. User Installation This menu consists: 1. Satellite Setup 2. -
Page 8: Terrestrial Setup
4.8. Terrestrial Setup This menu consists of 8 parameters of DVB-T multiplex as shown below. - Index - channel number, - Frequency KHZ – channel frequency, - Mode – number of carriers 2048 or 8192, - Guard Interval – can have four different values: 1/4, 1/8, 1/16 and 1/32, - FEC Rate –...
