Summary of Contents for ElektraLED Pancake

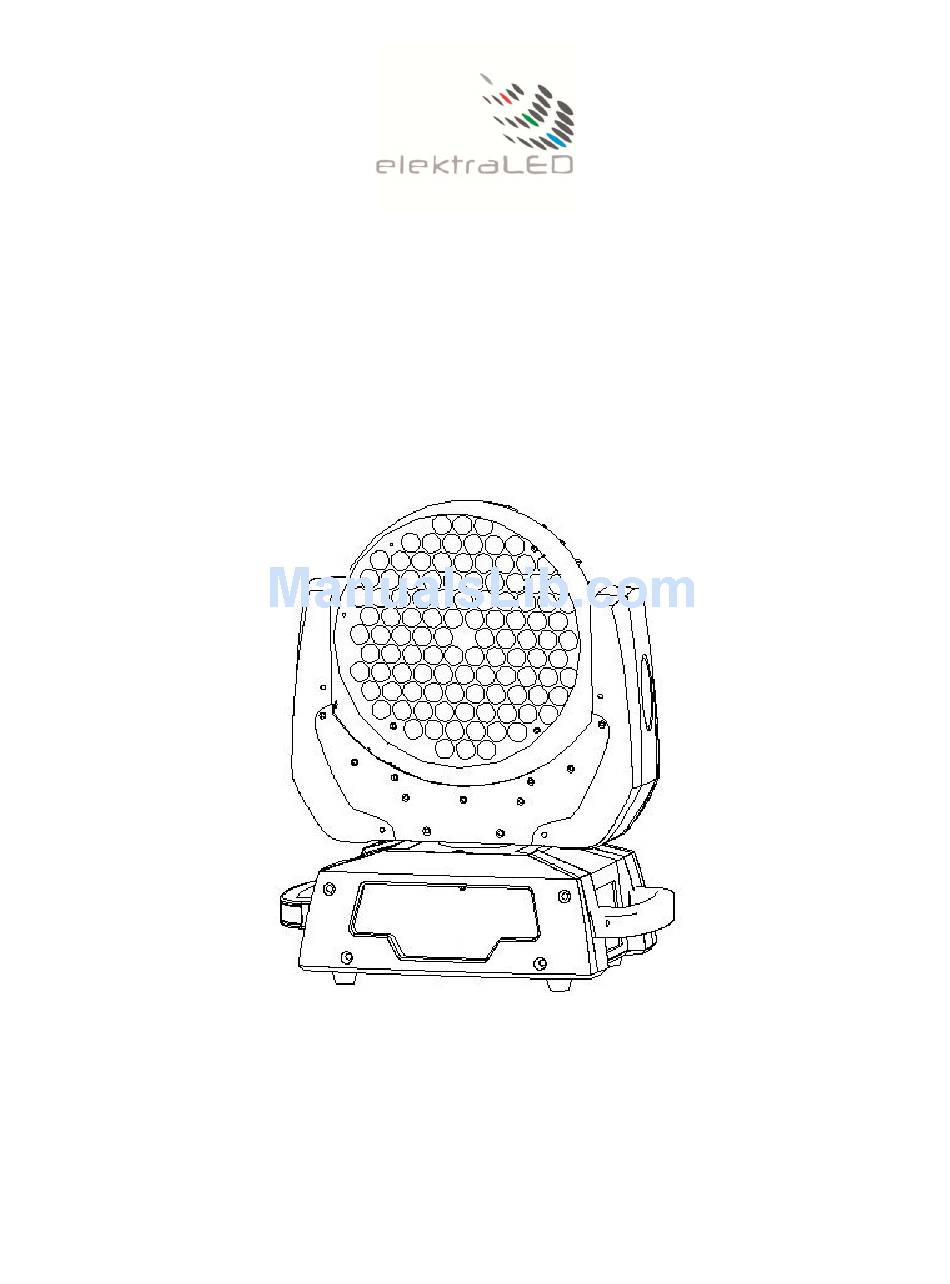

- Page 1 Elektralite LED Pro Line Pancake USER MANUAL (Version 2) ElektraLED (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (516)-249-3662. F. +1 (516)-249-8870 WWW.ELEKTRALED.COM...
-
Page 2: Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. Elektralite LED Pro Line Pancake is a high voltage fixture. Be careful when dealing with high voltages. -
Page 3: Installation
If Elektralite LED Pro Line Pancake is operated in any way different to the one described in this manual, Elektralite LED Pro Line Pancake maybe damaged and the guarantee will be void. 4. Installation Please refer to the picture below:- Screw the half cheeseboro or “C”... -
Page 4: Dmx-512 Control Connection
The DMX terminator is simply a 5 pin XLR plug (male) with a 120 Ω resistor connected between pins 2 and 3. It is then plugged into the output XLR socket of the last Elektralite LED Pro Line Pancake or other dmx device in the chain. Please see illustration below. - Page 5 Please only disconnect the Powercon connector after the on/off switch is turned OFF. There can be up to 7 Elektralite LED Pro Line Pancake in the daisy chained line. The line is fused protection against more than this quantity being daisy chained. So do NOT exceed this number of...
- Page 6 7. LCD Display Operations...
- Page 7 The display screen will turn off after 30 seconds if no button is pressed on the display.
-
Page 8: Cleaning And Maintenance
8. Cleaning and maintenance. Now ignoring maintenance and cleaning is very good way of creating problems "down the road" and many companies and installations do just that. However the net result is, no matter what the fixture, premature failure! Changing the oil in a car most people do on a regular basis. So with the fixtures regular maintenance it an excellent practice, if you want the fixtures to last. - Page 9 9. DMX Channel Assignments. Channel Function Value Description 0-540 Pan movement Tilt 0-280 Tilt movement Dimmer 0-100 Master dimmer 0-100% Strobe 000-006 No function 007-065 Slow to fast strobe 066-069 No function 070-128 Pulse strobe from slow to fast 129-132 No function 133-191 Strobe fading in from slow to fast...
- Page 10 000-004 No function Macros 12** Red at max output then Green fading up and Red fading 005-044 down. Then Green fades down as Blue fades up. All are out at 036 DMX. Then at 040 DMX Red & Blue at max output.
-
Page 11: Technical Specifications
10. Technical Specifications 108PCS 3W high power LEDs 50,000 hours lifespan and low power consumption Smooth and precise resolution for PAN/TILT movement 540°/630° pan and 265° tilt movement Scan position memory, auto reposition after unexpected movement RGB color mixing system LED shutter LED dimming LED rainbow effect... -
Page 12: Other Products
A preview of the products include:- Elektralite LED Pro Line. 1018. 18 of QUAD leds producing a perfect homogeneous color mixing. Each LED has in-built ALL 4 colors (red, green, blue and white). The white is perfectly chosen to be the warm white, not normally associated with white in an led. - Page 13 We were tired of expensive difficult to use Hazers! Meet the TurboHazer. Comes with remote and an optional DMX input Simple to use, maintain and in-expensive. Enough said!!
