Summary of Contents for Transduction TR-9200

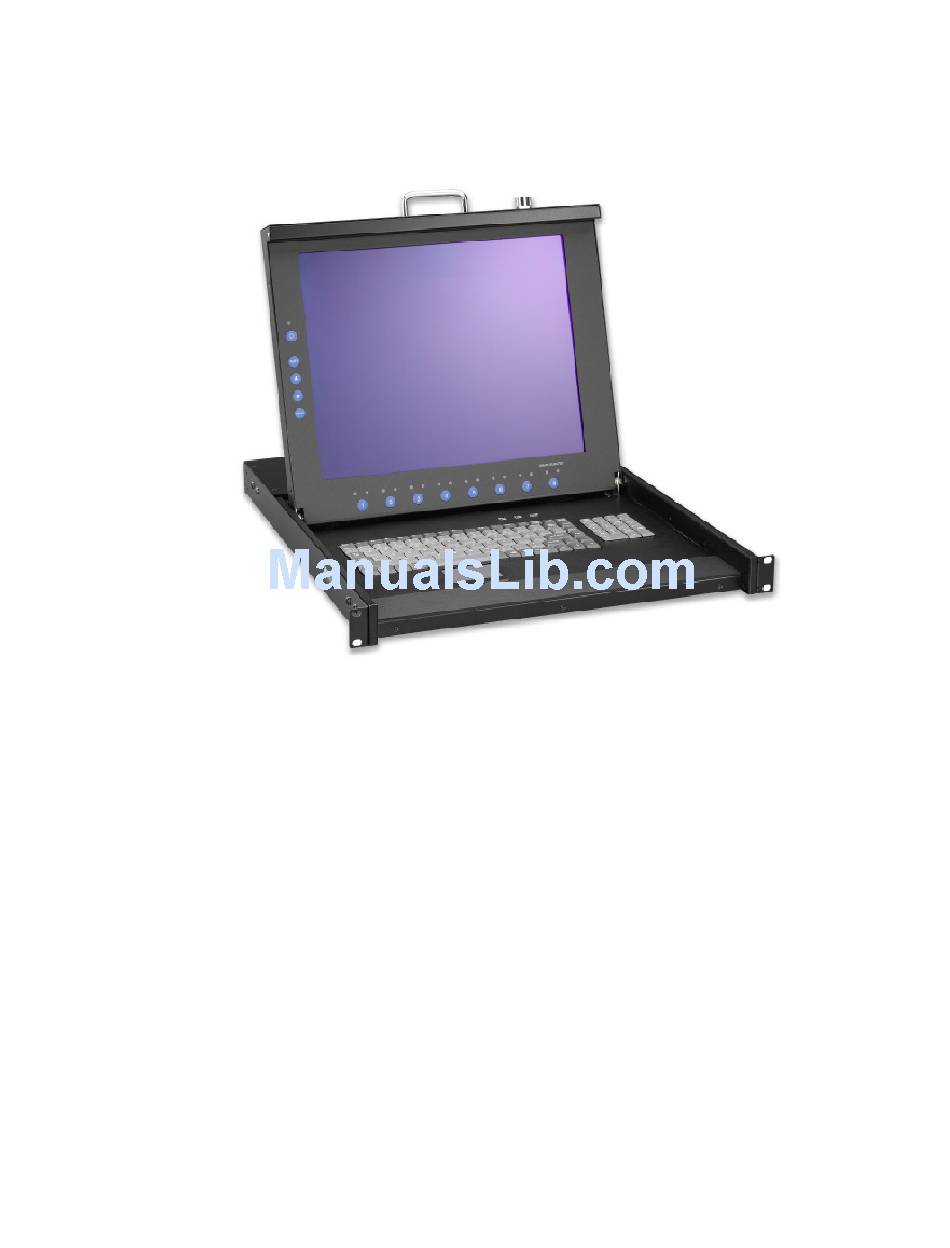

- Page 1 TRANSDUCTION USER’S MANUAL Version 1.0 07/30/08 TR-9200 1U 19” RACK MOUNT KEYBOARD MOUSE MONITOR TR-9300 1U 19” RACK MOUNT KVM SWITCH 5155-23 Spectrum Way, Mississauga, ON Canada L4W 5A1 TEL: 1-800-268-0427, 905-625-1907 FAX: 905-625-0531 Email: sales@transduction.com...
-
Page 2: Packing List
Check to make sure that the unit is not damaged in shipping. If you encounter a problem, contact your local dealer for service. Please read this manual thoroughly, and follow the installation and operation procedures carefully to prevent any damage to the TR-9200/9300, and/or any of the devices that connect to it. SAFETY INSTRUCTIONS... -
Page 3: Please Keep This User's Manual For Later Reference
The equipment has been exposed to moisture. The equipment has not worked well or you can not get it to work according to User’s Manual. The equipment has dropped and damaged. The equipment has obvious signs or breakage. TR-9200/9300 User Manual OF CONTENTS... -
Page 4: Table Of Contents
1.3 Hardware Requirement ....................7 1.4 Mounting the unit to your cabinet ................8 1.4.1 Mounting the TR-9200/9300 into 750 mm cabinets ............. 9 1.4.2 Mounting the TR-9200/9300 into 900 mm cabinets ............. 10 CHAPTER 2 17” TFT LCD PANEL ..................... 11 2.1 Introduction......................11... -
Page 5: Chapter 1 General Information
INFORMATIONH GENERAL INFORMATION 1.1 Overview The TR-9200/9300 is an ideal solution for network administration with multiple servers / platforms. Their 17-inch large size TFT LCD color display and ultra-low-profile compact industrial keyboard / touchpad provide the user-friendliest and most reliable environment for network administrators. -
Page 6: Product Specification
17” Active -Matrix TFT LCD LCD Panel Anti-reflection Glass for LCD 2 x 351 x 284 (mm) Maximum Resolution 1280 x 1024 pixels DVI (TR-9200 only) or RGB Analog Input signal format Video All graphic user’s interface on-screen- Display control display control... -
Page 8: Hardware Requirement
Your Macintosh will require a “mac adapter” for video. Your Sun server will require a DVI video output and USB keyboard/mouse inputs (for TR-9200 only) Your PC-compatible computer must have a 6-pin mini-DIN (PS/2 style) mouse port Your PC-compatible computer must have a 6-pin mini-DIN (PS/2 Style) keyboard port. -
Page 9: Mounting The Unit To Your Cabinet
Short L-bracket x 2 Extended bracket x 0 (not necessary) Supporting bracket x 2 For 900mm / 850mm cabinets Long L-bracket x 2 Extended bracket x 2 Supporting bracket x 2 (the same as those for 750mm cabinets) TR-9200/9300 User Manual... - Page 10 1.4.1 Mounting the TR-9200/9300 into 900/850 mm cabinets 1. Fasten the supporting brackets with the chassis. 2. Fasten the extended brackets with the supporting brackets. 3. Screw the extended brackets with the system chassis. TR-9200/9300 User Manual...
-
Page 11: Mounting The Tr-9200/9300 Into 750 Mm Cabinets
5. Fasten the front screws and the rear ones. 1.4.2 Mounting the TR-9200/9300 into 750 mm cabinets Follow the same procedure as mounting the into the 900 mm cabinet, but TR-9200/9300 the extended brackets would be unnecessary. -
Page 12: Chapter 2 17" Tft Lcd Panel
DDC1 & DDC2B Power 45 watts (typical) Power Consumption Supply Power VESA DPMS Standard, EPA/Energy saving Star compliant FCC class A, CE, UL (certification is pending up to Regulations the time this pilot run manual is written) TR-9200/9300 User Manual... -
Page 13: Factory Preset Timing For Reference
T R - 9 2 0 0 o n ly D ig it a l D V I 1 2 8 0 * 1 0 2 4 @ 7 0 H z T R - 9 2 0 0 o n ly TR-9200/9300 User Manual... -
Page 14: Panel Controls And Osd Functions
In many selections the icon stands for “accept or yes”, while stands for “abandon or no”. 2.2.2 Input signal (TR-9200 only) The TR-9200 accepts two different types of input signals: analog VGA and DVI-D. 1. Press the “MENU” button. 2. Select “input mode”... -
Page 15: Color
R, G, B values to obtain a satisfactory setting, or choose anyone among 4200K, 5000K, 6500K, 7500K and 9300K as desired color temperature. 2.2.5 Image quality 1. Press the “MENU” button 2. Select “image quality”. The available characteristics to be tuned including: auto configuration horizontal display size phase TR-9200/9300 User Manual... -
Page 16: Miscellaneous Settings
OSD settings. Users can adjust the following items about OSD: OSD horizontal position OSD size OSD timeout VOSD vertical position 4. Press the can restore original factory settings. 2.2.7 Power Indicator GREEN ON ORANGE STANDBY ORANGE SUSPEND ORANGE OFF Note : OSD – On Screen Display TR-9200/9300 User Manual... -
Page 17: Chapter 3 Installation
CHAPTER 3 INSTALLATION 3.1 Installing the Video Card and Video Driver Before connecting the TR-9200 and TR-9300, make sure your computer has a video card already installed for the monitor. After you connect the drawer, install the video software driver. The video driver is supplied by the video card manufacturer and may be found on the CDROM that came with your computer. -
Page 18: Turning On The Drawer
5. Connect the AC power cord to the power inlet on the drawer and then to a power outlet. 6. If the TR-9200 is used, step 2 & 3 should be skipped. Users need only connect the TR-9200 VGA in port to computer system’s VGA out port. -
Page 19: Chapter 4 Kvm Switch (Tr-9300 Only)
To prevent damage to your installation due to ground potential difference, make sure that all devices on the installation are properly grounded. Consult your dealer for technical details, if necessary. 4.2.2 Single Station Installation In a Single Stage installation, there are no additional KVM switch daisy chained down TR-9200/9300 User Manual... -
Page 20: Two Station & Three Installation
Port is being used for Cascading to another Master View switch. Selected:Lights GREEN to indicate the currently selected port. The LED is steady under normal conditions, but flashes when its port is accessed under Auto Scan mode. TR-9200/9300 User Manual... -
Page 21: Hot Plugging
Hot Key Navigation Hotkey navigation allows you to conveniently access any computer directly from the keyboard, instead of having to manually select it with a Port Selection switch. To select a port with the Hotkey method, do the following: TR-9200/9300 User Manual... -
Page 22: Port Id Numbering
4.5.1 Overview On Screen Display (OSD), provides a menu driven interface to handle the computer switching procedure. Although Hotkey switching still works, using OSD is a great deal more convenient - especially in large, daisy chained installations TR-9200/9300 User Manual... -
Page 23: Osd Navigation
2. You must press [Ctrl], [Alt], [Shift] one after the other - not all at the same time. 3. After pressing the [Ctrl]+[Alt]+[Shift] combination, you must key in the Port ID and press [Enter] within 1 second for each keypress. 4. The keys must be pressed and released one key at a time. TR-9200/9300 User Manual... -
Page 24: Osd Main Menu Headings
List view (see F3, below), and displays each one for the amount of time set with the Set Scan Duration function (see F6, below). When you want to stop at a particular location, press the [Spacebar] to stop scanning. TR-9200/9300 User Manual... - Page 25 To select/deselect a port, move the highlight bar to it, then press [F4]. When a port has been selected, an arrowhead displays in the QV column to indicate so. The arrowhead disappears when a port is deselected. F5 Edit: ♦ TR-9200/9300 User Manual...
- Page 26 2. On the submenu that appears next, move the highlight bar to the choice you want and press [Enter]. An icon of a pointing finger indicates which choice is the currently selected one. An explanation of the choices is given in the table, below:ing Function TR-9200/9300 User Manual...
- Page 27 Unlocking the Console. If a password has been set, you must provide the password in order to Lock / Unlock the Console. If no password has been set, pressing [Enter] will Lock / Unlock the Console. TR-9200/9300 User Manual...
-
Page 28: Factory Default Settings
Note:To modify or delete a previous password, access the Password function as in Step 1, then use the backspace or delete key to erase the individual characters. ptom Possible TR-9200/9300 User Manual... -
Page 29: Trouble Shooting
Improper mouse reset. Reset the mouse (and keyboard) by responding simultaneously pressing Buttons 1 and 2 on the First Stage unit for 3 seconds. Unplug the mouse connector from the Console Mouse Port, then plug it back in. TR-9200/9300 User Manual...
