Cini Remote 900MHz Operation Manual
12/6/2011
Cini Remote 900MHz Operation Manual
Transmitter and Receiver Modules
Document Number: PLC850-0003
Document Version: 005
Copyright 2011 by PLC Electronic Solutions Ltd.
9-3871 North Fraser Way, Burnaby, BC V5J 5G6 Canada
www.plcelectronicsolutions.com
1-877-832-3476
604-708-3502
PLC Electronic Solutions Ltd.
Copyright © 2011
www.plcelectronicsolutions.com
1 of 9
Advertisement
Table of Contents
Summary of Contents for PLC Electronic Solutions Cini Remote 900MHz
- Page 1 Cini Remote 900MHz Operation Manual 12/6/2011 Cini Remote 900MHz Operation Manual Transmitter and Receiver Modules Document Number: PLC850-0003 Document Version: 005 Copyright 2011 by PLC Electronic Solutions Ltd. 9-3871 North Fraser Way, Burnaby, BC V5J 5G6 Canada www.plcelectronicsolutions.com 1-877-832-3476 604-708-3502 PLC Electronic Solutions Ltd.
-
Page 2: Table Of Contents
Cini Remote 900MHz Operation Manual 12/6/2011 TABLE OF CONTENTS 1. INTRODUCTION ..........................3 2. INSTALLATION ..........................4 2.1. NECESSARY HARDWARE ....................4 2.2. CINI REMOTE TRANSMITTER ..................4 2.3. CINI REMOTE RECEIVER ....................5 3. HARDWARE FUNCTIONALITY ................5 3.1. CINI REMOTE TRANSMITTER ..................5 3.1.1. FUNCTIONALITY .............................5 3.1.2. -
Page 3: Copyright

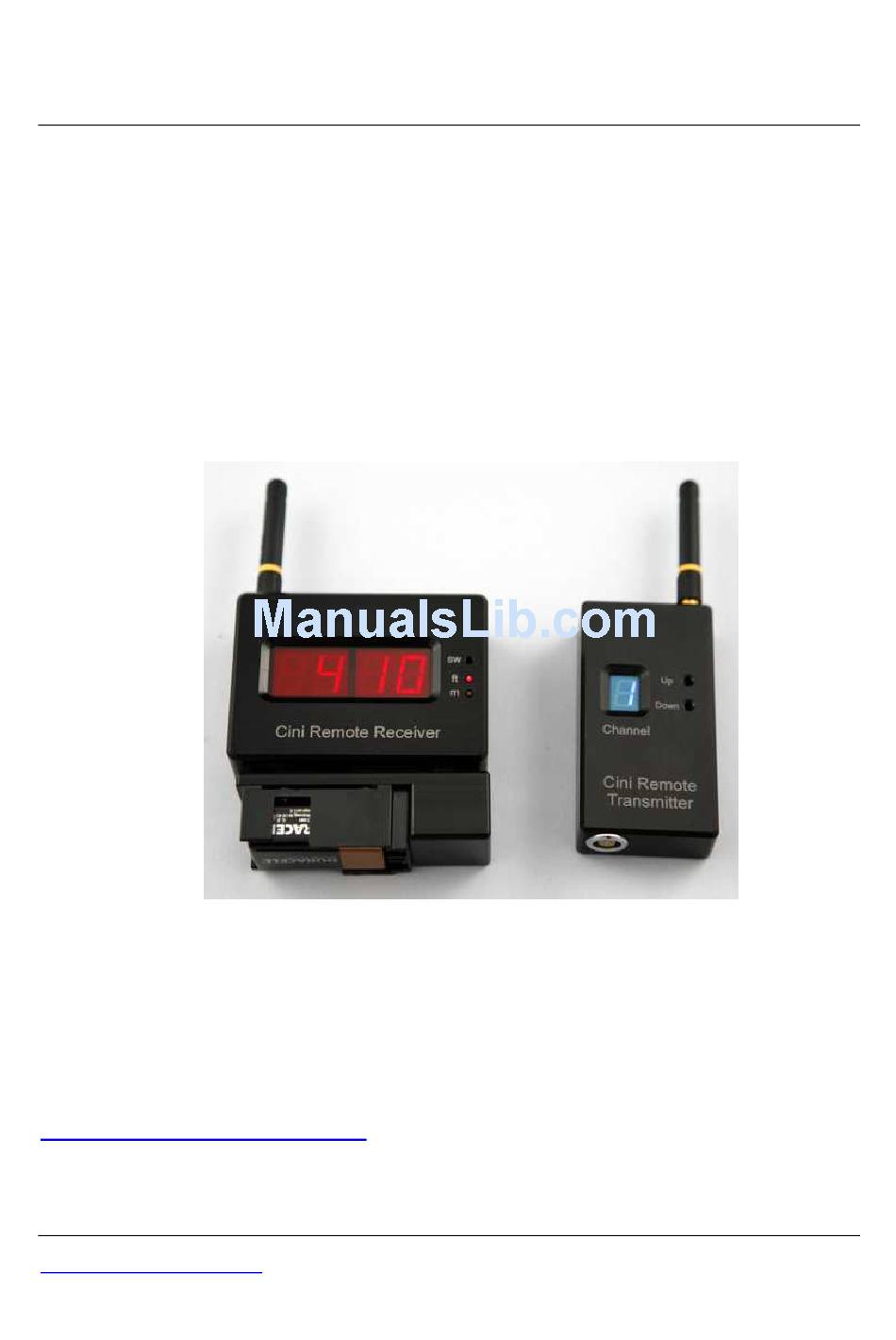

Cini Remote 900MHz Operation Manual 12/6/2011 1. Introduction This document describes the Cini Remote transmitter and receiver features and hardware functions of the Cini Remote Link. This product is to be used with the Cine Tape Measure System a registered product of Cinematography Electronics Inc. The 2 modules are described below;... -
Page 4: Installation
Cini Remote 900MHz Operation Manual 12/6/2011 2. Installation 2.1. Necessary Hardware Cini Remote Transmitter 900MHz (PLC955-0002) Comes with 900MHz ¼ Wave Antenna (PLC477-0001) Comes with Cini Battery Holder (PLC955-0017) Cini Remote Receiver 900MHz (PLC955-0003) Comes with 900MHz ¼ Wave Antenna (PLC477-0001) Cini Data Cable (PLC940-0001) 2.2. -
Page 5: Cini Remote Receiver
Cini Remote 900MHz Operation Manual 12/6/2011 2.3. Cini Remote Receiver Attach the antenna to the Cini Remote Receiver and insert a 9 volt battery making sure the positive (+) side of the battery is connected to the positive (+) of the reverse polarity protected Cini Battery Holder. -
Page 6: Specifications
Cini Remote 900MHz Operation Manual 12/6/2011 3.1.2. Specifications Min. Avg. Max. Case Size 97 x 45.85 x 23.2 mm (0.9” x 1.8” x 3.8”) Weight 132 grams (4 5/8 oz.) Temperature Range -40(-40) +85(185) degC(F) Input Voltage (V) Output Voltage (V) -
Page 7: Specifications
Cini Remote 900MHz Operation Manual 12/6/2011 3.2.2. Specifications Min. Avg. Max. Case Size 101 x 87.6 x 32.3 mm (4” x 3.45” x 1.27”) Weight 252 grams (8 7/8 oz.), Temperature Range -40(-40) +85(185) degC(F) Input Voltage, 9V Battery High Brightness Current 70.5... -
Page 8: Common Issues And Solutions
Cini Remote 900MHz Operation Manual 12/6/2011 4. Common Issues and Solutions 4.1. Range/Interference (dropouts) with other 900MHz Devices Put as much physical distance between the receive and transmit antenna’s and any other antenna as is practical. Change the channel on the Cini Remote Receiver and Cini RemoteTransmitter, test and then try to change the channel on your other 900MHz devices if possible. -
Page 9: Limited Warranty
12/6/2011 5. Limited Warranty PLC Electronic Solutions Ltd. Warrants this equipment for 1 year from the date of original purchase against defects in materials or workmanship provided it was purchased from an authorized dealer. This warranty does not cover equipment, which has been abused or damaged by careless handling or shipping, nor does it cover products subjected to customer alteration, modification, negligence or misuse.
