American Standard 7837.024 Specification Sheet

32mm(1-1/4) DIA. HOLES IN WALL FOR
3/8 N.P.T. FOR INLET & OUTLET
ON VACUUM BREAKER
32mm
(1-1/4)
3/8 NPT
32mm(1-1/4) DIA. HOLES
IN WALL FOR
1/2 N.P.T. SUPPLY
32mm(1-1/4) DIA. HOLES
IN WALL FOR
3/8 N.P.T. SUPPLY
3/8 N.P.T. SUPPLIES
(NOT FURNISHED)
CONCEALED PIPING
NOT FURNISHED

GENERAL DESCRIPTION:

Cast brass construction throughout. Single supply nozzle with
built-in wall mounted hook for spray end. 4' rubber hose. 10"
spray end with self-closing hand valve with renewable seats.
Wall-mounted self-closing double pedal valve with renewable
seats. Atmospheric vacuum breaker with top outlet to provide
back flow protection. Wall-mounted supply with loose key stop.
SUGGESTED SPECIFICATION
Bedpan Cleanser Assembly shall feature a wall mounted single inlet supply nozzle with built-in hook. Shall also feature wall
mounted double pedal valve, vacuum breaker and wall supply with loose key stop. Cast brass construction throughout. Fitting
shall be American Standard Model# 7880.024.002.
© 2008 AS America Inc.
VACUUM BREAKER
76mm
(3)
57mm
(2-1/4)
38mm
(1-1/2)
19mm
(3/4)
371mm
(14-5/8)
APPROX.
FINISHED WALL
LINE

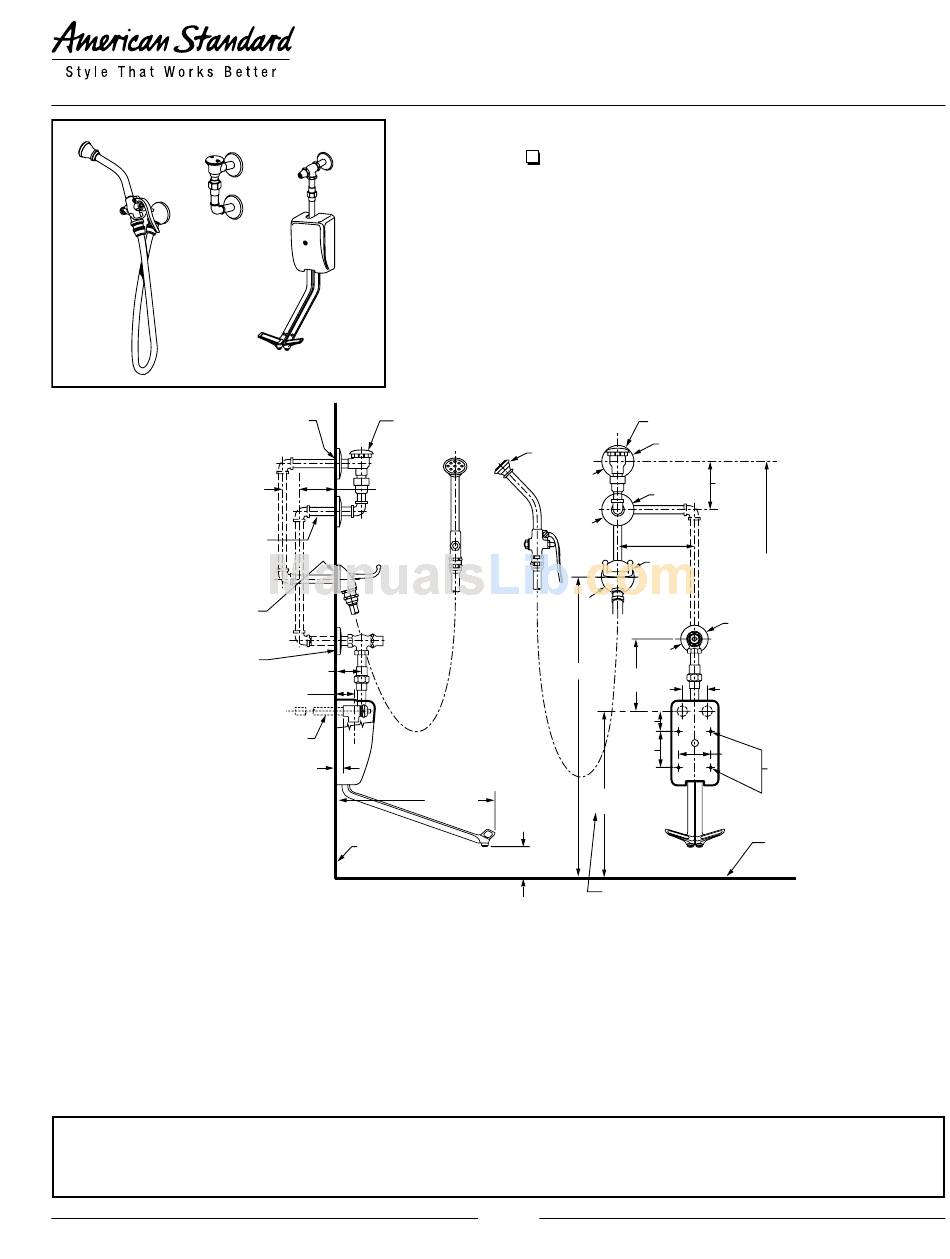

BEDPAN CLEANSER ASSEMBLY
MODEL NUMBER:
7880.024 Bedpan Cleanser Assembly
Includes Component parts:
• 7866.015 Wall nozzle with hook
• 7679.012 Double pedal valve
• 7544.018 Loose key wall supply
• 7837.024 Atmospheric vacuum breaker
• Self-closing handle
VACUUM BREAKER
SPRAY
OPTIONAL
60mm
(2-3/8)
OPTIONAL
152mm
(6)
51mm
(2)
83mm
(3-1/4)
352mm
(13-7/8)
35mm(1-3/8) MIN.
48mm(1-7/8) MAX.
PLUMBER NOTE- THIS DIMENSION
IS IMPORTANT AND MUST BE MAINTAINED

PRODUCT FEATURES:

Brass Construction:
applications.
Supply Nozzle:
end. Wall mounted.
Vacuum Breaker:
Cast Aluminum Foot Action Mixing:
controlled by self-closing cast aluminum pedals marked
"hot"/"cold".
L87
64mm
(2-1/2)
64mm
102mm
(2-1/2)
(4)
OPTIONAL
TO FINISHED
FLOOR
64mm
(2-1/2)
51mm
(2)
89mm
(3-1/2) (4) HOLES
(FOR No. 14 F.H.W.S.)
FOR MOUNTING
PEDAL VALVE
FINISHED FLOOR
LINE
Durable - excellent in high use
Cast brass with built-in hook to hold spray
Re-buildable back flow preventer.
Water supply
