AutoFlo S2000 Installation Instructions & Owner's Manual

Installation
Instructions &
Owner's Manual
AUTOFLO ELECTRONIC STEAM UNIT - POWER HUMIDIFIER
FOR GAS OR OIL FORCED AIR FURNACES, HEAT PUMPS AND ELECTRIC FURNACES
The AutoFlo Power Humidifier you have purchased has
been designed to be simple to operate and maintain.
TEMPERATURE PROBE
Parts included in the Steam Humidifier package are:
1. Humidifier
2. Self Piercing Saddle Valve
3. Installation Instructions and Owners Manual
4. Mounting Template
5. Installation Hardware package
6. Insulation and tape
7. Automatic Drain Assembly
8. Humidistat - Autoflo Models 062000
MODELS S2000 AND S2020
WA TER INLET
WA TER LEVEL
PROBE
HEATER

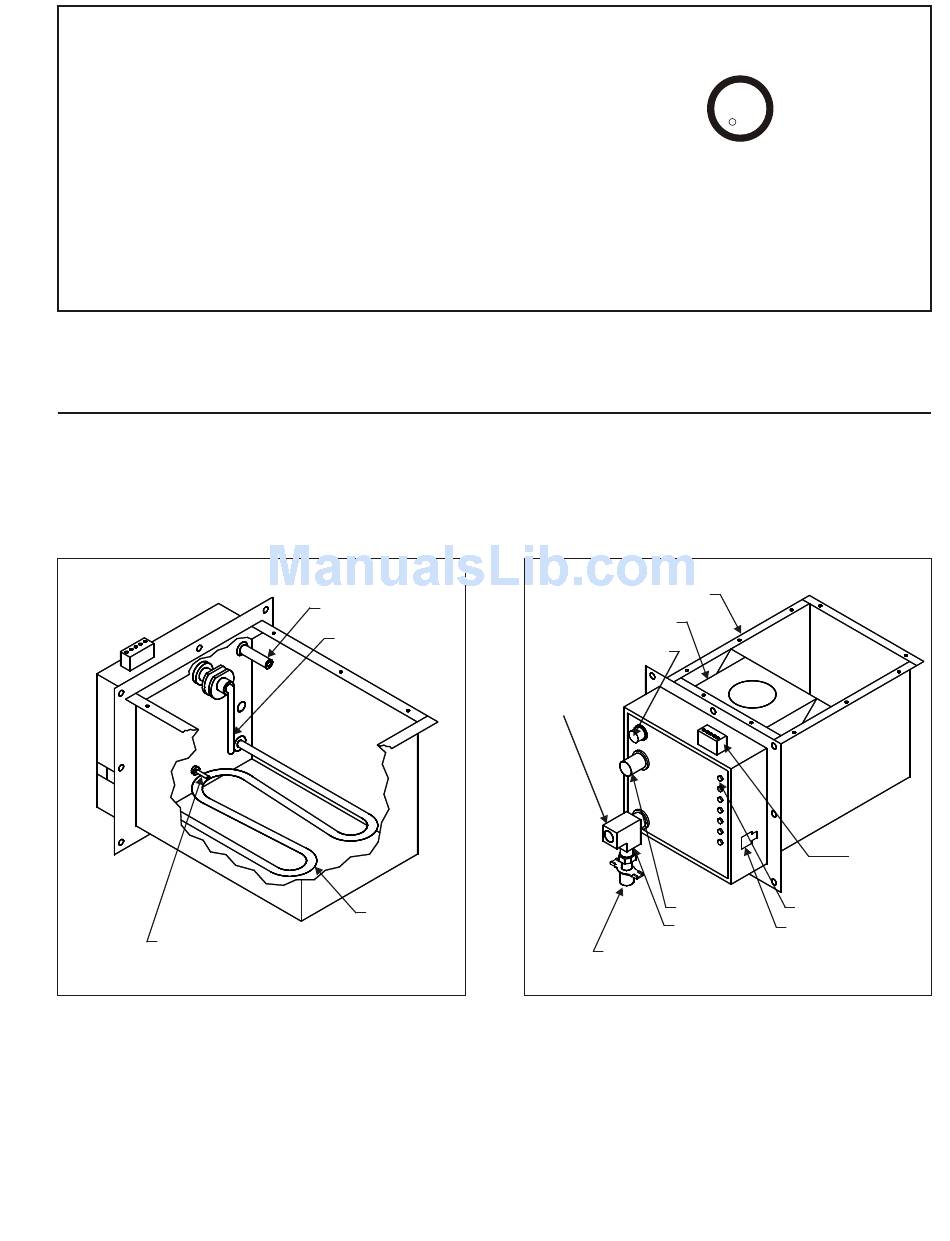

FIG. 1
C
Familiarizing yourself with the items listed in Figures 1
and 2 will assist you in installing and maintaining your
Steam Power Humidifier.
WA TER PAN
TANK BAFFLE
WA TER INLET
FOR DRAIN
VALVE DETAILS
SEE FIG. 8
OVERFLOW
"T" ADAPTER
MANUAL WA TER DRAIN
Options and additional parts recommended:
1. Overflow/drain lines - 5/8"ID & 3/8"ID high temperature hose
2. 2 hose clamps - 1" and 1/2"
3. Electrical wiring and connections
4. Water Hammer Arrester #WH 100
5. Zinc Anode #Z 100
This symbol on
the product means
the product is
U L
listed by
US
Underwriters
R
Laboratories, Inc.
BLOWER
INTERLOCK &
HUMIDISTAT CONN.
STATUS LIGHTS
AUTO DRAIN CONN.
FIG. 2
