NPower PowerTunes 39616 Owner's Manual

Powertunes power pack/ fm radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

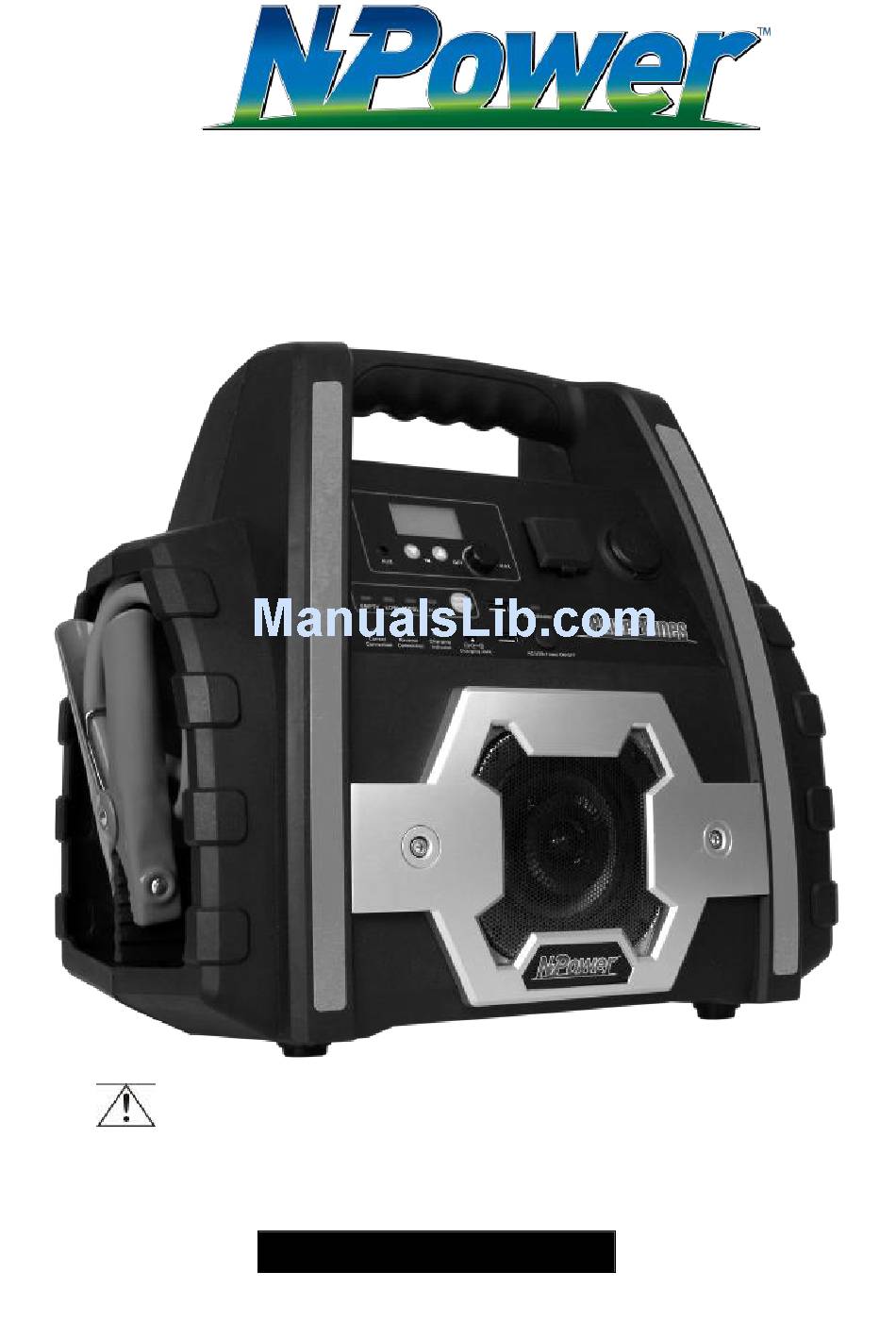

POWERTUNES POWER PACK/
FM RADIO
OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Item# 39616

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerTunes 39616 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NPower PowerTunes 39616

  • Page 1 POWERTUNES POWER PACK/ FM RADIO OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 39616...

  • Page 2: Intended Use

    For technical questions please call 1-800-222-5381. INTENDED USE This NPower PowerTunes is a rechargeable portable powerpack and jobsite FM radio all in one handy multipurpose unit! The 400 Watt, 18Ah powerpack converts 12V power from the battery pack to one grounded AC outlet, delivering portable power that is ideal for power tools, emergency lights, fans, video games, charging laptops and more.
  • Page 3 Operating temperature range 32°~104°F (0°~40°C) Storage temperature range -4°~158°F (-20°~70°C) Internal battery charging controller system AC charging bulk charging current 500mA Cut-off charging voltage (nominal) 14.4V±0.3V Charging restart voltage (nominal) 12.8V±0.2V FM Radio and the Speaker FM frequency range 87.5MZ~108MHZ Speaker output power 4-5W Air compressor...
  • Page 4 5. Battery capacity Indicator – Battery capacity. Display mode Recharge immediately Only red LED indicator lights. Fair Red and yellow LED light. Good Red, yellow and one green LED light. Fully charged Red, yellow and two green LED all light. 6.

  • Page 5: General Safety Rules

    Adapter 19. AC to DC adapter charger Features of the AC to DC charger Input voltage: 120V AC Output voltage: 13.5V DC Input current: 0.5A Note: it is recommended that you use the AC to DC adapter to charge the battery. GENERAL SAFETY RULES WARNING: Read and understand all instructions.

  • Page 6: Important Safety Considerations

    Inspect it for good working condition prior to storage and before re-use.  Exposure. Do not expose the NPower PowerTunes to rain, snow, or water. To reduce risk of fire hazard, do not cover or obstruct the ventilation openings. Overheating may result.
  • Page 7 Home security work light Fluorescent work light Fireplace fan Laptop computer Table lamp Color TV-13” 3/8” drill 30 minutes Operating AC Appliance 1. Check battery status to ensure the battery is fully charged. 2. Open the AC Outlet cover. 3. Turn the AC socket ON though press the switch for AC and USB. 4.
  • Page 8 Note: If you are unsure about powering any device with the inverter, contact the manufacturer of the device to determine whether it is compatible with the modified sine wave output of the inverter. 12V DC Appliances The PowerTunes can operate one 12V DC auto, RV, marine, or other portable DC appliance that draws 15 amps or less from its DC socket.
  • Page 9 battery. (4). Connect the black negative (-) clamp of the cables to the engine block, cylinder head, or other stationary heavy metal part of the motor. If the red “Reverse Polarity” LED illuminates, then reverse polarity has been detected. Correct polarity must be established before proceeding. Disconnect the boosting clamps from the vehicle’s battery and do the steps (3) and (4) again.
  • Page 10 Inflating Tires CAUTION: If the pressure gauge on the compressor indicates more than twice the recommended pressure for the object you are inflating and you have only started to inflate the object, the valve connector is incorrectly connected to the valve stem. This may damage the PowerTunes. Remove and reattach the valve connector to the valve stem.
  • Page 11 Operating FM Radio/AUX 1. To turn on and increase the volume of the speaker, just turn the switch clock wise. To lower the volume of the speaker, just turn the switch counter clock wise, it will shut down the power or the speaker if you turn completely to the end. Note: please always turn the switch off after used.
  • Page 12 When the battery reaches the end of its service life, you may purchase a replacement battery through Northern Tool + Equipment. The items # of replacement batteries are list as below - Item 82491 – NPower 18AH Sealed Lead Acid AGM battery - Item 82942 – NPower 22AH Sealed Lead Acid AGM battery...
  • Page 13 PLEASE MAKE SURE TO CONNECT THE BATTERY TERMINAL TO THE CORRECT BATTERY TERMINAL CABLE Battery Installation Procedures: (1) Turn OFF ALL for PowerTunes (includes: Jumpstart, AC, USB, Radio, and Compressor) (2) Unscrew the back cover of the powertunes (total 5 screws) (3) Remove the back cover (4) Pull out the internal battery out a little to unscrew the battery terminal connection.

  • Page 14: Troubleshooting

    TROUBLESHOOTING WARNING: Electrical shock and burn hazard. Do not dismantle the NPower PowerTunes. It does not contain any user-serviceable parts. Attempting to service the unit yourself could result in an electrical shock or burn. Troubleshooting Reference Problem Cause Solution PowerTunes...

  • Page 15: Warranty

    WARRANTY Year Limited Warranty This NPower PowerTunes carries a one (1) year warranty against defects in workmanship and materials. At its discretion, Northern Tool agrees to have any defective unit(s) repaired or replaced free of charge, within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
