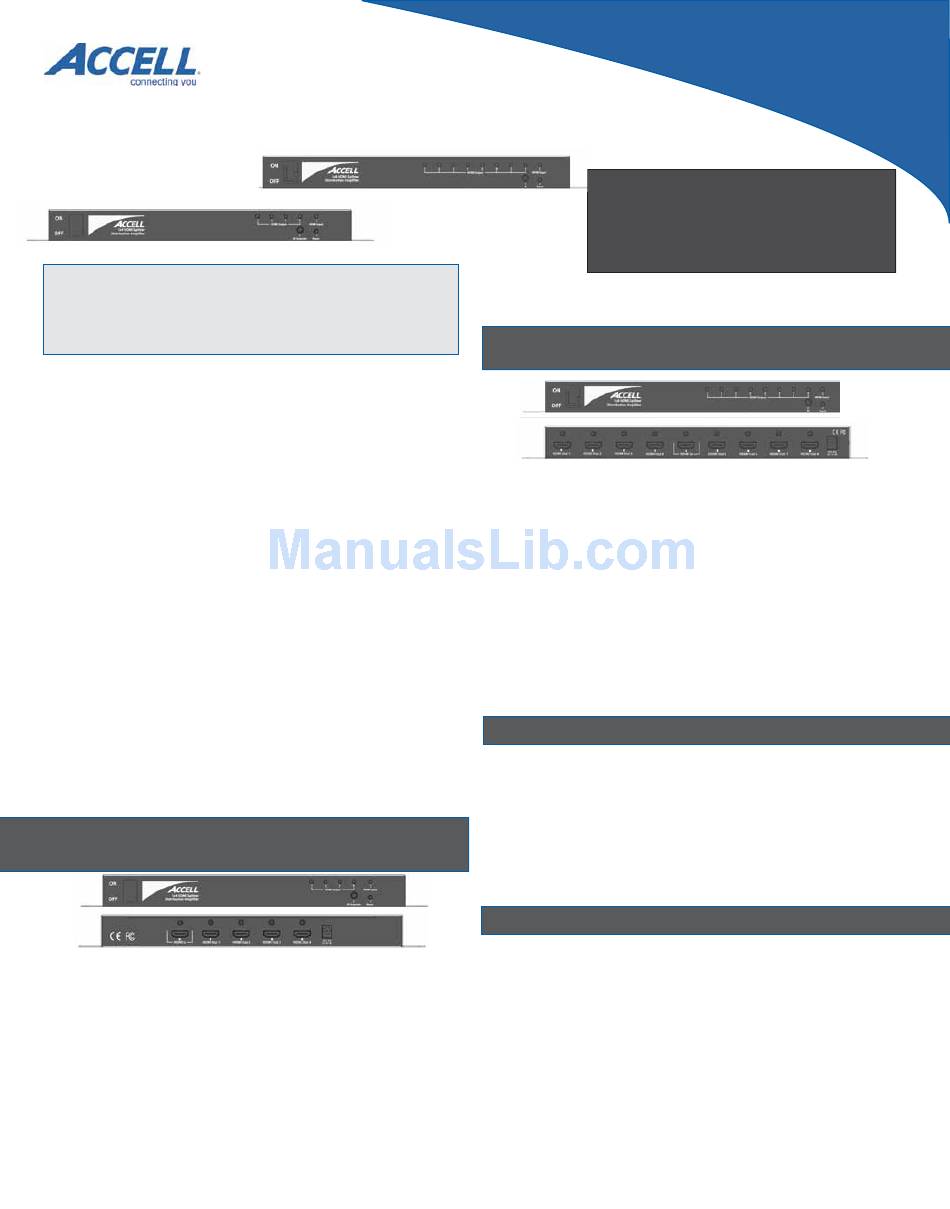

UltraAV
HDMI Splitter and Distribution
®
Amplifier
READ ME FIRST – SETUP INSTRUCTIONS
Thank you for purchasing the Accell UltraAV HDMI
Distribution Amplifi er. This product is designed to provide
an exceptional performance and value. Please review the
manual before operating and retain for future reference.
- CAUTION -
1. Ensure the unit has suffi cient
ventilation. Do not cover
ventilation openings. Do not install
in a confi ned space.
2. Do not operate near source
of heat. Do not stack on top,
underneath or between other heat
generating unit/s including other
amplifi ers.
3. Unplug power adapter if not
used for an extended period.
4. To prevent damage from power
surges, the unit should be plugged
Introduction
The UltraAV HDMI Distribution Amplifier (Splitter) accepts a signal from
a single HDMI enabled audio/video source and splits the single input
into 4 (1x4 Splitter) or into 8 (1x8 Splitter) HDMI outputs. The audio/
video signal is mirrored on up to 4 (1x4 Splitter) or 8 (1x8 Splitter) HDMI
displays, monitors, projectors or TV's.
Over-Current and Over-Voltage Protection
The circuit boards are equipped with both over-current and over-voltage
protection and will automatically power down if encountered. The circuit
boards will restore automatically once the excessive current or voltage
has passed.

Package Contents

● HDMI Distribution Amplifier (Splitter)
● Owner's Manual
1x4 HDMI Distribution Amplifier (Splitter)
Model: K078C-006B
Specifi cations
● Connect 1 HDMI Source to up to 4 HDMI Displays
● Supports HD resolutions up to 1080P and 3D
● HDMI 1.4a, HDCP 1.2 compliant
● Input video signal: 5v p-p, Input DDC signal: 5v p-p (TTL)
● Data transfer speed of 6.75Gbps (225MHz)
● Audio formats supported: DTS-HD 7.1, Dolby True-HD 7.1
● Deep color up to 36-bit
● Maximum input cable length: Up to 20m (24AWG)
● Maximum output cable length: Up to 20m (24AWG)
● Supports cascade up to 3 units
● Shelf or surface mountable
● 5V DC, UL Listed power adapter
● Input AC: 50Hz to 60Hz, 100-240V
● Approximate dimensions: 10.9"W x 1.1"H x 6.1"D
277W x 28H x 156D mm
into a surge protector or surge pro-
tected power source.
5. Do not use near liquid or areas
of heavy moisture.
6. Clean unit with a clean and dry
cloth only.
7. This unit cannot be serviced in
the fi eld. Contact Accell if service is
required.
8. Do not open case, risk of shock -
shock hazard.
9. Do not modify power cord or use
the product if the power cord is
damaged.
● Power Adapter
Model Numbers:
K078C-006B (1x4)
K078C-007B (1x8)
specifications continued...
● Operating temperature range: 5 to 131°F (-15 to 55°C)
● Operating humidity range: 5% to 90% RH (no condensation)
1x8 HDMI Distribution Amplifier (Splitter)
Model: K078C-007B
Specifi cations
● Connect 1 HDMI Source to up to 8 HDMI Displays
● Supports HD resolutions up to 1080P and 3D
● HDMI 1.4a, HDCP 1.2 compliant
● Input video signal: 5v p-p, Input DDC signal: 5v p-p (TTL)
● Data transfer speed of 6.75Gbps (225MHz)
● Audio formats supported: DTS-HD 7.1, Dolby True-HD 7.1
● Deep color up to 36-bit
● Maximum input cable length: Up to 20m (24AWG)
● Maximum output cable length: Up to 20m (24AWG)
● Supports cascade up to 6 units (Silicon Image chipset)
● Rack shelf or surface mountable
● 5V DC, UL Listed power adapter
● Input AC: 50Hz to 60Hz, 100-240V
● Approximate dimensions: 10.9"W x 1.1"H x 6.1"D
(277W x 28H x 156D mm)
● Operating temperature range: 5 to 131°F (-15 to 55°C)
● Operating humidity range: 5% to 90% RH (no condensation)
The HDMI splitter can be cascaded (layered) to expand the number of
supported displays.
K078C-006B (1x4 Splitter) - Supports up to 3 layers.
K078C-007B (1x8 Splitter) - Features a Silicon Image chipset supporting
up to 6 layers.
To create a 2 layer cascade, two same distribution amplifiers must be
used. Run an HDMI cable from an output on unit #1 to the input of unit
#2. A 2 layer cascade of the 1x4 splitter will support up to 7 outputs. A 2
layer 1x8 splitter cascade will support up to 15 outputs.
With the splitter power switch in the OFF position, connect an HDMI High
Speed cable from the HDMI Output on the audio/video source to the
HDMI Input 1 on the back of the splitter.
Tips: Use the shortest length HDMI cables possible in each point
in the installation. Use only High Quality and High Speed HDMI
cables.
Next, connect an HDMI cable to the HDMI Output Port 1 on the splitter
and then connect the other end to an HDMI Input Port on the display
device. Similarly, using HDMI cables, connect the remaining HDMI Output
Ports on the rear of the splitter to the HDMI Input ports of the other
displays.
Connect the power adapter to the splitter. Plug the power adapter into a
surge protected AC power outlet. Turn ON the video source, and turn ON
the displays. Turn the splitter's power switch to the ON position.
Cascading
Setup
