Summary of Contents for Dragon Group China TX-999DM

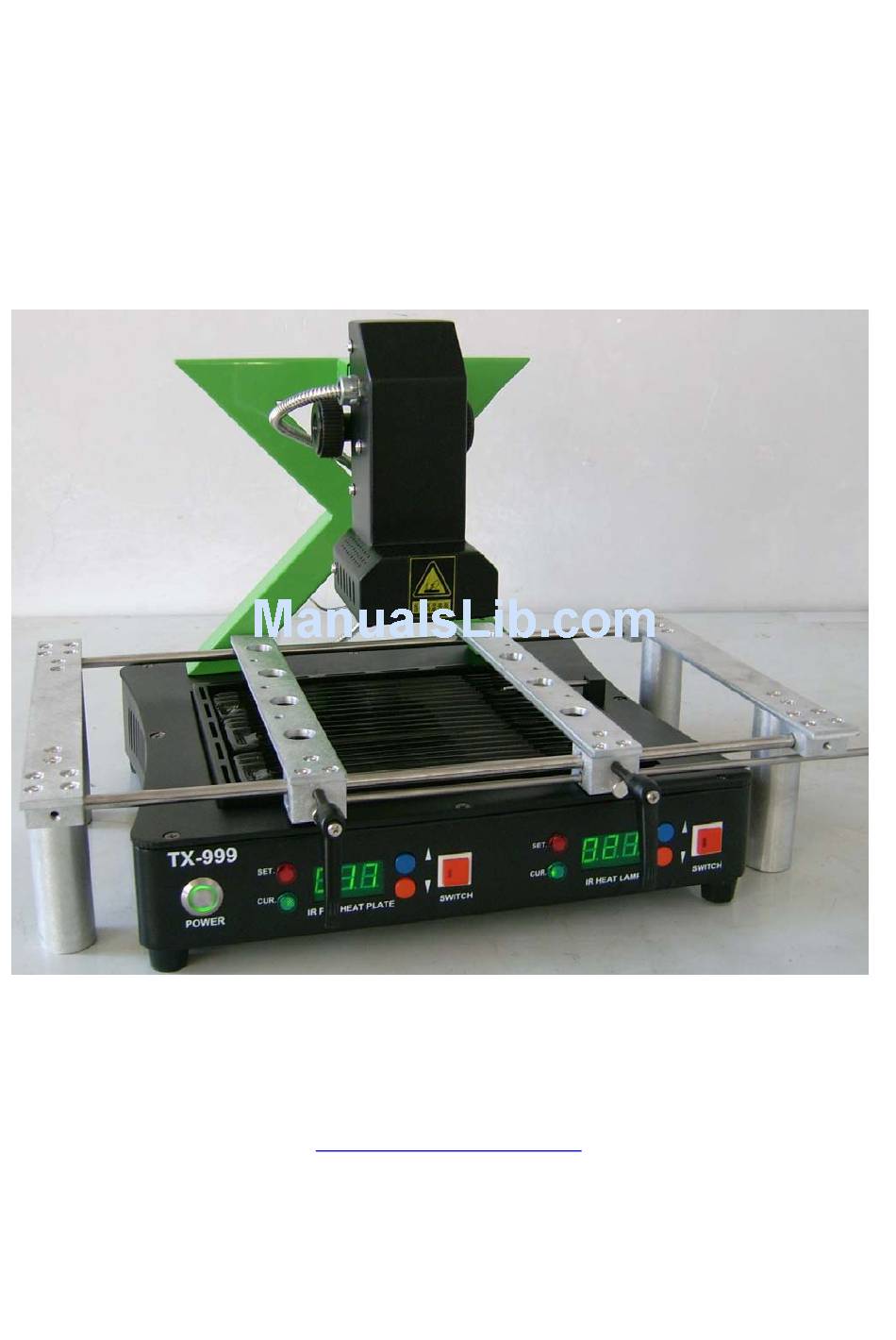

- Page 1 IRDA-WELDER User Manual Model: TX-999DM DRAGON GROUP CHINA INTERNATIONAL PUHUIT BGA DESK DEVICES DIVISION http://www.puhuit.com...
-
Page 2: Table Of Contents
user manual IRDA-WELDER TX-999 CONTENT 1. Features — — — — — — — — — — — 2 2. Main Parameter — — — — — — — — — 3. Main Components — — — — — — — — 4 4. -
Page 3: Features
user manual IRDA-WELDER TX-999 1. Features 1. Use of infrared welding technology which is developed independently. 2. This machine is equipped with laser positioning and adopts 180°rotational lamp structure with flexible operation and easy control. It is suitable for any point of a plat component, especially BGA, SMD component. -
Page 4: Main Parameter
user manual IRDA-WELDER TX-999 2. Main Parameters Work table size 360X328mm Rated voltage and frequency AC110/220-230v 50/60Hz Whole power 1100W Infra-red lamp body power 150W Preheating chassis power 900W Infra-red lamp body heating size 60x60mm Preheating chassis heating size 260x212mm Infra-red lamp body temperature adjustable 0℃-350℃... -
Page 5: Description Of Function About Main Parts
user manual IRDA-WELDER TX-999 Description of function about main parts 1. Welding table main body IR-preheating Infra-red lamp body Chassis Support of the Board Power Preheat chassis The screen displayed source temperature the peak temperature switch set-point of the IR lamp Preheating chassis Infra-red lamp Lamp body... -
Page 6: Back Panel
user manual IRDA-WELDER TX-999 Back panel Preheating chassis Infra-red lamp X lamp body temperature sensor body socket support jack Fuse Infra-red lamp body Spare socke sensor socket Main power socket 4. Lamp body X lamp body Lamp body holder connecting line Lamp body adjust hand-wheel Infra-red lamp body... -
Page 7: Installation
user manual IRDA-WELDER TX-999 5. Installation X Lamp support assembly According to the following picture, insert vertically X lamp body support into the X lamp body support socket on the panel. Keep X lamp body and panel vertically. Inert a screwdriver into the reserved hole in the back panel, and then tighten the screw clockwise. -
Page 8: Assemble Circuit Board Support
user manual IRDA-WELDER TX-999 Assemble circuit board support According to the following picture, assemble the components of circuit board support and tighten the screw. slider Bakelite bolt Board support of the circuit Fasten pipe Fasten screw nut motional stick Guide rod 6. -
Page 9: Sealing Off/Repair Operation
user manual IRDA-WELDER TX-999 will start to warm up. Press it again, the plate will shut down. Press the“▲”(blue button)or “▼”(red button)on the “IR PRE-HEAT PLATE” on the front panel to choose a temperature between 0 and 350℃ for lamp. Press the “SWITCH” button (the indicator light works) and the lamp will start to warm up. -
Page 10: Caution And Related Introduction
user manual IRDA-WELDER TX-999 use the vacuum nozzle or tweezers to take the chip away, and close the infrared lamp body and the preheating chassis and so on. Turn off the power off after complete cooling. Attention: When the chip spreads has the waterproof solid sealing compound, must first open the preheating chassis to melt rubber. - Page 11 user manual IRDA-WELDER TX-999 (1). When sealing off/repair bigger PCB board chip, for example, the computer board, XBOX360 motherboard, and so on, must certainly carry on the whole board preheat and dry, or according to the factory technological requirement, also may depend on the experience to process. Only then processes appropriately, can prevent effectively the PCB board distortion and produces from this faulty soldered joint, chip rake when sealing off/repair chip.
-
Page 12: Maintenance
user manual IRDA-WELDER TX-999 7. Maintenance (1). Main body maintenance： After the machine has been used for a period of time, clean the focusing frame, the guide rod, the PCB board support and the sliders and treat them with a lubricant to protect them from rust. (2). - Page 13 user manual IRDA-WELDER TX-999 long-term factory spares supply. The life of the infrared lamp should be around 1000 working hours, guaranteed usable for 3 months minimum with no issues. We provide online Q/A and troubleshooting support and technical advice service. Statement: The images and screenshots in this product user manual may vary slight from the actual purchased product.
