Page 1: User Manual
DVB-T Set-Top-Box DTR 705 USER MANUAL DTR 705 English... -
Page 2: Fcc And Safety Information
FCC and Safety Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 3 Precautions Please read these precautions before operating this unit. Power cord protection To avoid any malfunctions of the unit, and to protect against electric shock, fire or personal injury, please observethe following. Hold the plug firmly when connecting or disconnecting the AC power cord. Keep the AC power cord away from heating appliances.
-
Page 4: Table Of Contents
CONTENTS FCC and Safety Information INTRODUCTION Front panel Rear panel Remote control SYSTEM CONNECTION General about connections Connection to the TV and video recorder with SCART Connecting a HiFi System GETTING STARTED WELCOME PAGE System setup INSTALLATION Automatic channel scan Manual channel scan Aerial Adjustment OPERATION... -
Page 5: Introduction

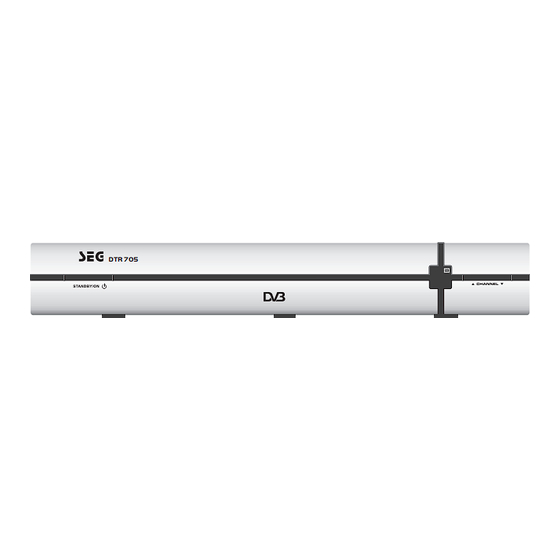

INTRODUCTION Front panel Standby button Channel up Power indicator Channel down DTR 705 Remote sensor Rear panel TV aerial AC Mains AUX Scart for connection to a VCR or a satellite receiver Coaxial Digital Audio AC220-240V ~50/60Hz RS232 DTR 705... -
Page 6: Remote Control
INTRODUCTION Power On/Standby (Switch the STB ON/STANDBY mode) Numeric entry (Enter numeric values and to select the channel directly by entering it's number) Menu (Open up menu) DTV/ VCR DTV/ VCR DTV/ VCR DTV/ VCR Red Button (For teletext function) Page up Cursor/ Enter to select sub-menu from the... -
Page 7: System Connection
Connection to the TV and video recorder with SCART Scart cable Antenna RS232 AC220-240V ~50/60Hz DTR 705 DVB-T SET TOP BOX POWER SUPPLY: AC 220-240V~50/60Hz POWER CONSUMPTION: 10WATTS Art-Nr.:_________ Veseg GmbH, Ostring 60, D-66740 Saarlouis-Fraulautern R cable... -
Page 8: Getting Started
GETTING STARTED WELCOME PAGE If you use the STB the first time or after you delete all channel information in the STB,the "WELCOMOE PAGE" picture for quick shortcut menu will display . Press "1~5" numeric button to enter Region, OSD Language Tuner WELCOME PAGE Power, Auto Scan and Main Menu quickly. -
Page 9: Installation
Installation Automatic channel scan MENU Press the to enter the setup menu of the STB. Press to select "Installation". Press to enter the sub-menu. Select the "Auto Scan" and press , Auto Scan menu appears Press to select Scan mode and highlight "Search",then press the to confirm . -
Page 10: Aerial Adjustment
Installation Aerial Adjustment When you adjust the location of aerial,use this menu to check signal intensity and quality of the selected channel. MENU Press to enter the main menu of the STB. Press to select "Installation". Press the to enter the sub-menu. Select the "Aerial Adjustment"... -
Page 11: Operation
OPERATION Accessing the favorite channels FAVORITE Favorite Group 1 Press to open up the "FAVOURITE LIST". 0001 HN Radio2 0002 BBC NEWS 24 0003 BBC Text Press to select the desired favourite group. Channel 0004 BBC Two Installation Select the favourite channels and press to view the selected channel. -
Page 12: Channel
CHANNEL Channel list There are four ways of channel selection - stepping through the channel list, selection by number, from the on-screen channel list, and using the electronic programme guide(EPG). Stepping through the channel list: To move through the channel list, press the upward arrow or downward arrow key on the remote control. -
Page 13: Tv Channel List
CHANNEL TV Channel list Enter Channel menu. Press to highlight TV TV Channel List channel list. All Channel 0001 BBC CHOICE Press ,TV channel list appears. Preview 0002 BBC NEWS 2 Press to select channel group. Press to preview the desired channel Favorite Move... - Page 14 CHANNEL TV Channel list (Continued) Sort In channel list menu, press numeric button "4" to open "Sort" menu. TV Channel List Press to highlight sorting All Channel Sort 0001 BBC CHOICE way you want and Press to confirm. Default Preview 0002 BBC NEWS 2 Name(A-Z) Name(Z-A)
-
Page 15: Radio Channel List
CHANNEL TV Channel list (Continued) Edit: Use edit to rename a channel. Edit Channel All Channel In "Edit Channel" menu, press numeric button "4" to open 0001 BBC CHOICE Edit Channel edit channel menu.Highlight name item and press Preview 0002 BBC NEWS 2 Name BBC ONE to confirm.The mock keypad will be showed. -
Page 16: Delete All Favorites
CHANNEL Delete All Favorites Use this menu to delete all favorite channels. Enter Channel menu. Channel Press to highlight Delete TV Channel List All Favorites item. Radio Channel List Input Password Delete All Favorites Delete All Channels Press the ,you will be asked to input the ---- password. -
Page 17: System Set Up
SYSTEM SET-UP Many aspects of your STB can be set to reflect your circumstances and preference. The SETTINGS menu screen is accessed from main menu. System setup main menu Use system menu to setup OSD Language, TV System, Start up Main Menu Service,Region and Time, Timer Setting, OSD Setting and Parental Lock. -
Page 18: Tv System
SYSTEM SET-UP TV System Use this menu to setup Display Mode,Aspect Ratio.Dolby Digital, Video Output and LCN Mode. TV System Enter "System Setup" menu, highlight "TV System". Display Mode Auto Aspect Ratio 4:3PS Press ,the sub-menu appears. Dolby Digital Video Output CVBS Press to select the desired... -
Page 19: Start Up Service
SYSTEM SET-UP Start up Service Use this menu to setup a start up service when you power on STB. Enter "System Setup" menu, highlight "Start up Service". Start up Service Press ,the sub-menu appears. Boot on Service Mode Start up Service Press to select the desired item and press... -
Page 20: Timer Setting
SYSTEM SET-UP Timer Setting Various time can be set, such as program time, Sleep time. Enter "System Setup" menu, highlight "Timer Setting". Time Setting Program Timer Press ,the Timer Setting menu appears. Sleep Timer Load Default Timer Setting Press to select the desired item and press ,the sub-menu appears. -
Page 21: Osd Setting
SYSTEM SET-UP OSD Setting You can set Subtitle On/Off,OSD Timeout, OSD Transparency, and load default OSD setting. Enter "System Setup" menu, highlight "OSD Setting". OSD Setting Subtitle Display Press ,the OSD Setting menu appears. OSD Timeout OSD Transparency Press to select the desired tem and press ,the sub-menu appears. -
Page 22: Tools
Tools In Tools menu ,you can see the software information, play game, Load factory default settings, upgrade software, help using remote control and enter welcome page for quick shortcut menu. Tools main menu MENU Press to enter the main menu of the STB. Main Menu Channel Press... -
Page 23: Load Factory Default
Tools Load Factory Default You can re-set the STB back to factory settings, clear all existed channels ae in this menu. Tools Enter "Tools" menu, highlight "Load Factory Default". Information Input Password Game Press , you will be asked to input the password. Load Factory Default ---- Software upgrade... - Page 24 Veseg GmbH Ostring 60 D-66740 Saarlouis-Fraulautern www.SEG.tv...
