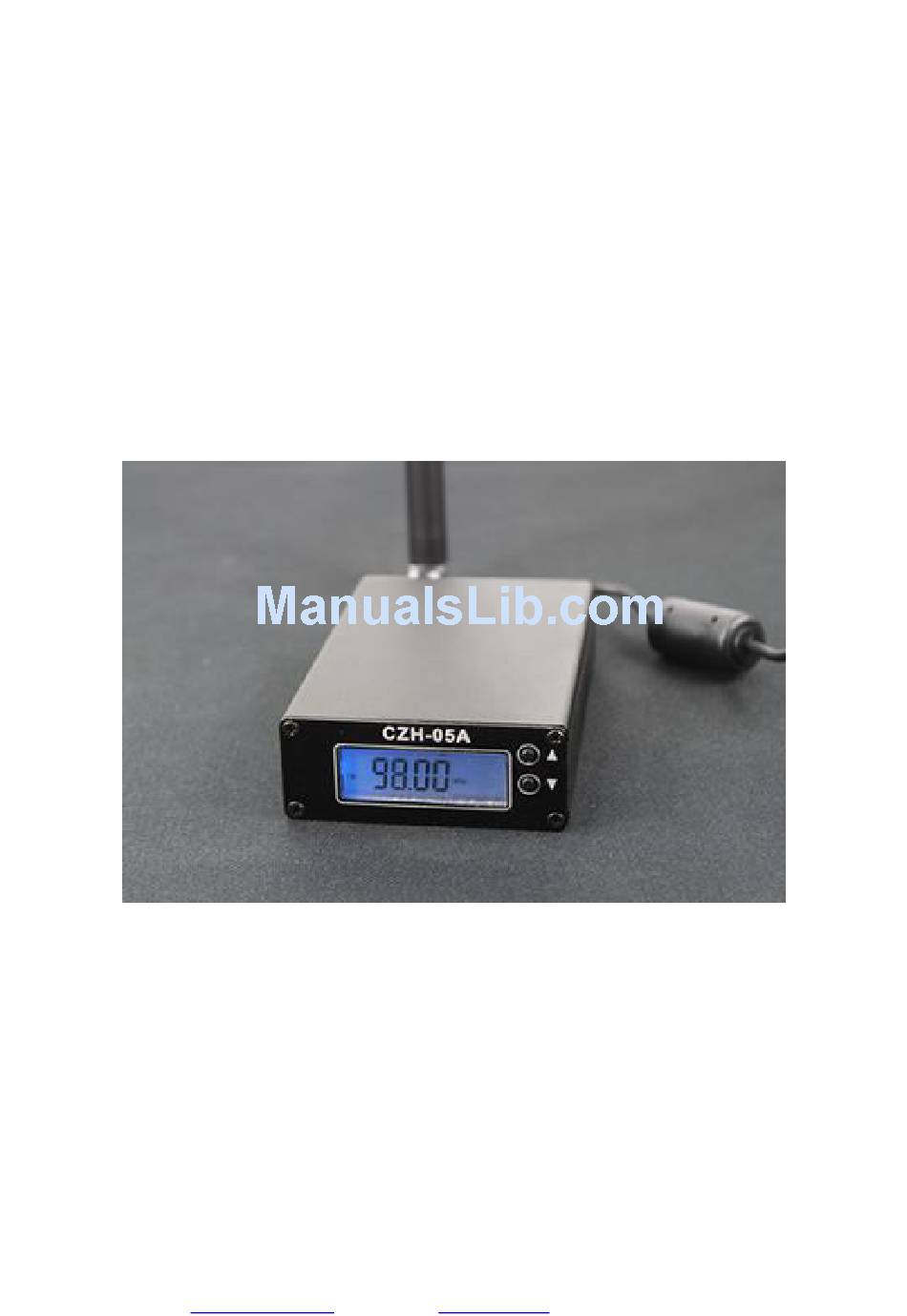

Elecsky PLL FM Transmitter User's Guide
CAUTION: NEVER operate the transmitter without connecting a suitable antenna or dummy 50
Ohm load to the output otherwise there is a serious danger of destruction of the output stage of the
transmitter.
Do not touch the antenna after inserting the power.
_________________________________________________________________________________________________________________
Online shop:
http://www.elecsky.com
Elecsky.com FM Transmitter User's Guide
Mode: CZH-05A V1.2
Service email:
info@elecsky.com
Page 1 of 6
Advertisement
Table of Contents
Summary of Contents for Electron-Sky CZH-05A
- Page 1 _________________________________________________________________________________________________________________ Elecsky PLL FM Transmitter User's Guide Mode: CZH-05A V1.2 CAUTION: NEVER operate the transmitter without connecting a suitable antenna or dummy 50 Ohm load to the output otherwise there is a serious danger of destruction of the output stage of the transmitter.
- Page 2 Limitation of Liability The liability of Electron-Sky(elecsky) arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall Electron-Sky(elecsky) be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale.
- Page 3 The true distance is based on the sensitivity of the receiver, antenna of the receiver, and the building and other obstructions, which are between the transmitter and receiver. And the distance will much more in countryside. Package Contents • 1x CZH-05A FM Transmitter • 1x 100~240V Power Supply • 1x 3.5mm Audio Cable •...
- Page 4 Elecsky.com FM Transmitter User's Guide _________________________________________________________________________________________________________________ parasitic amplitude modulation: <0.2% Stereo Separation: >30dB Distortion: < 0.5% Operation Time: True 24/7 ℃ ℃ ambient temperature: 0 ~+50 Antenna Design: Rubber Antenna Antenna Connector: BNC type Output Impedance: 50 ohm Audio Input Connector: 3.5mm headphone connector Size of Transmitter Unit: L:113mm, W:88mm, H:39mm...
- Page 5 Elecsky.com FM Transmitter User's Guide _________________________________________________________________________________________________________________ Using the FM Transmitter 1 Press Power Button to turn on the Digital Transmitter. The LCD Digital Display shows the pre-set radio frequency channel (For example, 98.0MHz). 2. Turn on your radio and switch to FM channel, adjust the radio frequency channel to desired channel. Now the radio will output as “zzz”...
- Page 6 20～50 ★Only for reference, also the covering distance is concern with the antenna and environment. Electron-Sky(elecsky), i t's owners, and employees accept no responsibility whatsoever for any consequences arising from the use or misuse of unlicensed or unapproved equipment. We suggest that you check local laws before operating or purchasing transmitting equipment.
