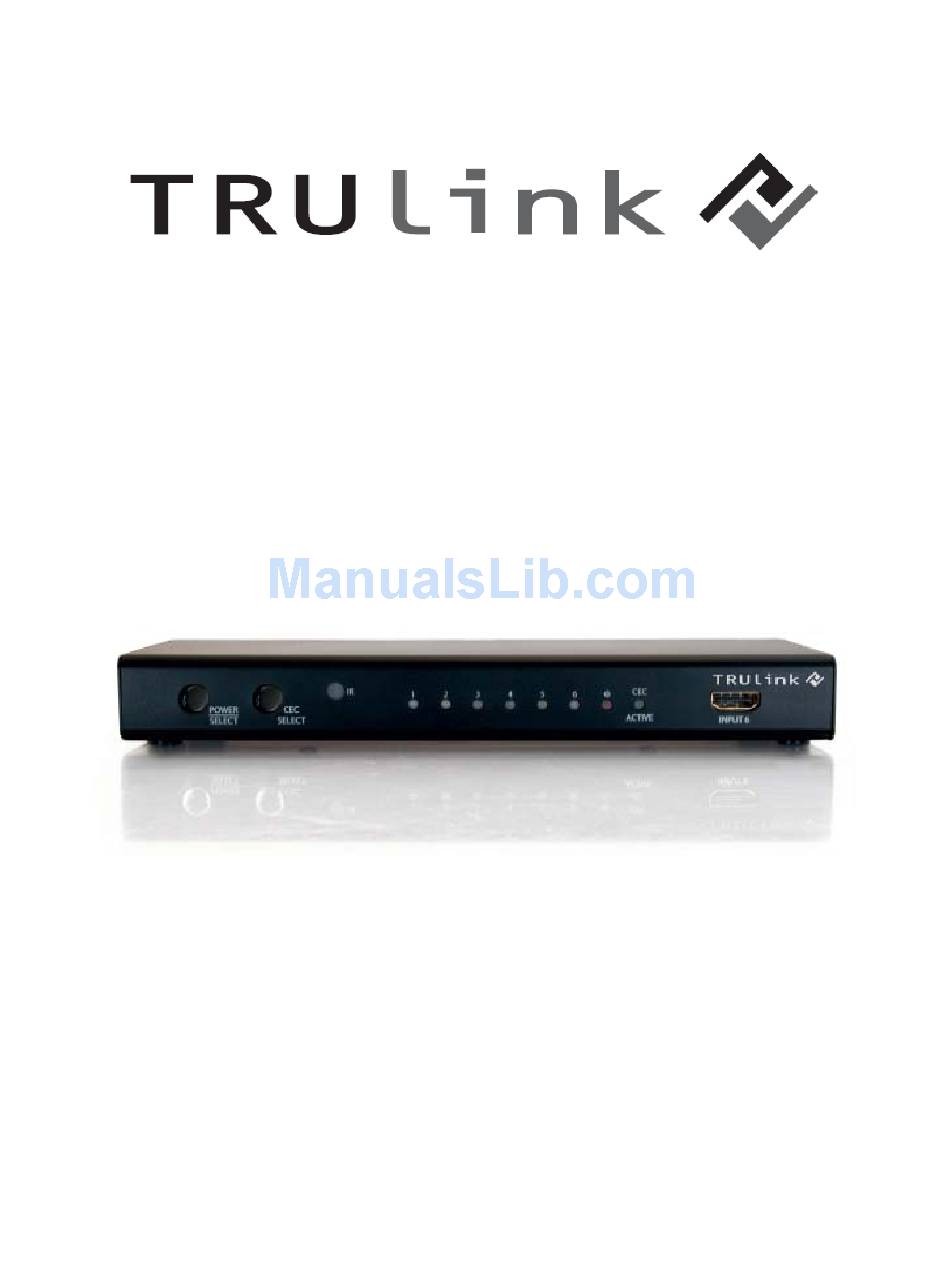

- Page 1 Model: 40445 (Four Port) 40446 (Six Port) HDMI™ Selector Switches Model: 40446 shown Operation Manual ver.1.0...
-
Page 2: Package Contents
DVD, Blu-ray™ gaming systems, high-definition cable/satellite boxes and portable high-definition electronic devices. Trulink HDMI selectors offer 3 (40445) and 5 (40446) rear inputs, plus a convenient front input for temporary connection of gaming systems or HD camcorders and cameras. Fully compatible with HDCP-enabled sources. -
Page 3: Connecting Devices
Features: • HDMI™ Compatibility HDMI (v1.3 with support for deep color, CEC, X.V. Color™, High speed refresh rates, and lossless uncompressed digital-multi-channel surround sound) • Supports up to 1080p Supports 480i, 480p, 720p, 1080i, 1080p resolutions • HDMI Inputs Multiple rear HDMI™ inputs with 1 front input for convenient connection of temporary devices •... - Page 4 Follow these steps to connect the components to the switch. 1. Using one HDMI cable per device, connect each of the HDMI outputs from your devices (DVD player, HD cable/satellite receiver, video game player, etc.) to one of the input ports on the HDMI switch.
-
Page 5: Operating The Switch
Operating the Switch: Controlling the switch with the infrared remote control Press POWER ON to turn on the HDMI switch. Select an input device by pressing the corresponding input button (numbered 1~6) on the remote control. For example, if your DVD player is connected to Input 1 on the HDMI switch, press #1 on the remote control to view/hear the DVD’s content. -
Page 6: Replaceable Parts
Replaceable Parts • In the event of a lost or damaged part, 98033-AC Adapter • the following replaceable accessories are 98031 Remote Control for 40445 • available. Please call 877-AV-EXPERT 98032 Remote Control for 40446 for order information. Troubleshooting Problem Possible Solution •... -
Page 7: Important Safety Information
TRUlink™ One Year Warranty At Impact Acoustics, we want you to be totally confident in your purchase. That is why we offer a one year warranty on this device. If you experience problems due to workmanship or material defect for the duration of this warranty, we will repair or replace this device. To request a Return Merchandise Authorization (RMA) number, contact customer service at 877-AV-EXPERT or www.cablestogo.com...
