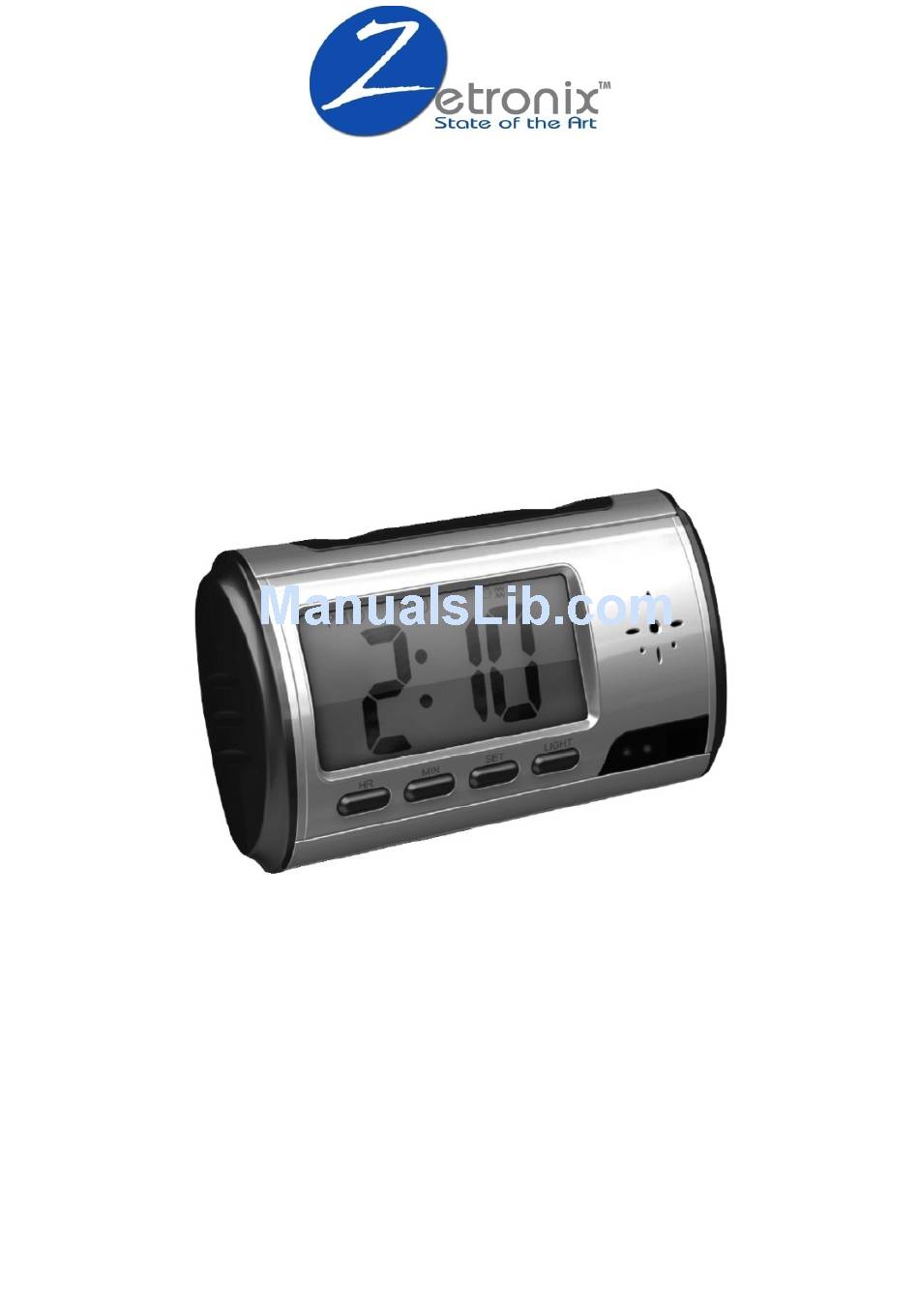

- Page 1 HD DVR Alarm Clock zClock-1000 User Manual...
-
Page 2: Table Of Contents
VI. File storage & Playback Technical specifications Troubleshooting Included Accessories Warranty from Zetronix Corp. Preface This manual will guide you how to use the product. It also provides the necessary related to the product, such as the information for operating and handling. You are recommended to read the Instructions carefully and understand all contents herein operating. - Page 3 assurance when operating this product.
-
Page 4: Operation Instructions
Operation Instructions I. Basic functions 1. 5 buttons: HR, MIN, SET, LIGHT, TALK/SNZ; 2. The time & minute is displayed in the 3.5 bit LCD panel. Time-showing system of 12 hours and 24 hours is available; 3. Multiple rings of choice: Beep, cock, etc. 5 melodies options. 4. -
Page 5: Diagram
III. Diagram 1. Alarm Clock Time-telling button Rotational cover MicroSD Memory card Camera Lens USB Port Off Position On Position Electronic Clock Function Buttons IR Receiver 2. Remote control Transmitter Power button Take a photo Video Record Motion Activated Video Sound recording... -
Page 6: Product Introduction
IV. Product Introduction This product is a high-resolution 30 frames-per-second (640X480, 1280*960) remote video surveillance clock, with an external TF Card. As a multifunctional high-tech product, the device is available with multiple functions, such as: video, sound recording, video recording, photo taking, cyber chat, electronic alarm clock and file storage; with the high-capacity battery, it can last for about 12 hours continuous video recording, or 25 hours of audio recording;... -
Page 7: Detailed Operation
V. Detailed Operation Turning on the unit: Open the rotational cover at the right side, insert the TF card and turn “ON” to get ready. Rem ote Control: Use the remote controller to aim to the receiver of the clock and press to start. - Page 8 device; if the device is getting hot or while charging, please disconnect the adapter's power source); 11. Reset: If the product stops working or responding under illegal operation or other unclear reasons, please turn the switch of the device to “OFF” position, and then to “ON” position.
-
Page 9: File Storage & Playback
VII. File storage and Playback When finishing video-recording and other operations, please place the switch to “ON” position, connect the clock to your computer by USB cable, and press on the remote controller; copy the file or cut and paste it to the your computer to play; or you can remove the TF card and use the card reader to read the data inside. -
Page 10: Technical Specifications
lens to the sun or other intensive light source; otherwise it may damage the optical apparatus; Cleanliness requirement: Please do not use the device in a dusty environment; otherwise it may cause the lens or other parts to attach with dirt and effect video quality. A lens wiping paper or glass cloth can be used to clean. - Page 11 GS mark / German Power Certification PSE mark / Japanese Power Certification Note: The A/C adapter may experience an increase in temperature on the surface during operation. This is an expected phenomenon. When not in use, please remove the adapter from the power socket as a safety precaution.
-
Page 12: Troubleshooting
Troubleshooting Trouble Troubleshooting Remove the insulator Can not turn on lock of Power, please charge accordingly; Battery is not contacting well, re-start Can not charge the electricity Replace the battery or adapter re-start camera, low-power charging reminder, delete Blue light flashes rapidly redundant files from the card, put in TF Card or replacing TF Card. - Page 13 Zetronix Corporation (“Zetronix”) warrants this product against defects in material or workmanship as follows: PRODUCT: Zetronix will repair this product with new or refurbished parts, free of charge, for a period of one (1) year from the date of original purchase in the event of a defect in materials or workmanship.
