- Page 1 XB-200LI / XB-210LI Super Folding Electric Mini Bicycle User Manual (PHOTO MAY VARY) PLEASE BE SAFE WHEN RIDING ALWAYS WEAR A HELMET AND OBEY ALL LAWS!
-
Page 2: Important Information
IMPORTANT INFORMATION FULLY CHARGE BATTERIES BEFORE FIRST USE - Batteries should be fully charged immediately when they are received and immediately after each use for the recommended charge times (see below) • L i F e P o 4 Lithium Batteries: 4-6 hours FACTORS TO MAXIMIZE THE RANGE OF YOUR ELECTRIC BICYCLE ... -
Page 3: Table Of Contents
TABLE OF CONTENTS Important Information…………………………………………………………………………………………………….. 2 Table of Contents……………………………………………………………………………………………………………. 3 Getting To Know Your XB-200Li………………………………………………………………………………………. 4 Getting To Know Your XB-210Li………………………………………………………………………………………. 5 Before You Ride………………………………………………………………………………………………………………. 6-7 About This Manual……………………………………………………………………………………………… 7 General Warning…………………………………………………………………………………………………. 7 A Special Note for Parents………………………………………………………………………………….. 7 Operating Process…………………………………………………………………………………………………………… 8-10 Folding…………………………………………………………………………………………………………………... -
Page 4: Getting To Know Your Xb-200Li

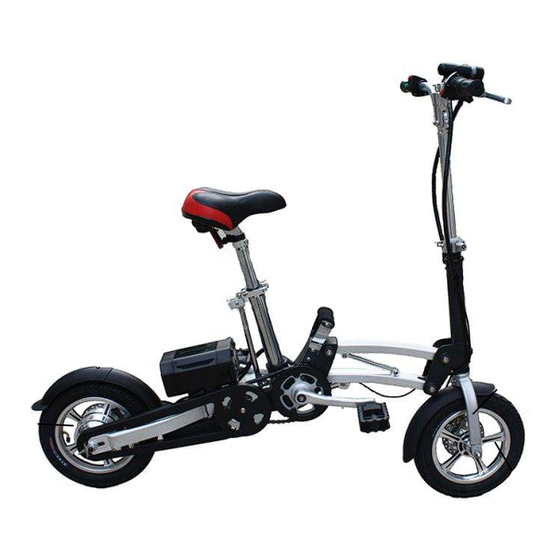

GETTING TO KNOW YOUR XB-200LI 1. LED Headlight 9. Li-Ion Battery 2. Hand Brake 10. Mud Flap 3. Hand Throttle 11. 300W Hub Motor and 12” Rear Wheel Rim 4. Left Grip with PAS (Pedal Assist System) 12. Chain Guard 5. -
Page 5: Getting To Know Your Xb-210Li
GETTING TO KNOW YOUR XB-210LI 1. 16” Front Wheel Rim 2. Front Brake Rotor 3. WinZip Front Caliper Brake 4. Kickstand 5. WinZip Rear Caliper Brake 6. 16” Rear Wheel Rim 7. 300W Hub Motor **Note – all component identified in both images same on for both models except for Front Wheel Rim, Rear Wheel Rim and Hub Motor. -
Page 6: Before You Ride
During your start on the incline when climbing, please first ride by pedal and then start the power switch for the e-motor assist. While cleaning your XB-200Li, wipe with a moist cloth or wet cloth. Never use a water hose or squirt gun for cleaning and washing. -
Page 7: About This Manual
ABOUT THIS MANUAL It is important for you to understand your new bicycle. By reading this manual before you go out on your first ride, you’ll know how to get better performance, comfort, and enjoyment from your new bicycle. It is also important that your first ride on your new bicycle is taken in a controlled environment, away from cars, obstacles, and other distractions. -
Page 8: Operating Process
OPERATING PROCESS FOLDING 1.) Lift the handlebar lock pin on the left side of the handlebar as shown in Figure 1. After you lift the pin you can drop the left Fig 1 handlebar down and rest to the side. 2.) Repeat step 1 for the right side as shown in Figure 2. -
Page 9: Seat Height
position. Make any adjustments to the seat height as needed. ***Make sure to check that everything is locked into position prior to riding. SEAT HEIGHT In order to obtain the most comfortable riding position and offer the best possible pedaling efficiency, the seat height should be set correctly in relation to the rider’s leg length. -
Page 10: Battery Charging
BATTERY CHARGING Charger Indicator – Red = Charging / Green = Full Battery 1. Plug the connector between the charger and the battery. Next plug the charger to the power source. The LED charger will turn red, which means the charger is on and working. 2. -
Page 11: Stem And Handlebars
STEM AND HANDLEBARS 1. Remove the protective shipping cap from the stem wedge. 2. Remove the stem plug from the stem. Loosen the stem bolt with a 6mm Allen wrench or 13mm box wrench. 3. Insert the stem into the head tube of the bicycle. -
Page 12: Seat And Seat Post
Do not attempt to disassemble a suspension fork yourself. Contact X-Treme Scooters for assistance or see a professional bicycle repair technician. If your bike is equipped with a suspension fork, check that the fork compresses and rebounds smoothly. To do this, place the fork dropouts against the ground, push and release the handlebar. -
Page 13: Front Wheel
(shown in Figure 15.) 5. Spin the wheel to make sure it is centered and clears the brake shoes. Tighten brakes if necessary. XB-200Li Fig 14 This unit does not have quick release axle. Front wheel can be installed by axle and nut. -
Page 14: Disc Brakes
DISC BRAKES Fig 16 1. Check the tightness of the six disc mounting bolts (Figure 16) that are holding the brake rotor to the wheel. If you need to remove these bolts, be sure to use a thread-locking compound when reinstalling them. 2. -
Page 15: Battery Care And Information
Proper maintenance of batteries will maximize their lifespan and capacity. X-Treme Scooters warranties your new batteries from the date of purchase for 1 full year when properly cared for. Visit www.x-tremescooters.com/support/ for more information. BATTERY CARE Even with proper care, rechargeable batteries do not last forever. Every time the battery is discharged and subsequently recharged, its relative capacity decreases by a small percentage. -
Page 16: Faq
Avoid storing your batteries in extreme temperatures, whether hot or cold. Batteries are best kept in a cool, dry place. Do not allow batteries to accumulate condensation, as this could cause shorting or corrosion. The recommended storage temperature is between 32 - 77° F (0 - 25°C) ... - Page 17 Li-Po4 Lithium Batteries – charge for 4-6 hours for full charge. The charger may get warm to the touch, so make sure you charge your battery in an open area and do not lie anything on the charger unit while charging. Although you cannot over-charge the batteries, we recommend that you do not leave the charger plugged in for more than 24 hours.
-
Page 18: Bicycle Care
BICYCLE CARE BASIC MAINTENANCE The following procedures will help you maintain your electric bicycle for years of enjoyable riding. After initial set up, be sure to check wheel spokes to make sure they are properly fitted. Be sure to check again after a few rides to ensure proper break in. (This does not apply to the XB-200.) Follow up with monthly checks. -
Page 19: Safety Checklist
SAFETY CHECKLIST Before every ride, it is important to carry out the following safety checks: 1. Brakes • Ensure front and rear brakes work properly. • Ensure brake calipers are not over worn and are correctly adjusted. • Ensure brake control cables are lubricated, correctly adjusted and display no obvious wear. - Page 20 8. Accessories • Ensure that all reflectors are properly fitted and not obscured. • Ensure all other fittings on the bike are properly and securely fastened, and functioning. • Ensure the rider is wearing a helmet. 9. Motor and Throttle •...
-
Page 21: Specifications
F/R WinZip disc brakes, full alloy brake lever Front Hub: XB-210Li - Quick Release Alloy Front Hub XB-200Li – Aluminium 12” Front Wheel Rear Hub: XB-210 Li -300W Quick Release Sealed Wheel Hub Motor XB-200Li – Aluminium 12” Rear Wheel Rim: 16”... - Page 22 DO NOT RETURN TO STORE IF YOU NEED HELP CALL OR GO ONLINE 1-253-777-0690 www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com Revised 5/22/13...
