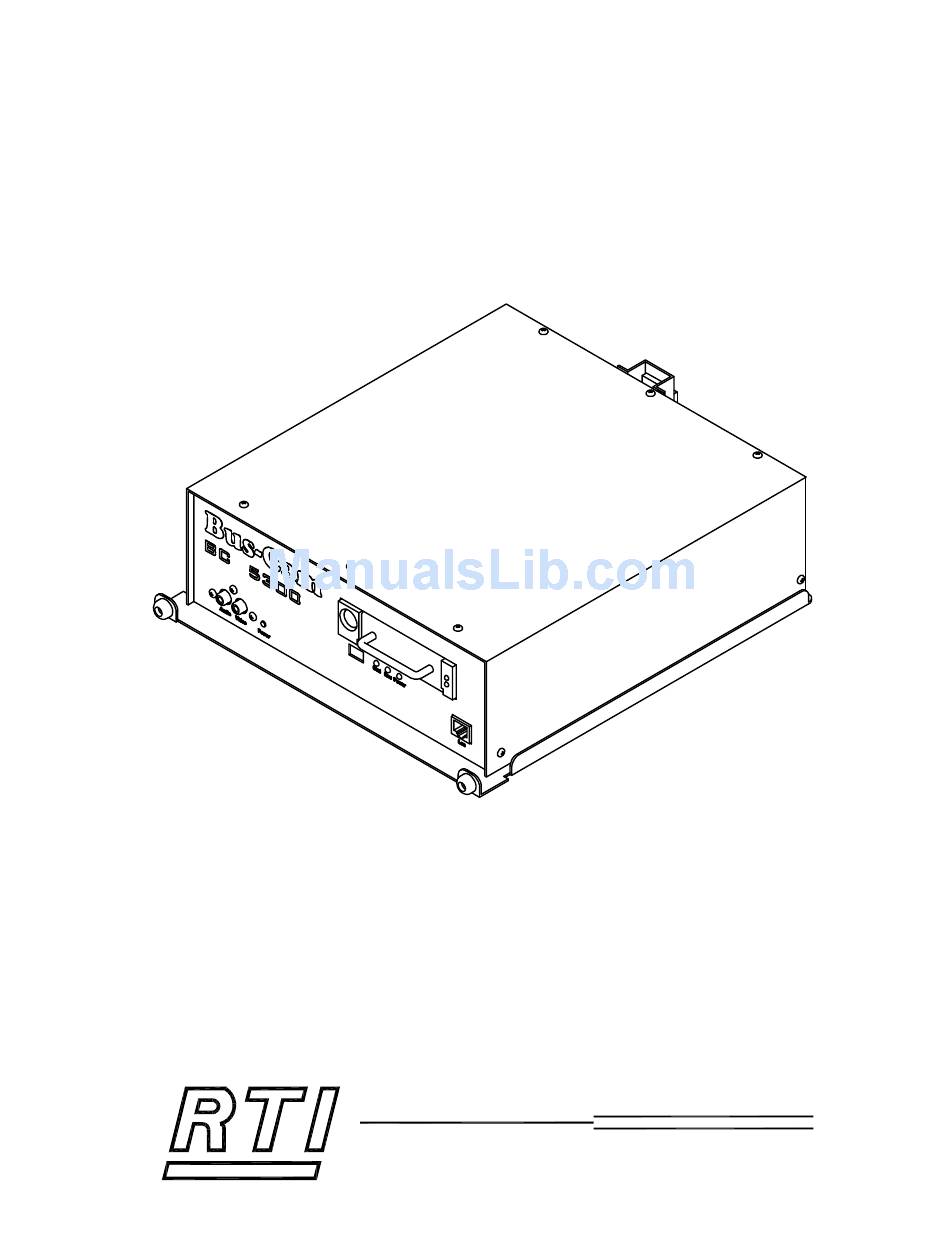

- Page 1 Bus-Cam BC 7300 Installation Guide Operation Guide Robotics Technologies, Inc Joliet, IL Made in U.S.A www. roboticstech.com 1284-IN-1 Rev 01 Rev Date 10/16/2009...
-
Page 2: Supplied Components
For Warranty Service, call Robotics Technologies, Inc. Customer Service to obtain an RMA (Return Materials Authorization), and then return the product postage prepaid to Robotics Technologies, Inc. The RMA number should be written clearly on the outside of the box. Please enclose a brief explanation of the problem, so that we can more efficiently diagnose your item and ensure timely service. -
Page 3: Specifications
Specifications Dimensions: Length 12" Width 11" Height 4" Enclosure Material: 18 Gauge CRS Electrical System: 12v Negative Ground Weight 8 Lbs Video In: NTSC System Compatablity: BC 3000 Enclosures Video Out: NTSC Video Encoding JPEG 2000 Important Note: Although the BC 7300 DVR has excellent power-conditioning and noise suppression circuitry, all electronic equipment is susceptible to extreme interferences that can be present in vehicle electrical systems. - Page 4 BC 7300 Features Bus-Cam BC 7300 Stat Power Audio Video Power 9 10 Audio-Out RCA (Phono) Jack provides audio signal to monitor or TV. Primarily for setup/programming, and not used during normal operation. Video-Out RCA (Phono) Jack provides video signal to monitor or TV. Primarily for setup/programming, and not used during normal operation.
- Page 5 Bookmark Switch Installation Bookmark Switch Bookmark Harness BC 3000 Connector Board Drill a 11/16" mounting hole for the bookmark switch at the desired location. Run the Bookmark Harness to the BC 3000 Enclosure Plug the Bookmark Harness into the BC 3000 Connector Board located inside the BC 3000 Enclosure To view your video on a computer The RTI Docking Station is available.
- Page 6 Digital 7300 Initial Setup Once the mounting has been completed, the final step is to setup the operating parameters for the BC 7300. Before undertaking the following instructions, it is assumed that the BC 3000 Enlosurer has been installed according to its provided instructions.
- Page 7 Digital 7300 Live Menu Structure...
- Page 8 Digital 7300 Playback Menu Structure Playback Menu Go To Live Search By Playback Exit Mode Date/Time Position Select Playback Select Return To Return to Live From Disk Playback by Playback Video Start, Date and Mode Bookmarks or Time of Clip Last Clip Notes On Menus 1.
- Page 9 Digital 7300 Quick Tips How do I set the Date and Time? 1. Press Menu on the remote control. 2. Select System Program Menu. 3. Select Date/Time. 4. Use the UP and DOWN keys to change the Date and Time values. 5.
- Page 10 Digital 7300 Quick Tips (Continued) What is a Post-Trip Delay, and how do I use it? This feature allows the continuation of recording for a set period of time after the ignition has been turned off. This is valuable for the continued recording of activity during passenger disembarkation.
-
Page 11: Minimum System Requirements
Digital 7300 Quick Tips (Continued) How Can I View My Recorded Clips? There are two ways to view your recorded clips: 1. With a video monitor/TV connected to the A/V (Phono) Jacks located on the rear panel of the Digital 7300. This is the least practical method for normal operational use. -
Page 12: Warranty
Warranty Robotics Technologies, Inc. (RTI) warrants this product to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase. Its obligation under this warranty is limited to repairing or replacing at its own sole option any such defective products.
