Cardo Systems BK-1 User Manual

Cardo Systems BK-1 User Manual

Communication and entertainment system for bicycle helmets
Hide thumbs Also See for BK-1:
Table of Contents

Advertisement

Quick Links

See also: Quick Manual
USER
MANUAL
version 1.22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BK-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cardo Systems BK-1

Summary of Contents for Cardo Systems BK-1

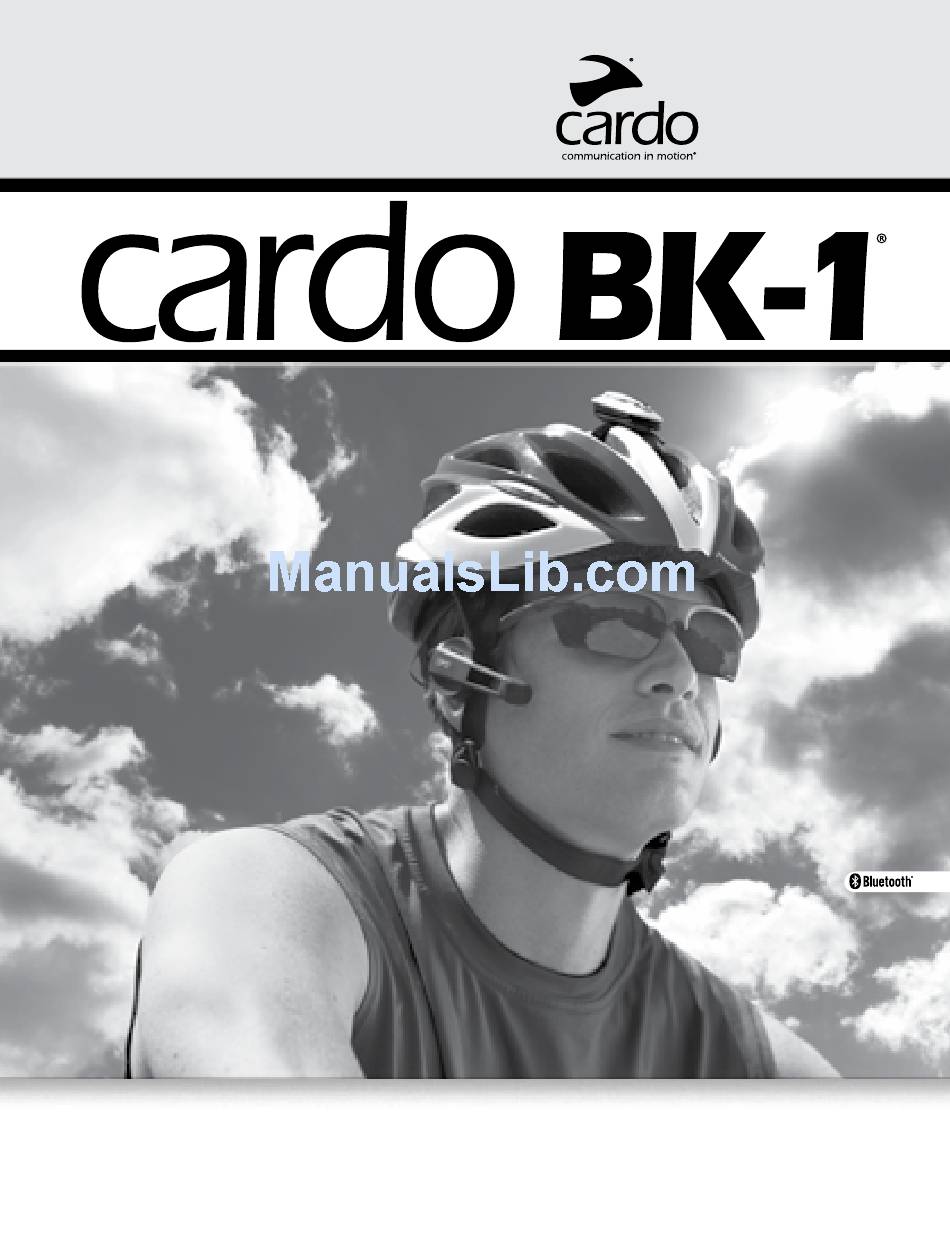

  • Page 1 USER MANUAL version 1.22...
  • Page 2 © 2013 Cardo Systems, Inc. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cardo Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners.

  • Page 3: Table Of Contents

    4.1. MOUNTING THE CArdO BK-1 TO YOUr HELMET ....... . .

  • Page 4: Introduction

    Thank you for choosing the cardo BK-1 Bluetooth communication and entertainment system for bicycle helmets. This manual will help you set up, configure and operate both the cardo BK-1 and the cardo BK-1 DUO. The retail box of the cardo BK-1 DUO contains two factory-paired cardo BK-1 units.
  • Page 5 Wall charger plug MP3 cable USB adapter cable Microphone sponge Pre-moistened Alcohol Pad Alcohol IMPORTANT: If you purchased the cardo BK-1 DUO, your retail Box will include two sets of each component listed above except for the User Guide. cardo BK-1...

  • Page 6: Charging The Cardo Bk-1

    4. While charging, the rEd light turns on. When charging is complete, the rEd light will turn off. IMPORTANT: The cardo BK-1 has been certified as waterproof and dustproof (IP67). However, when in use, the silicon cover lid of the Multi-Port should be kept tightly closed to prevent moisture from entering the unit.

  • Page 7: Getting Started

    4. GETTING STARTED 4.1 MOUNTING THE CARDO BK-1 ON YOUR HELMET Optional Spoiler Deflect branches or other objects Connect the Spoiler Cradle Spoiler Spoiler Cradle Remove the Spoiler Press here cardo BK-1...
  • Page 8 Assembly of the cardo BK-1 Helmet Type 1: O -center vents Back Front Velcro Side Smooth Side Short Buckle Strap Helmet Type 2: Center vents Back Front Velcro Side Smooth Side Long Strap cardo BK-1...
  • Page 9 Helmet Type 1 Cradle (Bottom) Smooth Side Short Buckle Strap cardo BK-1...
  • Page 10 FLIP THE CRADLE Cradle (Top) Velcro Side Front Back Front Continue on page 14 Back cardo BK-1...
  • Page 11 Helmet Type 2 Smooth Side Long Strap Cradle (Top) Front Back cardo BK-1...
  • Page 12 Front Back Front Back cardo BK-1...
  • Page 13 Front Back cardo BK-1...
  • Page 14 Alcohol Pad Alcohol (optional) Wait TEN minutes INSTRUCTIONS: Back 1. Remove any existing stickers. 2. Optional: Use the Alcohol Pad to clean the exact spot on the helmet. 3. Position and attach the Large Velcro Pads adhesive Velcro Pads. cardo BK-1...
  • Page 15 Inner helmet view Front Back Inner helmet view Front Audio Kit If needed, use the adhesive pads Back to hold the speaker wires in a comfortable location Spare Velcro Pads Audio Kit cardo BK-1...
  • Page 16 Connect the Audio Kit CLICK! cardo BK-1...
  • Page 17 Release the Audio Kit Attach the Headset Release the Headset CLICK! cardo BK-1...

  • Page 18: General Functions

    Solid RED Charging 4.4. AUDIO SOURCES AND PRIORITIES If two connected audio sources try to play audio simultaneously, the cardo BK-1 automatically determines which audio source to play through the speakers based on the priority of the connected devices. Higher Priority ...

  • Page 19: Intercom Configuration

    The cardo BK-1 Intercom allows Bicycle-to-Bicycle full duplex communication at a range of up to 1,640 ft. / 500 m (subject to terrain). Intercom communication (one on one) is possible between up to five users, i.e you and four other cardo BK-1 users, through the four available channels (“A”, “B”, “C” or “d”).

  • Page 20: Two-Way Intercom / Intercom Toggling Mode

    If you have purchased the cardo BK-1 DUO, both units are factory-paired and configured to communicate via their respective Channel “A” Buttons. If for any reason you have to pair them again, Or if you purchased a single cardo BK-1...

  • Page 21: Three-Way Intercom

    5.1b. THREE-WAY INTERCOM If you have purchased the cardo BK-1 DUO, both units are factory-paired and configured to communicate via their respective Channel “A” Buttons. To pair a third cardo BK-1 use Channel “B”. To set up three-way intercom conference mode for conference calls with Channel “A” and Channel “B”...

  • Page 22: Using The Intercom

    When attempting to establish an Intercom call with another device that is already busy, a busy signal will be heard. The BK-1 is busy while on a Phone call, Intercom call with CHANNEL A, B, C, d or Click-to-Link call.

  • Page 23: Vox Settings

    Pairing the cardo BK-1 to a Bluetooth enabled device To connect a Bluetooth device you must first pair it to the cardo BK-1. Pairing is a one-time process. Once paired, the Bluetooth device and the cardo BK-1 will automatically recognize each other whenever they are within range (10m / 33ft).

  • Page 24: Mobile Phone And Gps Device Operations

    2. Verify that the cardo BK-1 is turned ON and in Standby mode. (single BLUE flash every 3 seconds) 3. Press and hold the Mobile Button for at least 6 seconds. The BK-1 will first flash rEd. Continue to hold the button until the rEd and BLUE lights begin rapidly alternating.

  • Page 25: Making And Receiving Phone Calls

    6.2a. PAIRING TO AN A2DP MUSIC PLAYER • Listen to Stereo Music via A2DP (non-mobile phone device) NOTE: The cardo BK-1 can also receive audio via the enclosed cable from non-Bluetooth MP3 Players or audio sources as described in section 6.3.

  • Page 26: Listening To Music: A2Dp Bluetooth Audio Sources

    *With some phones you may need to repeat this action SWITCHING BETWEEN A2DP AUDIO SOURCES If a Music Player is paired, the cardo BK-1 will use it as the default A2dP audio source. 1. Stop the music playback from the current device.

  • Page 27: Click-To-Link®: Spontaneous Intercom

    10 seconds or until the ring tone subsides At the end of a Click-to-Link call, if other cardo BK-1 users are nearby, the next Click-to-Link call you attempt may connect with a user other than your initial connection.

  • Page 28: Support

    Declaration of Conformity (DOC) The cardo BK-1 is compliant with and adopts the Bluetooth® Specification 2.1 and has successfully passed all interoperability tests that are specified in the Bluetooth® specification. However, interoperability between the device and other Bluetooth®-enabled products is not guaranteed.
  • Page 29 Batteries are warranted only if the battery capacity falls below 50% of rated capacity or if the battery develops leakage. IMPOrTANT: do not store your CArdO BK-1 without charging it from time to time for periods in excess of six months, as this may cause irreversible damage to the capacity of your battery.
  • Page 30 You hereby assume all risks and dangers and all responsibility for any losses and/or damages, whether caused in whole or in part by the negligence or other conduct of others, including Cardo. 5. By using the Product, you confirm that you have read this release of liability and fully understand and accept its terms and conditions. www.cardosystems.com cardo BK-1...

This manual is also suitable for:

Bk-1 duo
