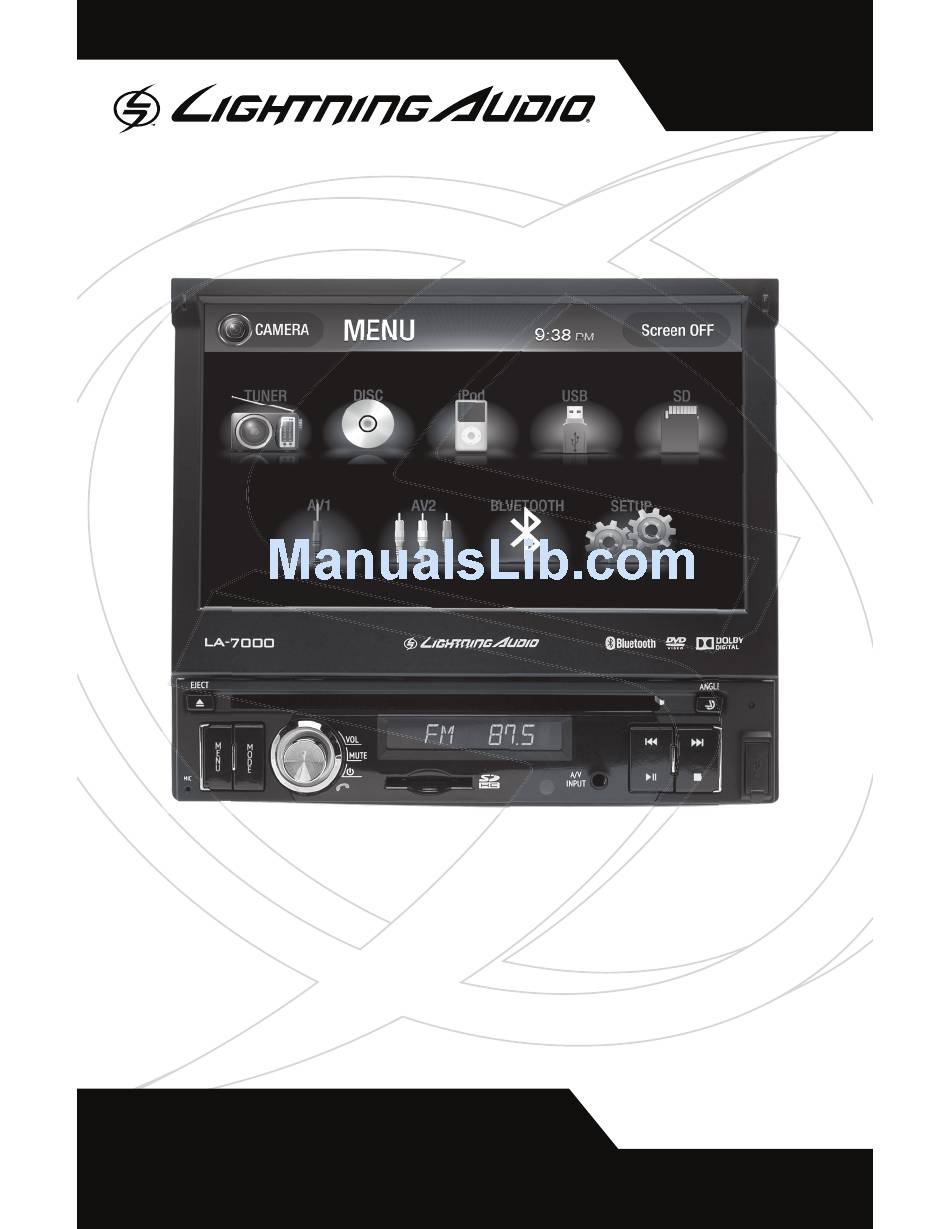

  • Page 1 Owners Manual LA-7000 MULTIMEDIA RECEIVER R E C E P T O R M U L T I M E D I A...

  • Page 2: Operation

    Dear Customer, If, after reading your manual, you still have questions regarding this product, we recommend that you see your Lightning Audio dealer. If you Congratulations on your purchase. At Lightning Audio we are need further assistance, you can call us direct at 1-888-881-8186. Be sure pleased that you chose our product.
  • Page 3 1,152,000 ©2013 Rockford Corporation. All Rights Reserved. LIGHTNING AUDIO and associated logos where applicable, are registered trademarks of Rockford Corporation in the United States and/or other countries. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries. The Bluetooth ®...

  • Page 4: Front Usb

    Internal MIC IR remote sensor MODE button VOLUME/POWER IR remote sensor /MUTE button 3.5mm AUX input SDHC Card slot illus.-1.1 LA-7000 iPod/iPhone direct connect CD mode FRONT USB AM/FM tuner SDHC mode SETUP menu FRONT A/V input Bluetooth mode (3.5mm) REAR A/V input illus.-1.2...

  • Page 5: Instrument Panel

    10. When grounding to the chassis of the vehicle, scrape all paint from the metal to ensure a good, clean ground connection. Grounding Multimedia Reciever USB Extension Cable connections should be as short as possible and always be connected Remote Control External Parking Wire to metal that is welded to the main body, or chassis, of the vehicle.
  • Page 6 Release Keys Bend tabs against dashboard with a screwdriver. Metal Mounting Sleeve Unit Chassis Plastic Trim Ring Dash Metal Support Strap Factory Bracket (ISO DIN Mounting) illus.-2.1 Installing supplied screws). source unit. NOTE: Make sure to mount the Source Unit as close to horizontal as possible for optimum CD/DVD Player performance.
  • Page 7 CVBS Output Line Out Front L Yellow White Line Output Sub Video Camera Input Black Black Note: Subwoofer preamp output is active in all audio modes. Line Out Rear R AUX Input L White Line Out Rear L AUX Input R White Line Out Front R AUX Input Video...
  • Page 8 Time adjustment - Select the hour or minutes you want to change. Use the keypad to input desired time. Press on AM or PM to adjust. To increase or decrease the Brightness, Contrast and Color for the touchscreen. illus.-4.4 illus.-4.1 Mode - 12 or 24 hour clock format to be used.
  • Page 9 Follow the on screen prompts to calibrate touchscreen for optimum touch performance. illus.-4.12 Accessing this feature allows the adjustment of gain levels for all input sources (Disc/SD/USB, iPod, Tuner, AV, BT & BT Mic). illus.-4.8 Camera - When an optional camera is connected, you may choose between NORMAL or MIRRORED to set how the display of the camera is viewed.
  • Page 10 This option allows you to restore your unit to the factory default settings. From any operational mode except video, press the icon in the bottom left corner of the screen to access the Audio menu and adjust the following features: EQ, Loudness, Balance, Fader, Bass, Midrange, Treble and Subwoofer Crossover.
  • Page 11 Selectable Low-Pass Crossover for Subwoofer Insert your CD with label facing up. CD playback will begin automatically once disc is loaded. Playback display will appear automatically when playback begins giving available playback options. illus.-5.5 From the Main Menu screen, press Setup to enter the Setup menu and adjust the various options.
  • Page 12 NOTE: When properly installed, DVD video cannot be displayed on the main TFT Press the button to access the sub menu features. To return back to DVD screen unless the parking brake is applied. It is illegal to view video while driving playback menu, press the or operating a motor vehicle.
  • Page 13 Finding Bluetooth Device. After finding, it will show the name of Bluetooth Device “LA-7000”; once found, select it and then it will asks you to input a password/PIN. Input the “0000” , then the screen on the LA-7000 will display CONNECT.
  • Page 14 3.5mm input on the front of the unit. Select AV1 from the Main Menu to listen to audio from connected device. 3.5mm input on the rear of the unit. Select AV2 from the Main Menu to listen to audio from connected device. When using the optional camera, the camera is activated automatically when your vehicle is put into reversed.
  • Page 15 Blown fuse Check fuse of the unit, replace with correct rating. If connect following the instructions, the unit will not Vehicle’s ignition is off operate with ignition off. Check battery, connection and fuses and repair or Source unit does not turn on. Voltage applied to Red and Yellow wires is not replace as necessary.
  • Page 16 Lightning Audio por un distribuidor autorizado de Lightning Audio. Por favor lea su garantía y guarde La operación está sujeta a las dos condiciones siguientes: (1) Este su recibo y la caja original para usarlos en el futuro.
  • Page 17 8. Evite tender cables arriba o a través de bordes filosos. Use arandelas aislantes de caucho para proteger los cables tendidos a través de Receptor de multimedia Alambre externo del metal, especialmente en la mampara cortafuegos. Control remoto inalámbrico estacionamiento 9.
  • Page 18 Doble las lengüetas contra el tablero usando un destornillador, Anillo de plástico para acabado, Chasis de la unidad, Abridores para liberar, Soporte de fábrica (Montaje ISO DIN), Correa metálica de soporte, Tablero, Funda Para aumentar o reducir el brillo, contraste y color de la pantalla táctil. de metal para el montaje (illus.-4.1) Instale los cierres para la instalación de la funda sobre la unidad fuente...
  • Page 19 Bluetooth (illus.-6.1) Configuración y lista de dispositivos. (illus.-4.15) Presione para sintonizar la radio a una frecuencia mayor. Presione para sintonizar la radio a una frecuencia menor. También se puede efectuar Esta opción le permite reponer su unidad a los valores predeterminados de esta función presionando la tecla correspondiente en el control remoto.
  • Page 20 NOTA: El reproductor de DVD está diseñado para reproducir software de DVD que se ha codificado para regiones específicas. No reproducirá software codificado para otras regiones para las que se lo ha diseñado. Inserte su CD con el rótulo enfrentado hacia arriba. La reproducción Esta unidad reproducirá...
  • Page 21 Bluetooth. Después de encontrarlo, vehículo esté en movimiento. mostrará el nombre del dispositivo Bluetooth “LA-7000”; una vez hallado, selecciónelo y le pedirá que ingrese una contraseña/PIN. Ingrese “0000”, luego la pantalla en el LA-7000 indicará CONNECT.
  • Page 22 Entrada de 3.5 mm en la parte delantera de la unidad. Seleccione AV1 desde el Menú Main para escuchar audio desde un dispositivo conectado. Entrada de 3.5 mm en la parte trasera de la unidad. Seleccione AV2 desde el Menú Main para escuchar audio desde un dispositivo conectado. Al usar la cámara opcional.
  • Page 23 Compruebe el fusible de la unidad, cambie por uno con la Fusible quemado calificación correcta. Si se conecta siguiendo las instrucciones, la unidad no La ignición del vehículo está apagada funcionará con la ignición apagada. Compruebe la batería, la conexión y los fusibles y repare No se enciende la unidad fuente.
  • Page 24 This warranty covers only the original purchaser of Lightning Audio product purchased from an authorized Lightning Audio Dealer in the United States. In order to receive service, the purchaser must provide Lightning Audio with a dated copy of the sales receipt stating the customer name, dealer name and product(s) purchased.
