Installation & Owners Manual
A-5120 Ceiling Mounted Light
Serial Numbers
Please locate and write down the Serial
Numbers on the A-5120 Dental Light
and Transformer. Having this informa-
tion available will aid in the identification
of your dental light and transformer.
Dental Light Serial Number
Transformer Serial Number

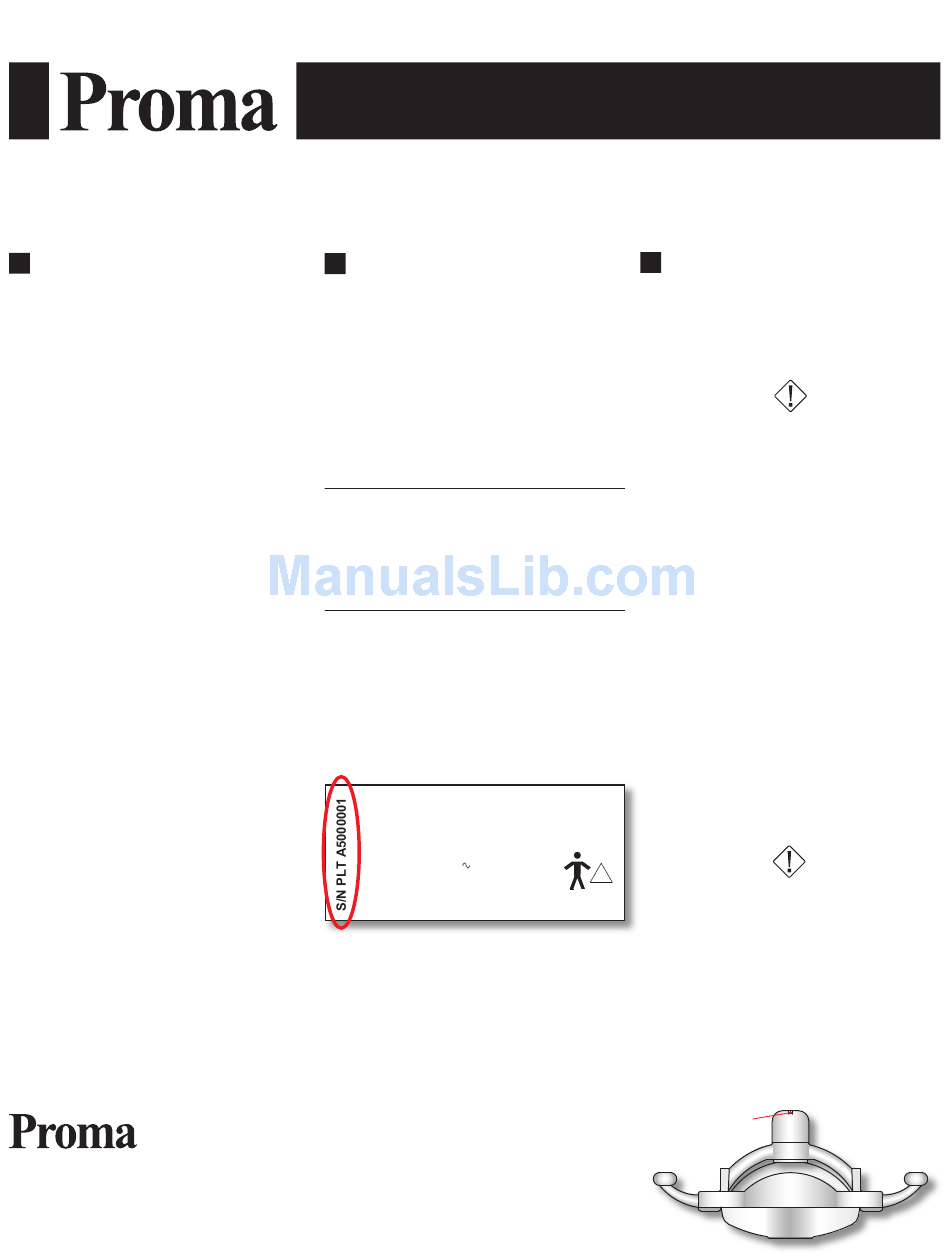

The Proma label is located in two loca-
tions on the dental light system. The
dental light serial number is located on
the light arm and the Transformer serial
number is located on top of the trans-
former housing
Proma Dental Light
CONFORMS TO
UL STD 60601-1
CERTIFIED TO
CAN/CSA STD C22.2 No. 601.1
111153
INPUT VOLTAGE:
120V
60HZ
CURRENT:
1A
WARNING:
RISK OF FIRE - CLASS 1
REPLACE FUSE AS MARKED
1 AMP FUSES
The serial number is located along the
left edge of the label
Bulb Replacement
Note: A replacement bulb is included.
Please locate it and store in a conve-
nient place. Order replacement Light
Bulb Proma #93146
WARNING!
Turn the light off and allow cooling be-
fore removing the shield. Failure to do
so can cause injury by burning. Always
handle bulbs with tissue paper, do not
allow skin to contact the bulb, as it will
shorten the life.
Remove the shield by gently squeezing
the ends and pull it toward you
Remove the bulb by wrapping in tissue
and gently pulling forward
The replacement bulb should be
pushed in gently. The lamp pins must
be securely in the lamp socket
Replace the shield by squeezing the
sides and gently pushing it into the
housing. You will hear a "Click" when
the shield seats properly.
!
WARNING!
Failure to properly seat the shield
P/N 93155
could allow it to fall off and cause injury
Turn on the light and check the focus
by shinning the light on a surface 27"
away. The light pattern should be even
with defined edges over an area of 4"
x 61⁄2". If necessary, rotate the focus
adjustment.
Focus Adjustment Screw
