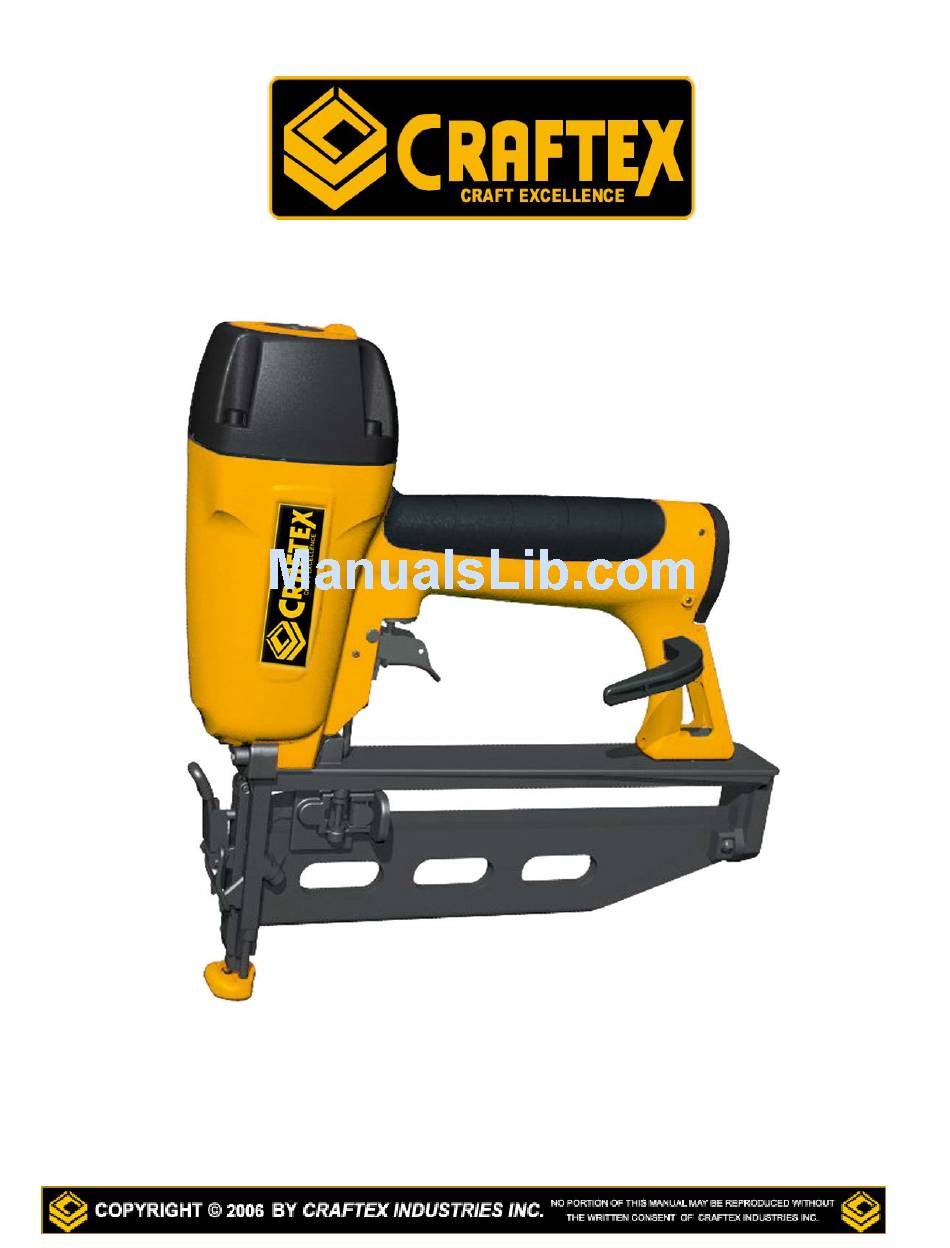

- Page 1 OWNER’S MANUAL CT109 – FINISH NAILER...
- Page 2 CT109 – FINISH NAILER As part of the growing line of Craftex tools and equipment, we are proud to offer the CT109 Brad Nailer. The Craftex name guarantees Craft Excellence. By following the instructions and procedures laid out in this owner’s manual, you will receive years of excellent service and satisfaction.
-
Page 3: General Safety Instructions
CT109 – FINISH NAILER GENERAL SAFETY INSTRUCTIONS EXTREME CAUTION SHOULD BE USED IN OPERATING ALL POWER TOOLS. KNOW YOUR POWER TOOL, BE FAMILIAR WITH ITS OPERATION. READ THE OWNER’S MANUAL AND PRACTICE SAFE USAGE PROCEDURES AT ALL TIMES. • CONNECT your machine ONLY to the matched and specified power source. - Page 4 CT109 – FINISH NAILER SPECIFIC SAFETY REQUIREMENTS • When using compressed air, always follow the safety codes of practice laid out by the compressor manufacturer. • Damaged or split air hoses can cause a 'whip' hazard. Immediately replace damaged air hoses.
- Page 5 CT109 – FINISH NAILER OPERATING INSTRCUTIONS 1. To load the magazine with nails,release the magazine by squeezing click lever 2. Insert fasteners into magazine. See over leaf for details.Then shut magazine by pushing fully upwards. 3. Check air supply is at least 60 PSI.The gun is...
- Page 6 CT109 – FINISH NAILER CLEARING A JAMMED FASTNER WARNING – Disconnect from air/power supply before attempting to clear a jammed fastner. • Open magazine and clear any remaining fastners (WARNING: fastners are under spring tension and may shoot out) • Grasp nose cover on both sides and pull outwards until pin disengages from the latch, then pull upwards so the fastner guide plate swings away from the magazine.
-
Page 7: Maintenance
CT109 – FINISH NAILER MAINTENANCE By following the procedures listed below, your CT109 Finish Nailer should continue to give you years of quality service. • Lubricate gun by applying 2-3 drops of air tool oil to the air intake daily. - Page 8 CRAFTEX 2 YEAR LIMITED WARRANTY Craftex warrants every product to be free from defects in materials and agrees to correct such defects where applicable. This warranty covers two years for parts and 90 days for labour (unless specified otherwise), to the original purchaser from the date of purchase but does not apply to malfunctions arising directly or indirectly from misuse, abuse, improper installation or assembly, negligence, accidents, repairs or alterations or lack of maintenance.
