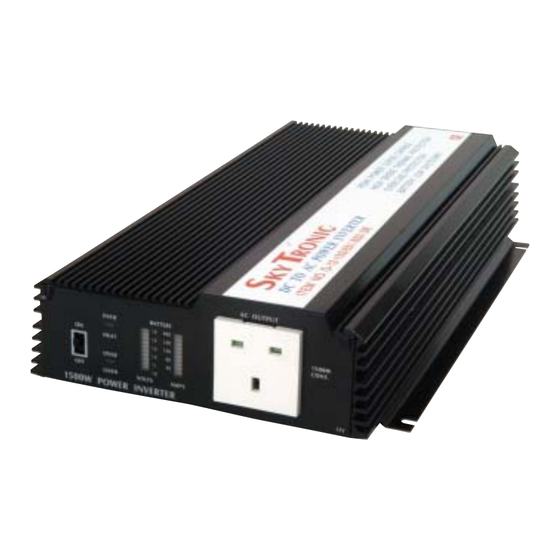

SKYTRONIC TL INV 1500 Operation Manual

SKYTRONIC TL INV 1500 Operation Manual

12v 1500w/ 24v 1500w 230 volt inverters

Advertisement

230 VOLT INVERTERS
Model:
TL INV 1500
12V 1500W
Operation Manual
Model:
TL INV 1500/24
24V 1500W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL INV 1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for SKYTRONIC TL INV 1500

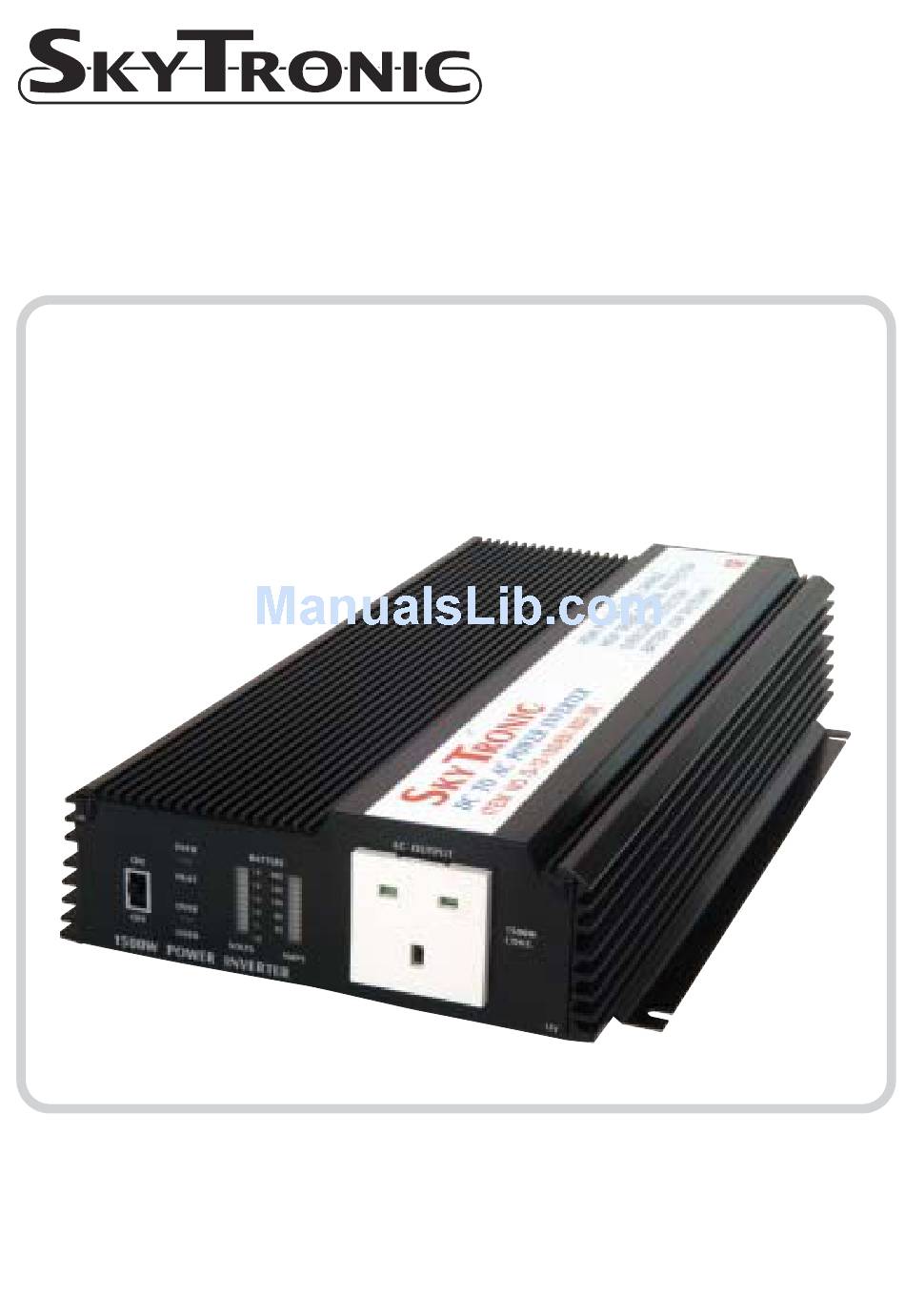

  • Page 1 230 VOLT INVERTERS Model: Model: TL INV 1500 TL INV 1500/24 12V 1500W 24V 1500W Operation Manual...
  • Page 2 MODEL Nos: TLINV1500 TLINV1500/24 Output power continuous 1500W 1500W Output power surge 3000W 3000W AC 0utput voltage 230V 230V Regulation ±5% ±5% Output wave form Modified Sine Wave Modified Sine Wave DC input voltage 10-15V 20-30V Low battery alarm 10.7V 21.5V Low battery shut-down Frequency ±1%...
  • Page 3 Using the SkyTronic 230V inverters The SkyTronic range of inverters transform 12/24V battery voltage into 230V mains voltage, thus enabling you to use your domestic equipment everywhere you want e.g. on camping, on a boat, in your car, etc.
  • Page 4: On/Off Switch

    This advanced protection system avoids to over discharge the battery. WARNING SkyTronic inverters supply an output voltage of 230V which is as dangerous as the domestic mains voltage! Therefore only use double-insulated devices and replace immediately leads that are in bad condition.
  • Page 5: Audio Systems

    CAUTION: RECHARGEABLE APPLIANCES Certain rechargers for small nickel cadmium batteries can be damaged if connected to the 2500W INVERTER. Two particular types of equipment are prone to this problem: 1) small battery-operated appliances such as flashlights, razors, and night lights that can be plugged directly into an AC receptacle to recharge.
  • Page 6: Suitable Batteries

    Front Panel 1. LED bargraph showing battery voltage and current. The indicator for the current consumption (amps) must be in the green area during continuous use. An overload in the yellow area must not exceed a few minutes. The voltage indicator (volts) shows the battery voltage. If this drops into red area, the inverter shuts down automatically thus preventing over discharge of the battery.
  • Page 7: Installation

    INSTALLATION 1. Install inverter in a cool, dry and well ventilated area away from any inflammable material. 2. Ensure the DC power cables are as short as possible (<2m ) and of suitable size to handle the current required. This is to minimise any voltage drop when the inverter draws high currents. Remember solid, secure, clean connections are essential for optimum performance.
  • Page 8: Frequently Asked Questions And Answers

    If you are using a 150W or 300W SkyTronic Inverter, a standard 12v vehicle (50/75A) battery is ideal, as the inverter only draws a small amount of power. It comes with a vehicle cigarette lighter connection as standard, so you can use it in your car while you're on the move, or you can attach it directly to the battery, all the necessary leads are included.
  • Page 9: Glossary Of Terms

    GLOSSARY OF TERMS Absorption Charge The second stage of three-stage battery charging. Voltage remains constant and current tapers as internal battery resistance increases during charging. (Ensures complete charging.) Alternating Current (AC) The type of electrical power supplied by utilities or made when a generator is run. The unique characteristic of this form of electricity is that it reverses direction at regular intervals.
  • Page 10: Parallel Wiring

    A control circuit designed to protect an inverter or similar device from loads exceeding its output capacity. (A fuse, for example, is an over current protection device.) All SkyTronic inverters have internal circuitry to protect themselves from overload/over current conditions.
  • Page 11 The amount of current an inverter can deliver for short periods of time. Most electric motors draw up to three times their rated current when starting. An inverter will "surge" to meet these motor-starting requirements. Most SkyTronic inverters have surge capacities of at least twice their continuous ratings. Volts A unit of measure of the pressure in an electrical circuit.
