Summary of Contents for CDD Ural Concert

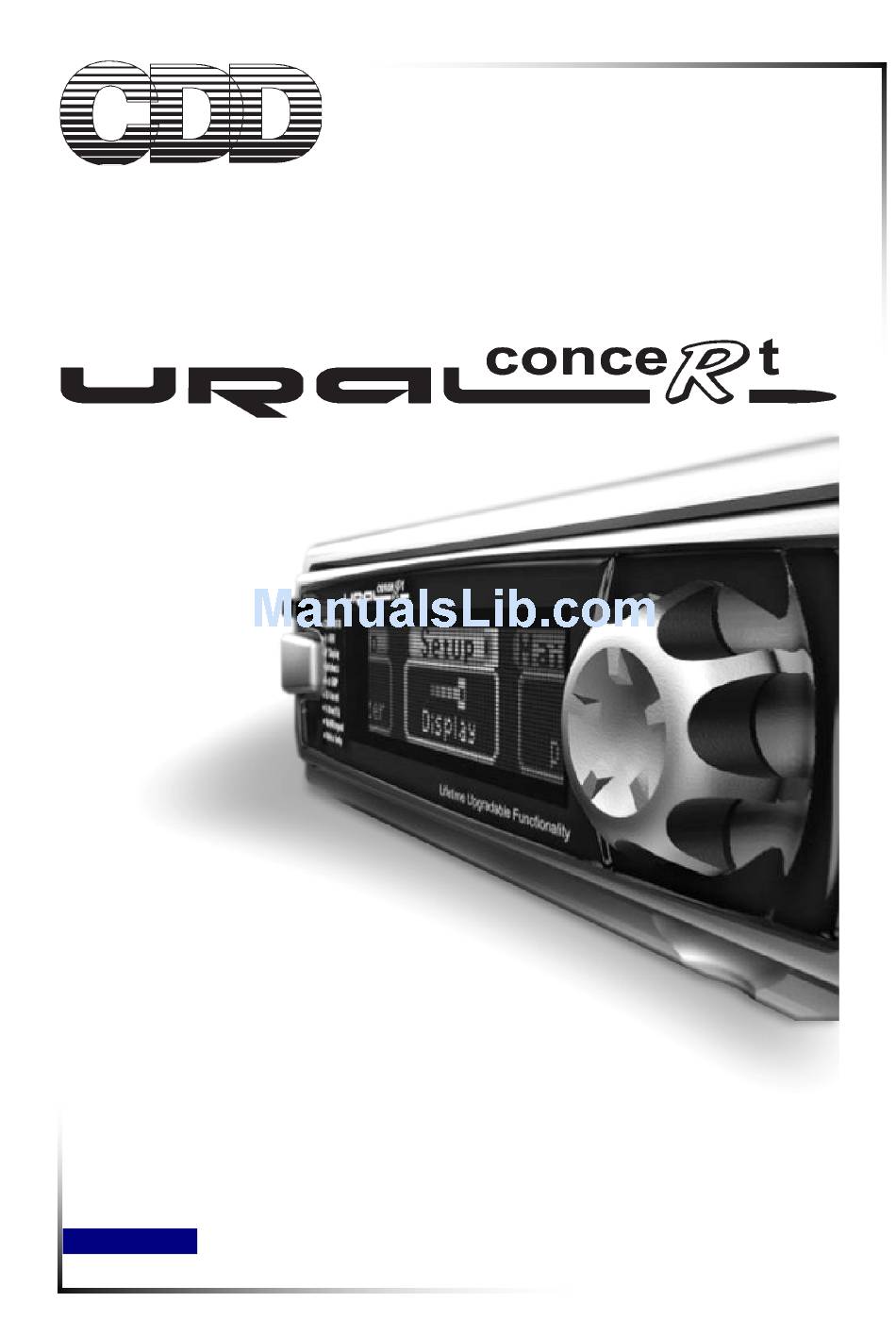

Page 1: User Manual
Customizable Digital Device Automobile CD-MP3 receiver USER MANUAL Specifications C e r t i f i c a t i o n i n f o r m a t i o n Guarantee policy Version 0.96 May 2005 www.СDD.ru...
Page 3 ATTENTION! When purchasing: • make sure that the receiver has no mechanical damage and ask for its functional check • make sure that guarantee and tear-off cards specify works number, release date, store stamp, decipherable signature or stamp of the sales person and date of sale.
Page 4: General Information
General information URAL ConceRt automobile CD-MP3 receiver is developed and made in Russia under CDD (Customizable Digital Device) project. The purposes of CDD project included and include development and market introduction of original digital devices enabled to change the stereotyped image of functionality, method of construction and use of widespread domestic electric appliances.
Page 5: Basic Functions
Basic functions Audio • 24-bit DAP, 24-bit ADC • Line input (stereo) + microphone input (stereo) • 6 independently controlled line inputs (7V) + subbuffer input • 6 power amplifier channels (max: 4х45 W + 2х35 W) • 6 DSP-treated independent channels •...
Page 6 Software support and update Embedded software update performed by the user Reprogrammable menu, options, animation Development engineer feedback (development engineer’s Internet site) Additional service options On-board computer mode work Nonvolatile memory of all settings Embedded real time clock Calendar, alarm-clock, timer/time check Notebook, Dictaphone, games* Safety Power saving timeouts...
Page 7: Delivery Set
Delivery set Base unit with escutcheon 1 item Faceplate in a case 1 item Distance control desk 2 item Measuring microphone 1 item Cable and power connector 1 item Cable and power amplifier connector 1 item Positioning frame 1 item Attachment sections set 1 set User manual...
Page 8 Installation and attachment. Recommendations. The receiver’s automobile installation and attachment shall be performed by a qualified expert. In case you have no relevant skills, you should consult a specialized positioning center. Before commencement of work switch off the negative side of the accumulator battery.
Page 9 Power connector (POWER) In order to connect power to the receiver, use the cable with the +12V +12V ANT/PAMP power connector counterpart GROUND POWER MEMORY CONTROL Black Yellow Blue included in the delivery set. Connect black line (GROUND) to the car body in one of the places provided for by its construction.
Page 10 Power amplifier input connector ( SPEAKER) order connect acoustic systems (AS) to the receiver, use the cable with the power amplifier input connector gray white blue violet brown green counterpart included delivery set. In order to reduce power loss at the AS circuit resistance, use the line of increased section and try to minimize its length.
Page 11 Digital interface connector (DATA) In order to organize interfaces with different external digital devices the receiver is provided with 8-contact DIN-type connector. DATA connector’s counterpart in not included in the receiver’s delivery set and shall be purchased separately. Composition and location of the connector’s signals are shown in the figure and DATA connector (socket) in the chart: output-side view...
Page 12 storage and processing. The number of tire devices depends on their purpose and can reach ten. All interface signals are protected from back voltage and (direct) voltage overloading, nevertheless, when connecting, it is required to observe common safety precautions (to check the signals compatibility according to voltages and currents levels, commutations shall be performed when the power of all the devices is switched off, to avoid signal inter-bridging, on the ground or power circuit).
Page 13 Operating modes, screens In operation the receiver can be in one of the modes generally determined by the current data source and internal programme and hardware configuration. Operating mode: Mode Data source FM-radio embedded CD-drive line input/microphone AUX* external source (for example, HDD-accumulator) generator/measurement on-board computer block signaling (mode without data source)
Page 14 • Screen examples Upper level menu First enclosed level menu Settings screen (menu) Main screen of FM-radio source Main screen of CD source Emergency screen (of CD source) Emergency screen (of FM-radio source) Settings screen (of FM-radio source)
Page 15 Control bodies The receiver provides full and easy control of all functions with a minimal set of control bodies. The size and location of control bodies are carefully planned and it allows to use them “at random” not straggling from driving. For each control body or its combination there exist a number of simple, easily rememberable modulations providing optimal access to all the receiver’s functions in all its operating state and modes.
Page 16 Modification types: • turn • short pressing • long pressing Encoder • pressing and turn • double pressing • short pressing • long pressing “ESC” button • double pressing "EJECT " buttons short pressing • desk • single pressing buttons •...
Page 17 Main modification functions: Function Modification • Long pressing on the encoder Switching on • Simultaneous pressing of “ESC” button and the encoder • Double pressing of Distance control desk red button Standard switching off • Selection and use of “Switching off” menu command •...
Page 18 Distance control desks The receiver’s delivery set contains two standard IR-desks with different versions and number of buttons. receiver supports simultaneous operation of two different distance control desks, the user can use desks of other models and manufacturers, apart from standard desks instead of them).
Page 19 Recommendation on control modes The encoder is a mechanical regulator and is exposed to wear. Do not apply extra force when working with the encoder, try to use it only when necessary and prefer to control the receiver with the help of distance control desk. In case over 10 seconds passed after the receiver’s standard switching off, it can be switched on only by the encoder’s long pressing, otherwise the receiver can be also switched on by pressing the distance control desk red button.
Page 20 (or) widened, including changes and widening occurred by the users’ suggestions (see. www.cdd.ru ). Besides, like any computer system, the software can have errors and in the course of time shall be modernized.
Page 21 Menu structure S e l e c t o r S o u r c e s Settings EDMS Switching off Clock Player Radio Line input Sound Selector Tags Selector Tuner Style Animation M i x e r Delays Stereo base Mixer Entry mode CD/Radio...
Page 22 Main operating mode screens (main screens of audio sources) After switching on the receiver automatically chooses the last main mode used before switching off (CD, Radio or Line input) with the main screen suitable for this mode. Main screens contain general information on audio data source and its state. All main screens have volume control, sound muting/unmuting and current time announcement functions, besides, the user can quickly turn over to secondary source screens (of navigations, quick settings, etc.) from the main screens with...
Page 23 Playback of audio composition is accompanied by the output (vertical scrolling) of CD-Text content (for audio disks) or tags (ID3v1 or ID3v2) to the information field of the main screen. The tags consist of: Full set Reduced set Track name Singer Album name Year...
Page 24 In-track positioning is performed by the encoder’s turning, in this case the screen displays a scale of the track relative position and a digital time value in minutes and seconds. Return to the main screen performed encoder’s short pressing or after the timeout is over.
Page 25 FM-Radio main screen After turning over to FM-Radio mode (upon the user’s command, when removing the disk from CD-drive or right after switching on) the receiver displays FM- Radio main screen. Interface elements of this screen are shown in the picture: - station number (for quick selection from DC desk) - “fragment repeat”...
Page 26 In case the current radio station broadcasts using RDS standard and RDS- signal quality is acceptable for the reception, field of the FM-Radio main screen displays RDS-transmission sign and the screen’s line displays information from PS field (Program Service Name) of radio signal RDS-component. In most cases this field contains information on the station’s name.
Page 27 Consult the description of other main screens and settings screens in User Manual ver. 1.xx...
Page 28 It is impossible to formulate identical rules, to give “a recipe” of an admittedly winning solution. This section contains several recommendations on audio system installing on Ural ConceRt receiver basis. They do not claim to be complete, but in general, they are suitable for the most frequently used conditions.
Page 29 standard installation) plus subwoofer; use of the receiver together with an automobile video; realization of the central channel for “raising” of the sound state. • “Crossover system”. As a rule, this acoustic setting allows to achieve maximum sound quality of the audio system by using the AS meant for the playback of individual audio range segments.
Page 30 When embedded PA work for coax AS, it is expedient to connect each AS dynamic head to a separate PA channel and to use an embedded crossover in order to increase the sound level. Stages of DSP-processing • • Crossover system, stereo input 5.1 System, stereo input...
Page 31: Software Updating
CD-R or CD- RW. Updating files are available on home page of www.cdd.ru . In most cases updating implies changing of the internal version of the receiver software for a fresher one (major version with a bigger sequence number).
Page 32: Password Protection
Password protection To prevent stealing of the front panel an identity check for the serial numbers of the base unit and the front panel is performed. In case these serial numbers are not identical the receiver displays a respective message (accompanied with a warning BEEP signal) and switches off in some seconds thus making its operation impossible.
Page 33 To change the password it is required to select a “Change password” option, enter a current password, then a new password and its confirmation. Password query conditions Password entering is required for any changes in password protection system (its activation, deactivation, password changing). While password protection is activated password entering is required in the case specified below: •...
Page 34 Receiver Blocking In case of triple (during one working session) entering of an incorrect password the receiver displays a warning message and switches off entering a lock mode (BLK). To unblock the receiver it is required to enter the PUK-code. Password protection is deactivated and the password is deleted (initial state) after unlocking.
Page 35: Main Specifications
Main Specifications General Dimensions 178х50х200 mm Installation dimensions 182х53х182 mm (1-DIN) Weight (base unit with the front panel) 1750 g Operating supply voltage 14.4 V Permissible supply voltage range 8 …18 V Maximum energy input 250 W Useful current with distribution amplifiers switched off, 550 mA not more Useful current in operation...
Page 36 Amplitude-frequency response (as per -3 dB level) 40 Hz … 16 KHz Line input Sensitivity 0,1 …1 Vrms Feed impedance 47 kOhm Frequency-response ripple within the range of 20 Hz ±0.5 dB … 20 KHz Signal-noise ratio 90 dB Coupling loss 80 dB Microphone input Combined,...
Page 37 Channels 5, 6 Constraint level (FS) -1.5 dB...
Page 38 Additional interfaces Output capacity of ANT/PAMP Control output 700 mA, protected Onboard computer interface K-line (ISO 9141) Threshold voltage of RELAY1(2) input 1.5 V Threshold voltage of RELAY3 input 5 V / 2.5 V RELAY3 hysteresis 450 mV Feed impedance of RELAY1(2), not less 2 kOhm Feed impedance of RELAY3 100 kOhm...
Page 39: Certification Information
Certification Information URAL ConceRt CD-MP3 receiver complies with TU 6582-039-53906226-2004 for multimedia stereophonic car systems, models URAL CONCERT CDD/ -01/ -02/ -03. URAL ConceRt CD-MP3 receiver is certified according to GOST R Certification System of Gosstandart of Russia. Conformity Certificate No. РОСС RU.ME68.H00963, issued on 12 April 2005.
Page 40: Warranty
Warranty This warranty shall cover only products officially supplied by URAL PLUS LLC. URAL PLUS LLC guarantees general operation capability of the product as well as its components and units within the warranty periods specified herein. Warranty periods shall start from the date of sale provided that the product storage period before sale was not more than two years.
Page 41 Product defects revealed within the warranty period shall be eliminated free of charge by the authorized Service Centre subject to conditions specified below. Warranty Service Conditions • This warranty is valid only subject to presentation of a guarantee card completed correctly and legibly.
Page 42 To be completed Open sale price of the manufacturer. GUARANTEE CARD To be completed by the manufacturer URAL ConceRt CD-MP3 Car Receiver, Serial Number _______________ Date of manufacture ________________________________________________________ Representative of the manufacturer’s Quality Control Department ______________________ Stamp of the Quality Control Department Legal address and the address to file claims in respect of the product quality: 143960, Moscow Region, Reutov City, Gagarina St., 23 а, URAL PLUS LLC...
Page 43 MAINTENANCE AND REPAIR REGISTRATION Rendered services Work content. Name and Date (maintenance or repair) Name and type of the replaced signature part...
Page 44 To be completed COUPON FOR REPAIR WITHIN THE WARRANTY PERIOD To be completed by the manufacturer URAL ConceRt CD-MP3 Car Receiver, Serial Number _______________ Date of manufacture ________________________________________________________ Representative of the manufacturer’s Quality Control Department ______________________ Stamp of the Quality Control Department Legal address and the address to file claims in respect of the product quality: 143960, Moscow Region, Reutov City, Gagarina St., 23 а, URAL PLUS LLC...
Page 45 To be completed To be completed by the repair service Product warranty number ______________________________________________ Cause of repair. Name and number of replaced component or unit as per the diagram ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ Date of repair _______________________________________________________________ Day, month (in full), year Surname, name and patronymic of the person who performed the repair ___________________________________________________________________________ ___________________________________________________________________________...
Page 46 P e r s o n a l U n l o c k i n g K e y ATTENTION! is specified here To avoid possible unauthorized usage the receiver passes to the lock mode (BLK) after triple incorrect password entering (during one work session) with activated password protection.
