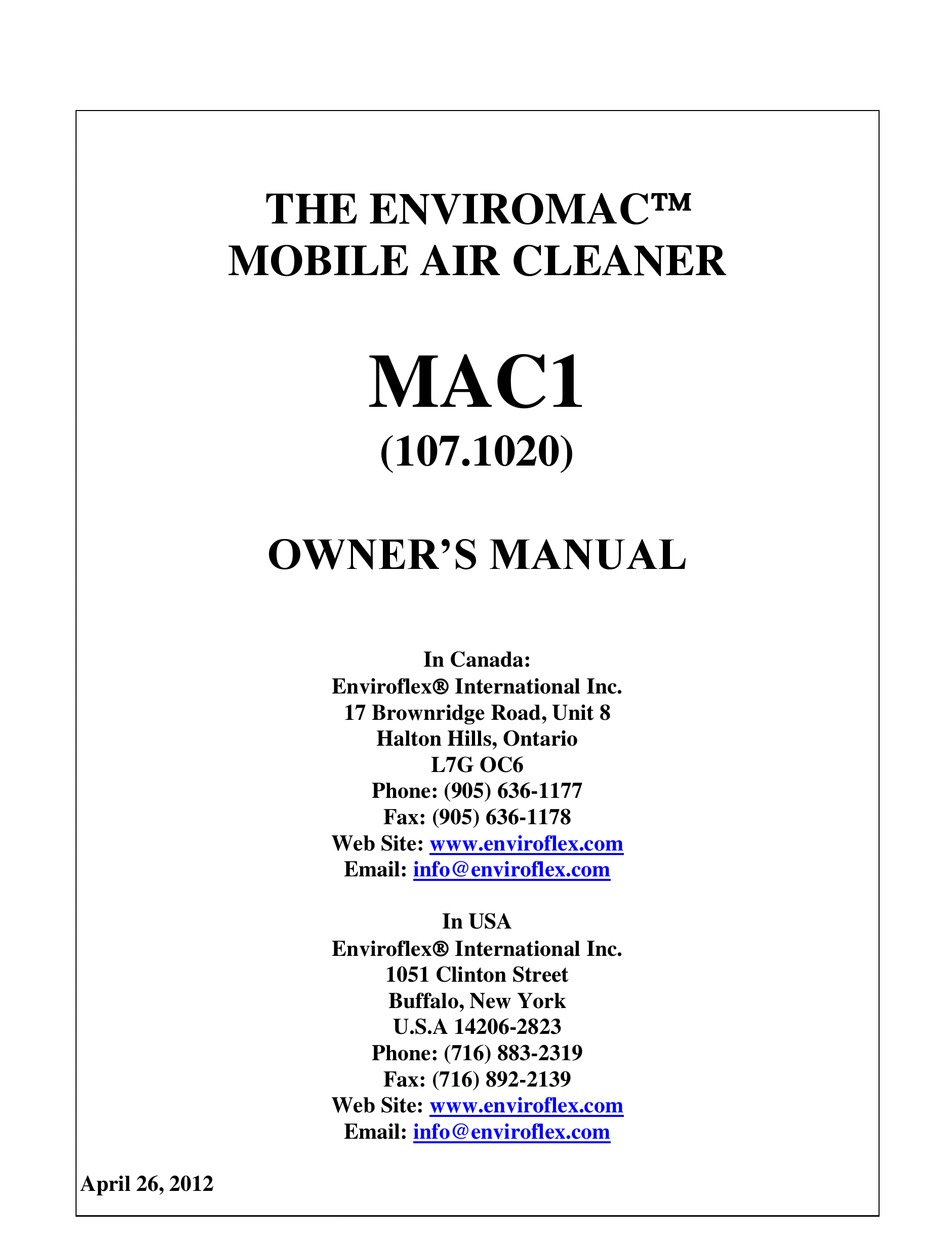

MOBILE AIR CLEANER
April 26, 2012
THE ENVIROMAC
MAC1
(107.1020)
OWNER'S MANUAL
In Canada:
Enviroflex International Inc.
17 Brownridge Road, Unit 8
Halton Hills, Ontario
L7G OC6
Phone: (905) 636-1177
Fax: (905) 636-1178
Web Site:
www.enviroflex.com
Email:
info@enviroflex.com
In USA
Enviroflex International Inc.
1051 Clinton Street
Buffalo, New York
U.S.A 14206-2823
Phone: (716) 883-2319
Fax: (716) 892-2139
Web Site:
www.enviroflex.com
Email:
info@enviroflex.com
Advertisement
Table of Contents
Related Manuals for Enviroflex ENVIROMAC MAC1
Summary of Contents for Enviroflex ENVIROMAC MAC1
- Page 1 THE ENVIROMAC MOBILE AIR CLEANER MAC1 (107.1020) OWNER’S MANUAL In Canada: Enviroflex International Inc. 17 Brownridge Road, Unit 8 Halton Hills, Ontario L7G OC6 Phone: (905) 636-1177 Fax: (905) 636-1178 Web Site: www.enviroflex.com Email: info@enviroflex.com In USA Enviroflex International Inc.
- Page 2 to make a seal and take an air hose with about 80 ABOUT THE PRODUCT P.S.I. and blow the filter from the outside to remove all of the particulate that is on the inside PRINCIPLE OF OPERATION of the filter. You can now put the cleaned filter back into the machine and tighten the filter by raising the scissor jack.
-
Page 3: Maintenance Schedule
volt step down transformer for this option. The halogen light will run off of 24 volts AC. C) CABINET The cabinet is built of 14-gauge steel. There are 2 doors on the unit and the discharge of the clean air is through these 2 doors. D) BLOWER AND MOTOR SECTION The motor is a 1.5 HP TEFC, 120/1/60, 3600 RPM. -
Page 4: Warranty
12 months from the date of manufacture according to the Company’s records.) Please return warranty card to one of the following addresses: In Canada: Enviroflex International Inc. 17 Brownridge Road, Unit 8, Halton Hills, Ontario... - Page 5 2) Welding Smoke Removal 3) Other____________________________ Where did you hear about 1) Newspaper or Magazine? this unit? 2) Telephone Directory 3) Trade Directory 3) Enviroflex Distributor 4) Friend 5) Another company 6) Trade Show 7) Other___________________________ IN U.S.A. IN CANADA ENVIROFLEX INTERNATIONAL INC.
- Page 7 As of the date of preparation of this document, the foregoing information is believed to be accurate and is provided in good faith to comply with applicable Federal and State law(s). However, no warranty or representation with respect to such information is intended or given. In U.S.A.: Enviroflex International Inc. In Canada: Enviroflex International Inc. 1051 Clinton St.
-
Page 8: Prior To Initial Use
You can dispose of the particulate in a bag if the filter was cleaned with compressed air. Date: November 14, 2008 Section 2B IN U.S.A. IN CANADA ENVIROFLEX INTERNATIONAL INC. ENVIROFLEX INTERNATIONAL INC. 1051 CLINTON ST. 17 BROWNRIDGE RD. UNIT 8 BUFFALO NY, USA 14206-2823 HALTON HILLS, ONTARIO, CANADA, L7G 0C6 TEL. -
Page 9: Field Applications
Good Date: November 14, 2008 Section 2 Page 1 of 4 IN U.S.A. IN CANADA ENVIROFLEX INTERNATIONAL INC. ENVIROFLEX INTERNATIONAL INC. 1051 CLINTON ST. 17 BROWNRIDGE RD. UNIT 8 BUFFALO NY, USA 14206-2823 HALTON HILLS, ONTARIO, CANADA, L7G 0C6 TEL. (716) 883-2319 FAX (716) 892-2139 TEL. -
Page 10: Test Results
Category-G-Maximum Penetration Degree is 0.5% Date: November 14, 2008 Section 2 Page 2 of 4 IN U.S.A. IN CANADA ENVIROFLEX INTERNATIONAL INC. ENVIROFLEX INTERNATIONAL INC. 1051 CLINTON ST. 17 BROWNRIDGE RD. UNIT 8 BUFFALO NY, USA 14206-2823 HALTON HILLS, ONTARIO, CANADA, L7G 0C6 TEL. -
Page 11: Pressure Drop
Date November 14, 2008 Section 2 Page 3 of 4 IN U.S.A. IN CANADA ENVIROFLEX INTERNATIONAL INC. ENVIROFLEX INTERNATIONAL INC. 1051 CLINTON ST. 17 BROWNRIDGE RD. UNIT 8 BUFFALO NY, USA 14206-2823 HALTON HILLS, ONTARIO, CANADA, L7G 0C6 TEL. (716) 883-2319 FAX (716) 892-2139 TEL. - Page 12 Date: November 14, 2008 Section 2 Page 4 of 4 IN U.S.A. IN CANADA ENVIROFLEX INTERNATIONAL INC. ENVIROFLEX INTERNATIONAL INC. 1051 CLINTON ST. 17 BROWNRIDGE RD. UNIT 8 BUFFALO NY, USA 14206-2823 HALTON HILLS, ONTARIO, CANADA, L7G 0C6 TEL.
- Page 14 6” Bench Mount Model Description Arm model 103.1028 (10ft. Arm) Part Number Joint 1 103.1028.1 Joint 2 103.1028.2 Joint 3 103.1028.3 Joint 4 103.1028.4 Joint 5 103.1028.5 Joint 6 103.1028.6 Joint 7 103.1028.7 Joint 8 103.1028.8 Friction insert I 103.1028.9 Friction insert II 103.1028.10 Tube I 160...
- Page 15 Nut M6-5-C 103.1028.33 Self-locking nut 103.1028.34 M14x1.5-5-B Disk spring DI 103.1028.35 60x14.5x3 Disk spring DI 103.1028.36 50x14.5x2.2 Steel cable 103.1028.37 3.5, l=450 Bow rope clamp 103.1028.38 Screw M8x25- 103.1028.39 3.6-C Self-locking nut 103.1028.40 M8-5-B Clamping eye 103.1028.41 10.5 Screw 103.1028.42 M14x1.5x60- 8.8-B Screw...
- Page 16 Flexible hose 103.1028.61 ST-160, l=535mm (21”) Gear clamp 103.1028.62 OST-160 Flexible hose 103.1028.63 ST-160 l=640mm (25”) Flexible hose 103.1028.64 ST-160 l=430mm (17”) Joint’s wheel 103.1028.65 Connector I 103.1028.66 Screw M8x20 103.1028.67 Self-locking nut 103.1028.68 Regular washer 103.1028.69 8.4 C Friction insert 103.1028.70 30x8x6 Reinforcing...
- Page 17 φ6” Bench Mount Model Description Arm model 103.1028 (10ft. Arm) Part Number Joint 1 103.1028.1 Joint 2 103.1028.2 Joint 3 103.1028.3 Joint 4 103.1028.4 Joint 5 103.1028.5 Joint 6 103.1028.6 Joint 7 103.1028.7 Joint 8 103.1028.8 Friction insert I 103.1028.9 Friction insert II 103.1028.10 Tube I 160...
- Page 18 Self-locking nut 103.1028.46 M14x1.5-5-B Disk spring DI 103.1028.47 60x14.5x3 Disk spring DI 103.1028.48 50x14.5x2.2 Steel cable 103.1028.51 3.5, l=450 Bow rope clamp 103.1028.52 Screw M8x25- 103.1028.53 3.6-C Self-locking nut 103.1028.54 M8-5-B Clamping eye 103.1028.55 10.5 Screw M14x1.5x60- 103.1028.57 8.8-B Screw M14x1.5x55- 103.1028.58 8.8-B...
- Page 19 Gear clamp 103.1028.82 OST-160 Flexible hose ST-160 103.1028.84 l=640mm (25”) Flexible hose ST-160 103.1028.85 l=430mm (17”) Joint’s wheel 103.1028.P1 Connector I 103.1028.P2 Screw M8x20 103.1028.P3 Self-locking nut 103.1028.P4 Regular washer 103.1028.P5 8.4 C Friction insert 103.1028.P7 φ30x8x6 Reinforcing 103.1028.P8 element IV Disk spring 103.1028.P9 12.5x6.2x1...
- Page 20 Drawing 19. (6” arm) Damper – both Wall Mounted and bench mount.
- Page 21 51+55 Drawing 13. (6” arm) Socket of SNORKVAC™ arm – Bench Mount.
- Page 22 Drawing 12. (6” arm) SNORKVAC™ bench mount arm...
- Page 23 Attached to the (2) metal tabs on P1...
