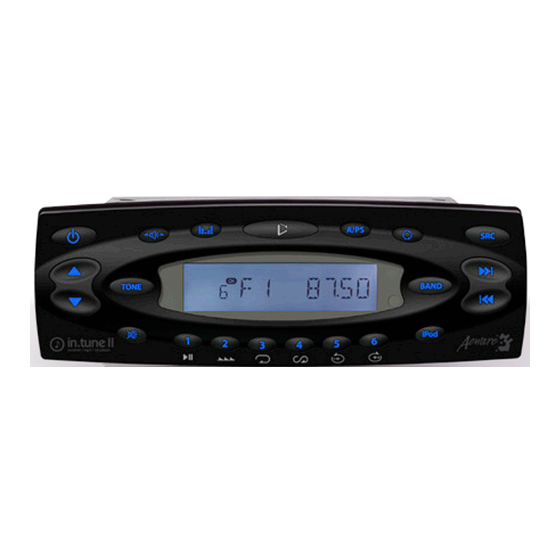

Aeware in.tune II User Manual

Fully and truly waterproof am-fm receiver / mp3 / cd player

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

in.tune II

™

Fully and truly waterproof

am-fm receiver / mp3 / cd player

User's manual

Designed to be used in

humid environments.

Table of Contents

Need help?

Do you have a question about the in.tune II and is the answer not in the manual?

Questions and answers

Summary of Contents for Aeware in.tune II

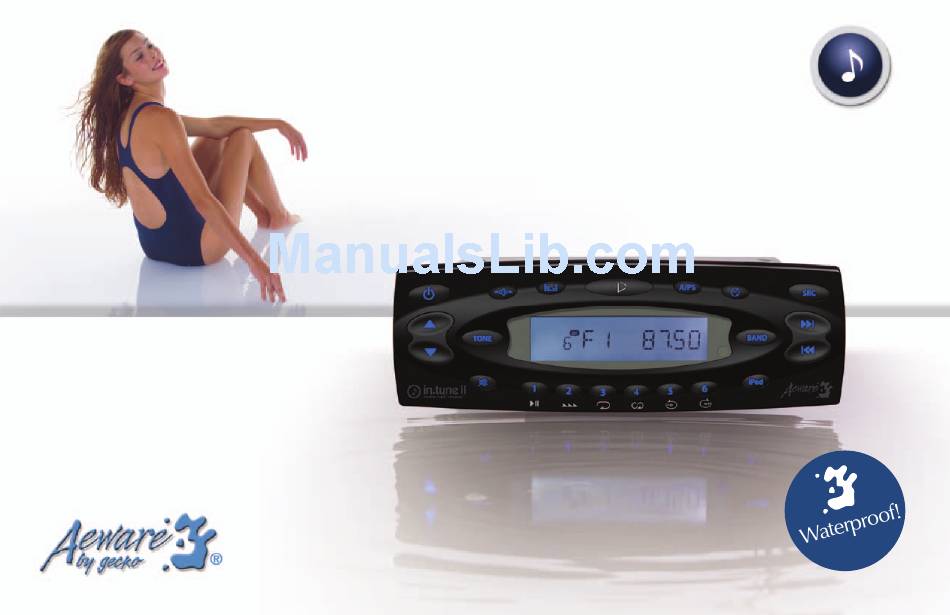

Page 1 II ™ Fully and truly waterproof am-fm receiver / mp3 / cd player User's manual Designed to be used in humid environments.
Page 2: Table Of Contents
IR remote control (IRMT-4™) ... 40 parts list ..................8 accessories ................... 42 installation specifications ................43 - in.tune II™ ................ 9 - in.k455™ ................13 connections - speaker & supply ............15 - with auxiliary source ............. 18 - with keypad ..............
Page 3 II™...
Page 4: Features
II™ features Main features Congratulations! Congratulations on the purchase of your very own in.tune II™ Fully waterproof CD player! You own one of the industry’s best entertainment Speaker outputs 50 Watts x 4 ch. system. This system is UV, salt spray and water resistant and is AM/FM tuner designed to provide hours of troublefree usage.
Page 5: Warning
DO NOT INSERT A WET CD DISK IN YOUR IN.TUNE II™ Do not insert a wet CD disk in the disk slot of your in.tune II™ recei- DO NOT DISASSEMBLE OR ALTER. ver/CD player. Doing so will void the warranty of your in.tune II™.
Page 6 II™ warning WARNING When this equipment is provided as an audio/video component for spas, UL 1563 - 5th edition requires that the following instructions (or equivalent) be provided as CAUTION RISK OF ELECTRIC SHOCK ! – part of the instruction manual for the spa equipment.
Page 7: About Compact Discs
II™ Never attempt the following Inserting a disc CD logo marks New discs Do not grip or pull out the disc Make sure label side is facing Use only compact discs with New discs may sometimes while it is being pulled back up when you insert the disc.
Page 8 II™ about compact discs Irregular shaped discs Correct handling Disc cleaning Storage Be sure to use round shape Handle the disc by its edge. Fingerprints, dust or soil on Do not expose discs to direct discs only for this unit and never...
Page 9: Parts List
II™ Screw M5x16 (1) Drilling template Mounting strap (1) Mounting brackets (2) CD player Mounting Protective sleeve (1) cover Rear nut M5 (1) Rear lock washer (1) Rear flat washer (1) "O" ring (4) Self tapping screw# 6 type A (6)
Page 10: Installation - In.tune Ii
II™ installation Mounting surface Template Step 2 Step 3 Step 1 Insert the mounting sleeve into If the installation location is Using the drilling template supplied with the unit, determine the mounting location and then stick the template on the location.
Page 11 II™ Step 4 Step 5 Step 6 Fixing the mounting sleeve: Note: The use of an Connect wires. Insert the CD player into the adjustable torque wrench mounting sleeve. a) Insert mounting bracket. is recommended. Torque Refer to wiring section (page 16) b) Then pull bracket setting: 8-12 lbs∙in...
Page 12 (to fit the mounting area). Important: The in.tune II™ must always be installed with the mounting strap firmly fixed to a solid part. Failure to do so may result in damage to the unit and annulment of the warranty.
Page 13 Make sure the overlay is well installation surface. Clean the toward the recess of each of the aligned and rests perfectly in surface of the in.tune II™ with 4 fixing screws. Clean the surface of the the recess of the in.tune II™.
Page 14 II™ installation " 7/32 Installation in.k455 with adhesive (optional) 158 mm Drill 2x ” 9 mm The keypad should be installed directly on the edge of the spa so " that it is easily accessible to the user. 5/16 59 mm •...
Page 15 II™ Drilling template (in.k455 " 7/32 158 mm Drill 2x ” 9 mm " 5/16 59 mm Follow profile with jig saw...
Page 16: Connections - Speaker & Supply
II™ connections Wiring diagram White iPod connection Black CD player Wired remote control Antenna Aux in RCA red (right) Aux in RCA white (left) Purple Rear right RCA red (right) Purple/Black speaker Rear RCA white (left) Rear Green left...
Page 17 II™ Wiring Blue wire Gray wire Purple wire Yellow wire (w/fuse) Connect this wire to the (+) Connect this wire to the right Connect this wire to the Connect this wire to a constant +12 volt power source.
Page 18 II™ connections Wiring (Con't.) Note: This unit is designed to connect 4 speakers. If the installation only requires 2 speakers, use the white and gray wire sets to connect the speakers. WARNING Any wires left unconnected must be taped off or capped off to prevent shorting.
Page 19: With Auxiliary Source
II™ Auxiliary connection Audio out from in.tune II™ VCR / TV Red RCA (Right) White RCA (Left) Auxiliary audio input gray cable with RCA connector...
Page 20: In.k455
II™ connections Connecting keypad to in.tune II™ The in.k455™ comes with a 20 ft cable terminated with a 8-pin in.tune II™ mini din male connector. Wired remote in.k455 To connect the keypad, simply (optional) insert the 8-pin mini din male connector into the 8-pin mini din receptable as illustrated.
Page 21: With In.p3.110
II™ Connecting in.p3-110™ to in.tune II™ in.p3-110™ (optional) ™ The in.p3-110 dock station comes with a 10 ft cable terminated with a 9-pin mini din connector. To connect the dock station simply insert the 9-pin mini in.tune II™...
Page 22: Function Description
II™ function description Auto memory Equalization Open Display Power On/Off Source storing Fader (Preset scan) Search Volume (Track Up/Down) Up/Down iPod Mute Intro scan Station preset #5 Audio selector Radio band (Station preset #2) Play/Pause Repeat Random Station preset #6...
Page 23: Icon Description
II™ Radio frequencies broadcast in stereo Track number indication Preset channel indication Animated disc (when CD is playing) Intro scan mode Random mode iPod (in CD mode) (in CD mode) Repeat mode (in CD mode)
Page 24: Basic Operation
II™ basic operation Clock setting Volume up or down Mute Power on/off When the time is displayed Press Volume up or down to Press Mute to mute the audio Press Power to turn system on (clock), press and hold Display increase or decrease volume.
Page 25 II™ Tone Source Equalization Use TONE to select either (in order): volume, bass, treble, balance Pressing SRC will allow you to Successive presses on EQ will or fader. To change the desired parameter, use Volume up or...
Page 26 II™ basic operation Reset button Fader Reset button USA/Europe switch Protective cover Successive presses on Fader If keys on the front panel You can switch from American We recommend to install the will allow you to select become locked up, i.e. keys do...
Page 27: Radio
II™ Selecting radio mode Selecting radio band Tuning up or down Preset stations Press SRC until Radio mode Press BAND to select between Press Track up to manually Any station may be preset is displayed. FM1, FM2, FM3, AM1, AM2.
Page 28 II™ radio Auto scan Display information Press A/PS to scan preset Press Display to switch stations. The tuner will scan between the following up and wait for a few seconds, display information: then scan up again. Frequency - Clock (clock is Once the desired station is displayed for 5 seconds only).
Page 29: Auxiliary
II™ Auxiliary input Press SRC until the display reads "AUX", which indicates that the auxiliary unit is playing. This mode allows to play sound from external source such as a TV, video, etc. (please refer to "installation & connections" section for...
Page 30: Ipod
II™ iPod Selecting iPod mode BAND Track up/down Display Press iPod (or SCR key succes- Press BAND successively to Press to do a track Press the key to change display sively) to access iPod mode. access the following menus: forward or backward.
Page 31 II™ Display (continuation) Play/Pause Fast forward Rewind The system can only display the Press this key to pause iPod Press and hold key to fast Press and hold key to do fast first 8 letters of ID3 tags. If the playback.
Page 32 II™ iPod Intro scan Repeat Random Folder up/down A press will plays the first Press this key to repeat song A press will plays all song Press BAND successively to several seconds of each song track. tracks on the current playlist in access the following menus: track on the current playlist.
Page 33 II™ Eject button Inserting compact disc Ejecting compact disc Selecting CD mode Track up or down Press Open to flip down the To eject CD, flip-down front Press SRC until CD mode To change music track, simply front panel and access the CD panel must be open, then press is displayed.
Page 34 II™ Pause mode Intro scan mode Repeat mode Random mode To pause the playing of a disc, You can preview each song To play a song repeatedly, Press Random to play song press Pause. of the current disc for about press Repeat.
Page 35 II™ Display information Press Display to switch between the following display information: If specific info has not been recorded on an MP3 disc, NO FOLD, Track no. / Playtime - Clock (clock is displayed for 5 seconds only). NO TRK, NO TLT, NO ALBM, NO ART will be displayed.
Page 36: Mp3
II™ Playback order of MP3 files Reading files on a disc MP3 playing order • A directory that does not include an MP3 file is skipped. When a disc containing MP3 When selected to play, files • Maximum number of files: 999...
Page 37: Mp3 Mode
II™ Example of a disc's folder/file hierarchy Operation of keys Level 1 Level 2 Level 3 Level 4 Level 5 Press to select folder down Press to select folder up Press (Track Down) to select file down...
Page 38: Basic Operations Of Optional In.k455
II™ basic operations of optional in.k455™ wired remote control On/Off key Up/Down keys Source key Band Key Track down key Track up key * Option accessible through the in.tune II™ only.
Page 39 II™ Radio frequencies broadcast in stereo Preset channel Track number indication indication Animated disc (when CD is playing) Intro scan mode Random mode iPod (in CD mode) (in CD mode) Repeat mode...
Page 40 II™ basic operations of optional in.k455™ wired remote control Description Press Power to turn system on or off. Pressing SRC will allow you to select a source between the following (in order): Tuner, CD, iPod, Aux. Radio mode: Press BAND to select between AM1, AM2, FM1, FM2, FM3.
Page 41: Basic Operations Of Optional Ir Remote Control (Irmt-4™)
Use setup for all programming sequences. Refer to the remote control (IRMT-4™) instructions manual for detailed explanation on programming sequences. Press Power to turn system on or off. Press CD to control the in.tune II™ *. Press VOL + or - to increase or decrease volume. Radio mode: Press CH + or - to go to the next or previous preset station.
Page 42 II™ basic operations of optional IR remote control (IRMT-4™) Key/Icon Description Pressing SRC will allow you to select a source between the following (in order): Tuner, CD, Aux, iPod. MP3 mode: Press to select folder down and press to select folder up. Press and hold one of these keys to skip 10 songs forward or backwards from where you are currently positioned.
Page 43: Accessories
Optional IRMT-4™ docking, connectivity and remote control for iPod. infrared remote control Optional in.k175™ Optional antenna cable for in.tune II™ wired remote control Sold separately. in.power.210™ For more information on wired and infrared remotes or other accessories, visit our website at www.aeware.ca...
Page 44: Specifications
II™ specifications General specifications: Weather band: Power supply voltage: 14,4V (11–14,4V allowable), negative ground Usable sensitivity (S/N=20dB): 2dBuV Max. current consumption: 15A Signal to noise ratio (S/N): 45dB Back-up current (Ignition OFF): 15mA (Max.) Frequency range: 162,40MHz – 162,55MHz Speaker impedance: 4Ω...
Page 45 II™ FM tuner: Applicable Standards: UL 1563 Fifth Ed. Usable sensitivity (S/N = 30dB): 4μV File: E241878 Stereo separation: 30dB CSA No. 22.2 - 218.1-M89. Signal to noise ratio (S/N): 55dB Frequency range: *EN/IEC American (USA): 87 ,5MHz – 107 ,9MHz...
Page 46 © 2010 Groupe Gecko Alliance Inc. 9225 Stellar Court, Corona, CA 92883 USA , 951.667 .2000 TM trade-marks of/marques de commerce de Groupe Gecko Alliance Inc. www.geckoalliance.com iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
