Summary of Contents for Dynam RACON X6

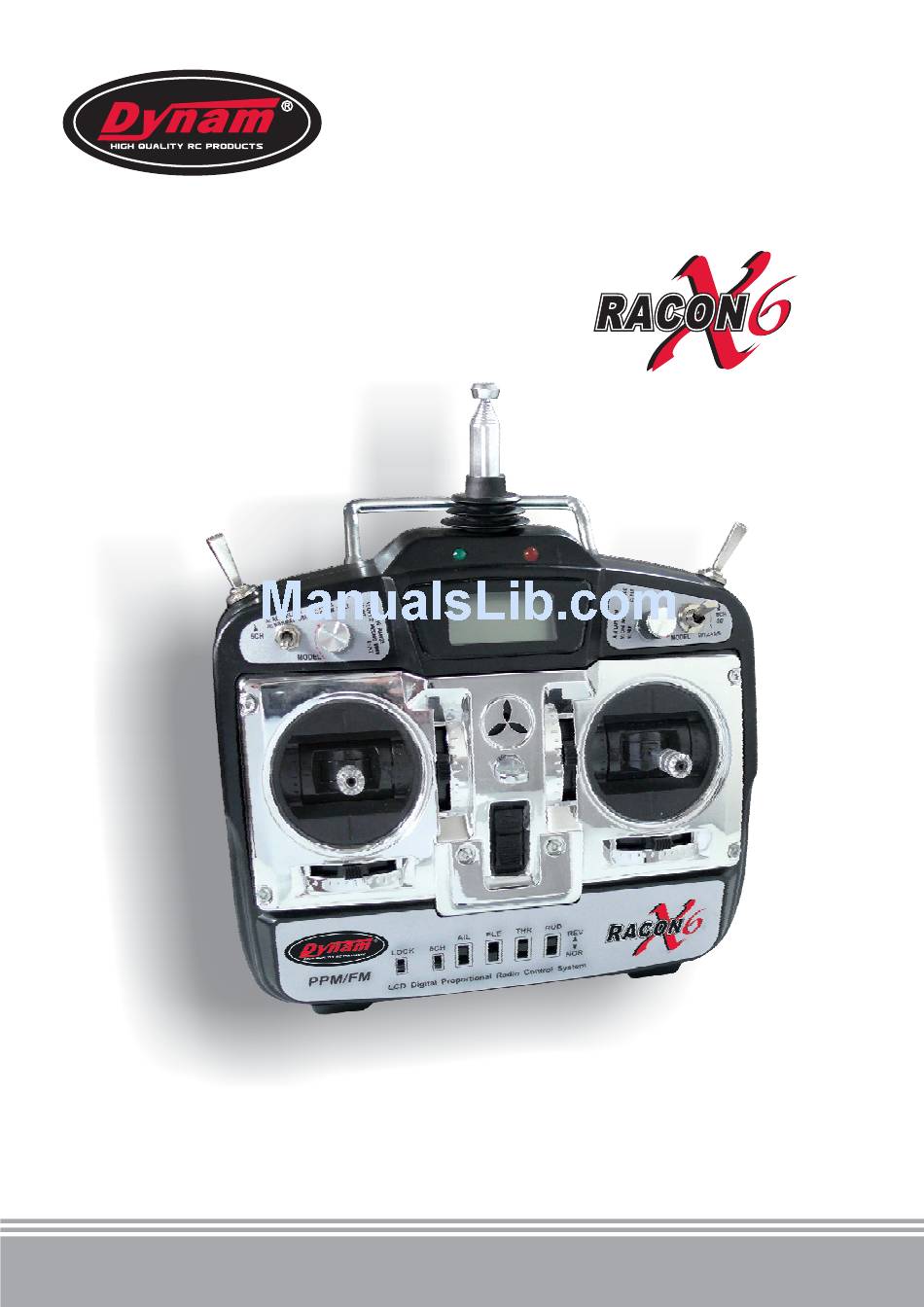

- Page 1 Operating Manual for LCD DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM WWW.DYNAM-RC.COM...
-
Page 2: Table Of Contents
Catalog Function of Transmitter Contents Specifications Notice for flying Notification before Using Description of four flying modes Transmitter particular introduce Receiver Operation for transmitter and servo 09~10 Adjustmen order Charge method of battery Explaination for technical words... -
Page 3: Function Of Transmitter

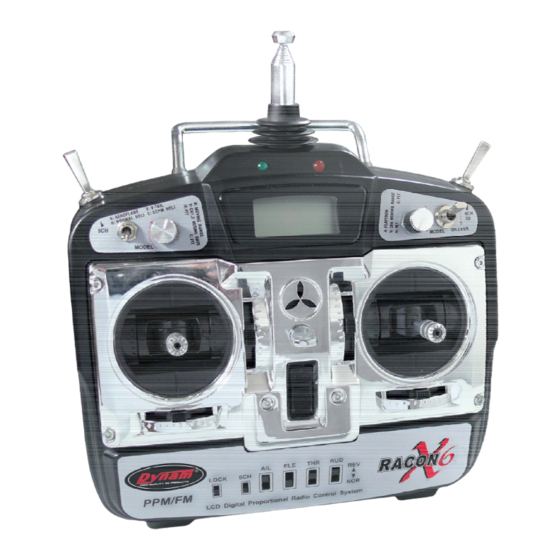

Thanks for purchasing RACON X6 radio control set. For safe use, please read this manual before using carefully. Any damage or loss to radio control set and model due to inproper use will not be shouldered by noreum Machi. Function of Transmitter RACON X6 is a newly developed 6 channel proportional transmitter with four flying mode installed: A(aeroplane mode);V( V tail mode);... -
Page 4: Notice For Flying
Notice for flying Please do not fly in the same area with simiar f requency, or that can cause crash. Please do not fly in the rain or strong wind. The water can sink into the transmitter which can cause out of control, leading to crash. The shortened antenna may cause the short range of signal, please pull the antenna to the end. -
Page 5: Notification Before Using
Notification before using Indications of special signs please pay more attention to signs in this manual and safety while using Show Logo Meanings I inproper operation may cause injury or hurt WARNING I inproper operation may cause injury or hurt CAUTION Storage note Please do not place the radio control se in the below situation:... -
Page 6: Description Of Four Flying Modes
Description of four flying modes RACON X6 with four flying mode installed: A(aeroplane mode);V( V tail mode);C(CCPM helicopter mode);H (helicopter mode) the switch between each mode is very convenient. There is a reverse switch for CH1,CH2,CH4 and Ch6 separately. The LCD on the transmitter can show voltage of transmitter, channel status, flying mode and flying time. -
Page 7: Transmitter Particular Introduce
Transmitter particular introduce A: Antenna L:Tiny mix for channels B: LCD(Liquid Crystal Display) if the transmitter is model 1, it is for ch3. 1)To indicate the battery voltage of transmitter. if the transmitter is model 2, it is for ch1. 2)To show the situation of channels whether it is reversed. -
Page 8: Receiver
Receiver Function... -
Page 9: Operation For Transmitter And Servo
Operation for transmitter and servo Operation for helicopter (mode 1) Before adjusting, please be familiar with transmitter operation and servo(Before description in case of all neutral) Aileron operation joystick for aileron left forward plane moves left joystick for aileron right forward plane moves right Elevator operation joystick for elevator up forward... -
Page 10: Operation For Transmitter And Servo
Operation for transmitter and servo Operation for airplane (mode 1) Before adjusting, please be familiar with transmitter operation and servo(Before description in case of all neutral) Aileron operation joystick for aileron right forward the right aileron up and left aileron down and vice versa Elevator operation climb up forward operation... -
Page 11: Adjustmen Order
Adjustment order Open the battery bay, and range the 8 cells AAA battery into the battery bay, then close the bay. Before adjustment, change the reverse switch to the lower position(nor). Open the transmitter and the receiver, and do the following steps: 1.check every servo’s movement and make sure every movement of control arms and servo arms is correct if not, please change the switch for reverse. -
Page 12: Explaination For Technical Words
Explainaction for technical words...
