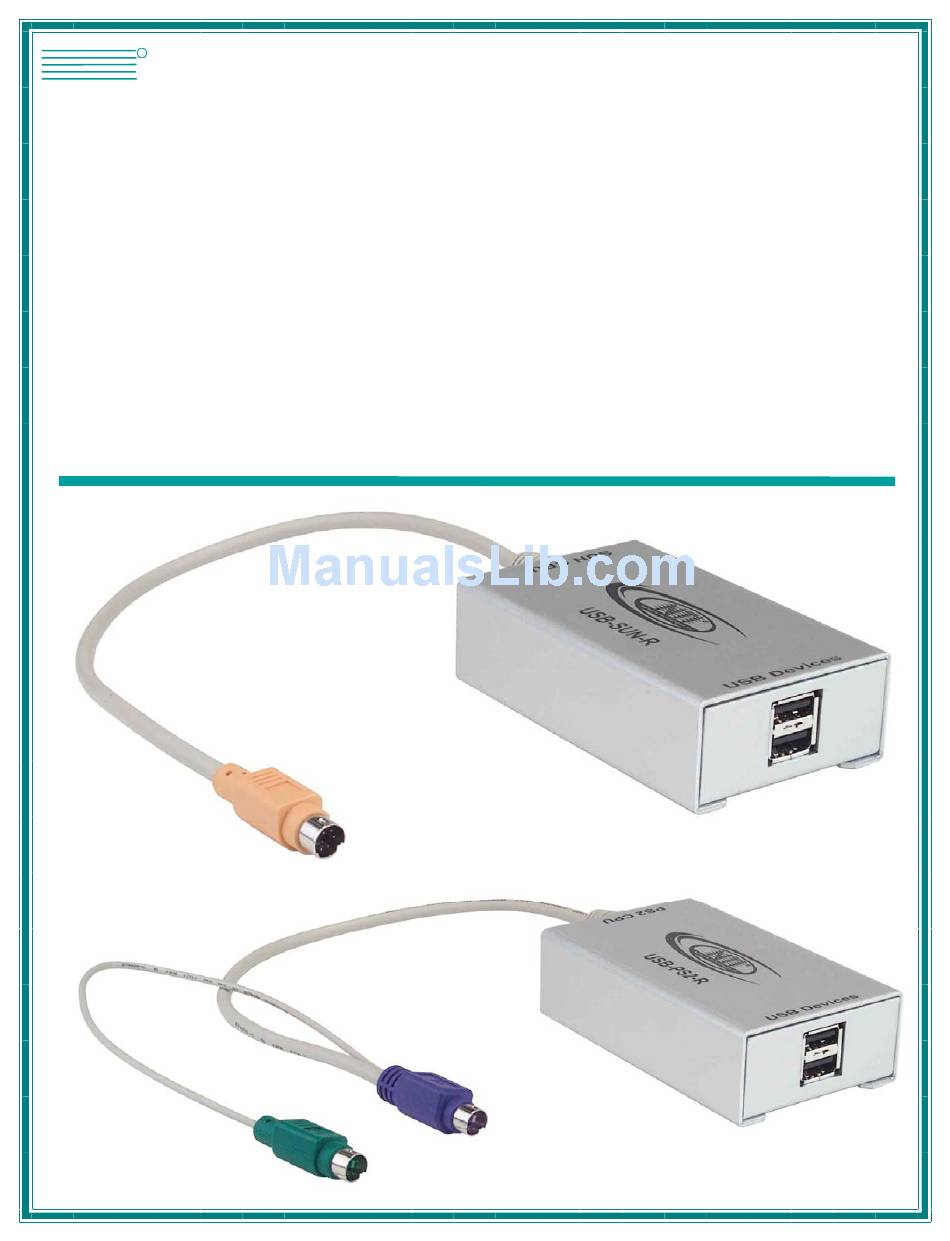

- Page 1 NETWORK 1275 Danner Dr TECHNOLOGIES Aurora, OH 44202 INCORPORATED LEGACY SUN TO USB ADAPTER PS2 TO USB ADAPTER Tel:330-562-7070 Fax:330-562-1999 www.nti1.com USB-SUN-R USB-PS2-R Installation Manual MAN038 Rev Date 12/8/2004...
-
Page 2: Warranty Information
Warranty Information The warranty period on this product (parts and labor) is one (1) year from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.nti1.com information regarding repairs and/or returns. A return authorization number is required for all repairs/returns. COPYRIGHT Copyright ©... -
Page 3: Table Of Contents
Figure 2- Connect the USB-SUN-R to a UNIMUX switch ... 4 Figure 3- Connect keyboard and mouse to USB-SUN-R ... 5 Figure 4- Connect USB-SUN-R to an NTI Universal KVM switch ... 5 Figure 5- Connect to a PS/2 CPU... 6 Figure 6- Connect to a PS/2 CPU... -
Page 4: Introduction

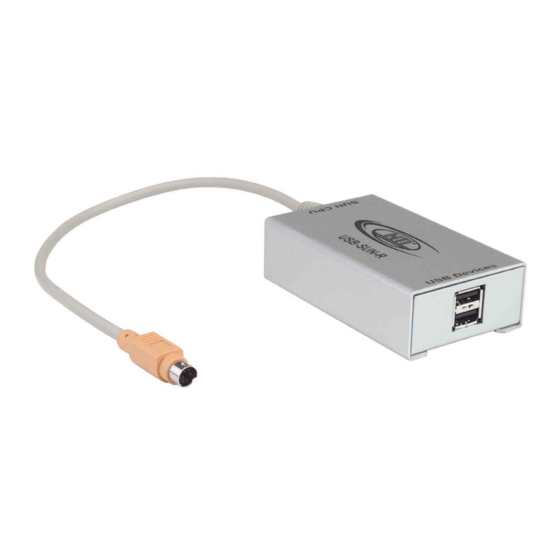

INTRODUCTION The NTI USB-SUN-R is a legacy SUN to USB adapter designed to enable the connection of a legacy SUN CPU to an NTI USB KVM switch. It also enables the connection of a USB keyboard and mouse to a legacy SUN CPU, or to an NTI Universal KVM switch. -
Page 5: Applications
NTI Legacy SUN to USB and PS/2 to USB Adapter APPLICATIONS Connect any NTI USB KVM Switch to a legacy SUN CPU (See Figs. 1 & 2 for details) N e t w o r k T e c h n o l o g i e s I n c N e t w o r k T e c h n o l o g i e s I n c Connect any NTI USB KVM Switch to a PS/2 CPU (See Figs 5 &... - Page 6 NTI Legacy SUN to USB and PS/2 to USB Adapter Connect a USB SUN keyboard and/or mouse to a legacy SUN CPU (See Figs. 1 & 3 for details) N e t w o r k T e c h n o l o g i e s I n c Connect a supported USB keyboard and/or mouse to a PS/2 CPU (see Figs.
-
Page 7: Installation
USB-SUN-R Connect to a legacy SUN CPU Note: The CPU should be powered down before connection of the USB-SUN-R. Connect the orange 8 minDIN male connector to the device port on a legacy SUN CPU (See Fig. 1) Figure 1- Connect to a legacy SUN CPU Connect to a USB Switch Using a USB-AB-xM cable (xM = .5,1,2,3,4, or 5 meter cable), connect the USB Type A male connector end to either of the ports... -
Page 8: Connect Usb Keyboard And Mouse
Note: The switch should be powered down before connection of the USB-SUN-R. The USB-SUN-R can be used to connect a supported USB keyboard and mouse (see "Supported Devices on page 1) as shown above to the 8 pin miniDIN user "DEVICES" port on a NODEMUX Universal KVM switch (multi-user or single-user). -
Page 9: Usb-Ps2-R
NTI Legacy SUN to USB and PS/2 to USB Adapter USB-PS2-R Connect to a PS/2 CPU. Note: The CPU or switch should be powered down before connection of the USB-PS2-R. Connect the green 6 miniDIN male mouse connector to the mouse port on the CPU. (See Fig. 5) Connect the purple 6 miniDIN male keyboard connector to the keyboard port on the CPU. -
Page 10: Connect Usb Keyboard And Mouse
NTI Legacy SUN to USB and PS/2 to USB Adapter Connect USB Keyboard and Mouse Connect any supported USB keyboard and mouse to either of the two USB type A female connectors marked "USB DEVICES" as seen in Fig. 7. FYI: The USB connections can be hot-plugged at any time. -
Page 11: Power Up
NTI Legacy SUN to USB and PS/2 to USB Adapter POWER UP If the USB-SUN-R or USB-PS2-R has been connected to a CPU, power up the CPU. The CPU will boot up normally whether a USB keyboard and mouse are attached to the UNIMUX switch or not. -
Page 12: Figure 9- Keyboard Layouts
NTI Legacy SUN to USB and PS/2 to USB Adapter Figure 9- Keyboard Layouts... - Page 13 NTI Legacy SUN to USB and PS/2 to USB Adapter MODEL NO: USB-SUN-R USB-PS2-R SERIAL NO: ____________________ DATE: ______________________ INSPECTED BY: _____________ Man038 Rev. 12/8/04...
