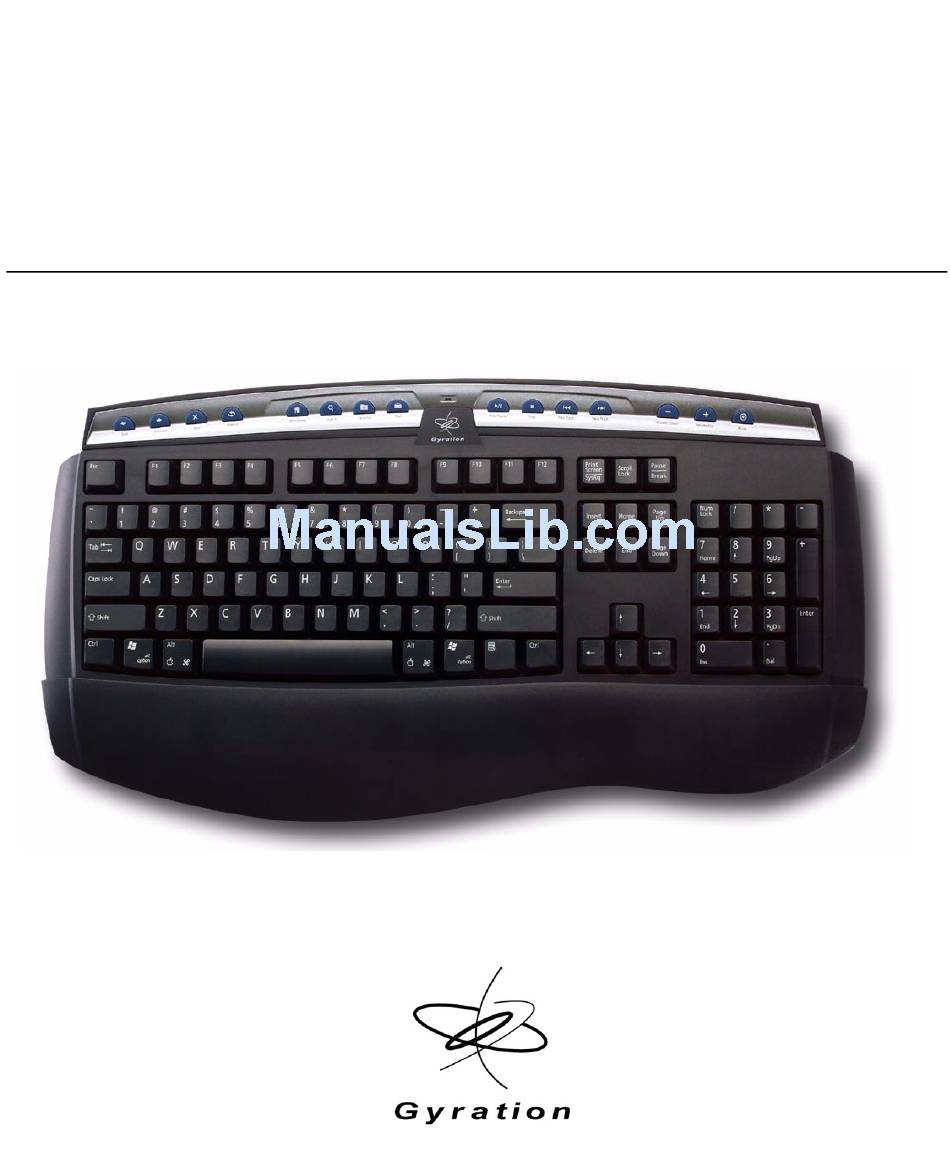

- Page 1 Gyration Full-Size Keyboard ™ User Manual...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS Spec Full-Size Keyboard System Full functionality on IBM compatible PCs running Windows 2000, ME, XP, or higher Requirements Limited functionality on MAC OS 8.0 and higher and Windows 98 (Second Edition)* Available USB port Size 8.5"L x 19.5"W x 1.4"H (21.5cm x 49.5cm x 3.6cm) -
Page 3: Table Of Contents
Full-Size Keyboard ...1 Setting Up and Synchronizing ... 1 Determining the Channel... 3 Changing the Channel... 4 Powering On and Off ... 4 Special Keyboard Media Keys ... 5 Keyboard Usage Tips ... 6 RF Receiver ...8 Learn Button ... 8 Status Light... -
Page 4: Full-Size Keyboard
Setting Up and Synchronizing the Keyboard and the Gyration RF Receiver When installing the Full-Size Keyboard for the first time or when adding additional Gyration devices to the system, it is necessary to perform a Teach/Learn sequence to synchronize the devices. - Page 5 At this time, press the Teach button on any additional devices Note: (such as a second keyboard, an Ultra Mouse, or a GyroRe- mote). To exit Learn Mode, press the Learn button on the receiver for two seconds. Otherwise, Learn Mode will automatically time out after five minutes.
-
Page 6: Determining The Channel
Determining Which Channel the Keyboard is Using The Full-Size Keyboard has eight individual channels avail- able to it. To determine which channel a device is currently using: Press and quickly release the Channel button on the back of the keyboard. -
Page 7: Changing The Channel
When two devices are being used in the same proximity, each device should be set to operate on a unique channel. For the best reception, space the channels apart by one or more chan- nels. For example, setting the channels to “2” and “4” is rec- ommended over setting the channels to “2”... -
Page 8: Special Keyboard Media Keys
Special Keyboard Media Keys Support Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Program Support Windows CD CD or Media player scans for Player, Default previously played track... -
Page 9: Keyboard Usage Tips
Special Keyboard Media Keys (Continued) Support Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Win 2000, ME, XP Keyboard Usage Tips Some studies suggest that long periods of repetitive motion, improper workstation set-up, or incorrect body position may be linked to serious injury. - Page 10 ness, weakness), consult a qualified health professional. To reduce the risks of such injuries, follow these precautions: Take breaks frequently. Experts suggest taking at least one 5-10 minute break every hour. Avoid prolonged, repetitive tasks. Vary your tasks throughout the day. Assess your workstation and position frequently used items closest to you.
-
Page 11: Rf Receiver
Gyration RF Receiver Learn Button Pressing the Learn button for two seconds puts the receiver into Learn Mode allowing you to synchronize one or more devices with the receiver. After the devices have been synchronized, pressing the Learn button again for two seconds takes the receiver out of Learn Mode. -
Page 12: Keyboard Leds
Mode and no devices are transmitting. Blinks slowly (one blink per second) when the receiver is in Learn Mode and is awaiting a Teach instruction from a device. Flickers rapidly when the receiver is operating in Normal Mode and a synchronized device is transmitting. If there is radio interference, the flickering light will be inconsistent. - Page 13 Example: Mouse One is used by a presenter for cursor control, and Mouse Two and a keyboard are used by an assistant to input data. Mouse One is set at channel 3. Mouse Two is also set at channel 3 and the keyboard is set at channel 5.
-
Page 14: Troubleshooting Tips
Keyboard Troubleshooting Tips Symptom Computer does not recognize data input Keystrokes are not consistently recog- nized Reason Keyboard and Receiver not syn- chronized Radio interference Keyboard is off Dead batteries Radio interference Solution Perform a Teach/Learn sequence (see “Setting Up and Synchroniz- ing the Keyboard and the Gyration RF Receiver”... -
Page 15: Regulatory Information
FCC Statement The Full-Size Keyboard and RF Receiver have been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 16: Canadian Radio Interference Regulations
The Compact Keyboard operates in the frequency band of 49.825 to 49.895 MHz with RF output power of less than 30 MicroWatts EIRP (Effective Isotropic Radiated Power). Warning: Using these products in any way other than as described in this manual or altering the antenna in any way may violate FCC rules. -
Page 17: Contacting Gyration
Contacting Gyration If you have any questions on your new Gyration product, please contact us. Main Office Gyration, Inc. Phone: 408-255-3016 Fax: 408-255-9075 Sales Phone: 800-316-5432 (Toll-free in US and Canada) Fax: 408-387-5130 E-mail: sales@gyration.com Technical Support Phone: 408-973-7086 Fax: 408-973-7669 E-mail: support@gyration.com Product Support: www.gyration.com/support.htm World Wide Web... -
Page 18: Warranty Information
Gyration products come with a two-year hardware warranty. Gyration, Inc., (Gyration) warrants products against defects in material and workmanship for a period of two years from the date of purchase from Gyration or an authorized Gyration agent. This warranty applies only to the original purchaser and is not transferable. - Page 19 Gyration Full-Size Keyboard User Manual DL00070-001 Rev A Gyration, Inc. 408.255.3016 www.gyration.com...
