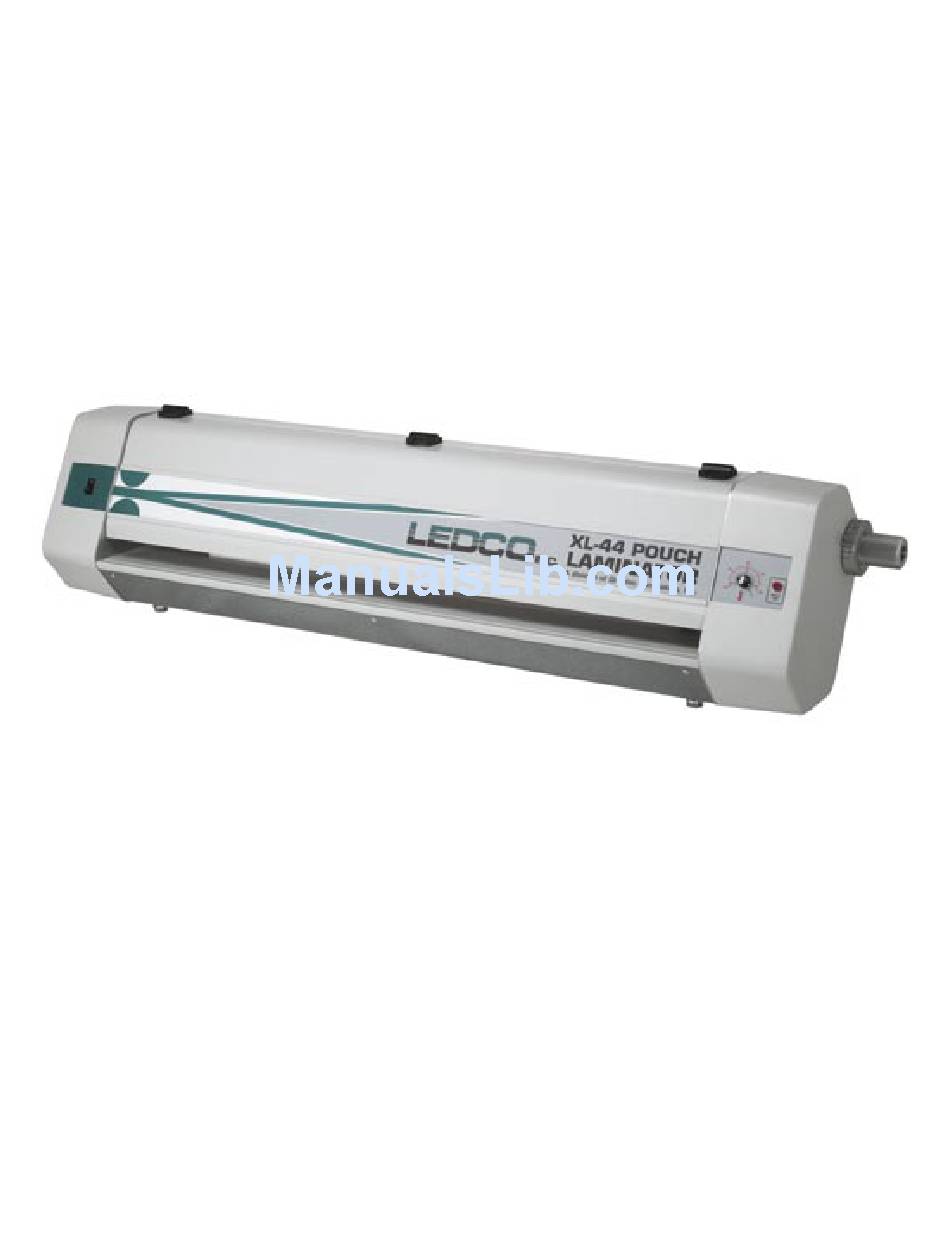

- Page 1 READ ALL PRECAUTIONS & INSTRUCTIONS CAREFULLY BEFORE OPERATING LAMINATOR Setup | Instruction | Operation | Maintenance 44” POUCH LAMINATOR Operation Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page No. INTRODUCTION Features and benefits Specifications Principles of operation Warranty UNPACKING AND INVENTORY SAFETY PRECAUTIONS SETUP & OPERATION Warm up to operating temperature Pouch Laminating Mounting & Laminating Mounting MAINTENANCE Monthly Service Schedule 5.1.2 Rubber Roll Cleaning... -
Page 3: Introduction
As you unpack your new laminator, please complete the following information. Always have this information ready when calling. Dealer Where Purchased_____________________________________________ InstallationDate______________________________Serial#__________________ Ledco, Inc. 4265 North Main Street Hemlock, NY 14466 Fax: 585-367-2978 Phone: 585-367-2392 Web: ledcoinc.com E-mail: ledco@ledcoinc.com... - Page 4 1.1 FEATURES & BENEFITS Your new pouch laminator has several standard features that set it apart from other models • Variable Heat Control The heat may be adjusted by the turn of a knob from 200 to 400 degrees Fahrenheit. •...
-
Page 5: Specifications
1.2 SPECIFICATIONS Europe Maximum laminating width 44” 1117mm Speed 1 FPM .3 MPM Maximum laminating thickness up to 1 1⁄2” up to 38mm Dimensions 66L 16H 19W 1677mm L 406mm H 483mm W Shipping Dimensions 72L 24H 26W 1829mm L 609mm H 660mm W Weight/Shipping weight... -
Page 6: Principles Of Operation
1.3 PRINCIPLES OF OPERATION Pouch Laminating Two sheets of film are put together with thermal adhesive facing each other and sealed at one edge forming a pouch. An item to be laminated is placed between these two sheets of film. The pouch with the item to be laminated is placed on a sled and slid into the pouch laminator. -
Page 7: Warranty
Ledco, Inc. does not incur any obligation or liability as a result of the warran- ties, which are the sole responsibility of the appropriate individual manufacturer. - Page 8 If your machine needs servicing after the warranty has expired, please contact your dealer. Ledco, Inc. does offer technical support if your dealer is unable to assist. This warranty is expressly in lieu of all other warranties expressed or implied. This in- cludes the warranties of Merchantability and Fitness For Use and of all other obligation or liabilities of Ledco, Inc.
-
Page 9: Unpacking And Inventory
DO NOT RETURN ANY GOODS TO LEDCO PRIOR TO AUTHORIZATION BY LEDCO. Submit a copy of the inspector’s report to Ledco. Ledco will file the claim with the carrier. Ledco will replace your machinery if necessary. You will be credited for the damaged machinery when the claim is processed. -
Page 10: Safety Precautions
3.0 SAFETY PRECAUTION DO NOT OPERATE THIS MACHINE UNTIL YOU READ AND FULLY UNDERSTAND THE FOLLOWING SAFETY PRECAUTIONS. Never operate this machine without reminding yourself that a laminator is a po- tentially dangerous tool. If misused, used carelessly, or used without observing the rules of safe operation, very serious injury can result. - Page 11 Never wear loose clothing, ties, jewelry or any item, which could get caught in the rollers or machinery when operating the machine. Operators with long hair must put their hair up before running the machine. Always keep your hands clear of any moving parts except when the power is off and you intend to adjust the laminator.
-
Page 12: Setup & Operation
4.0 SETUP & OPERATION This section explains in detail the setup and operation of your pouch laminator. WARM UP TO OPERATING TEMPERATURE Remove machine from shipping container and place in work area. Plug the machine into proper outlet. 110v standard 44” 110v 15amp NEMA 5-15R 220v standard 44”... - Page 13 Make sure the pouch has the thin side up as indicated by the UP STICKER. Pull back top layer of pouch and insert item to be laminated. Make sure item is centered in pouch. Insert sealed end of pouch under Hold-down Flap on front of sled making sure at least 1⁄2 ”...
-
Page 14: Mounting & Laminating
4.3 MOUNTING & LAMINATING POUCHES When ready to laminate & mount, please follow these easy steps: Turn on your machine by pressing the ON SWITCH. Set to recommended temperature of 350 degrees. Allow the machine to heat for approximately 35-45 minutes. 4. -
Page 15: Mounting
4.4 MOUNTING When ready to mount, please follow these easy steps: Turn on your machine by pressing the ON SWITCH. Set to recommended temperature of 350 degrees. Allow the machine to heat for approximately 35-45 minutes. Check item to be mounted and mounting board to make sure there are no for- eign particles on the surface. -
Page 16: Maintenance
(the green pads are too abrasive). Use “COOL CLEAN” to clean the rollers (available through your local LEDCO dealer). Rub firmly but do not scrub the rollers vigorously as this will mar the surface. Do not use sharp metal objects or steel wool as these will also mar the rollers. - Page 17 NOTES...
