POLIFEMO
RADIO
USER MANUAL
Release 200_006
Microgate s.r.l.
Via Stradivari, 4 Stradivaristr.
39100 BOLZANO - BOZEN
ITALY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Polifemo and is the answer not in the manual?

Questions and answers

Related Manuals for Microgate Polifemo

Summary of Contents for Microgate Polifemo

  • Page 1 POLIFEMO RADIO USER MANUAL Release 200_006 Microgate s.r.l. Via Stradivari, 4 Stradivaristr. 39100 BOLZANO - BOZEN ITALY...

  • Page 2: Table Of Contents

    Doc: POL_R_200_006_E POLIFEMO-RADIO Version: 2.0 User manual Page 1. SUMMARY SUMMARY ..........................2 INTRODUCTION ........................3 POLIFEMO-RADIO........................4 3.1. DIP SWITCH CONFIGURATION ..................4 OPERATING MODES ........................5 4.1. CENTERING ........................5 RADIO TRANSMISSION ......................5 5.1. DIGITAL TRASMISSION OF IMPULSES ...............5 5.2. SELECTING THE CHANNEL ...................6 5.3.

  • Page 3: Introduction

    Polifemo-Radio is a highly innovative instrument in the field of radio transmission of timing impulses. Thanks to technical innovation, the old impulse transmission systems have been replaced by data transmission which ensures maximum precision and reliability thanks to transmission redundancy and the use of error correction codes.

  • Page 4: Polifemo-Radio

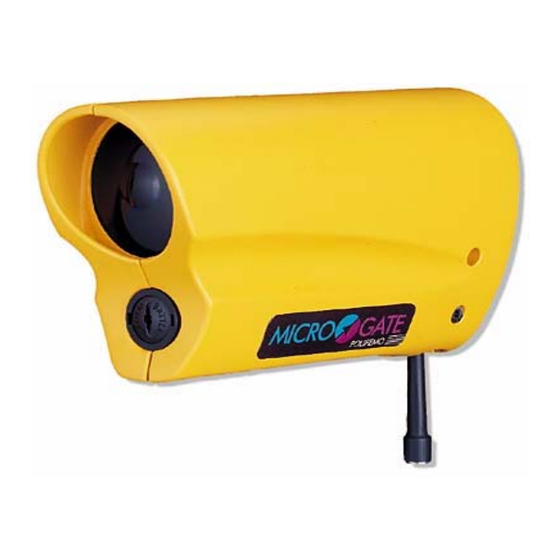

    Doc: POL_R_200_006_E POLIFEMO-RADIO Version: 2.0 User manual Page 3. POLIFEMO-RADIO Fig. 1 TNC CONNECTOR FOR EXTERNAL ANTENNA CONNECTION COM: Black banana socket OUT2: Green banana socket DIP-SWITCHES FOR SELECTING SETTINGS ON/OFF SWITCH RECHARGE SOCKET SIGNAL LED BALL-JOINT BATTERY COMPARTMENT LENSES EXTERNAL ANTENNA 3.1.

  • Page 5: Operating Modes

    Doc: POL_R_200_006_E POLIFEMO-RADIO Version: 2.0 User manual Page 4. OPERATING MODES The Polifemo-Radio photocell works by reflection: the maximum operating distance between the photocell and the reflector is 30 metres. Max 30 m Fig. 3 4.1. CENTERING Centering takes place in the following way: when switched on, the photocell emits a continuous BEEP, pointing the photocell on the reflector, the BEEP stops, thus indicating correct centering.

  • Page 6: Selecting The Channel

    Consult the relative user manuals to identify or select the channel on the various devices. Selecting the same channel number on the Polifemo-Radio you wish to use will ensure that only signals from your own timing system are received. This type of filtering of received signals is particularly useful as the selection of different channels allows the use of a number of systems (chronometer + Polifemo-Radio) in the same zone without the risk of timing data causing interference.

  • Page 7: Selecting Signal Type

    5.5. THE RECEIVING DEVICE The DecRadio_SF modules are powered directly from the Microgate chronometers using the special connecting cable. It is very simple to use: • connect the Nucletron connector (see Fig. 4 N° 2) to the corresponding connector on the chronometer •...
  • Page 8 Doc: POL_R_200_006_E POLIFEMO-RADIO Version: 2.0 User manual Page Fig. 4 1. BNC for external antenna connection 2. 5 pole Nucletron connector for Radio output 5.6. DISABLING RADIO TRANSMISSION To disable wireless event transmission, set the 4 dip switches of CHANNEL SELECTION (Switches 4-7) to the position ON (see Figure 5).

  • Page 9: The Outputs

    Page 6. THE OUTPUTS The Polifemo photocell emits a signal on the output, normally open, and is brought to the reference level (COM socket – BLACK banana jack) if the infrared beam is interrupted The signal is presented on the green banana jack (OUT2) and is compatible with every type of timing device.

  • Page 10: Recharge Management

    7.1. RECHARGE MANAGEMENT Recharging the Polifemo batteries can only take place with the photocell off and is managed 'smartly' by the microprocessor in the photocell itself. The standard procedure is to discharge the batteries and then to fully recharge them. Recharging starts after insertion of the power supply jack with sufficient voltage (Vch>8V) and the photocell off.

  • Page 11: Technical Data

    Doc: POL_R_200_006_E POLIFEMO-RADIO Version: 2.0 User manual Page 8. TECHNICAL DATA Weight 59 x 180 x 104 (1 x p x h) Size Minimum resolution 0.125 ms Delay in relation to event 1 ms Temperature of use -25°C/+70°C Power supply: rechargeable: NiCd, NiMH 1.2V...
