Sun Enterprise 420R Owner's Manual

Sun ultrasparc ii 450.0 mhz
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

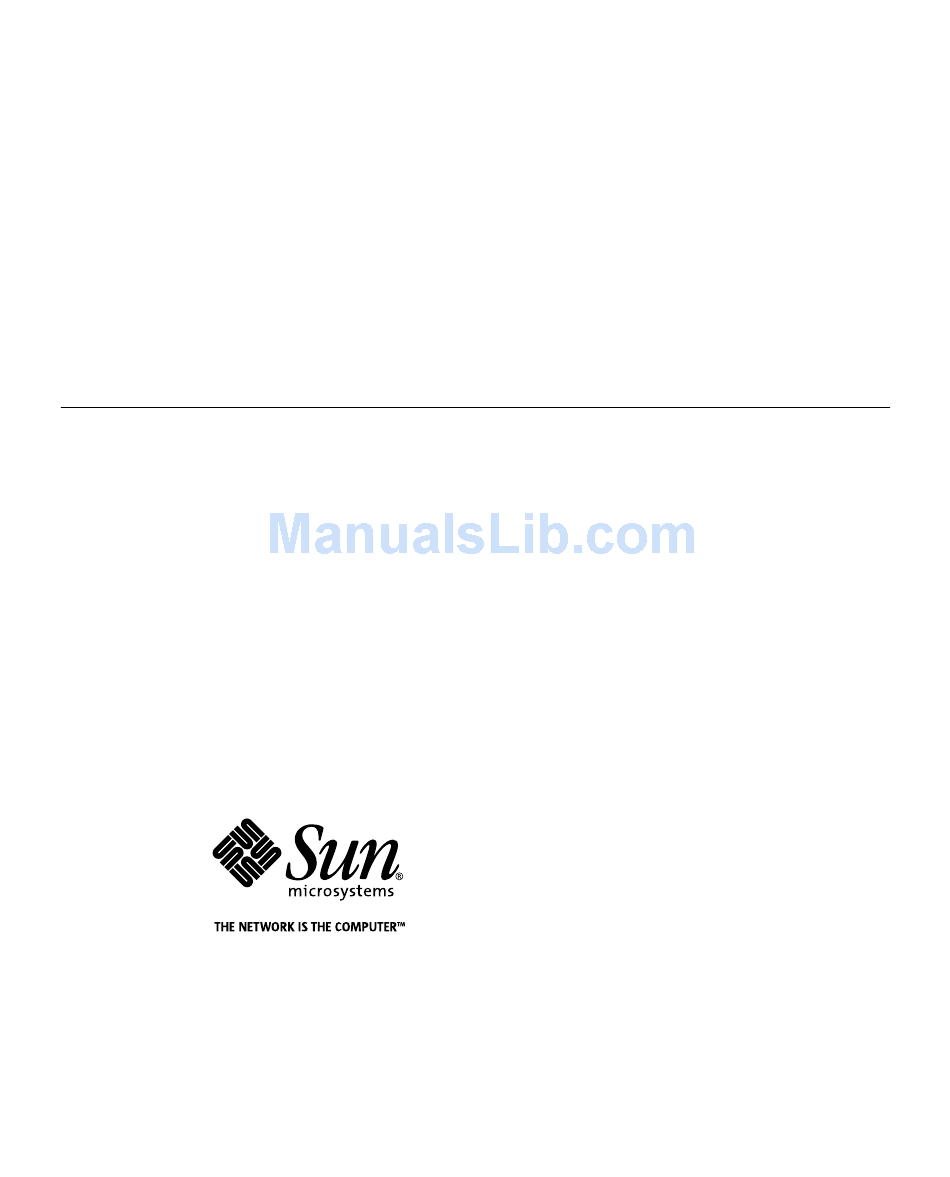

Sun Enterprise
420R Server
™
Owner's Guide
Sun Microsystems, Inc.
901 San Antonio Road
Palo Alto, CA 94303-4900 USA
650 960-1300
Fax 650 969-9131
Part No.: 806-1078-10
Revision A, October 1999
Send comments about this document to: docfeedback@sun.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 420R and is the answer not in the manual?

Questions and answers

Related Manuals for Sun Enterprise 420R

Summary of Contents for Sun Enterprise 420R

  • Page 1 Sun Enterprise 420R Server ™ Owner’s Guide Sun Microsystems, Inc. 901 San Antonio Road Palo Alto, CA 94303-4900 USA 650 960-1300 Fax 650 969-9131 Part No.: 806-1078-10 Revision A, October 1999 Send comments about this document to: docfeedback@sun.com...
  • Page 2 Sun, Sun Enterprise, Sun Microsystems, le logo Sun, SunStore, AnswerBook, AnswerBook2, docs.sun.com, OpenBoot, OpenWindows, SunSwift, Sun Enterprise SyMON, SunVTS, et Solaris sont des marques de fabrique ou des marques déposées, ou marques de service, de Sun Microsystems, Inc. aux Etats-Unis et dans d’autres pays. Toutes les marques SPARC sont utilisées sous licence et sont des marques de fabrique ou des marques déposées de SPARC International, Inc.

  • Page 3: Regulatory Compliance Statements

    Regulatory Compliance Statements Your Sun product is marked to indicate its compliance class: • Federal Communications Commission (FCC) — USA • Department of Communications (DOC) — Canada • Voluntary Control Council for Interference (VCCI) — Japan • Bureau of Standards Metrology and Inspection (BSMI) — Taiwan Please read the appropriate section that corresponds to the marking on your Sun product before attempting to install the product.

  • Page 4: Bsmi Class A Notice

    BSMI Class A Notice The following statement is applicable to products shipped to Taiwan and marked as Class A on the product compliance label. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 5: Declaration Of Conformity

    Declaration of Conformity Compliance ID: E420R Sun Enterprise 420R Server This product has been tested and complies with the following rules and requirements. USA—FCC Class A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
  • Page 6 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 7: Safety Agency Compliance Statements

    Read this section before beginning any procedure. The following text provides safety precautions to follow when Standby – The On/Standby switch is in the installing a Sun Microsystems Enterprise 420R system. standby position. Safety Precautions For your protection, observe the following safety...

  • Page 8: Power Cord Connection

    Sun products that use laser technology comply with Class 1 system chassis. laser requirements. Class 1 Laser Product Luokan 1 Laserlaite Klasse 1 Laser Apparat Laser KLasse 1 viii Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 9 CD-ROM Achtung – Gefährliche Spannungen. Anweisungen befolgen, um Stromschläge und Verletzungen zu vermeiden. Caution – Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Ein – Setzt das System unter Wechselstrom. Einhaltung sicherheitsbehördlicher Vorschriften Je nach Netzschaltertyp an Ihrem Gerät kann eines der...
  • Page 10 Netzkabel nicht an, wenn das Netzteil aus der Abdeckung besteht die Gefahr von Systemeinheit entfernt wurde. Stromschlag und Systemschäden. Einhaltung der Richtlinien für Laser Sun-Produkte, die mit Laser-Technologie arbeiten, entsprechen den Anforderungen der Laser Klasse 1. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 11 Attention: – risques de blessures corporelles et de dégâts matériels. Veuillez suivre les Class 1 Laser Product instructions. Luokan 1 Laserlaite Klasse 1 Laser Apparat Laser KLasse 1 Attention: – surface à température élevée. Evitez le contact. La température des surfaces est élevée et leur contact peut provoquer des blessures corporelles.
  • Page 12 Elles risquent d’exploser en cas de mauvais traitement. Ne pas jeter la batterie au feu. Ne pas la démonter ni tenter de la recharger. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 13: Normativas De Seguridad

    Bloc-batterie CD-ROM Attention: – Les unités Product Name Attention: – L’utilisation de contrôles, de contiennent une batterie étanche au plomb réglages ou de performances de procédures (produits énergétiques portatifs n˚TLC02V50). autre que celle spécifiée dans le présent Il existe un risque d’explosion si ce bloc- document peut provoquer une exposition à...

  • Page 14: Cumplimiento De La Normativa Selv

    Precaución – De acuerdo con la norma DIN 45 635, Parte 1000, se admite un nivel de presión acústica para puestos de trabajo máximo de 70Db(A). Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 15: Nordic Lithium Battery Cautions

    Precaución – El interruptor de encendido de Precaución – Es peligroso hacer funcionar los este producto funciona exclusivamente como productos Sun sin la tapa superior colocada. un dispositivo de puesta en espera. El enchufe El hecho de no tener en cuenta esta precaución de la fuente de alimentación está...
  • Page 16 Levér det brugte batteri tilbage til leverandøren. Suomi VAROITUS – Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 17: Table Of Contents

    System LED Indicators 9 System Setup 11 About the Parts Shipped to You 12 Using the Setup and Rackmounting Guide 12 Tools Required for Setup and Rackmounting 12 How to Install the Sun Enterprise 420R Server 13 About Server Rackmounting xvii...
  • Page 18 Support for RAID 0, RAID 1, RAID 0 + 1, and RAID 5 Disk Configurations 61 Power Supply Redundancy 62 Hot-Swappable Power Supplies 62 Four Levels of Diagnostics 62 About Memory 64 xviii Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 19 Configuration Rules 64 Sun Enterprise 420R System Memory Interleaving 65 About CPU Modules 66 Configuration Rules 66 About Peripheral Component Interconnect (PCI) Buses 67 Configuration Rules 68 About Disk Array Configurations and Concepts 69 Disk Concatenation 70 Disk Mirroring: RAID 1 70...
  • Page 20 About OpenBoot Diagnostics (OBDiag) 124 OBDiag Menu 125 OBDiag Configuration Variable Settings 126 How to Use OpenBoot Diagnostics (OBDiag) 127 How to Set the Diagnostic Level for POST and OBDiag 129 Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 21 About SunVTS Software 130 How to Check Whether SunVTS Software Is Installed 132 How to Use SunVTS Software 133 About Sun Enterprise SyMON Software 135 About Troubleshooting Your System 136 Error Indications 136 Software Commands 141 About Diagnosing Specific Problems 145...
  • Page 22 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 23: Preface

    Sun Enterprise 420R server are covered in this manual. With the exception of internal disk drives in the Sun Enterprise 420R server, all other component or part installation or replacement is to be performed by qualified service providers.

  • Page 24: How This Book Is Organized

    Chapter <$elemparanumonly<$elemtext describes how to attach the cables needed to get the Sun Enterprise 420R server hardware up and running. For information about rackmounting the server, consult the Sun Enterprise 420R Server Setup and Rackmounting Guide that accompanied your system. For the operating system software, the chapter explains what you need to do and points you to the appropriate software manuals for additional information.
  • Page 25 Using UNIX Commands This document does not contain comprehensive information on basic UNIX® commands and procedures such as shutting down the system, booting the system, and configuring devices. See one or more of the following for this additional information: Solaris Handbook for Sun Peripherals AnswerBook™...

  • Page 26: Related Documentation

    Solaris System Administrator AnswerBook administration SPARC: Installing Solaris Software Using operating system software Solaris User’s Guide Miscellaneous Solaris on Sun Hardware AnswerBook Solaris Handbook for Sun Peripherals Solaris 7 Sun Hardware Platform Guide xxvi Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 27: Sun Welcomes Your Comments

    Accessing Sun Documentation Online The docs.sun.com web site enables you to access Sun technical documentation on the Web. You can browse the docs.sun.com archive or search for a specific book title or subject at: http://docs.sun.com Sun Welcomes Your Comments We are interested in improving our documentation and welcome your comments and suggestions.
  • Page 28 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 29: System Overview

    C H A P T E R System Overview This chapter introduces you to the Sun Enterprise 420R server and explains some of its features. The following information is covered in this chapter: “About the Sun Enterprise 420R Server” on page 1 “Locating Front Panel Features”...
  • Page 30 A 5.25-inch by 1.6-inch (13.35-cm x 4.06-cm) CD-ROM drive is standard, or a 1.0-inch (2.54-cm) tape drive is optional, on the Sun Enterprise 420R server and is installed in the upper bay of the removable media assembly (RMA). The CD-ROM drive has multimedia features, which include multi-session capability and fast access for image and video data.
  • Page 31 PCI frame buffer card, monitor, keyboard, and mouse. UPA graphics is not supported in the Sun Enterprise 420R server. The server can also be administered from a remote system connected to the server over an Ethernet network.

  • Page 32: Locating Front Panel Features

    Tape drive Unlocked Status panel Locked control Right door Left door Power button For more information about status panel controls and indicators, see “About the Status and Control Panel” on page 7. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 33 Opening the system’s front doors provides access to the system’s configured hot- swappable internal disk drives or redundant power supplies. The illustration below shows the additional accessible features with system front doors open. Power supply Internal disk retainers drive LEDs Internal disk drives Power supply 2...

  • Page 34: Locating Back Panel Features

    A ground screw hole 0.157 inches in diameter and 0.236 inches deep (4 mm x 6 mm) is located in the lower-right corner of the back panel. Contact your Sun sales representative, if you need a grounding strap. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 35: About The Status And Control Panel

    About the Status and Control Panel The status and control panel includes two LED indicators and a three-position security keyswitch. LED indicators Power button Power- On/Off position Keyswitch Locked position Standby position Chapter 1 System Overview...

  • Page 36: Keyswitch Settings

    This setting places the system in Standby mode by turning off power to all internal system components and by placing the power supplies in Standby mode. When the keyswitch is in this position the server’s Power button is disabled. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 37: System Led Indicators

    System LED Indicators The two system LEDs consist of a system health indicator and a fault indicator. The system health indicator lights continuously green to show that the system is functioning normally. The fault indicator lights when a problem is detected in the system.
  • Page 38 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 39: System Setup

    C H A P T E R System Setup This chapter, used with the Sun Enterprise 420R Server Setup and Rackmounting Guide, describes how to rackmount a server and attach all cords and cables needed to get the Sun Enterprise 420R server up and running. Where software is involved, this chapter explains some of what you need to do, and then points you to the appropriate software manuals for the rest of the information.

  • Page 40: About The Parts Shipped To You

    Using the Setup and Rackmounting Guide Shipped with your system is the Sun Enterprise 420R Server Setup and Rackmounting Guide that describes procedures for rackmounting the server and attaching all cords and cables needed to get the server up and running. Use this owner’s guide with the setup and rackmounting guide to install your server.

  • Page 41: How To Install The Sun Enterprise 420R Server

    Server Before You Begin The Sun Enterprise 420R server is a general-purpose server, which you can use for many types of applications. Exactly how you set up your machine depends in some measure upon what you want it to do.
  • Page 42 3. Install the system into the rack. The server is shipped with inner glides attached. See “About Server Rackmounting” on page 18 and the Sun Enterprise 420R Server Setup and Rackmounting Guide accompanying your system for installation instructions for the rack. If the system’s slide assembly rails are already mounted in a rack, see “How to Place the System...
  • Page 43 Note – Each outlet must connect the system to a 15A circuit for North America and Japan, and to a 10A circuit for Europe. See your local electrical codes. Note – If your server includes a second power supply, connect the second AC power cord to the left inlet labeled (2).
  • Page 44 10. Decide on your internal disk array configuration. For information about possible configurations, see “About Disk Array Configurations and Concepts” on page 69. Consult the Solstice DiskSuite User’s Guide for information about implementing your disk configuration. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 45 See the appropriate documents provided in the server media kit for a complete listing of included software and detailed installation instructions. 12. Load the Sun Enterprise 420R Server Hardware AnswerBook2 online documentation. See the installation instructions that accompany the CD-ROM disc in the Sun Enterprise 420R documentation set.

  • Page 46: About Server Rackmounting

    69.2 cm) and requires a minimum of four vertical rack units (RUs). The system has a maximum weight of 65 lb (34 kg). Shipped with your system is the Sun Enterprise 420R Server Setup and Rackmounting Guide that describes the procedure for rackmounting the server. Use the guide to rackmount your server.
  • Page 47 Caution – A ground screw hole is located in the lower right corner of the chassis back panel. For more information about rackmounting peripherals, see the documentation accompanying the peripheral. Ninth Holes 99, 100, or 101 Third Holes 27, 28, or 29 Holes 3, 4 or 5 Second Holes 15, 16, or 17...

  • Page 48: How To Remove The System From The Rack

    Review the steps in the next section with your helper beforehand and discuss how to coordinate your efforts to ensure your mutual safety. Caution – When completing a two-person procedure, always communicate your intentions clearly before, during, and after each step to minimize confusion. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 49: What To Do

    What to Do 1. Extend the server from the rack, and then position one person on each side of the system, facing the system glides. When you are both in position, verify that your helper understands what to do with the system after you release the server and remove it.

  • Page 50: What Next

    7. Reattach, close, and lock the rack doors as appropriate. What Next For information about placing the system into the rack glides, see: “How to Place the System Into the Rack” on page 23 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 51: How To Place The System Into The Rack

    How to Place the System Into the Rack This procedure assumes that the slide assembly is already installed in the rack. For additional information on the slide assemblies and rack enclosers, see the setup guide and the owner’s guide. Caution – The chassis is heavy, and two people are required to place the system into the rack slide assembly in the following procedure.
  • Page 52 Each person should place both hands beneath the chassis and support half the weight of the system. 4. Carry the system from its location to the front of the rack enclosure. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 53 5. Insert the system glides into the inner slides of the rack glides. Verify that the empty rack slides are completely inside their protective outer glides. Slide the crimped end of each system glide into the corresponding inner slide within the rack glide.
  • Page 54 7. Simultaneously press in on both flat spring catches and slide the system completely into the rack. Each person presses one spring catch and helps slide the system completely into the rack enclosure. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 55 8. Tighten the four captive screws securing the system to the left and right vertical rails at the front of the rack. Use a Phillips #2 screwdriver to tighten the four captive screws, which are in recessed access holes in the filler panels affixed to the system’s front panel. 9.

  • Page 56: About Communicating With The Server

    PCI slot, and attach a monitor, mouse, and keyboard to the appropriate back panel ports. For detailed instructions, see “How to Configure a Local Graphics Console” on page 31. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 57: How To Attach An Alphanumeric (Ascii) Terminal

    How to Attach an Alphanumeric (ASCII) Terminal Before You Begin If your server is configured without a local graphics console, you need to attach an alphanumeric (ASCII) terminal (or establish a tip connection) to the server in order to install the system software and to run diagnostic tests. For background information, see “About Communicating With the Server”...
  • Page 58 See the documentation accompanying your terminal for more information. What Next You can now issue system commands from the terminal keyboard and view system messages. Continue with your installation or diagnostic procedure as needed. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 59: How To Configure A Local Graphics Console

    1. Install the graphics card into a vacant PCI slot. Note – Installation must be performed by a qualified service provider. For further information, see the Sun Enterprise 420R Server Service Manual, or contact your qualified service provider. Chapter 2...
  • Page 60 2. Attach the monitor video cable to the graphic card’s video port. Tighten the thumbscrews to secure the connection. 3. Connect the monitor’s power cord to an appropriate AC power outlet. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 61 4. Connect the keyboard cable to the server’s keyboard/mouse port. 5. Connect the mouse cable to the appropriate receptacle on the keyboard. What Next You can now issue system commands from the keyboard and view system messages. Continue with your installation or diagnostic procedure as needed. Chapter 2 System Setup...

  • Page 62: How To Power On The System

    A terminal or monitor is required for viewing system messages. For setup instructions, see “How to Attach an Alphanumeric (ASCII) Terminal” on page 29 or “How to Configure a Local Graphics Console” on page 31. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 63 3. Turn the front panel keyswitch to the Power-On/Off position. See “About the Status and Control Panel” on page 7 for information about each keyswitch setting. 4. Press the front panel Power button once. See “Keyswitch Settings” on page 8 for information about each keyswitch setting. Power-On/Off position Power button Note –...
  • Page 64 5. Turn the keyswitch to the Locked position. The Locked position prevents accidentally powering-off the system. See “Keyswitch Settings” on page 8 for information about each keyswitch setting. Locked position Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 65: How To Install The System Software

    The method that you will use to boot your system depends on how you will configure the system. What to Do The Sun Enterprise 420R server requires the Solaris 2.6 Hardware 5/98 operating environment or the Solaris 7 Hardware 8/99 operating environment, and subsequent compatible operating system releases.
  • Page 66 Operating Environment Installation CD, to install the system software. Then follow the normal boot net or boot net - install procedure, depending on your desired boot device. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 67 Solaris 7 Software Installation Installing the Operating System From CD-ROM Follow the installation instructions accompanying the Solaris release CD-ROM in the Solaris media kit. Also in the media kit is the Solaris on Sun Hardware Platform Guide, which you should read for platform specific information about the system software installation.

  • Page 68: How To Select The Boot Device

    Before you can select a boot device, you must complete the installation procedure; see: “How to Install the Sun Enterprise 420R Server” on page 13 Specifically, you must perform the following tasks: Set up a system console; see “About Communicating With the Server” on page 28 Power on the system;...
  • Page 69 What to Do 1. At the ok prompt, type: ok setenv boot-device device-specifier where the device-specifier is one of the following: cdrom – Selects the CD-ROM drive disk – Selects the hard disk tape – Selects the SCSI tape drive net –...
  • Page 70 What Next For more information about using the OpenBoot firmware, see the OpenBoot 3.x Command Reference Manual in the Solaris System Administrator AnswerBook collection for your specific Solaris release. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 71: How To Power Off The System

    How to Power Off the System Caution – Before turning off system power, halt the operating system as described below. Failure to halt the operating system properly can result in loss of disk drive data. What to Do 1. Notify users that the system will be powered down. 2.
  • Page 72 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 73: Administration And Network Setup

    C H A P T E R Administration and Network Setup This chapter focuses on the administrative information and tasks associated with configuring Ethernet interfaces and on booting from a PCI-based Ethernet device installed in the server. The following network information and associated tasks are covered in this chapter: “About Network Interface Options”...

  • Page 74: About Network Interface Options

    Ethernet, token ring, fiber distributed data interface (FDDI), and other network types. For more information, see “How to Add an Ethernet Interface” on page 49 and the documentation supplied with the PCI network interface card. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 75: How To Configure The Standard Ethernet Interface

    IP address. 3. Resume the installation of the system. See “How to Install the Sun Enterprise 420R Server” on page 13. When installing the operating system, you will be prompted to enter the host name and IP address of the machine.
  • Page 76 If you want to install and configure an additional network interface by means of a PCI card, you must configure it separately, after installing the operating system; see: “How to Add an Ethernet Interface” on page 49 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 77: How To Add An Ethernet Interface

    Follow this procedure to install a PCI card for an additional Ethernet interface. You must perform the following tasks: Install the system; see “How to Install the Sun Enterprise 420R Server” on page 13 Note – The following procedure must be performed by a qualified service provider.
  • Page 78 (hme1). The host name will be zardoz to a network connected to the standard hme0 interface, and zardoz-1 to a network connected to the hme1 interface. zardoz # cat /etc/hostname.hme0 zardoz zardoz # cat /etc/hostname.hme1 zardoz-1 Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 79 6. Create an entry in the /etc/hosts file for each active Ethernet interface. An entry consists of the IP address and the host name for each interface. The following example shows the entries in the /etc/hosts file for the interfaces identified in the /etc/hostname file created in Step 4 and Step 5.

  • Page 80: How To Attach A Twisted-Pair Ethernet (Tpe) Cable

    If you are installing an additional Ethernet interface, you must perform the following tasks: Install the system; see “How to Install the Sun Enterprise 420R Server” on page 13 Install a PCI Ethernet interface card; see the Sun Enterprise 420R Server Service...
  • Page 81 What Next If you are installing your system, complete the installation procedure. Return to: “How to Install the Sun Enterprise 420R Server” on page 13 If you are adding additional interfaces to the system, then you need to configure those interfaces; see: “How to Add an Ethernet Interface”...

  • Page 82: How To Boot The System Using The Standard Ethernet Interface

    Before you can boot the system over a network interface, you must complete the installation procedure; see: “How to Install the Sun Enterprise 420R Server” on page 13 Specifically, you must perform the following tasks: Set up a system console; see “About Communicating With the Server” on page 28 Configure the Ethernet port;...
  • Page 83 b. To install the operating system onto the server’s internal system disk, type: ok boot net - install Both commands boot the system, and the system console displays the system prompt. What Next If you want to use the main logic board Ethernet interface as the default boot device, you must change the value of certain OpenBoot parameters.

  • Page 84: How To Boot The System Using A Pci-Based Ethernet Interface

    Before you can boot the system over a network interface, you must complete the installation procedure; see: “How to Install the Sun Enterprise 420R Server” on page 13 Specifically, you must perform the following tasks: Set up a system console; see “About Communicating With the Server” on page 28 Configure the PCI-based Ethernet port;...
  • Page 85 2. Change the default net device. At the ok prompt, type: ok nvalias net hme_path ok nvstore where hme_path is the full path name of the hme device—in this example, /pci@1f,4000/pci@5/SUNW,hme@0,1. 3. Load and boot the operating system over the network interface. Enter either of the following commands: a.
  • Page 86 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 87: Hardware Configuration

    C H A P T E R Hardware Configuration This chapter describes the hardware configuration of the system. Topics covered in this chapter include: “About Reliability, Availability, and Serviceability Features” on page 60 “About Memory” on page 64 “About CPU Modules” on page 66 “About Peripheral Component Interconnect (PCI) Buses”...

  • Page 88: About Reliability, Availability, And Serviceability Features

    In addition to providing ECC protection for data, the system offers parity protection on all system address buses. Parity protection is also used on the PCI and SCSI buses, and in the UltraSPARC CPU’s internal and external cache. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 89: Status Leds

    Status LEDs The system provides easily accessible light-emitting diode (LED) indicators on the system front panel, internal disk bays, and power supplies to provide a visual indication of system and component status. These status LEDs eliminate guesswork and simplify problem diagnosis for enhanced serviceability. The system status LEDs are described in the section “About the Status and Control Panel”...

  • Page 90: Power Supply Redundancy

    The power supplies are easily accessed from the front of the system. For information about removing and installing a power supply, see the Sun Enterprise 420R Server Service Manual.
  • Page 91 It allows you to monitor system hardware status and operating system performance of your server. For more information about Sun Enterprise SyMON software, see “About Sun Enterprise SyMON Software” on page 135.

  • Page 92: About Memory

    DIMMs must be added four at a time within the same bank Note – In the Sun Enterprise 420R server, each memory bank comprises two slots on the main logic board, and two slots on the memory riser card. As you add memory, fully populate each bank by inserting DIMMs into the two slots comprising each bank on both the main logic board and on the memory riser card.

  • Page 93: Sun Enterprise 420R System Memory Interleaving

    Always wear a grounding strap when you handle the modules. Sun Enterprise 420R System Memory Interleaving Whenever memory banks 0 and 1 are populated with identical capacity DIMMs, memory reads and writes are automatically interleaved between the two banks. This is called two-way interleaving.

  • Page 94: About Cpu Modules

    CPUs operate at 450 MHz, the UPA data bus could operate at one fourth the clock speed at 112.5 MHz. A qualified service provider must remove and replace CPU modules in your system. For information about installing and removing CPU modules, see the Sun Enterprise 420R Server Service Manual. Configuration Rules The following rules apply for your system: You can install up to four UltraSPARC II CPU modules into the server.

  • Page 95: About Peripheral Component Interconnect (Pci) Buses

    About Peripheral Component Interconnect (PCI) Buses All system communication with storage peripherals and network interface devices is mediated by a Ultra Port Architecture-to-Peripheral Component Inter-connect (UPA-to-PCI) bridge chip, located on the system’s main logic board. This bridge chip manages communication between the UPA bus and the system’s two PCI buses. These PCI buses support slots for up to four PCI interface cards.

  • Page 96: Configuration Rules

    Examples of high-throughput interfaces are dual-channel UltraSCSI host adapters and ATM-622 interfaces. You can also improve overall system availability by installing redundant storage or network interfaces on separate PCI buses. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 97: About Disk Array Configurations And Concepts

    For instance, you can combine the two disks c1t2d0s2 and c1t3d0s2 into the metadevice /dev/md/rdsk/d0. The Sun Enterprise 420R server’s internal disks support RAID 1, RAID 0, and RAID 1 + RAID 0. More complicated configurations, including RAID 5, are supported using external disk arrays and one or more PCI host adapter cards.

  • Page 98: Disk Concatenation

    The scheme is sometimes called RAID 1, where RAID stands for redundant arrays of inexpensive disks. RAID 1 offers the highest level of data protection, but storage costs are high, since all data is stored twice. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 99: Disk Striping: Raid 0

    Disk Striping: RAID 0 Disk striping (sometimes called RAID 0) is a technique for increasing system throughput by using several disk drives in parallel. Whereas in non-striped disks the operating system writes a single block to a single disk, in a striped arrangement each block is divided and portions of the data are written to different disks.

  • Page 100: Hot Plug

    Remove/replace faulty hardware with minimal system service disruption For more information about hot-pluggable disk drives, see “About Internal Disk Drives” on page 73. For More Information See the documentation supplied with the Solstice DiskSuite software. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 101: About Internal Disk Drives

    About Internal Disk Drives The Sun Enterprise 420R server supports up to two internal, hot-pluggable UltraSCSI disk drives. Drives are 3.5-inches wide and 1-inch high (8.89-cm x 2.54-cm). The drives are supported by the 40-Mbyte per second UltraSCSI interface on the system’s main logic board.

  • Page 102: Configuration Rules

    The exact hot-plug procedure depends on which version of the Solaris operating environment you are using. For the complete procedure, refer to Platform Notes: Sun Enterprise 420R Server, available on the Solaris on Sun Hardware AnswerBook. This AnswerBook documentation is provided on the Solaris Supplement CD for the Solaris release you are running.

  • Page 103: About Power Supplies

    About Power Supplies A power distribution board delivers DC power for all internal system components. The system’s power supplies plug in to connectors on this board, and when both supplies are installed, they share equally in satisfying the power demands of the system.
  • Page 104 Three LED indicators on the front of the power supply display AC and DC status, and fault conditions. For additional details, see “Power Supply LEDs” on page 139. Note – Sun Enterprise 420R power supplies will shut down automatically in response to certain over-temperature and power fault conditions. To recover from an automatic shutdown, you must disconnect the AC power cord, wait roughly 10 seconds, and then reconnect the power cord.

  • Page 105: About The Standard Ethernet Port

    About the Standard Ethernet Port The system’s main logic board provides an auto-sensing, switchable 10BASE-T/ 100BASE-TX Ethernet interface conforming to the IEEE 802.3u Ethernet standard. The interface configures itself automatically for either 10-Mbps or 100-Mbps operation, depending on network characteristics. One preconfigured back panel connector provides access to the Ethernet interface: One RJ-45 connector for connecting a Category-5 twisted-pair Ethernet (TPE) cable...

  • Page 106: About The Serial Ports

    Signal levels are controlled by jumpers located on the system’s main logic board. The default setting is EIA-423. For more information about configuring the serial port jumpers, see the Sun Enterprise 420R Server Service Manual. See “Reference for the Serial Port A and B Connectors” on page 155 for the connector diagram, back panel icon, and pin assignments.

  • Page 107: About The Parallel Port

    About the Parallel Port The system provides one IEEE 1284-compatible, bidirectional parallel port for connecting the system to a local printer or other compatible parallel device. Connectivity is provided by a standard 25-pin DB-25 connector on the back panel of the system. The parallel port operates at a 2-Mbytes per second data transfer rate and supports the enhanced parallel port (EPP) protocol modes as well as standard Centronics, Nibble, and Byte modes.

  • Page 108: About The Main Logic Board Jumpers

    Jumpers” on page 82. Modifying jumper settings can only be performed by a qualified service provider. For more information about changing jumper settings, see the Sun Enterprise 420R Server Service Manual. Jumpers are marked on the main logic board with jumper addresses. For example, the serial port jumpers are marked J2805 and J2804.

  • Page 109: About Serial Port Jumpers

    Sun Enterprise 420R Server Service Manual. For information about how jumpers are marked on the main logic board with jumper addresses, see “About the Main Logic Board Jumpers”...

  • Page 110: About Flash Prom Jumpers

    Modifying jumper settings can only be performed by a qualified service provider. For the locations of the flash PROM jumpers on the main logic board, and for configuration instructions, see the Sun Enterprise 420R Server Service Manual. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 111: About The External Scsi Port

    For 1 to 3 devices, the maximum bus length is 9.84 feet (3 meters) For 4 to 7 devices, the maximum bus length is 4.92 feet (1.5 meters) You must include the Sun Enterprise 420R server internal bus length of 2.952 feet (0.9 meter) in your bus length calculations.

  • Page 112: External Scsi Cabling And Termination

    For fast/wide performance on the external SCSI bus, the maximum SCSI bus length for daisy-chained SCSI devices is 19.7 feet (6 meters), including the Sun Enterprise 420R server internal bus length 2.952 feet (0.9 meter). External UltraSCSI-compliant SCSI cables have an impedance of 90 ohm (+/- 6 ohm) and are required for UltraSCSI interface.

  • Page 113: Multi-Initiator Support

    The following figures provide a summary of the cabling guidelines. Autoterminating System Non-Sun device Sun device Sun device 68 - 68 68 - 68 68 - 68 Autoterminating System Sun device 50-pin device Sun device Terminator 68 - 68 68 - 68 68 -50 Adapter cable Multi-initiator Support...
  • Page 114 You must include the Sun Enterprise 420R server internal bus length of 2.952 feet (0.9 meter) in your bus length calculations. For fast/wide performance on the external SCSI bus, the maximum Sun-supported SCSI bus length for daisy-chained SCSI devices is 6 meters (19.7 feet), including the Sun Enterprise 420R internal bus length.

  • Page 115: Replacing A Disk Drive

    This chapter tells you what you need to know, and need to do, to install, remove, or replace the internal disk drives. With the exception of internal disk drives in the Sun Enterprise 420R server, all other component or part installation or replacement must be performed by a qualified service provider.

  • Page 116: How To Avoid Electrostatic Discharge

    The AC power cord provides a discharge path for static electricity, so you generally want to leave it plugged in during installation and repair procedures. The only time you should unplug the cord is when you service the power distribution board. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 117 2. Use an antistatic mat or similar surface. When performing any option installation or service procedure, place static-sensitive parts, such as disk drives, on an antistatic surface. The following items can be used as an antistatic surface: The bag used to wrap a Sun replacement part The shipping container used to package a Sun replacement part Sun electrostatic discharge (ESD) mat, part number 250-1088 (available through your Sun sales representatives)

  • Page 118: How To Remove A Disk Drive

    4. Identify the disk drive to be removed and note the bay in which it is installed. The lower bay is the default system disk location. For information about disk status LEDs, see “About Internal Disk Drives” on page 73. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 119 5. Using your thumb and forefinger, pinch the disk drive latch sideways to release the drive handle. Pull the handle away from the drive until you feel the drive connector disengage from the backplane connector. 6. Holding the disk drive by the handle, slide it out of the drive bay. Note –...
  • Page 120 What Next To replace the disk drive, complete this task: “How to Install a Disk Drive” on page 93 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 121: How To Install A Disk Drive

    How to Install a Disk Drive The system’s disk hot-plug feature lets you install a disk drive without shutting down the operating system or turning off the system power. For more information, see: “About Disk Array Configurations and Concepts” on page 69 “About Internal Disk Drives”...
  • Page 122 8. Press carefully on the center of the drive and watch as the handle begins to close. The drive handle begins to close as the drive engages its backplane connector. 9. Press the handle toward the drive until the latch closes, securing the drive in place. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 123 10. Repeat the procedure for the other drive (if necessary). If you have finished removing and installing disk drives, remove the antistatic strap. 11. Close and then lock the system front doors. Turn the keyswitch to the Locked position. This locks the system front doors preventing access to the power supply(s) and to the disk drive(s) installed in the system.

  • Page 124: How To Initiate A Reconfiguration Boot

    The system banner contains the Ethernet address and host ID. To enter the Stop-a sequence, hold down the Stop key and press the a key. The keyswitch must be in the Power-On/Off position. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 125 Note – The system may take anywhere from 30 seconds to two minutes before the system banner appears. This time depends on the level of POST diagnostics being performed. 5. When the ok prompt is displayed, type the following command: ok boot -r This command rebuilds the device trees for the system, incorporating any newly installed options.
  • Page 126 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 127: Using Storage Devices

    C H A P T E R Using Storage Devices Your system accommodates one internally mounted CD-ROM (standard) or tape drive (optional). This chapter contains basic information about how to use the CD-ROM and tape devices. The tasks covered in this chapter include: “How to Insert a Compact Disc Into the Drive”...

  • Page 128: How To Insert A Compact Disc Into The Drive

    Label side up Eject button 3. Gently push the tray back into the drive. The CD drive has an automated closing mechanism that retracts the tray into the drive. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 129 What Next You can eject a compact disc from the drive by using one of three methods: With software commands; see “How to Eject a Compact Disc With Software Commands” on page 102 Manually; see “How to Eject a Compact Disc Manually” on page 104 Using an emergency procedure;...

  • Page 130: How To Eject A Compact Disc With Software Commands

    -u /cdrom/cdrom0 helps you identify who’s accessing the CD-ROM drive. Refer to the Solaris System Administrator’s Guide for more information about the fuser command. 2. From the console device, type: % eject cdrom0 The CD-ROM disc should eject. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 131 What Next You can also eject a compact disc by using one of these methods: Manually; see “How to Eject a Compact Disc Manually” on page 104 Using an emergency procedure; see “How to Eject a Compact Disc in an Emergency”...

  • Page 132: How To Eject A Compact Disc Manually

    Refer to the Solaris System Administrator’s Guide for more information about the fuser command. 2. Press the Eject button on the front panel. The drive ejects the CD tray and you can remove the disc. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 133 What Next You can also eject a compact disc by using one of these methods: With software commands; see “How to Eject a Compact Disc With Software Commands” on page 102 Using an emergency procedure; see “How to Eject a Compact Disc in an Emergency”...

  • Page 134: How To Eject A Compact Disc In An Emergency

    2. Unfold and straighten one end of a large wire paper clip. 3. Insert the straightened end of the clip into the emergency eject hole and press firmly. Pull the tray from the drive after the clip is inserted into the hole. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 135 What Next You can also eject a compact disc by using one of these methods: With software commands; see “How to Eject a Compact Disc With Software Commands” on page 102 Manually; see “How to Eject a Compact Disc Manually” on page 104 Chapter 6 Using Storage Devices...

  • Page 136: About The Tape Drive And Tape Cartridges

    To ensure proper thermal conditioning, keep the tape cartridge at the same temperature as the drive for 24 hours. (This applies to cartridges for any of the tape drives offered for your system.) Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 137: How To Insert A Tape Cartridge

    How to Insert a Tape Cartridge What to Do 1. Verify that the tape cartridge write-protect switch is set correctly. If the lock window is open, the tape is write-protected. Write-protect switch 2. Insert the cartridge into the drive, label side up. 3.
  • Page 138 What Next To remove a tape cartridge from the drive, see: “How to Remove a Tape Cartridge” on page 111. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 139: How To Remove A Tape Cartridge

    How to Remove a Tape Cartridge Before You Begin Note – The information in this section applies to a DDS-3 tape drive. If you have a different type of tape drive installed, see the specifications shipped with the drive for information. What to Do 1.

  • Page 140: How To Control The Tape Drive

    What to Do For information about software commands needed to read and write data with your tape drive, refer to the Solaris Handbook for Sun Peripherals or the Solaris User’s Guide. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 141: How To Clean The Tape Drive

    How to Clean the Tape Drive Before You Begin Observe these rules about when to clean a tape drive: 1. Clean the drive after the first four hours of use with a new tape. 2. After that, clean the tape drive after every 25 hours of use to maintain reliable operation.

  • Page 142: How To Clean A Compact Disc

    The figure below shows the correct and incorrect ways to clean a compact disc. Non-Labeled side Correct Incorrect What Next To insert the compact disc into the drive, see: “How to Insert a Compact Disc Into the Drive” on page 100. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 143: Diagnostics And Troubleshooting

    Sun Enterprise 420R Server Service Manual With the exception of internal disk drives in the Sun Enterprise 420R server, all other component installation or replacement must performed by a qualified service provider.

  • Page 144: About Diagnostic Tools

    POST and OBDiag tests. If your machine is “healthy” enough to start up and load its operating system software, you can use Sun Enterprise SyMON software and SunVTS software to diagnose system problems. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 145 The following chart provides an overview of when to use the various diagnostic tools to diagnose hardware problems. System boots Run POST Fault LED lit Run SyMON POST failure Run SunVTS Replace part Run OBDiag OBDiag failure Software or disk problem Chapter 7 Diagnostics and Troubleshooting...

  • Page 146: About Power-On Self-Test (Post) Diagnostics

    By default POST displays detailed diagnostic and error messages on a local terminal, if one is attached to the system’s serial port A. For information about running POST, see “How to Use POST Diagnostics” on page 119. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 147: How To Use Post Diagnostics

    How to Use POST Diagnostics When you turn on the system power, POST diagnostics run automatically if any of the following conditions apply: The OpenBoot PROM (OBP) variable diag-switch? is set to true when you power on the system. You hold down the keyboard’s Stop and D (Shift-d) keys as you power on the system.
  • Page 148 Note – The shell window is now a tip window directed to the serial port of the system being tested. When power is applied to the system being tested, POST messages will be displayed in this window. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 149 Type the following to kill the tip hardwire process. % kill -9 <Process ID (PID) Number> Verifying the Baud Rate To verify the baud rate between the Sun Enterprise 420R server and a terminal or another Sun system monitor: 1. Open a shell window.
  • Page 150 POST status and error conditions are indicated by the general fault LED on the system front panel. The LED blinks slowly to indicate that POST is running. It remains lit if POST detects a fault. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 151 If a Sun Type-5 or Type-6 keyboard is attached to the system, POST status and error indications are also displayed via the four LEDs on the keyboard. When POST starts, all four keyboard LEDs blink on and off simultaneously. After that, the Caps Lock LED blinks slowly to indicate POST is running.

  • Page 152: About Openboot Diagnostics (Obdiag)

    The system also provides configuration variables that you can set to affect the operation of the OBDiag tests. For information about the configuration variables, see “OBDiag Configuration Variable Settings” on page 126. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 153: Obdiag Menu

    The OBDiag menu displays the core tests that exercise parts of the basic system. These tests can be seen in the OBDiag menu displayed below. For complete information about each test, see the Sun Enterprise 420R Server Service Manual. Once you invoke OBDiag as described, the system’s OBDiag menu is displayed.

  • Page 154: Obdiag Configuration Variable Settings

    Performs minimal testing of core functionality Runs exhaustive tests for all functions except external loopbacks. External loopback tests are run only if diag-targets is set to loopback, loopback3, device&loopback, or device&loopback,3 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 155: How To Use Openboot Diagnostics (Obdiag)

    How to Use OpenBoot Diagnostics (OBDiag) When you turn on the system power, OBDiag runs automatically if any of the following conditions apply: The OpenBoot PROM (OBP) variable diag-switch? is set to true. You hold down the keyboard’s Stop and D (Shift-d) keys as you power on the system, and then the systems’s ok prompt will appear.

  • Page 156: All Above

    5. When the OBDiag menu appears, type the appropriate test number at the Enter prompt. Note – For more information about OBDiag tests, see “About OpenBoot Diagnostics (OBDiag)” on page 124. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 157: How To Set The Diagnostic Level For Post And Obdiag

    How to Set the Diagnostic Level for POST and OBDiag Before You Begin Three different levels of diagnostic testing are available for power-on self-test (POST) and OpenBoot Diagnostics (OBDiag): max (maximum level), min (minimum level), and off (no testing). The system runs the appropriate level of diagnostics based on the setting of the OpenBoot PROM (OBP) variable called diag-level.

  • Page 158: About Sunvts Software

    Tests the physical memory (read only) pmem Tests the system’s on-board serial ports sptest Tests the various Sun tape devices tapetest Tests the virtual memory (a combination of the swap partition and the vmem physical memory) Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 159: For More Information

    For More Information The following documents provide information about SunVTS software. They are available on Solaris on Sun Hardware AnswerBook. This AnswerBook documentation is provided on the Sun Updates CD for the Solaris release you are running. SunVTS User’s Guide This document describes the SunVTS environment, including how to start and control the various user interfaces.

  • Page 160: How To Check Whether Sunvts Software Is Installed

    Sun Update CD. Note that /opt/SUNWvts is the default directory for installing SunVTS software. What Next For more information, refer to the appropriate Solaris documentation, as well as the pkgadd reference manual page. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 161: How To Use Sunvts Software

    You’ll need root or superuser access to run SunVTS tests. What to Do This procedure assumes you’ll test your Sun Enterprise 420R server remotely by running a SunVTS session from a workstation using the SunVTS graphical interface. For information about other SunVTS interfaces and options, see “About Diagnostic Tools”...
  • Page 162 Results If SunVTS tests indicate an impaired or defective part, see the appropriate procedures in the Sun Enterprise 420R Server Service Manual, or contact your qualified service provider to replace the defective part. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 163: About Sun Enterprise Symon Software

    For instructions about installing and using Sun Enterprise SyMON software, see the Sun Enterprise SyMON User’s Guide. Sun Enterprise SyMON software is supported on the Sun Enterprise 420R server. To download the current Sun Enterprise 420R SyMON software packages, and to obtain information about the software documentation, go to the web site www.sun.com/symon.

  • Page 164: About Troubleshooting Your System

    The front panel has a general fault indicator that lights to indicate a problem with the power supply subsystem. See “About the Status and Control Panel” on page 7 for more information about the two LEDs and their meanings. Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 165 Keyboard LEDs Four LEDs on the Sun Type-6 keyboard are used to indicate the progress and results of POST diagnostics. These LEDs are on the Caps Lock, Compose, Scroll Lock, and Num Lock keys, as shown below. Caps Scroll lock lock D key Shift key...
  • Page 166 Note – The Caps Lock LED blinks on and off to indicate that the POST diagnostics are running; all other keys are off. When the LED lights steadily, it indicates an error. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 167: Power Supply Leds

    Power Supply LEDs Power supply LEDs are visible from the front of the system with the doors open. The following figure shows the LEDs on the power supply in bay 0. Power supply 1 Power supply 2 DC status (Green) Fault (Yellow) AC present status (Green) The following table provides a description of each LED.

  • Page 168: Error Messages

    These error messages can help to further refine your problem diagnosis. See “OBDiag Configuration Variable Settings” on page 126 for additional details. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 169: Software Commands

    Software Commands The system software provides Solaris operating environment commands, and OpenBoot PROM (OBP) commands that you can use to diagnose problems. For more information about Solaris commands, see the appropriate man pages. For additional information about OBP commands, see the OpenBoot 3.x Command Reference Manual. (An online version of the manual is included with the Solaris System Administrator AnswerBook that ships with Solaris software.) Solaris prtdiag Command...
  • Page 170 No failures found in System =========================== ====================== HW Revisions ====================== ASIC Revisions: PCI: pci Rev 4 Cheerio: ebus Rev 1 System PROM revisions: ---------------------- OBP 3.23.0 1999/06/30 13:53 POST 1.2.7 1999/05/24 17:33 Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 171 OBP show-devs Command If you are working from the OBP prompt (ok), you can use the OBP show-devs command to list the devices in the system configuration. OBP printenv Command Use the OBP printenv command to display the OpenBoot PROM configuration variables stored in the system NVRAM.
  • Page 172 Do you wish to continue? (y/n) y /pci@1f,4000/scsi@4,1 Target 0 Unit 0 Disk SEAGATE ST39102LC SUN9.0G0828 Target 1 Unit 0 Disk SEAGATE ST39102LC SUN9.0G0828 Target 6 Unit 0 Removable Read Only deviceTOSHIBA XM6201TA SUN32XCD1103 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 173: About Diagnosing Specific Problems

    About Diagnosing Specific Problems Network Communications Failure Symptom The system is unable to communicate over the network. Action Your system conforms to the Ethernet 10BASE-T/100BASE-TX standard, which states that the Ethernet 10BASE-T link integrity test function should always be enabled on both the host system and the Ethernet hub. The system cannot communicate with a network if this function is not set identically for both the system and the network hub (either enabled for both or disabled for both).
  • Page 174 1: apply disable-link-pulse device-name (Repeat this step for other device names as needed.) (Press CONTROL-C to exit nvedit.) ok nvstore ok setenv use-nvramrc? true 4. Reboot the system to make the changes effective. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 175: Power-On Failure

    Power-On Failure Symptom The system attempts to power on but does not boot or initialize the terminal or monitor. Action 1. Run POST diagnostics. See “How to Use POST Diagnostics” on page 119. 2. Observe POST results. The front panel general fault LED should blink slowly to indicate that POST is running.

  • Page 176: Disk Or Cd-Rom Drive Failure

    Disk drive or CD-ROM drive fails to boot or is not responding to commands. Action Test the drive response to the probe-scsi-all command as follows: 1. At the system ok prompt, type: ok reset-all ok probe-scsi-all Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 177: Scsi Controller Failure

    2. If the SCSI device responds correctly to probe-scsi-all, a message similar to the “probe-scsi-all output:” on page 144 is printed out. If the device responds and a message is displayed, the system SCSI controller has successfully probed the device. This indicates that the main logic board is operating correctly.

  • Page 178: Power Supply Failure

    (“U” number) of the failing module. To replace a DIMM, contact a qualified service provider. Use the following diagramsto identify the location of a failing memory module from its U number: Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 179 2 (U0401, U0402) 1 (U0303, U0304) 0 (U0301, U0302) After you have identified the defective DIMM, for more information see the Sun Enterprise 420R Server Service Manual; to replace any defective part(s) contact your qualified service provider. Chapter 7 Diagnostics and Troubleshooting...
  • Page 180 Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 181: Connector Signal Descriptions

    A P P E N D I X Connector Signal Descriptions This appendix describes the Sun Enterprise 420 system main logic board connector signals and pin assignments that are accessible from the back panel. The following topics covered in this appendix: ““Reference for the Parallel Port Connector”...
  • Page 182 Keyboard/Mouse Connector Signals Signal Name Signal Description Ground Ground +5 Vdc +5 Vdc MOUSE_IN_CONN Mouse receive data KBD_OUT_L Keyboard out KBD_IN_CONN Keyboard in KPOWERON_L Keyboard power on +5 Vdc +5 Vdc Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 183: Serial Port Signals

    Reference for the Serial Port A and B Connectors The serial port A and B connectors (J2902 and J2903, respectively) are DB-25 type connectors located on the main logic board back panel. Both serial ports conform to RS-423/RS-232 specifications. Serial Port A and B Connector Diagram Serial port B Serial port A Serial Port Signals...
  • Page 184 Not connected Not connected Not connected SER_TRXC_A_L_CONN Transmit Clock Not connected SER_RXC_A_L_CONN Receive Clock Not connected Not connected SER_DTR_A_L_CONN Data Terminal Ready Not connected Not connected Not connected SER_TXC_A_L_CONN Terminal Clock None. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 185: Tpe Connector Diagram

    Reference for the Twisted-Pair Ethernet (TPE) Connector The twisted-pair Ethernet (TPE) connector is a RJ-45 type connector located on the main logic board back panel. Caution – Connect only TPE cables into the TPE connector. TPE Connector Diagram TPE Connector Signals Signal Name Description Common mode termination...
  • Page 186 External UTP-5 Cable Lengths The following list describes the TPE UTP-5 cable applications and maximum lengths. Cable type–UPT-5, data grade Applications–10BASE-T or 100BASE-T Maximum Length (metric)–100 meters Maximum Length (US)–109 yards Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 187: Reference For The Ultrascsi Connector

    Reference for the UltraSCSI Connector The Ultra small computer system interface (UltraSCSI) connector is located on the main logic board back panel. UltraSCSI Connector Diagram UltraSCSI Connector Signals Signal Name Description Ground Ground Not connected Ground Ground Ground Ground Ground Ground Ground Ground...
  • Page 188 Ground Ground Ground Ground SCSI_B_DAT<12> Data 12 SCSI_B_DAT<13>_ Data 13 SCSI_B_DAT<14>_ Data 14 SCSI_B_DAT<15>_ Data 15 SCSI_B_PAR<l> Parity 1 SCSI_B_DAT<0>_ Data 0 SCSI_B_DAT<1>_ Data 1 SCSI_B_DAT<2>_ Data 2 SCSI_B_DAT<3>_ Data 3 Sun Enterprise 420R Server Owner’s Guide • October 1999...
  • Page 189 Signal Name Description SCSI_B_DAT<4>_ Data 4 SCSI_B_DAT<5>_ Data 5 SCSI_B_DAT<6>_ Data 6 SCSI_B_DAT<7>_ Data 7 SCSI_B_PAR<0> Parity 0 Ground Not connected TERMPOWER_B Terminal B power TERMPOWER_B Terminal B power Not connected Ground SCSI_B_ATN_L Attention Ground SCSI_B-BSY_L Busy SCSI_B_ACK_L Acknowledge SCSI_B_RESET_L Reset SCSI_B_MSG_L Message...
  • Page 190 Signal Name Description SCSI_B_DAT<9>_ Data 9 SCSI_B_DAT<10>_ Data 10 SCSI_B_DAT<11>_ Data 11 Note – _ (underscore) signifies active low. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 191: Reference For The Parallel Port Connector

    Reference for the Parallel Port Connector The parallel port connector is a DB-25 type connector located on the main logic board back panel. Parallel Port Connector Diagram Parallel Port Signals Signal Description PAR_DS_L_CONN Data Strobe Low 2 to 9 PP_DAT[0..7]_CON Data0 Through Data7 PAR_ACK_L_CONN Acknowledge Low...
  • Page 192 Signal Description Chassisl ground Chassis ground Chassis ground Chassis ground Signal ground Signal ground Signal ground Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 193: System Specifications

    A P P E N D I X System Specifications This appendix provides product specifications for the Sun Enterprise 420R server. “Physical Specifications” on page 166 “Electrical Specifications” on page 166 “System Specifications” on page 165...

  • Page 194: Physical Specifications

    2. Combined output power of the +3.3 VDC and +5 VDC outputs must not exceed 320 Watts. 3. Combined output power of the +3.3 VDC and +5 VDC outputs must not exceed 320 Watts. Sun Enterprise 420R Server Owner’s Guide • October 1999...

  • Page 195: Environmental Specifications

    Environmental Specifications The environmental requirements for the system are as follows: Parameter Value Operating Temperature 5˚C to 35˚C (41˚F to 95˚F)—IEC 68-2-1, 68-2-2 Humidity 20% to 80% RH, noncondensing; 27 ˚C max wet bulb—IEC 68-2-2, 68-2-3 Altitude 0 to 3000 meters (0 to 10,000 feet)—IEC 68-2-40, 68-2-41 Vibration 0.2 gravity (g) peak, 5–500 Hz (swept sine);...
