Summary of Contents for Supermicro Power Distribution Unit

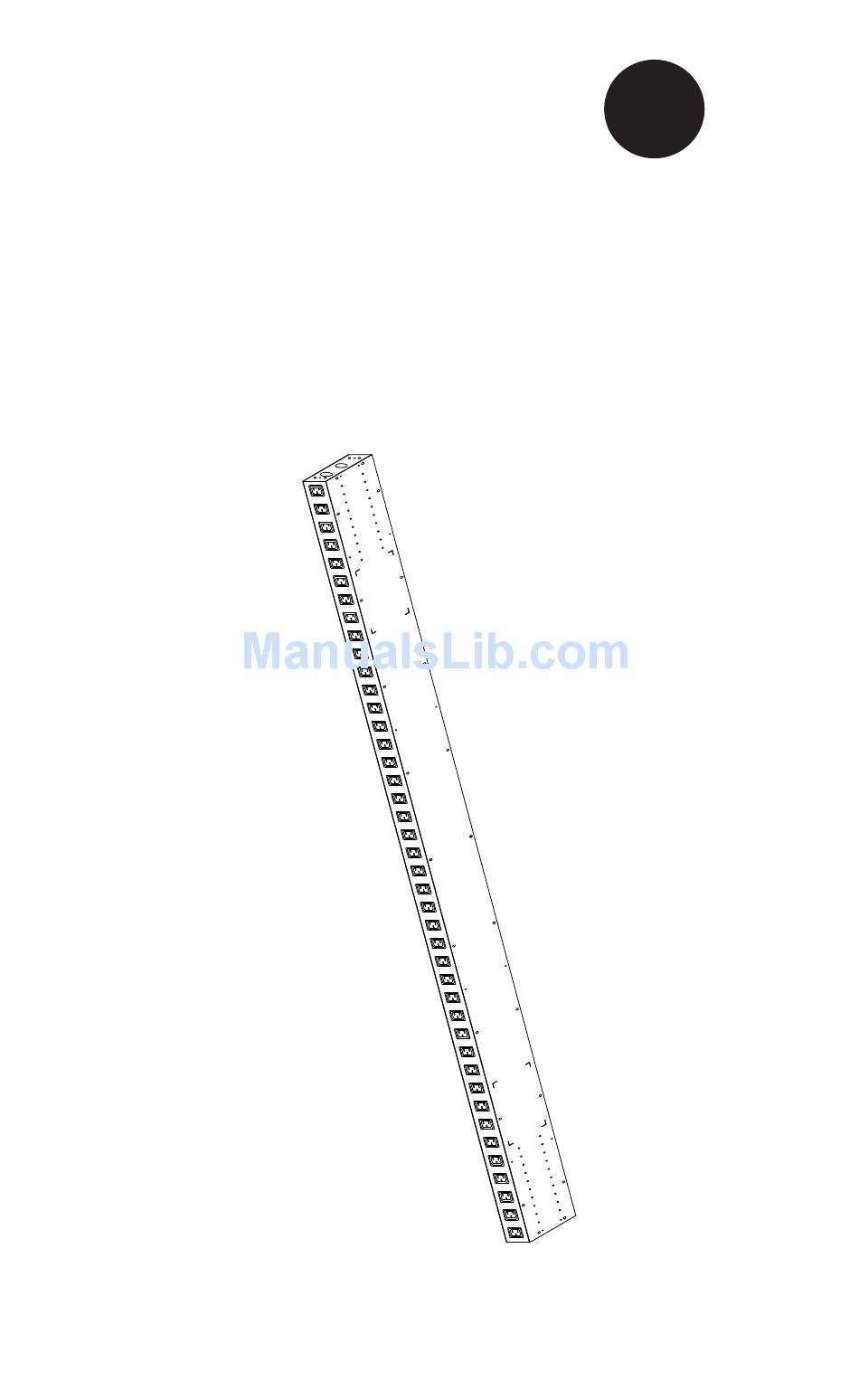

- Page 1 UPER ® Supermicro Power Distribution Unit User's Guide...
- Page 2 Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not exceed the price paid for the hardware product.
-
Page 3: About This Manual
Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the use of the Supermicro Power Distribution Unit (PDU) system. Setup, installation and maintainance should be performed by experienced technicians only. - Page 4 Supermicro PDU User's Guide Notes...
-
Page 5: Table Of Contents
Supermicro PDU User's Guide Table of Contents Chapter 1 Introduction Overview ......................1-1 Supermicro PDU Specifi cations ..............1-1 Returning Merchandise for Service..............1-3 Contacting Supermicro ..................1-4 Chapter 2 System Safety Electrical Safety Precautions ................2-1 General Safety Precautions ................2-2 ESD Precautions ..................... - Page 6 Table of Contents Notes...
-
Page 7: Chapter 1 Introduction
Chapter 1: Introduction Chapter 1 Introduction Overview The Supermicro PDU system is a rack mounted power distibution unit that can be fi tted to a server rack to provide power outlets to rack mounted components. Supermicro PDU Specifi cations The Supermicro PDU system has the following specifi cations: Output Specifi... - Page 8 Supermicro PDU User's Guide Figure 1-1: PDU Single Phase Diagram...
-
Page 9: Returning Merchandise For Service
Chapter 1: Introduction Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. -
Page 10: Contacting Supermicro
Supermicro PDU User's Guide Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. -
Page 11: Chapter 2 System Safety
Chapter 2: Safety Chapter 2 System Safety Warnings and Precautions! Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the Supermicro PDU system from damage: • Be aware of the locations of the power on/off switch on the PDU as well as the room's emergency power-off switch, disconnection switch or electrical outlet. -
Page 12: General Safety Precautions
Supermicro PDU User's Guide • This product may be connected to an power system. In all cases, make sure that the unit is also reliably connected to Earth (ground). General Safety Precautions Follow these rules to ensure general safety: • Keep the area around the SuperRack system clean and free of clutter. -
Page 13: Esd Precautions
Chapter 2: Safety ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic com ponents and printed circuit boards. -
Page 14: Rack Mount Precautions
Supermicro PDU User's Guide Rack Mount Precautions The following rack mount precautions should be considered when installing the Supermicro PDU system: • Elevated Operating Ambient – If installed in a closed or multi-rack assembly, the operating ambient temperature of the rack enviornment may be greater than room ambient temperature.
