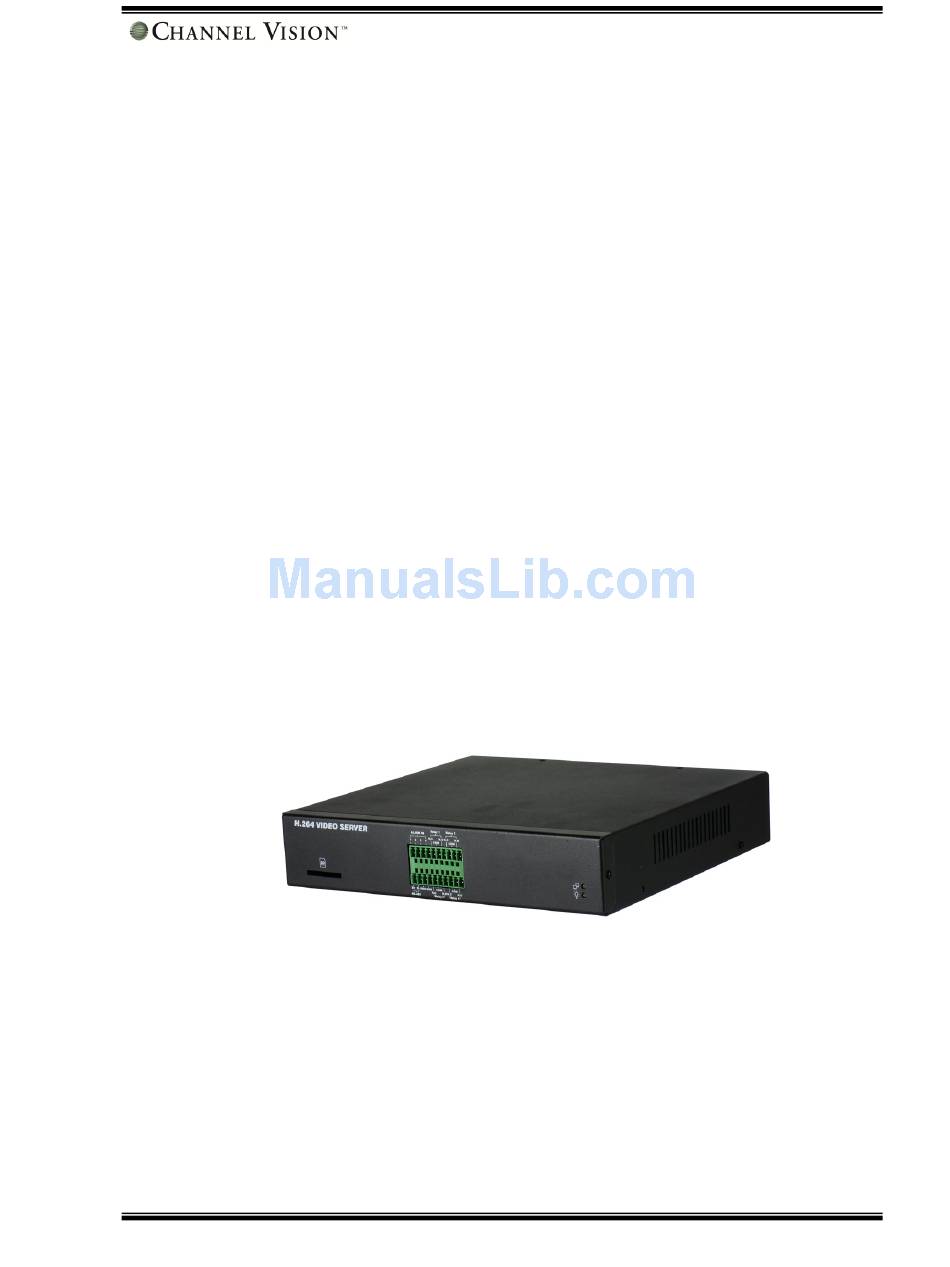

  • Page 1 User Manual 4-Channel Video Server W-4001 1/35 Version B...
  • Page 2 WARNINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OR ELECTRIC CONDUCTIVE OBJECTS THROUGH THE VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK: DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    Content PREFACE ............................4 PRODUCT SPECIFICATIONS ....................... 4 III. PRODUCT INSTALLATION ......................6 ........................6 ONITOR ETTING ......................7 ARDWARE NSTALLATION IP A ..........................9 SSIGNMENT ): ................. 13 NSTALL CTIVE CONTROL UP ONCE ONLY LIVE VIDEO ..........................15 VIDEO SERVER CONFIGURATION .................... 17 .............................

  • Page 4: Preface

    I. Preface This is a 4-Channel H.264/ MJPEG Video Server with a web server built-in. It encodes analog signals of traditional cameras to digital signals, allowing the users to monitor real-time video via IE Browser. The H.264 and MJPEG compression format supports smooth video quality. It also supports SD Card backup and 2-way audio, which enables the user to have a video conference.
  • Page 5 Hardware 4-Channel Server ARM 9, 32 bit RISC 256MB 16MB Video Input BNC x 4 Input Video Looping BNC x 4 Audio In/Out 4 in / 1 out (RCA type) Alarm Input Relay Out RS-485 X1, for PTZ control Power DC 12V, 630mA Dimensions (WxHxD) 218x44x202mm...

  • Page 6: Product Installation

    Recording Trigger Motion Detection, IP check, Network break down (wire only), Relay Video Format AVI, JPEG Video Playback Delete Files Browser Requirement Windows 2000, XP, 2003, IE 6.0 or above Hardware Recommendation Intel Dual Core 1.66G,RAM: 1024MB, Graphic card: 128MB Minimum Intel 2.8G, RAM: 256MB, Graphic Card: 32MB III.

  • Page 7: Hardware Installation

    B. Hardware Installation Connect power adaptor. Connect Ethernet Cable to Video Server. iii. Connect Video Server to a computer or Local Network. 7/35...
  • Page 8 - 1 I/O Control Instruction: Ｂ I/O Terminal Connector – used in application, for e.g., motion detection, event triggering, and alarm notifications. It provides the interface to: • Digital Input (GND+Alarm) – An alarm input for connecting devices that can toggle between an open and closed circuit, for example: PIRs, door/window contacts, glass break detectors, etc.

  • Page 9: Ip Assignment

    B-2. Relay Connection: Digital Input connection Door/Window Contacts ALARM N.O./ N.C. Relay Output Connection ALARM N.O./ N.C. C. IP Assignment Use “IP Installer”, which comes with a CD, to assign the IP Address of VIDEO SERVER. There are two languages for the IP Installer: IPInstallerCht.exe: Chinese version IPInstallerEng.exe: English version iii.
  • Page 10 Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) Dial-up (PPPoE) Execute IP Installer Use Windows XP SP2 or newer version. If the following message pops up, please click “Unblock.” The GUI of IP Installer: vii. IP Installer searches all IP deceives which connect with the internet and it lists all of them on the left side or the user can click “Search Device”...
  • Page 11 Please make sure the Subnet of PC IP Address and VIDEO SERVER IP Address are the same. The Same Subnet: VIDEO SERVER IP Address: 192.168.1.210 PC IP Address: 192.168.1.100 Different Subnets: VIDEO SERVER IP Address: 192.168.2.210 PC IP Address: 192.168.1.100 To Change PC IP Address: Control Panel Network Connections Local Area Connection Properties Internet Protocol (TCP/IP)
  • Page 12 12/35...

  • Page 13: Install Active Xcontrol ( Set - Up Once Only )

    Then, please key in the default User name: “admin” and Password: “admin”. xii. After VIDEO SERVER reboots, click “Search Device” to research VIDEO SERVER and use the IE Browser for live viewing. D. Install ActiveX control (set up once only) When viewing the VIDEO SERVER for the first time via IE Browser, it will request the user to install ActiveX.
  • Page 14 When the following dialogue box pops up, click “Yes”. 14/35...

  • Page 15: Live Video

    IV. Live Video After executing the IE Browser and typing the IP Address of VIDEO SERVER, the following message will pop up and request the user to input the User name and Password. The default User name and Password are “admin” and “admin”. When the User name and the Password are correct, it will connect to VIDEO SERVER via IE Browser.
  • Page 16 V ideo Snapshot. ： Shows how many users connect to this VIDEO SERVER. Live Video. The user can click on each channel for single channel format. VIDEO SERVER supports 2-way audio. After click on “Chatting”, the user can use the microphone, which connects with the PC to talk to the server side. Status and Function keys: Monitor with full screen.

  • Page 17: Video Server Configuration

    V. VIDEO SERVER Configuration Click to get into the Administration page and click on to return to the live viewing as follows: 17/35...

  • Page 18: System

    A. System System Set-up: Set up the Video Server Name, Select Language, and the Time on this video server: Server Name: This is the video server name for the user to search on the IP Installer. Select Language: There are English, Traditional Chinese, and simplified Chinese.
  • Page 19 Anonymous User Login: Yes: Allows anonymous log in. No: Requires User name and Password to log in. Add User: Type the User name and Password and then click on “Add/ Set”. Click on “Edit” or “Delete” to modify the user. iii.
  • Page 20 firmware. Then click “Upgrade” to proceed. Reboot System: re-start the Video Server Factory Default: delete all the settings and restore the default system. Setting Management: User may download the current setting to PC, or upgrade from the previous saved setting. Setting Download: Right-click the mouse button on Setting Download Select...

  • Page 21: Network

    B.Network IP Setting: VIDEO SERVER supports static IP and DHCP. DHCP: Use Dynamic Host Configuration Protocol to get all network parameters automatically. Static IP: Type IP Address, subnet mask, gateway, and DNS. DNS: With DHCP: DNS will be assigned automatically. Static IP: Based on the network environment.
  • Page 22 VIDEO SERVER supports DDNS. It uses dynamic IP to redirect IP and connects with the video server. VIDEO SERVER supports three kinds of DDNS servers, including: www.dyndns.org, www.ddns.camddns.com, and www.ddns2.ydsdvr.com. DynDNS: DDNS Setting: Enable or Disable DDNS Setting. Input the DynDNS’s Host name, User name, and Password. Schedule Update: Default is set at 1440 minutes.
  • Page 23 Input User name. Schedule Update: Default is set to 1440 minutes. Click on “Apply” to save. DDNS State: Updating: Information Updating. Idle: Stop Service. DDNS registration successful, can now log in by: http://<username>.ddns.camddns.com: Register successfully. Update Failed, the name is already registered: The User name has already been used.
  • Page 24 Status of Wireless Networks: It can scan all wireless services. Wireless Setting: Mode: There are two options: Infrastructure and Ad-hoc. Infrastructure is for connecting with the Router. Ad-hoc is for connecting with the PC. When the user uses Ad-hoc mode, the “Channel”...
  • Page 25 the user can only input 0~9 characters and use A, B, C, D, E, and F. When selecting ASCII, the user can input any character (upper case/ lower case sensitive). Key 1~4: Based on Key Type to input characters. W PA-PSK 『...

  • Page 26: Multimedia

    C.Multimedia Image Setting: Select each channel to control. iii. Adjust “Brightness”, “Contrast”, “Hue”, and “Saturation”. iv. Video Setting: 26/35...
  • Page 27 You can adjust the settings for each camera that is plugged into the Four (4) Channel Video Server. Streaming 1 Setting: Resolution: There are four resolutions to be adjusted. QVGA QCIF Bit Rate Control Mode: There are two options to use: CBR (Constant Bit Rate) and VBR (Variable Bit Rate).
  • Page 28 Streaming 2 Setting: Resolution: There are three resolutions to be adjusted. QVGA QCIF Bit Rate Control Mode: There are two options: CBR (Constant Bit Rate) and VBR (Variable Bit Rate). CBR: 64Kbps~1.5Mbps VBR: Q=1~5 If the bandwidth is smaller than the CBR or VBR set up, it will cause lagging and incomplete images.
  • Page 29 Audio: VIDEO SERVER supports 2-way audio. a. To enable the video server to a local PC, select “Enabled” to enable this function. b. To enable a local PC to the video server, click on “Chatting” on the IE Browser. 29/35...

  • Page 30: Event

    D.Event VIDEO SERVER provides multiple event settings. Event Setting: VIDEO SERVER supports three motion detection areas on each channel. When the motion is triggered, it can send out the video to a certain email address or upload the video to a FTP site. If the user has a SD Card, they can also do SD backup.
  • Page 31 This function is only enabled in wire connection. I/O Setting: Input Setting: Input 1 Action: E-mail/ FTP/ Out1/ Out2/ Out3/ Out4/ Save to SD Card. Input 2~4 Action: The same as Input 1. Subject: Default GPIO is Detected! Interval: Default 10 sec. Click on “Apply”...
  • Page 32 iii. Mail and FTP: To send out the video via e-mail or FTP, please set up the configuration first. iv. Log List: Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. SD Card: Please Insert a SD Card before use.
  • Page 33 The video format is AVI. To play the file, click the video to start Microsoft Media Player. To delete the video, check it, and then click Del. When the SD Card is full, it will remove the oldest video automatically. vi.

  • Page 34: Factory Default

    VI. Factory Default Unplug the power of the Video Server. Please refer to the above RS232 interface image to connect Pin 2 to 3. iii. Turn on the Video Server and wait for few minutes until IP Installer can search for the video server.
  • Page 35 Channel Vision products are not intended for use in medical, lifesaving, life sustaining or critical environment applications. Channel Vision customers using or selling Channel Vision products for use in such applications do so at their own risk and agree to fully indemnify Channel Vision for any damages resulting from such improper use or sale.
