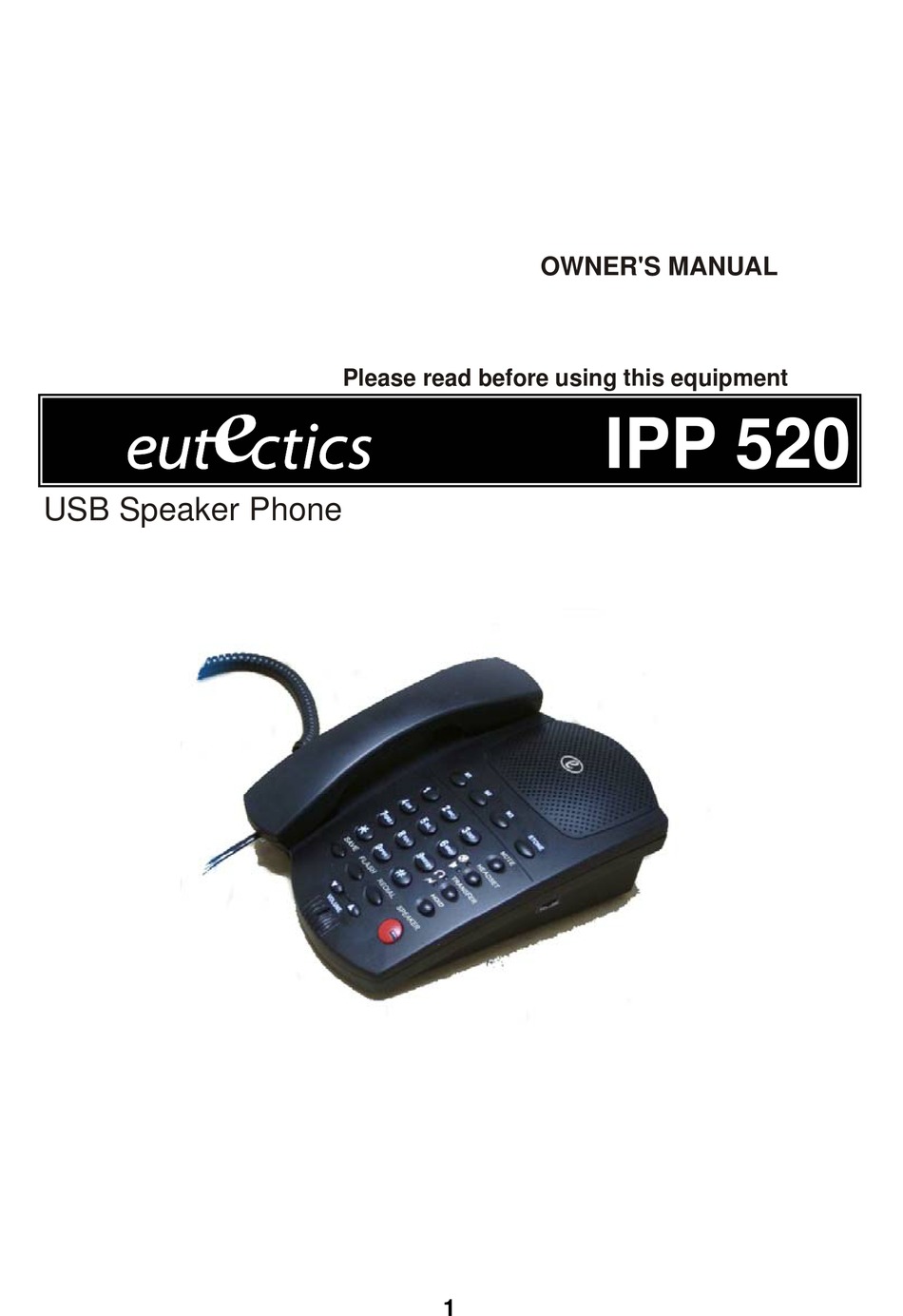

- Page 1 OWNER'S MANUAL Please read before using this equipment IPP 520 USB Speaker Phone...
-
Page 2: Internet Power Phone 520™ Installation Guide
Eutectics develops and markets a new generation of phones, designed for home and office use. Eutectics Internet Power Phone™ line of products connect to the USB port of your PC instead of the standard wall socket and enable all the powerful benefits of IP telephony in a simple, intuitive and convenient way. -
Page 3: Features
Features Your IPP520 USB speaker phone lets you place or receive calls over the Internet. The phone provides excellent echo free audio quality. The phone's volume control helps you hear the conversation in almost any room. Its features include: Amplified Handset/Speaker Volume Controls -- lets you adjust the volume of the sound you hear through the handset or speaker. -
Page 4: Certification Statement
Certification Statement Your IPP520 is ETL listed to UL standards and meets all applicable FCC standards. WARNING: To reduce the risk of Fire or shock hazard, do not expose this product to rain or moisture. This symbol is intended to alert you to the presence voltage within the product’s enclosure that might be of sufficient magnitude to constitute a risk of electric shock. -
Page 5: Table Of Contents
Contents Internet Power Phone 520™ Installation Guide......2 Introduction................2 Features ..................3 Certification Statement ..............4 Contents ..................5 Physical Installation ..............6 Drivers Installation ..............9 Operation.................12 Troubleshooting...............16 Care and Maintenance ............17 Warranty Information ...............18... -
Page 6: Physical Installation
Physical Installation CHOOSING A LOCATION You can use your telephone as a desk phone, mount it on a standard wall plate, or mount it directly on the wall. Select a location that is near your PC and an AC outlet. Caution: The supplied AC adapter was designed specifically for your IPP520. - Page 7 Insert the supplied po wer adapter's barrel plug into the jack on the back of base. Plug the modular cord's other end into a free USB port on your PC. . Plug the adapter into a standard AC outlet. °. then slide the clip Slide the handset clip up and out of its retaining slot, rotate it 180 back into its slot.
-
Page 8: Connecting The Handset Cord
3. Insert the supplied power adapter' s barrel plug into the j ack on the back of base. 4. Align the keyhole slots with the mounting screws and slide the base downward to secure it. . Plug the modular cord's other end into a free USB port on your PC. . -
Page 9: Drivers Installation
Simply click “Next” for each windows that opens and “Finish” at the end. • You may need to insert your original CDROM of Windows 98 Second Edition or download the IPP520 drivers form the Eutectics website. The drivers are available from www.eutecticsinc.com/Drivers/Drivers.zip... - Page 10 • The IPP520 will act as your default phone sound device. Your regular PC speakers may be set as the sound device for other applications, while the IPP520 is used for Internet Telephony applications. Please check with your application provider for more information. TEST THE INSTALLATION To test the installation and make sure the IPP520 is properly recognized by your PC perform the following steps:...
- Page 11 • Select the Voice tab • Make sure that the “Preferred Device” drop down windows for “Voice Playback” and “Voice Recording” both are set to “Eutectics IPP520”. • Select the Audio Tab • Make sure that the “Preferred Device” drop down windows for “Sound Playback”...
-
Page 12: Operation
Operation SETTING THE RINGER HI / LO / OFF SWITCH Set the volume for the ringer. Set HI / LO / OFF to Hl a noisy room, such as the kitchen. Set HI / LO / OFF to Lo in a quiet room, such as a bedroom. If you do not want a ringer to sound at all, set HI / LO / OFF to OFF. -
Page 13: Using Mute
DIALING A STORED NUMBER To dial a number in a priority memory, lift the handset or press SPEAKER and press M1, M2 or M3. USING MUTE The MUTE key can be used to temporarily disable the Speakerphone Microphone or the Handset Microphone. -
Page 14: Using Redial
You may recall the number by going OFFHOOK and pressing the SAVE button to retrieve the number. USING REDIAL You can quickly dial the last number dialed. When you hear a dial tone, simply lift the handset or press SPEAKER and press RED IAL. If the number you dial is busy, you can leave the handset off the hook and press REDIAL to have the phone send a hang-up signal and automatically redial the number again. - Page 15 cover from the card. Then write the desired names and numbers on the card. We recommend you use a pencil in case you need to change the number later.
-
Page 16: Troubleshooting
Troubleshooting We do not expect you to have any problems with your phone, but if you do, these suggestions might help. Problem Suggestion Low volume or unusual sounds Check the Audio settings on your PC or Softclient Phone does not work or works poorly. Check the operation of your Internet Connection Check to see that your Service Provider is... -
Page 17: Care And Maintenance
Care and Maintenance Your IPP520 USB Speaker Phone is an example of superior design and craftsmanship. The following suggestions will help you care for your telephone so you can enjoy it for years. Keep the IPP520 dry. If it gets wet, wipe it dry immediately. Liquids contain minerals that can corrode the electronic circuits. -
Page 18: Warranty Information
BY THE CONSUMER FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES Repair of Internet Power Phones must be performed by Eutectics or by an authorized agent. Defective Internet Power Phones should be returned to place of purchase or alternatively, may be sent to Eutectics with proof of purchase, properly packaged, with all original documentation, drivers and packaging materials, insured and shipped, freight prepaid, to Eutectics, 343 Passaic Ave, Fairfield, NJ 07004.
