Orion Technology OR-iNVR08 User Manual

Network video recording surveillance system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Network Video Recording
Surveillance System

User Manual

The picture & functions & supplied items might differ according to the specification and model.
※
Contents of this user manual are protected under copyrights and computer program laws.
※
Model
Please read this User Manual and retain it for future reference.
: OR-iNVR08 & OR-iNVR16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-iNVR08 and is the answer not in the manual?

Questions and answers

Summary of Contents for Orion Technology OR-iNVR08

  • Page 1: User Manual

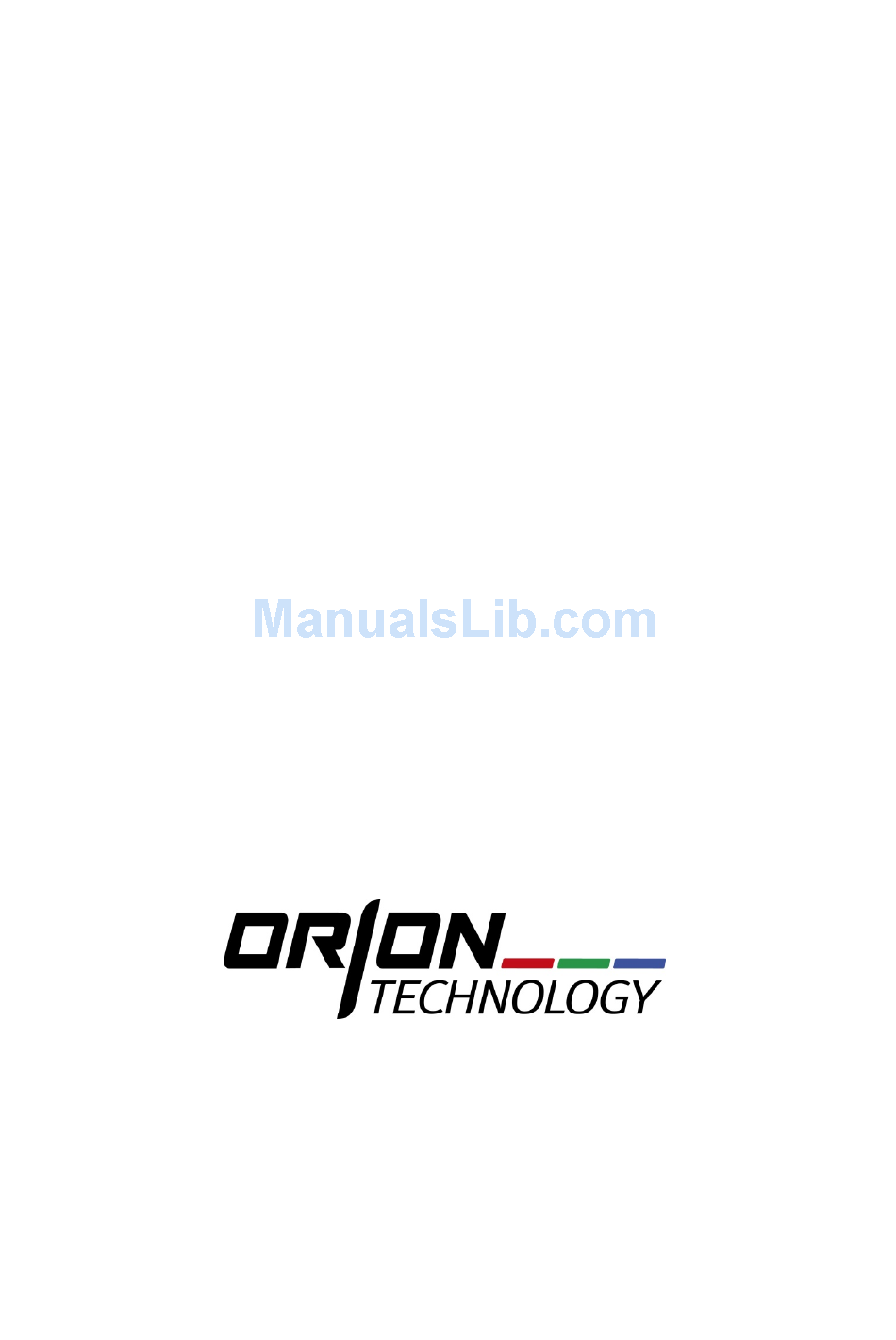

    The picture & functions & supplied items might differ according to the specification and model. ※ Contents of this user manual are protected under copyrights and computer program laws. ※ Model : OR-iNVR08 & OR-iNVR16 Please read this User Manual and retain it for future reference.
  • Page 2 WARNING TO REDUCE FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. The installation should be made by a qualified service person and conformed to all local codes.
  • Page 3 3 3 3 3 Cautions Read Before System Operation Follow these details to prevent material damage or personal injury. Signs of Caution and Warning Warning: This sign indicates that the user could die or be seriously wounded if not used or installed properly.
  • Page 4 Caution 1. Use the power cord, which is supplied or recommended by the supplier. The internal fan rotates at high speed and may cause an accident. 2. Do not drop, give strong vibration, or shock to the product. It may cause malfunction. 3.

  • Page 5: Table Of Contents

    1 1 1 1 C o n t e n t s C o n t e n t s C o n t e n t s C o n t e n t s GETTING STARTED ..................................2 Checking Supplied Items..................................

  • Page 6: Getting Started

    2 2 2 2 Getting Started Thanks for purchasing OR-iNVR. OR-iNVR is Network Video recorder from various ONVIF™ based IP devices and supports remote playback & transmission data. OR-iNVR is working on Java™ platform and provides browser free in monitoring & setup in various WEB browsers.

  • Page 7: System Requirements

    3 3 3 3 System Requirements [Windows OS] Category Recommended Minimum Windows 7 or higher Windows 7 or higher Inter 3rd Gen. Core i7 Intel Core i3 1280x1024 or Higher 1366X768 or Higher (with Independent VGA card) (with Independent VGA card) Java™...

  • Page 8: System Startup

    4 4 4 4 System Startup Network setup is necessary before using OR-iNVR. If you know the assigned IP to OR-iNVR, you can connect to OR-iNVR with the IP and reset it in the setup screen. If you don’t know assigned IP, run IP Installer to find devices.(IP installer is included on CD) *IP Installer &...
  • Page 9 5 5 5 5 [IP Setting (Single Device)] 1. Check the IP address to be assigned to OR-iNVR. (preventing from IP confliction) 2. Click “Device Search” button and search device in the same Subnet Mask. 3. Click OR-iNVR in the searched device list. 4.
  • Page 10 6 6 6 6 [IP Setting (Multiple Devices)] IP Installer can assign a specific range of IP address to multiple OR-iNVR automatically. 1. Check the IP address to be assigned to OR-iNVR. (preventing from IP confliction) 2. Click “Device Search” button and search device in the same Subnet Mask. 3.

  • Page 11: System Shutdown

    7 7 7 7 System Shutdown To turn off the power, shift the power switch( ) on the rear side of OR-iNVR to off position. About 3 seconds later, OR-iNVR goes to shutdown mode. Since System Shutdown take a little time, please wait until the system is turned off completely. Note Do not turn off by unplug power cable.

  • Page 12: Initial Setup(Quick Setup)

    8 8 8 8 Initial Setup(Quick Setup) When the power is supplied to OR-iNVR, boot up process is started automatically. (Boot up process takes time depending on the situation. However, in general, it is finished within 3 minutes.) OR-iNVR supports Java™ based Web browser setup. User can connect to OR-iNVR and control & setup it through WEB browser.
  • Page 13 9 9 9 9 The first step is for Network Setup, Date & Time Configuration and HDD Information & Configuration. User can setup those items step by step. All the setting value changes including HDD format are applied after finish all setting steps. User can search and register ONVIF™...
  • Page 14 1 0 1 0 1 0 1 0 The final step shows the setting values which the user set at the earlier steps. If there is nothing to be changed, close the setting by clicking “Finish” button. If there is something to be changed, click “Previous Step” button to go the setting page and change setting. When the “Finish”...

  • Page 15: Custom Setup

    1 1 1 1 1 1 1 1 Custom Setup OR-iNVR supports Java™ based Web browser setup. User can connect to OR-iNVR and control & setup it through WEB browser. Video Setup User can register IP devices to OR-iNVR and set up through built-in Web component. 3.1.1.

  • Page 16: Video Setup

    1 2 1 2 1 2 1 2 3.1.2. Video Setup Access each devices setup page in OR-iNVR setup page. Built in web browser open pages in OR-iNVR setup. Setup available devices shows mark on ‘Open page’ field. To open camera setup page(web page), click this field which has mark.

  • Page 17: Event Setup

    1 3 1 3 1 3 1 3 3.2.2. Event Setup Set Sensor, Motion, Alarm Out(relay) & Video Loss options in this menu. 1. Sensor Assignment Link sensor to each channel. If a certain channels are selected for each sensor, those channels are linked with the sensor. C.

  • Page 18: Network

    1 4 1 4 1 4 1 4 NOTE All changes will be applied when click ‘Ok’ button. You must click ‘Ok’ button when you leave this page. Network It is for Network setup for OR-iNVR. After finish the setting, IP address of OR-iNVR will be changed. Therefore, user needs to connect through the new IP address.

  • Page 19: User Management

    1 5 1 5 1 5 1 5 D. DDNS ID : Input ID of the registered DDNS. DDNS Password : Input Password of the ID. 9. UPNP Port Mapping Use – NOT completed yet NOTE All changes will be applied when click ‘Ok’ button. You must click ‘Ok’ button when you leave this page.

  • Page 20: System Operation

    1 6 1 6 1 6 1 6 System Operation User can set various system operation related value in this menu. 3.5.1. Date & Time Set date & time information. To set time correctly, don’t forget to set Timezone & Daylight Saving Time(where available) Note When the “Sync with PC”...

  • Page 21: Factory Default

    1 7 1 7 1 7 1 7 In the firmware upgrade menu, you can check the current system information such as IP Address, Firmware Version, MCU Version, Maximum users and No. of current users. Firmware upgrade can be done with the following steps. 1.

  • Page 22: Live Monitoring

    1 8 1 8 1 8 1 8 Image Monitoring OR-iNVR supports Java™ based image display at the various browsers through built-in WEB server. Live Monitoring Check the registered camera list in the main screen. Select a site and drag & drop it into an empty screen to start connection. Icons which are shown in the list mean as follows.
  • Page 23 1 9 1 9 1 9 1 9 If user wants to change into the other channel, click ( ) button to move the desired channel. It follows the number of site list and site number is shown on the right side of the control bar.( Connection Method Change User can choose the connection method between two ways(direct connection to IP Camera or connection through OR-iNVR).

  • Page 24: Ptz Control

    2 0 2 0 2 0 2 0 Full Screen User can switch to full screen. 1. Double click the image. 2. Select “Full Screen” on the pop-up menu which is shown when the “Control” button is clicked. 3. In order to return to normal mode from full screen mode, click “Exit Full Screen” on the upper side of the full screen.

  • Page 25: Vod Monitoring

    2 1 2 1 2 1 2 1 VOD Monitoring OR-iNVR supports VOD monitoring with built-in Java™ based WEB server. Click “VOD” button on the top or click “VOD” tab. Select a site and drag & drop it into empty screen to start connection. Date &...
  • Page 26 2 2 2 2 2 2 2 2 Q&A Q. I installed Java™ and connect to OR-iNVR but the message pop-up and no screen display is shown. 1. Java™ has two editions (32bit & 64bit). The proper edition should be installed according to the WEB Browser. (It it not related to the edition of the OS.) When you connect to http://java.com...
