4CH SD Card Mobile DVR User Manual
CIF/HD1/D1 Resolution (PAL/NTSC)
Further (China) Technology Company Limited
Email:phoebe@fther.com.cn
MSN:furtherchina@hotmail.com
http://fther.en,alibaba.com/
Tel: (86-769)87930500
Fax: (86-769)87900163
Address: 8th Floor,Wenhua Building
H .264 Compression
1CH~4CH Video Input/Output
Tangxia Road 120，Tangxia Town
Dongguan City
Guangdong Province
China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4CH SD Card Mobile DVR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Further 4CH SD Card Mobile DVR

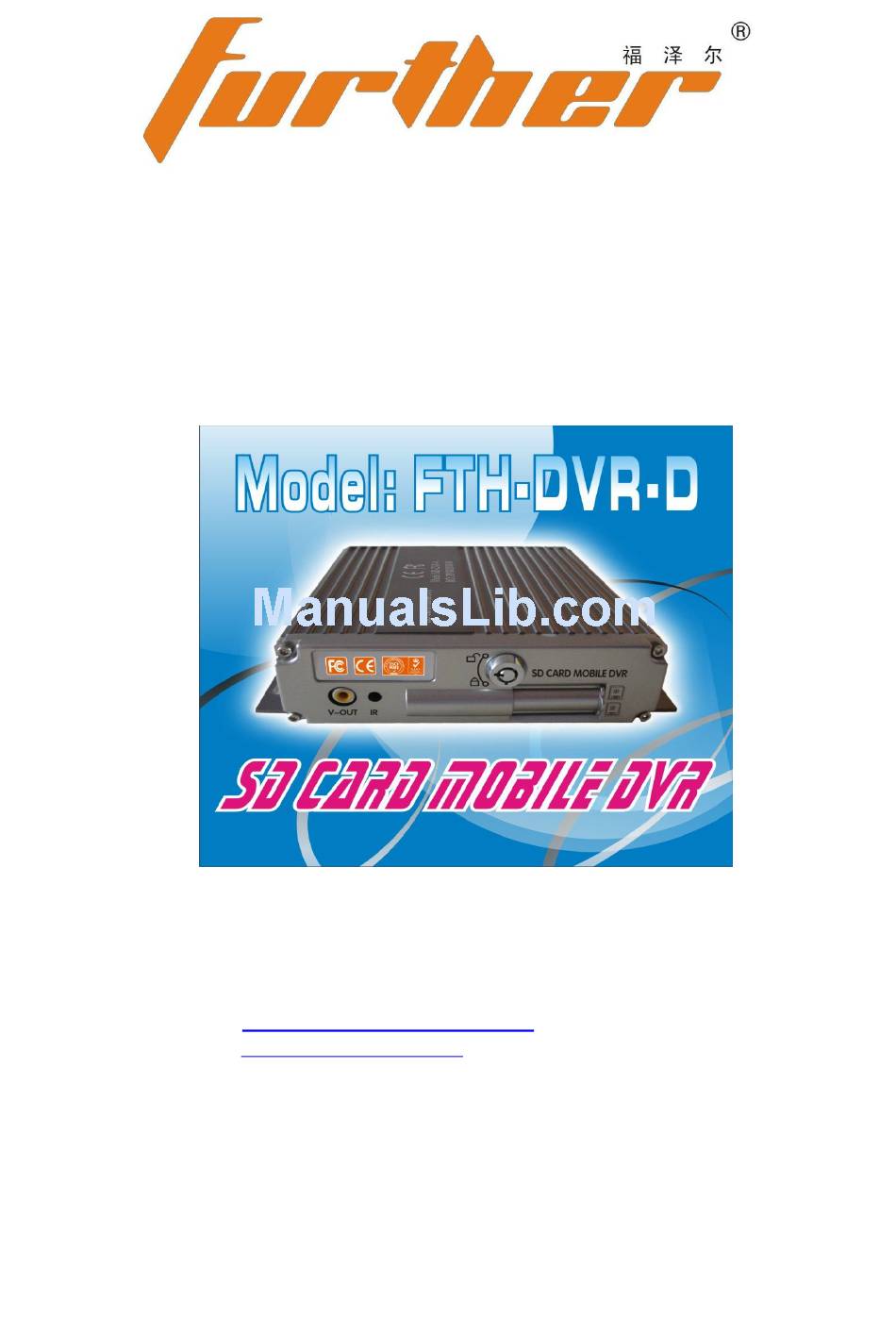

  • Page 1 4CH SD Card Mobile DVR User Manual H .264 Compression 1CH~4CH Video Input/Output CIF/HD1/D1 Resolution (PAL/NTSC) Further (China) Technology Company Limited Email:phoebe@fther.com.cn MSN:furtherchina@hotmail.com http://fther.en,alibaba.com/ Tel: (86-769)87930500 Fax: (86-769)87900163 Address: 8th Floor,Wenhua Building Tangxia Road 120，Tangxia Town Dongguan City Guangdong Province...

  • Page 2: Product Introduction

    1. Product Introduction 1.1 Product Overview FTH-DVR-D Mobile DVR is a high cost-effective and good functional scalability device for vehicle monitoring. It is introduced ARM+DSP high-speed dual-core processor and embedded operating system, with the advanced H.264 video compression/ decompression, network technique, GPS positioning, to playback or remotely manage video surveillance.
  • Page 3 Image compression H .264, VBR Video resolution CIF/HD1/D1(Optional) Audio ADPCM streaming standard Image CIF: 256Kbps-1.5Mbps, 1~8 levels (1 is the processing and Video quality best) storage HD1: 600Kbps-2.5Mbps, 1~8 levels (1 is the best) Audio bit rate 8KB/s Video storage 1 or 2 SD Cards (cycle recording) Car black box Input and output...

  • Page 4: Interface Function

    Product appearance and cable diagram 2.1 Cable diagram Back view panel Cable Interface function Interface Name Description Positive power input ：-9V~54V connects with vehicle battery positive Negative power input connects with vehicle power negative Power Video control line connects with car key ACC +12V Positive power output connects with camera and voice recorder...
  • Page 5 SEN1~SEN3 Alarm input. Such as braking, reversing, open or Sensor close door etc. ALM1,ALM2 Alarm output. Such as indicator, buzzer etc. Alarm input and output Communication USB/RS232/485 Expand USB, network functions etc. Interface VIN1~VIN4 1~4CH video output connects with camera 4GND 1~4CH video output connects with camera Audio input connects with voice recorder...
  • Page 6 Basic Operation Manual Remote control Name Function Turn on or turn off device Adjust brightness, contrast, color parameters Down Right/VOL/Next Left/VOL/Back Menu Switch to the System SET interface Exit Back to the previous interface / Stop play Enter Select or confirm 1 / Punctuation /Channel 1 6/21 2 / ABC/Channel 2...
  • Page 7 Language English and Chinese switch for number, small letter, big letter Note： Multi-function button in green on the remote control 1、Only press the menu button to enter the system setup screen 2、Button 1：In the System SET, can enter number 1 and punctuation；when exit System SET，can switch to Channel 1.
  • Page 8 Video out displays customer logo in the screen or customer parameter interface, as long as the vehicle's power does not turn off, the camera recording signal is continuous. When vehicle power is turned off, DVR can keep recording video. The screen after turn on 3.2.2...
  • Page 9 Video file 3.2.3、 System access permission 1) When the Password Valid is set “Close”： Press 【 Menu】 on remote control, then can access system main menu directly and any change can be made to DVR. 2) When the Password Valid is set "Open"：Only correct password can enter the main menu and make any change to DVR.

  • Page 10: System Set

    Press "Enter" and enter the following screen: default selected the first menu, such as: "Date Time" is selected. l Arrow keys to make item selection. l 【Enter】to choose items. l 【Exit】to exit the menu. 3.3.1 System SET 3.3.1.1 Date and time SET Go to "System SET"...
  • Page 11 l Time SYN: Select "GPS" "NTP" "Off" mode with remote control. l GPS：When system has a GPS module, DVR time is the same as GPS. l NTP：Firstly select NTP server IP address in the "Network SET" menu, and IP address must can login NTP server with permission and keep network smooth. Meeting the above conditions, DVR will automatically set time with network.

  • Page 12: Basic Set

    l Menu Exit Time: Enter number with remote control from 1 min to 60 mins. If no one operate the menu, system will exit menu according to setting time. l Enter: Press [Enter] on remote control or "Apply" on the screen to save setting and return to previous menu.
  • Page 13 l Move arrow keys to appropriate position, if the color changes, setting can work. 1、Date: 【Enter】 to select "every day" "Monday" "Tuesday" "Wednesday" "Thursday" "Friday" "Saturday" "Sunday". 2、Type: 【Enter】 to select "Timer" "Alarm," "Mobile". 3、PERIOD 1: Use number keys to start and stop recording time. 4、PERIOD 2: Use number keys to start and stop recording time..
  • Page 14 video by SD1. SD2： When put two SD cards at the same time, the video file is stored by SD2. If SD2 is fully, it is continues stored video by SD1. When two cards are full, it starts to cover video by SD2.
  • Page 15 l Move arrow keys to appropriate position, if the color changes, setting can work. l IP: IP is set directly by number keys on remote control. l Net Mask: Net Mask is set directly by number keys on remote control. l Gateway: Set directly with number keys on remote control.

  • Page 16: Factory Set

    return to previous menu. l Exit: In the setup process, pressed remote control "Exit" button at any time, system will not save setting and return to previous menu. 3.3.1.6 Factory SET Go to "System SET" with up and down arrow keys, then go to " Factory SET" with left and right arrow keys, then click on 【Enter】, into the following interface: l Move arrow keys to appropriate position, if the color changes, setting can work.

  • Page 17: Video Set

    3.3.2 Video SET Go to "Video SET" with up and down arrow keys, then click on 【Enter】, into the following interface: 3.3.2.1 Video PMT Go to "Video SET" with up and down arrow keys, then go to "Video PMT" with left and right arrow keys, then click on 【Enter】, into the following interface: (Parameters default settings are: Resolution CIF, Frame Rate 12, Quality 06, Audio Open.) l Move arrow keys to appropriate position, if the color changes, setting can work.
  • Page 18 3.3.2.2 CH Name Go to "Video SET" with up and down arrow keys, then go to "CH Name" with left and right arrow keys, then click on 【Enter】, into the following interface: l Move arrow keys to appropriate position, if the color changes, setting can work. l Channel 1: Channel name is entered by remote control (Only Chinese and English are available) l Channel 2: Channel name is entered by remote control (Only Chinese and English are...
  • Page 19 l Move arrow keys to appropriate position, if the color changes, setting can work. l Date: 【Enter】 to select "every day" "Monday" "Tuesday" "Wednesday" "Thursday" "Friday" "Saturday" "Sunday". l Type: 【Enter】 to select "Timer" "Alarm," "Mobile". l PERIOD 1: Use number keys to start and stop recording time. l PERIOD 2: Use number keys to start and stop recording time.

  • Page 20: Sensor Set

    l Enter: Press [Enter] on remote control or "Apply" on the screen to save setting and return to previous menu. l Exit: In the setup process, pressed remote control "Exit" button at any time, system will not save setting and return to previous menu. 3.3.3 User SET Go to "User SET"...
  • Page 21 l Name： Three alarm inputs ”SEN1、SEN2、SEN3” can be chosen by remote control. l OSD： "O" means alarm signal input. "I" means no alarm signal input. l Enter: Press [Enter] on remote control or "Apply" on the screen to save setting and return to previous menu.

  • Page 22: Vehicle Speed

    3.3.3.3 Vehicle Speed Go to "User SET" with up and down arrow keys, then go to "Vehicle Speed" with left and right arrow keys, then click on 【Enter】, into the following interface: l Move arrow keys to appropriate position, if the color changes, setting can work. l Eigen Value: Enter speed value, For example: 040 means 40 km/h.

  • Page 23: Time Search

    l Move arrow keys to appropriate position, if the color changes, setting can work. l Speed Source: Select "vehicle" "GPS" with arrow keys. When there is "GPS", the "vehicle" speed will automatically close; when there is no GPS, the "vehicle" speed works.

  • Page 24: Other Info

    l Move arrow keys to appropriate position, if the color changes, setting can work. l Type: Select the video type by【Enter】. l Date: Enter the date of video file by remote control. l Time: Enter the time of video file by remote control. l Search: Press【Enter】and search video.
