Blacet Research VCA2410 User Manual

Dual linear vca blacet research model linear vca
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

DUAL LINEAR VCA
BLACET RESEARCH MODEL VCA2410
Linear VCA

User Manual

Blacet Research 15210 Orchard Rd Guerneville CA 95446
blacet@blacet.com http://www.blacet.com
707-869-9164
Contents Copyright.
Reproduction by any means including the Internet prohibited without permission.
This document contains proprietary and trade secret information of Blacet Research and is provided
as a service to the module owner. Any unauthorized duplication or transferral may violate trade secret laws.
Contents subject to change without notice.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCA2410 and is the answer not in the manual?

Questions and answers

Related Manuals for Blacet Research VCA2410

Summary of Contents for Blacet Research VCA2410

  • Page 1: User Manual

    Reproduction by any means including the Internet prohibited without permission. This document contains proprietary and trade secret information of Blacet Research and is provided as a service to the module owner. Any unauthorized duplication or transferral may violate trade secret laws.
  • Page 2 Introduction The VCA2410 is a dual, linear response voltage controlled amplifier (VCA). Both VCAs may be used independently or together to process audio or control voltages. The two CV inputs are normalled to an internal voltage source so that the VCAs can be used in mixer mode without any external CV.

  • Page 3: Controls And Operation

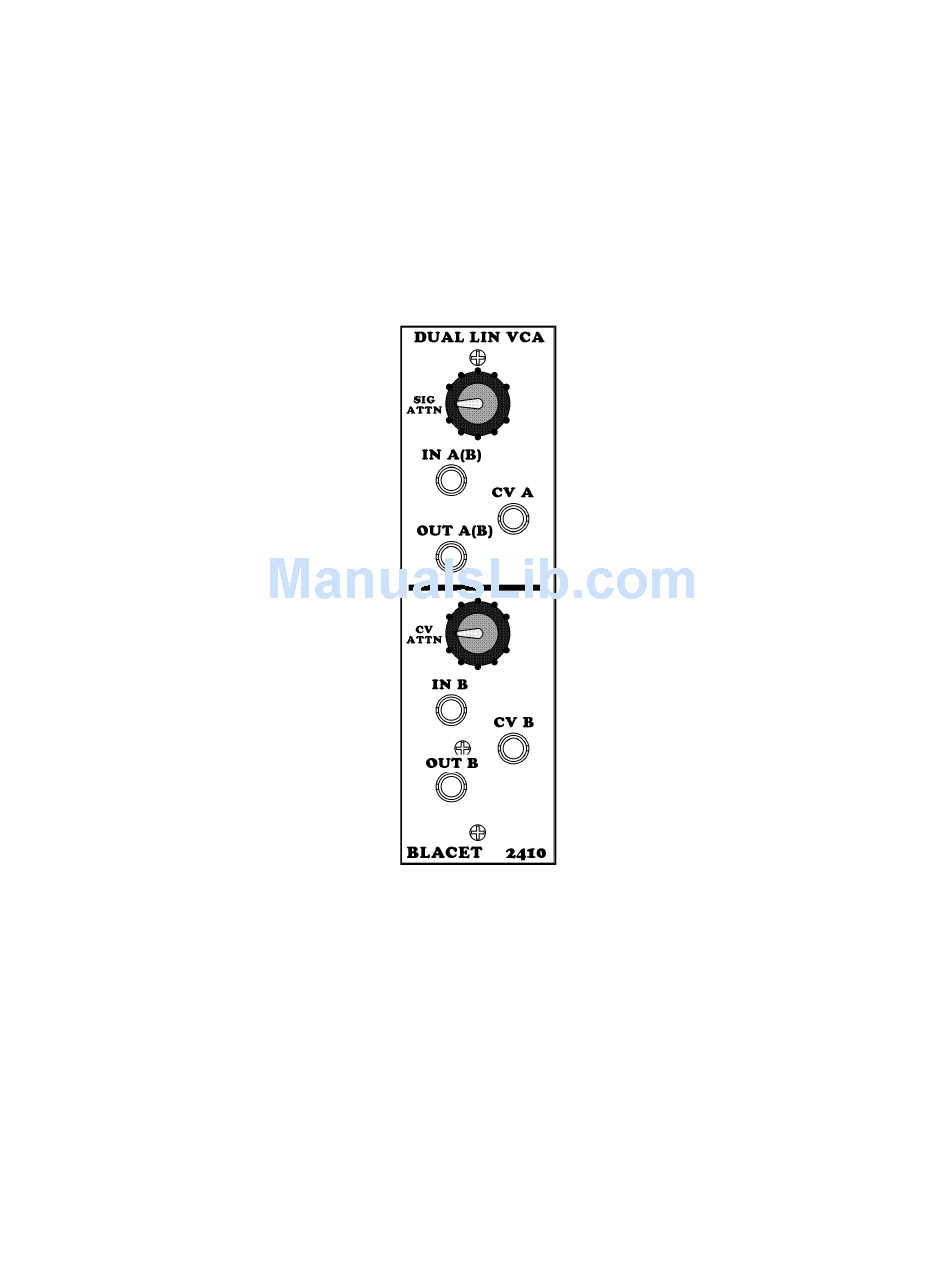

    Controls and Operation IN A(B), OUT A(B), CV A, SIG ATTN Pot: The 2410 has two VCA sections. A signal applied to In A(B) will appear at Out A(B). The signal level will be determined by the setting of the Sig Attn (signal attenuation) pot and the level of any external control voltage input at CV A.

  • Page 4: Specifications

    Specifications Front Panel Size: 5.25 x 1.5" W Module Depth: 3.2” Input Gain: 1X max CV Range: 0-10V Frequency Range: DC to 20 KHz Signal Level: typ. 10V p-p, Max: 26V p-p Power: +/-15 Vdc @+35/-35 mA Calibration Calibration is not required. Troubleshooting, Repair, Warranty If you encounter problems that you can’t solve, contact us, preferably via e-mail with a description of the problem.
