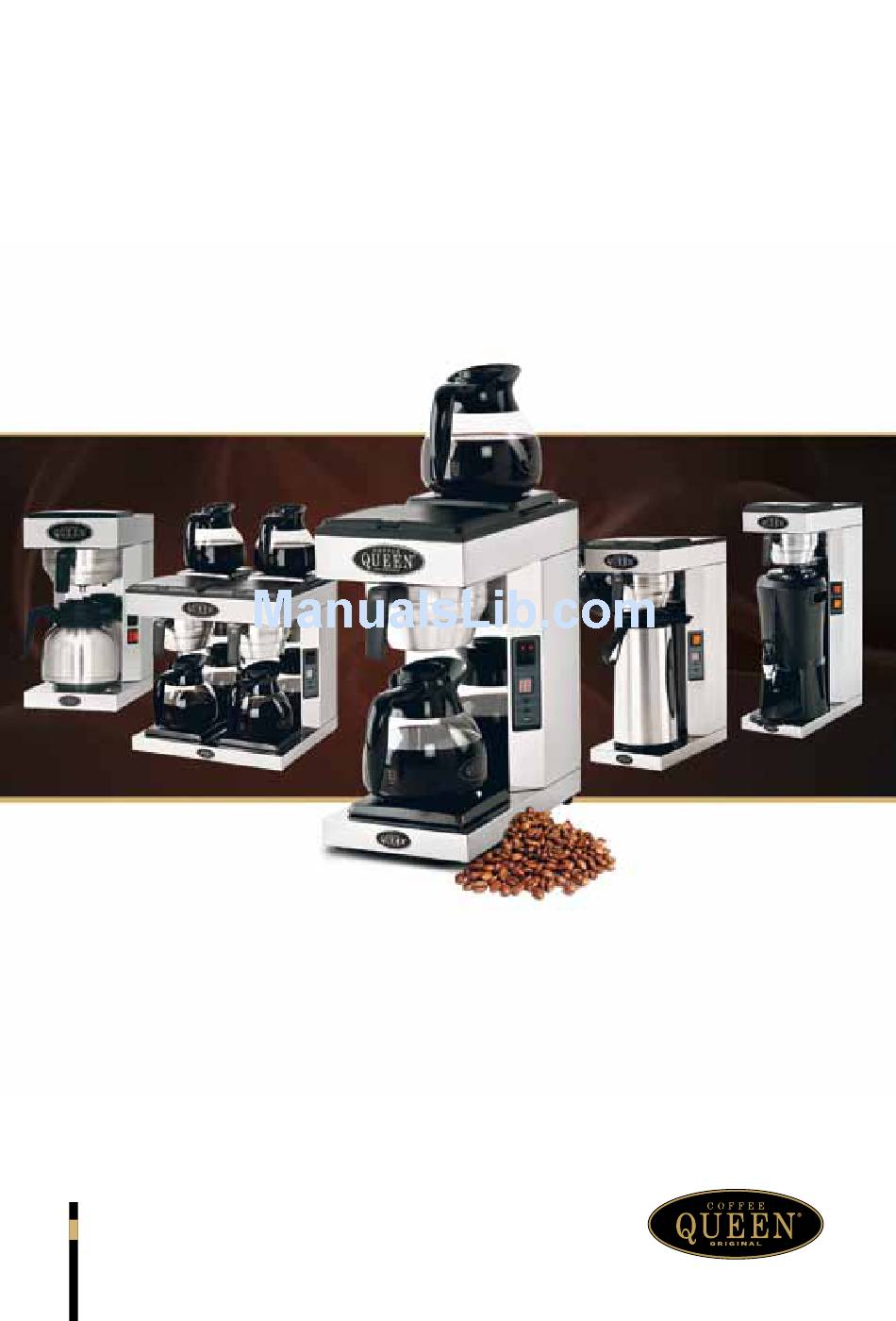

- Page 1 ORIGINAL LINE M USER MANUAL Machines with manual water filling UM_EN Part No.: 1764022_01...
-
Page 2: Table Of Contents
CONTENT ORIGINAL LINE M CONTENT ................................ 2 GENERAL ................................4 Introduction ................................4 Warnings ..................................4 Precautions ................................4 Intended use ................................4 Facts & weight ................................5 General function description..........................5 OVERVIEW OF COMPONENTS ......................6 Front view ..................................6 M-1 ....................................6 M-2 ....................................7 DM-4 ...................................8 Thermos M ................................9... - Page 3 CONTENT ORIGINAL LINE M M-2 ................................... 23 DM-4 ..................................24 Thermos M ................................25 Mega Gold M ................................26 Thermos Office ..............................27 Some important information may appear in textboxes seen below IMPORTANT! CAUTION! More INFO. Note INFO. INFO. INFO.
-
Page 4: General
GENERAL ORIGINAL LINE M Introduction Thank you for choosing a ORIGINAL LINE coffee brewer. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future This guide contains important instructions for reference. -
Page 5: Facts & Weight
GENERAL ORIGINAL LINE M Facts & weight Office Thermos Mega FACTS DM-4 Thermos Gold M Height, Width, 655, 205, 428, 410, 410 557, 205, 428, 205, 410 mm Depth 410 mm 445 mm Thermos/de- 1.8 L 1.8 L 1.9 L 2x1.8 L... -
Page 6: Overview Of Components
OVERVIEW OF COMPONENTS ORIGINAL LINE M Front view Tank Lid Filiter Holder Brewing lamp Power Switch Glass decanter Hot plate... - Page 7 OVERVIEW OF COMPONENTS ORIGINAL LINE M Front view Glass decanter Upper hot plate Tank Lid Filiter Holder Brewing lamp Power Switch Glass decanter Lower hot plate...
-
Page 8: Dm-4
OVERVIEW OF COMPONENTS ORIGINAL LINE M Front view DM-4 Glass decanters Upper hot plates Tank Lid Filiter Holder Brewing lamp Power Switch Glass decanters Lower hot plates... -
Page 9: Thermos M
OVERVIEW OF COMPONENTS ORIGINAL LINE M Front view Thermos M Tank Lid Filiter Holder Brewing Lamp Power Switch Carry Handle Thermos... -
Page 10: Mega Gold M
OVERVIEW OF COMPONENTS ORIGINAL LINE M Front view Mega Gold M Tank Lid Filiter Holder Brewing Lamp Carry Handle Power Switch Serving Station Tap for Coffee Drip Tray Insert Drip Tray... -
Page 11: Thermos Office
OVERVIEW OF COMPONENTS ORIGINAL LINE M Front view Thermos Office Tank Lid Filiter Holder Brewing lamp Power Switch Thermos... -
Page 12: Installation And Start-Up
INSTALLATION AND START-UP ORIGINAL LINE M Positioning Min. 10cm Min. 10cm Place the machine on a flat horizontal surface that will support the weight of the machine. Make sure air is able to circulate behind the machine Note (minimum 10cm). -
Page 13: Hot Plate Function
INSTALLATION AND START-UP ORIGINAL LINE M Hot plate function Turn on left power switch: for lower hot plate, Upper hot plate and right power switch: for upper hot plate. Ensure that the lamps turn on and that the hot plates get warm. - Page 14 INSTALLATION AND START-UP ORIGINAL LINE M First time start-up Brewing lamp will lit For brewing = left button Place the thermos or decanter under the filterholder. Wait two minutes to let the system air-out and fill the heater unit. IMPORTANT! A thermos or Turn on the power switch.(A)
-
Page 15: Operation
OPERATION ORIGINAL LINE M Brewing with coffee Recommended powder amount is 60g/L Add coffee (restaurant / catering ground coffee). Make sure that the Place a 90mm filter in the filter holder. coffee is evenly spread. Slide the filter holder into position. - Page 16 OPERATION ORIGINAL LINE M Brewing with coffee Place the thermos or decanter under the filterholder. Turn on power Turn on power switch for switch brewing. (A) brewing. Tips Do not mix freshly brewed coffee with old coffee kept warm. It will During the brewing, result in poor coffee quality.
-
Page 17: To Keep Temperature And Aroma
OPERATION ORIGINAL LINE M To keep temperature and aroma Tips for keeping coffee hot Pre-heat the serving station, start a brewing with only water into the serving station. When brewing is complete let it stand for about 1 hour. Pour out the water. -
Page 18: Cleaning And Care
CLEANING AND CARE ORIGINAL LINE M Rinse thermos, decanter and serving station Before each brewing, rinse the thermos, decanter or serving station with fresh tap water. When cleaning the outside, use a soft rag with liquid cleaning agent to prevent scratches. -
Page 19: Dayly Cleaning
CLEANING AND CARE ORIGINAL LINE M Dayly cleaning Wash the thermos, decanter(B) and the filter holder with liquid solution for coffee machines. Always remove the filter immediately and clean the filter holder daily, coffee will get moldy. Clean the spray nozzle(A) and the surrounding area. -
Page 20: Cleaning Serving Station
CLEANING AND CARE ORIGINAL LINE M Cleaning serving station Disassemble the level tube and clean it every week with the enclosed brush. Take off the main lid and clean the mixer tube(A). Cleaning of serving station 2.5 L Fill the serving station with hot water. ( Full IMPORTANT! brewing without coffee and filter ). -
Page 21: Possible Solution
POSSIBLE SOLUTION ORIGINAL LINE M Fault and solution IMPORTANT! All maintenance Brewing lamp and installations must be done of an authorized Switch technician. FAULT POSSIBLE SOLUTION Check plug connection to wall socket. Power switch does not light Check fuse in plug. -
Page 22: Dimension
DIMENSION ORIGINAL LINE M Model 428mm 205mm 410mm 578mm 360mm... - Page 23 DIMENSION ORIGINAL LINE M Model 595mm 205mm 410mm 428mm 578mm 360mm...
-
Page 24: Dm-4
DIMENSION ORIGINAL LINE M DM-4 Model DM-4 410mm 410mm 428mm 595mm 578mm 360mm... -
Page 25: Thermos M
DIMENSION ORIGINAL LINE M Thermos M Model Thermos M 557mm 205mm 410mm 708mm 360mm... - Page 26 DIMENSION ORIGINAL LINE M Mega Gold M Model Mega Gold M 655mm 205mm 445mm 390mm 806mm Serving Station 436mm 273mm 400mm 105mm...
-
Page 27: Thermos Office
DIMENSION ORIGINAL LINE M Thermos Office Model Thermos Office 205mm 410mm 428mm 360mm 578mm... - Page 28 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
