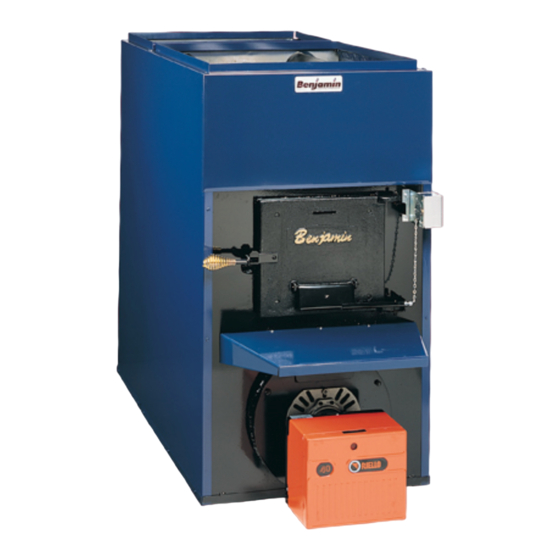

Benjamin Heating products FS140 Owner's Manual

Benjamin Heating products FS140 Owner's Manual

Heating products

Advertisement

A DIVISION OF
V/.R. BENJAMIN
PRODUCTS LIMITED
HEATING PRODUCTS
OWNERS MANUAL
MODEL
FS140
IS CERTIFIED TO:
UL391
UL727
Unit Serial #
1
CSA B140.4
CAN/CSA B366.1
CSA B212 (EEV)
Burner Serial #
Purchased From
Company Address
Name of Installer
Installer Telephone #
Date Installed
IMPORTANT
This manual must be given to the homeowner. Please read the warranty and return the warranty
card to initiate coverage.
We Strongly Recommend The Use Of A Carbon Monoxide Detector When Using Any
Product That Consumes Fossil Fuels.
It is the responsibility of the person or company installing this furnace to verify before the installation that the
furnace certifications shown on this page, meet or exceed all local, state and regulatory requirements for installation
and use of this furnace. Failure to do so voids all claims and warranties.
June 2006
Aussi disponible en Francais.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Benjamin Heating products FS140

  • Page 1 A DIVISION OF HEATING PRODUCTS V/.R. BENJAMIN PRODUCTS LIMITED OWNERS MANUAL MODEL FS140 IS CERTIFIED TO: CSA B140.4 UL391 CAN/CSA B366.1 UL727 CSA B212 (EEV) Unit Serial # Burner Serial # Purchased From Company Address Name of Installer Installer Telephone #...
  • Page 2 KEEP THIS MANUAL FOR FUTURE REFERENCE. Follow all the Instructions carefully for installation, maintenance & operation of the Benjamin Fuel Saver Combination Hot Air THE FURNACE IS SHIPPED IN TWO PACKAGES Note: The consignee is responsible for ensuring that the packages have arrived in good condition.
  • Page 3 COMBUSTION AIR To achieve satisfactory combustion, an adequate supply of fresh air is required. In confined areas, a grilled opening shall be provided. The minimum total area of openings is 2 square feet per gallon (.60m per 4.5L) of oil burnt per hour. Where fans are used in the fuel storage area, they should be installed so as not to create negative pressures in the room where the furnace is installed.
  • Page 4 MINIMUM INSTALLATION CLEARANCES FS140 CLEARANCES 18"(46cm) From Combustible Material 24"(61cm) ACCESS CLEARANCE MUST BE MAINTAINED ON THE RIGHT SIDE A 1" (2,5cm) minimum air space must be maintained under the appliance. This can be achieved by using six non-combustible blocks, a minimum of 1" (2,5cm) thick x 4" (10cm) wide x 8"...
  • Page 5 NOTE: Establish a routine for the storage of fuel, care of the appliance and firing techniques. Check daily for creosote build up until experience shows how often cleaning is necessary. Be aware that the hotter the fire, the less creosote is deposited. Weekly cleaning may be necessary in mild weather even though monthly cleaning may be enough in the colder months.
  • Page 6 INSTRUCTIONS FOR OUT OF CONTROL FIRES (Caused by excessive fueling and/or soot or creosote build up or too much draft.) 1. Close the supply of combustion air by lowering the thermostat to the minimum setting and unhook the damper motor chain. Reduce the draft by fully opening the barometric damper.
  • Page 7 TO STOP THE BURNER 1. Set the main cutout to the "OFF" position. 2. Set the thermostat as far below room temperature as possible. IF THE BURNER FAILS TO OPERATE Call a qualified service technician. The trouble may be due to: 1.
  • Page 8 OIL FILTER The cartridge should be replaced at least once a year. The filter body should be thoroughly cleaned before installing a new cartridge. LUBRICATION (MOTOR & BLOWER BEARINGS) 1. Only the motor requires lubrication. 2. Only a good grade of detergent free (#10 motor oil) automobile engine oil should be used. 3.
  • Page 9 Fan Limit Honeywell L4064B2723 Benjamin FS140 Wood / Oil Combination Blocked Flue Sensor with Riello F5 Burner Field Controls WMO-1 b = blue y = yellow Thermostat wb = white with black wy = white with yellow < Line Line In <...
  • Page 10 Fan Limit Honeywell L4064B2723 Benjamin FS140 Wood / Oil Combination Blocked Flue Sensor with Aero HF-US Burner Field Controls WMO- b = blue y = yellow Thermostat wb = white with black wy = white with yellow Line Line In <...
  • Page 11 FariTlmlt Honeywell L4064B2723 Benjamin FS140 Wood / Oil Combination Blocked Flue Sensor with Beckett AFG Burner Field Controls WMO-1 b = blue y = yellow wb = white with black wy = white with yellow < Line Line In < Neutral 120 VAC <...
  • Page 12 INSTRUCTIONS FOR REPLACEMENT, CLEANING OR REMOVAL OF ASH BAFFLE From inside the wood firebox remove two stainless steel cotter pins. The ash baffle can now be removed from the 2 support straps by pulling downward. REPLACE IF NECESSAR Y REPLACEMENT Replace ash baffle with rounded side towards the fire door and the flanges pointed up, over the two support straps, through the openings provided in the ash baffle.
  • Page 13 INSTRUCTIONS FOR CLEANING THE FS140 COMBINATION WOOD/OIL FURNACE 1. At least yearly or as necessary remove the oil combustion chamber cover, clean and service the oil burner and combustion chamber. 2. Remove ashes from the wood firebox as necessary or at least when they are level with the door frame.
  • Page 14 WOOD FURNACE OPERATING CYCLE DOWN START UP The thermostat The thermostat senses the calls for heat.. desired heat level and signals... • 20 Activates the damper motor, The damper motor allowing air into to close the the firebox.. combustion air damper, Resulting in a Resulting in a...
