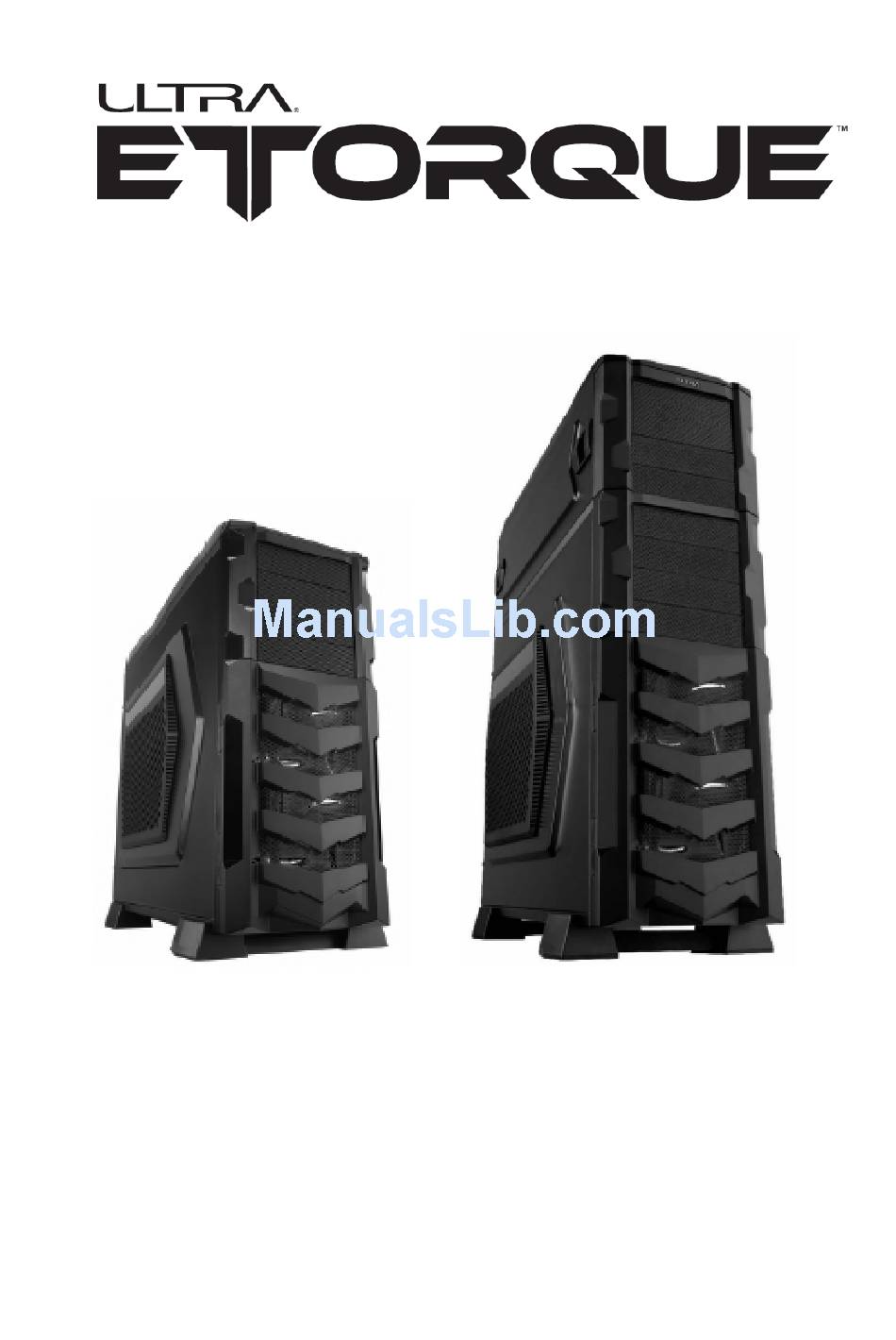

  • Page 1 X5 Full-TOWER GAMING CASE X10 Double/Full-TOWER GAMING CASE User Manual...
  • Page 2: Table Of Contents

    Contents 1.1 Specifications X5 1.2 Specifications X10 1.3 Accessory X5 & X10 1.4 Additional Accessory X10 2.1 Side Panel Disassembly 2.2 Motherboard Installation 2.3 5.25” Device Installation 2.4 External 3.5” Device Installation 9-10 2.5 2.5” HDD Installation 2.6 Power Supply Installation 2.7 Fan Installation...
  • Page 3: Specifications X5

    Chapter 1. Product Introduction 1.1 Specifications X5 230(W)x 580(H)x 605(D)mm Dimension Material SECC Front Panel:ABS + Mesh Design 5.25 '' X 4(Exposed) Device & HDD 2.5 '' X 4(Hot Swappable Tray) 3.5 '' X 6(Hot Swappable Tray) 3.5 '' X 2(Hidden)...
  • Page 4: Specifications X10

    1.2 Specifications X10 230(W)x 780(H)x 605(D)mm Dimension Material SECC Front Panel:ABS + Mesh Design 5.25 '' X 6(Exposed) Device & HDD 2.5 '' X 4(Hot Swappable Tray) 3.5 '' X 8(Hot Swappable Tray) 3.5 '' X 2(Hidden) Slot Front I/O Main Case: USB3.0×2 +USB2.0×4 + HD Audio Top System: USB2.0×2 + HD Audio LED Indicator...
  • Page 5: Accessory

    1.3 Accessory X5 & X10 - User Manual x 1 - Supporting Feet x 2 - Cable Tie x 5 - Screw Bag container the following screws: Standoff Screw Screw 5H-6#*4- 6#*6.5HCu 6*5KM 3*5KM 32PCS 32PCS 15PCS Screw Screw Supply...
  • Page 6: Side Panel Disassembly

    Chapter 2. Installation Guide 2.1 Side Panel Disassembly Remove the thumb screws from the rear side of the case and pull the side panel rearwards. To close again place the side panel into the guide rails and push it forwards with care, then screw in the two thumb screws on the rear side.
  • Page 7: Motherboard Installation

    2.2 Motherboard Installation Install the I/O panel that comes with your motherboard package. Secure the standoffs on the motherboard tray. Install the motherboard in proper location and secure it with provided screws. NOTE: CPU, RAM and any peripheral installation are not included in this manual.
  • Page 8: Device Installation

    2.3 5.25” Device Installation From the interior of the case, use a firm device of your choice to push the 5.25” drive bay cover out. Place the 5.25” device into the drive bay. Match the ODD drive holes with the drive cage. Then turn the knob clockwise to secure the drive cage.
  • Page 9: External 3.5" Device Installation

    2.4 External 3.5” Device Installation Open the front panel on the left hand side. Remove the hard drive tray by pushing the tray tab to the right to release the hard drive tray. Install hard drive by placing each individually into the hard drive tray. Secure each from the bottom of tray with the provided screws.
  • Page 10 Place the tray back into to the case and lock it in place by pushing the tray in. The rear of the hard drive will connect to the backplane. Find the 4-Pin Molex on the power supply and connect it to the backplane.
  • Page 11: Hdd Installation

    2.5 2.5” HDD Installation Remove the 2.5” SSD hard drive tray by pushing the tray tab to the right to release the tray. Place 2.5” SSD hard drive into the hard drive box. Close the box. Slide the 2.5” SSD hard drive box to the end of drive cage.
  • Page 12: Power Supply Installation

    2.6 Power Supply Installation Place the power supply in its proper location and secure it with the provided screws. Simply route the cables behind the motherboard tray and secure them with the provided cable tie. To optimize performance it is recommended that the washable dust filter underneath the power supply be cleaned on a regular basis.
  • Page 13: Fan Installation

    2.7 Fan Installation Fan Installation on the Side Panel Take out the dust filter from the side panel. Unscrew these three screws from the back of the side panel.     Pull the plastic cover backward to remove the cover  ...
  • Page 14 Install the fan on the inside of the side panel and secure it from the outside of the panel with the provided screws. Up to two 120mm or two 140mm or one 230mm (in both directions) fans can be installed on the left side panel. Pull out the washable dust filter from the side panel for regular cleaning.
  • Page 15: Fan Installation

    Bottom Fan Installation User can install 120mm x2, 140mm or 230mm x1 on the bottom panel. Top Fan Installation Remove the screws on the back of chassis and open the top panel. Install fans on the top and secure with the provided screws. Up to 120mm x3, 140mm x2 or 230mm x1 can be installed on top.
  • Page 16: Water Cooling Installation

    2.8 Water Cooling Installation The pre-drilled water cooling holes at the case rear is for installing the external water cooling system. A 360 mm radiator may be installed on the top of chassis using the pre-drilled screw holes.      ...
  • Page 17: Supporting Feet Installation

    2.9 Rubber Feet Installation Install Rubber foot on the proper position. Install supporting feet on the bottom with M4x10mm screws.
  • Page 18: Front I/O Installation Guide

    2.10 Front I/O Installation Guide X10 only: The unit comes with two sets of front ports: Front I/O ports for Top System Front I/O ports for Main Case Please refer to the following illustration of front I/O connector and your motherboard user manual.
  • Page 19: Mini Itx Installation X10

    Chapter 3. Other Installation X10 only : The full tower comes with three different rear panels to meet the user’s various needs. mini ITX back plate PSU back plate Fan back plate 3.1 Mini ITX Installation Install the I/O panel that comes with motherboard package. Install the power supply and the motherboard with the provided screws.
  • Page 21: Second Power Supply Installation X10

    3.2 Second Power Supply Installation Unscrew and remove the rear panel from the back of the case. Install the PSU back plate in the rear with the provided screws.                   Install the power supply in the top unit. Connect the two power supplies with the provided PSU switching cable.
  • Page 22 Streak Products, Inc. • www.ultraproducts.com © 2013 Streak Products, Inc. Ultra® is a registered trademark and Ultra ETORQUE™ is a trademark of Streak Products, Inc. 8300 West Flagler Street, #121-106, Miami, FL 33144 All other trademarks listed are the property of their respective owners.
