Summary of Contents for STARVILLE DJ-X 16

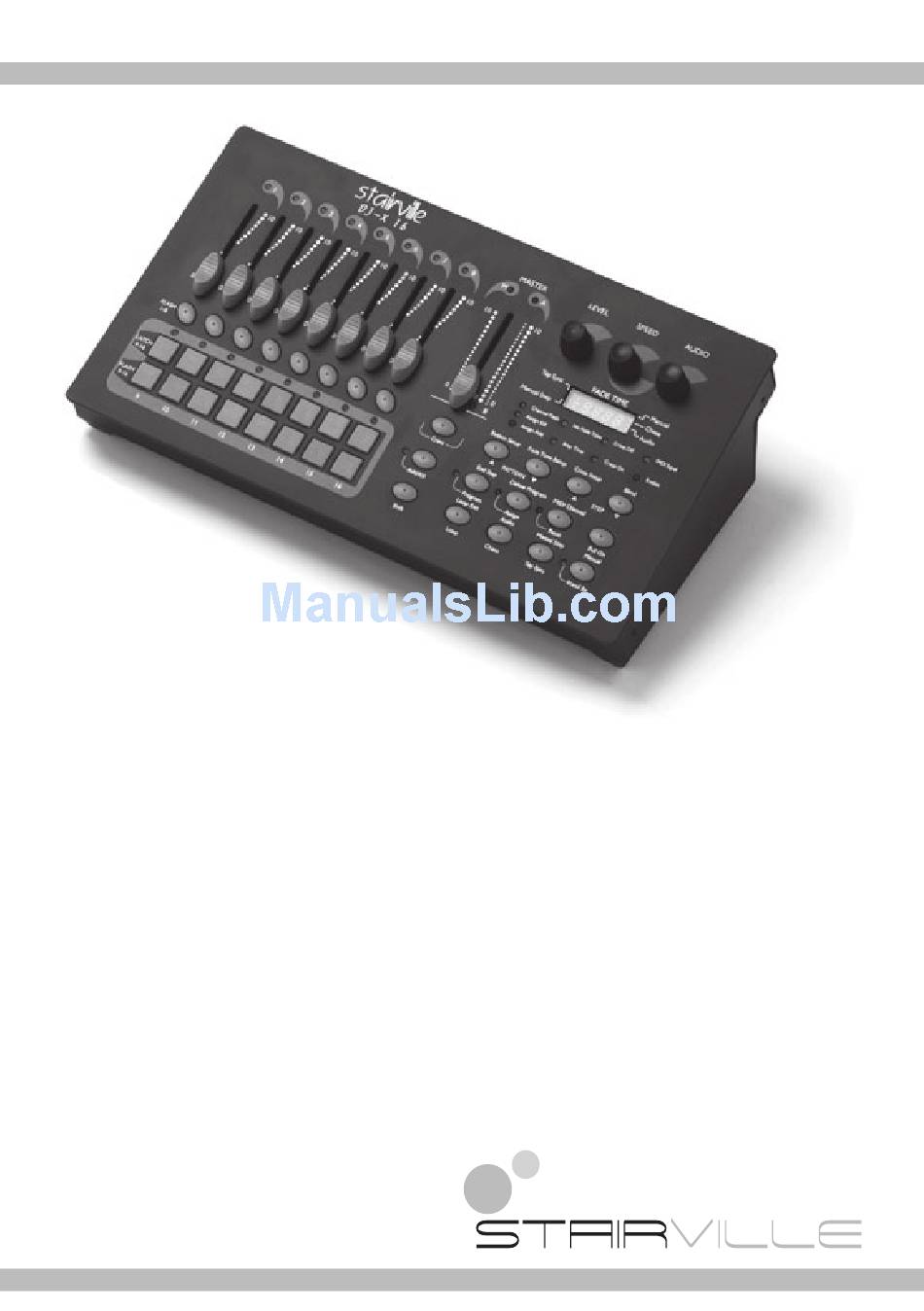

- Page 1 DJ-X 16 Owner‘s Manual DMX CONTROLLER www.thomann.de...
-
Page 2: Safety Instruction
To eliminate the risk of fire you must completely disconnect the mains adaptor from the power socket after the device has been used. STAIRVILLE • DJ-X 16 DMX CONTROLLER... - Page 3 Always grasp the mains adaptor by the plug. Do not pull on the adaptor cord and never touch the mains adaptor with wet hands as this could result in a short circuit or an electrical shock. Do not place the device, speaker cabinets or anything else on the adaptor cord and make sure that it does not become clamped.
-
Page 4: Control Elements
Introduction The DJ-X 16 is a 16 channel programming console with MIDI & DMX interface. The DJ-X 16 features include: 60 built-in patterns & 30 variable programs with max. 99 steps, MANUAL/AUTO/AUDIO/TAP SYNC/CROSS modes. Specially, the DJ-X 16 is equipped with PEROM to guarantee data security. - Page 5 are executed step by step by moving the MASTER fader. 6. M indicator Indicating the MASTER status for faders 1 to 7. A & B indicators Indicating the MASTER status of two neighbouring steps in cross mode. 8. LEVEL knob This knob functions as a master for the pattern in chase mode.
- Page 6 30 variable patterns (1-30) are ready to be programmed, each containing a maximum of 99 steps. Press this button to store your setting as one step. The LCD shows the next step to be programmed. STAIRVILLE • DJ-X 16 DMX CONTROLLER...
- Page 7 SHIFT + END STEP button: IN PROGRAM mode, pressing SHIFT + END STEP together sets the present step as the last step 19. ASSIGN button Press this button for more than one second to enter ASSIGN mode. The indicator close to it is lit.
- Page 8 FLASH button level remains. SHIFT + MANUAL button: Press SHIFT + MANUAL together to enter MANUAL mode, the status LED “Manual” is lit and the LCD shows the MASTER fader with 000 to 100. STAIRVILLE • DJ-X 16 DMX CONTROLLER...
-
Page 9: Foot Control
On rear panel 1. DC input DC 12 V-20 V, 250 mA min., connect to AC outlet via AC/DC adaptor provided. 2. POWER switch Press to turn the power no/off. 3. DMX polarity selector Slide to select the polarity arrangement for DMX output. -
Page 10: Midi Setting
4. The patterns turned on by MIDI are not controlled by LEVEL knob and not shown in the LCD. All turned on patterns are executed synchronously and the terminal level is synchronised by the levels of the turned on patterns. STAIRVILLE • DJ-X 16 DMX CONTROLLER... -
Page 11: Run Pattern
You may only connect the device to a properly wired and earthed mains power wall outlet, after all connections have been established. The wall outlet must provide the correct mains voltage as stated in this manual. You may run the DJ-X 16 only using the mains adaptor provided. 1. RUN PATTERN A. -
Page 12: Technical Specifications
Have the product disposed of by a professional disposal company of by your communal disposal facility. Observe the currently applicable regulations. In case of doubt contact your disposal facility. Dispose of packaging materials in an environmentally responsible manner. STAIRVILLE • DJ-X 16 DMX CONTROLLER... - Page 13 www.thomann.de...
- Page 14 STAIRVILLE • DJ-X 16 DMX CONTROLLER...
- Page 15 www.thomann.de...
- Page 16 © 2011 • Musikhaus Thomann e. K. • Treppendorf 30 • 96138 Burgebrach • Germany • www.thomann.de...
