Please read safety instructions before operating this amplifier!

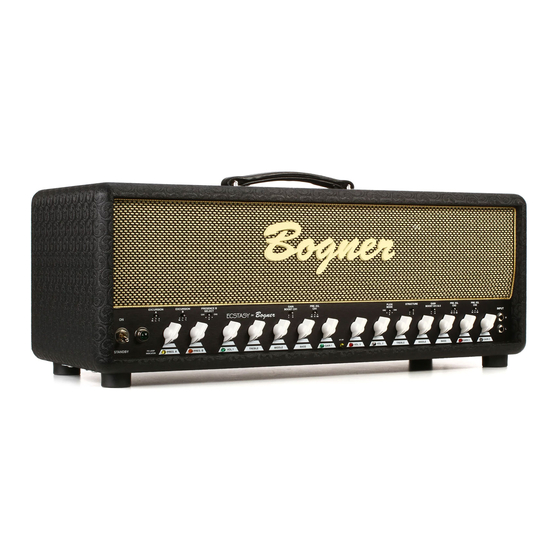

Thank you for purchasing the Ecstasy 101B. As modern guitar amplifiers go, the Ecstasy is not the least
expensive, so we assume that you've listened very carefully to other amplifiers available on the market
and we agree with you! The Ecstasy combines the sonic characteristics of the best modern and vintage
amps, while offering you the technological advances you've come to expect from Bogner. This manual
was designed to help you get the most from your new Bogner. We have included some tips & uses you
might not have thought of, so please take a few minutes to read it. Of course, please feel free to call your
Bogner dealer anytime you have questions. The Ecstasy was designed with simplicity & usability in mind.
It was built with the finest materials the world has to offer so with just a tube change and a biasing every
once in a while, the Bogner Ecstasy should provide you with the most wonderful sound for many, many
years to come.
Features:
3 channel all tube design
•
Ch1: gain, bass, middle, treble and volume control
•
Ch1: 3 position pre eq and gain boost
•
Ch2: gain, volume and 3 position pre eq
•
Ch3: gain, volume and 3 position pre eq
•
Ch2 & 3: common bass, middle and treble controls
•
Ch2 & 3: common gain-structure, gain boost and plexi mode switch
•
Tube buffered effects loop, series or parallel (mix control) mode, master volume
•
Dual assignable presence controls with excursion switches for loose and tight feel
•
Half power & old/new style switch (cuts power from full to about 25 watts)
•
Functions on foot controller: ch1, ch2, ch3, boost 1, boost 2, fx loop, stand-by mute
•
Options:
120W EL34, 100W 6L6 or 45W 6V6 power amp
•
Class A/AB mode switch, cuts power further
•
Individual line-out controls for each channel (standard one common control)
•
Metal Grill (not available on 20thA)
•
Classic Circuit (discontinued)
•
20thA Circuit (6L6 standard), gold plexi front panel and larger head shell
•
DIMENSIONS and WEIGHTS: Are subject to change anytime, Please measure your amp carefully if a Custom
Case is being made. Add ¾ inch for each, handle and rubber feet.
Head:
9.50"
H
20thA Head:
10.25" H
BOGNER AMPLIFICATION
Ecstasy User Manual
27.25" W
10.25" D
29.75" W
10.50" D
46 pounds
51 pounds
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Bogner Ecstasy 101B
- Page 1 Bogner. This manual was designed to help you get the most from your new Bogner. We have included some tips & uses you might not have thought of, so please take a few minutes to read it. Of course, please feel free to call your Bogner dealer anytime you have questions.
- Page 2 Channels 2 and 3 have Gain, Treble, Middle, Bass and Volume controls as does Channel 1. Of course, 2 and 3 have the crunch and soaring gain that made Bogner famous. As with Channel 1, you'll find 3 position Pre EQ switches. Though Channels 2 and 3 share Bass, Middle, and Treble controls, the Pre EQ switches allow you to "voice"...
- Page 3 Class "A" mode. Many old amps which are highly prized and very collectable use Class A operation. Class A is a very inefficient, yet incredibly sweet sounding way to run a power section. >>> BOGNER AMPLIFICATION...
- Page 4 Notice next to the line out jack there is a Trim pot (optional individual for each channel) and three push buttons, "Ch.1 Ch.2 Ch.3". The buttons will switch channels if you are without your footswitch or Medusa. The trim pot is a line out level control. This gives you the ultimate flexibility for slaving. >>> BOGNER AMPLIFICATION...
- Page 5 There you have it! It’s all up to you now, be creative and push your musical imagination… Be sure to visit our website at: bogneramplification.com BOGNER AMPLIFICATION...
